RC Fortschritt e 301 self-propelled mower 3D print model

...Fixed errors in several files, added reflectors...

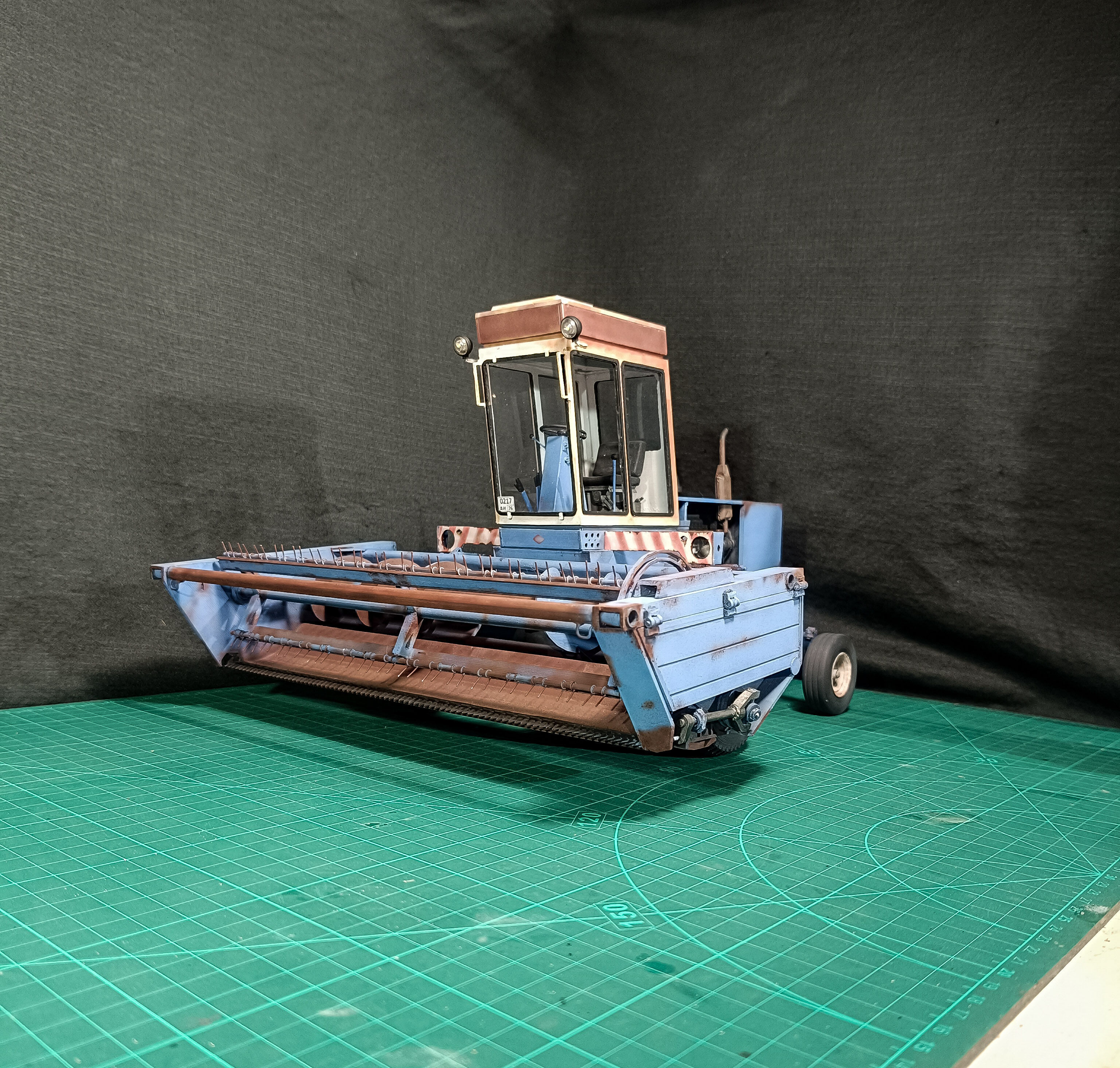

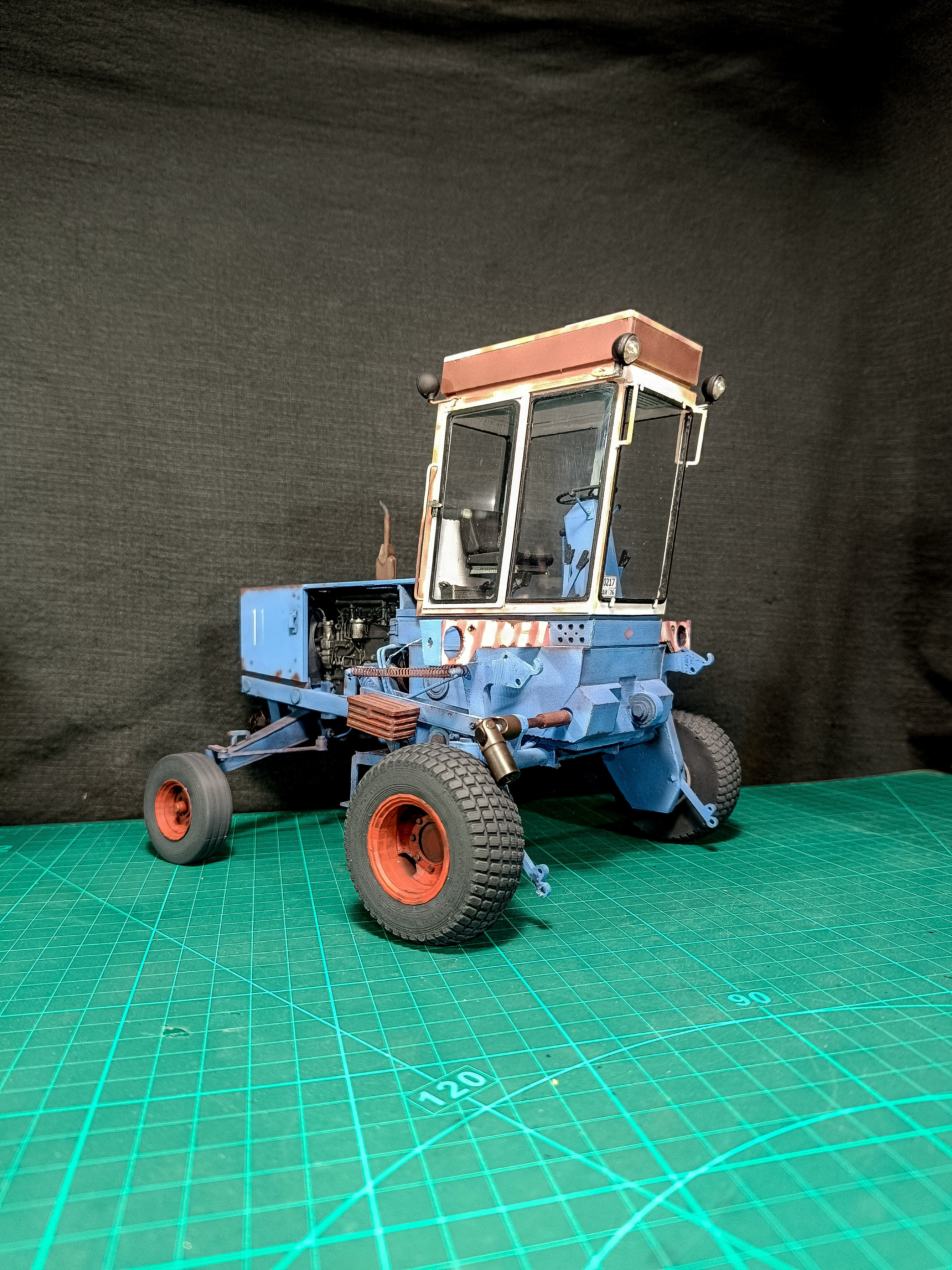

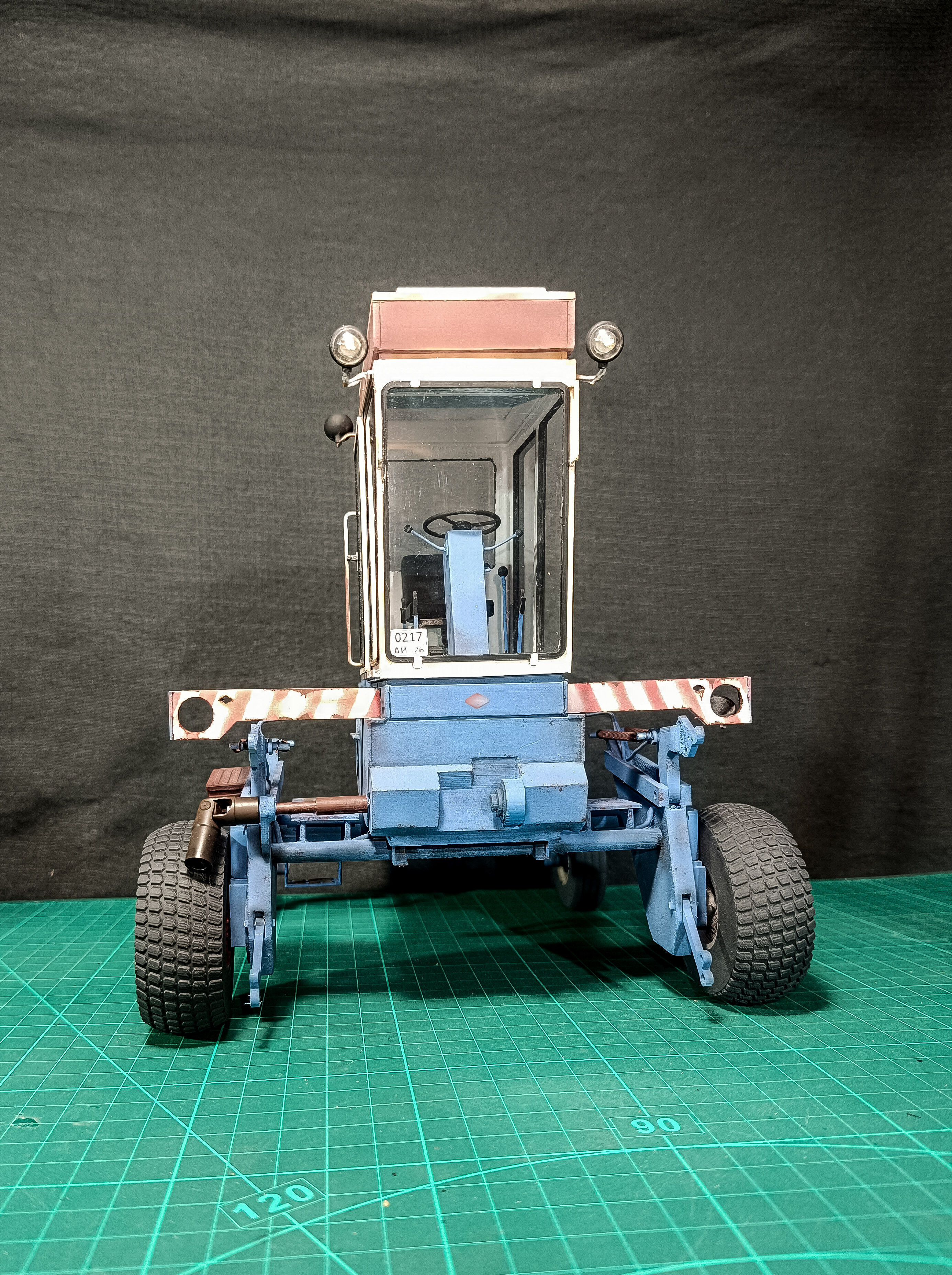

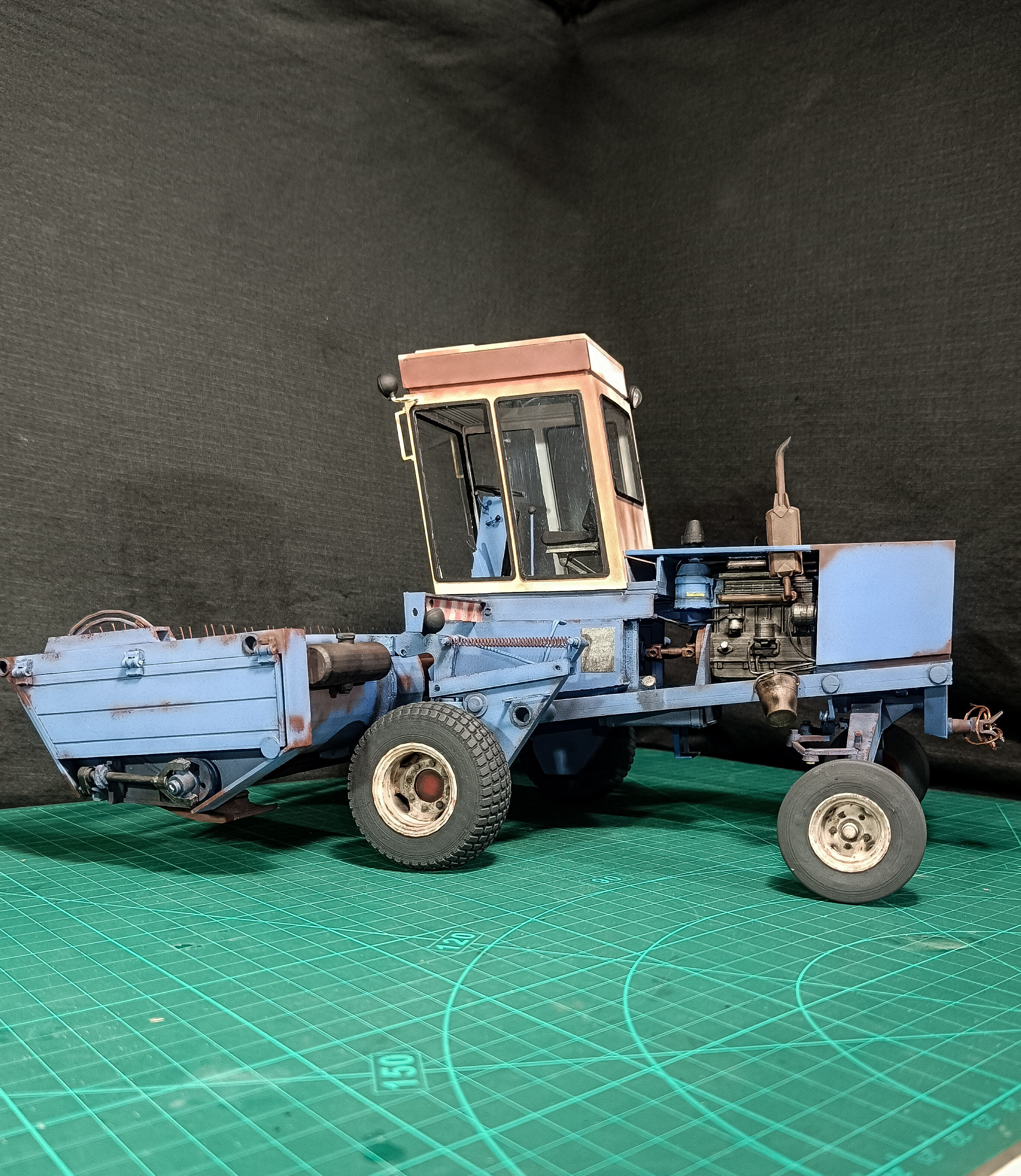

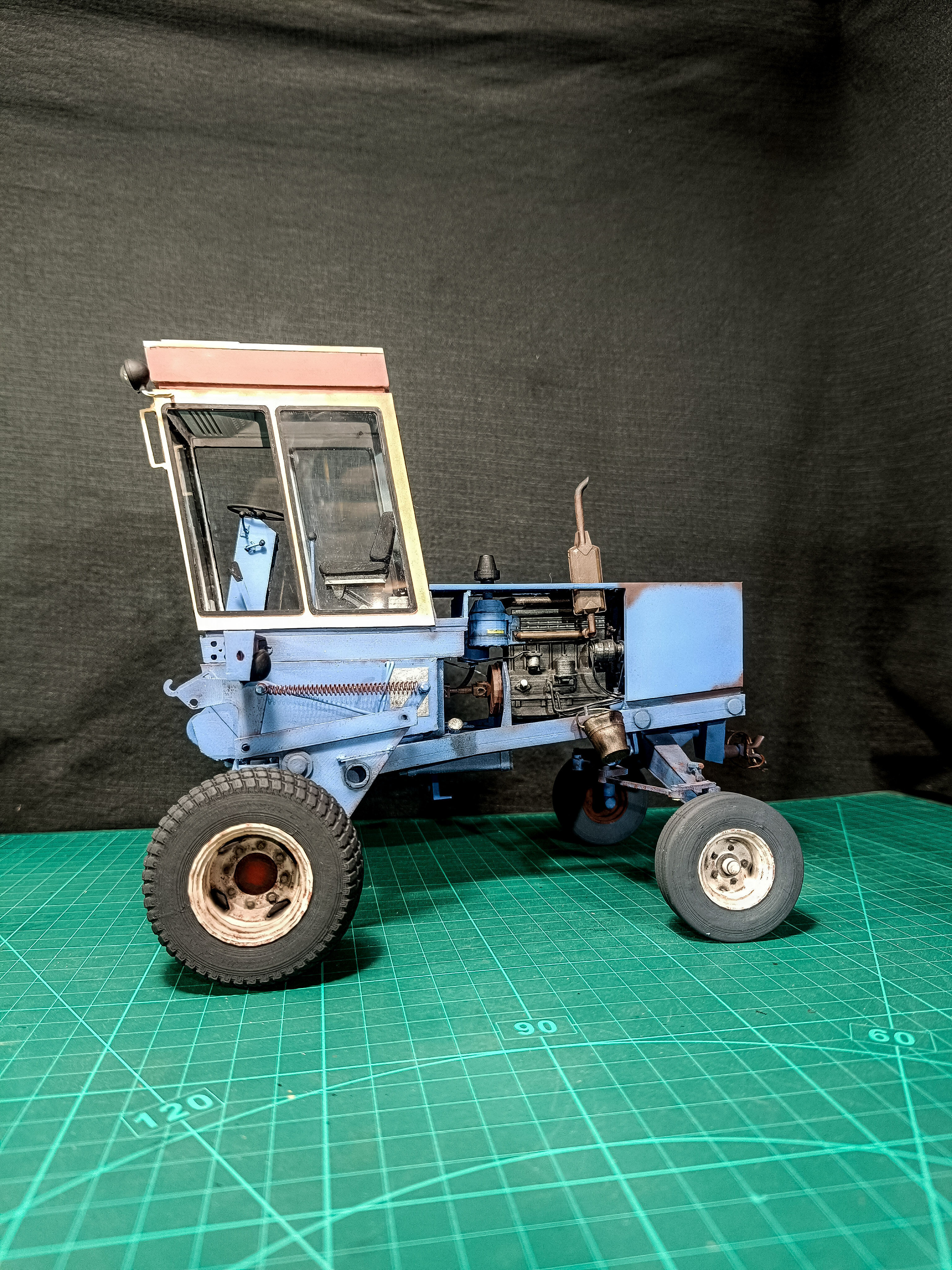

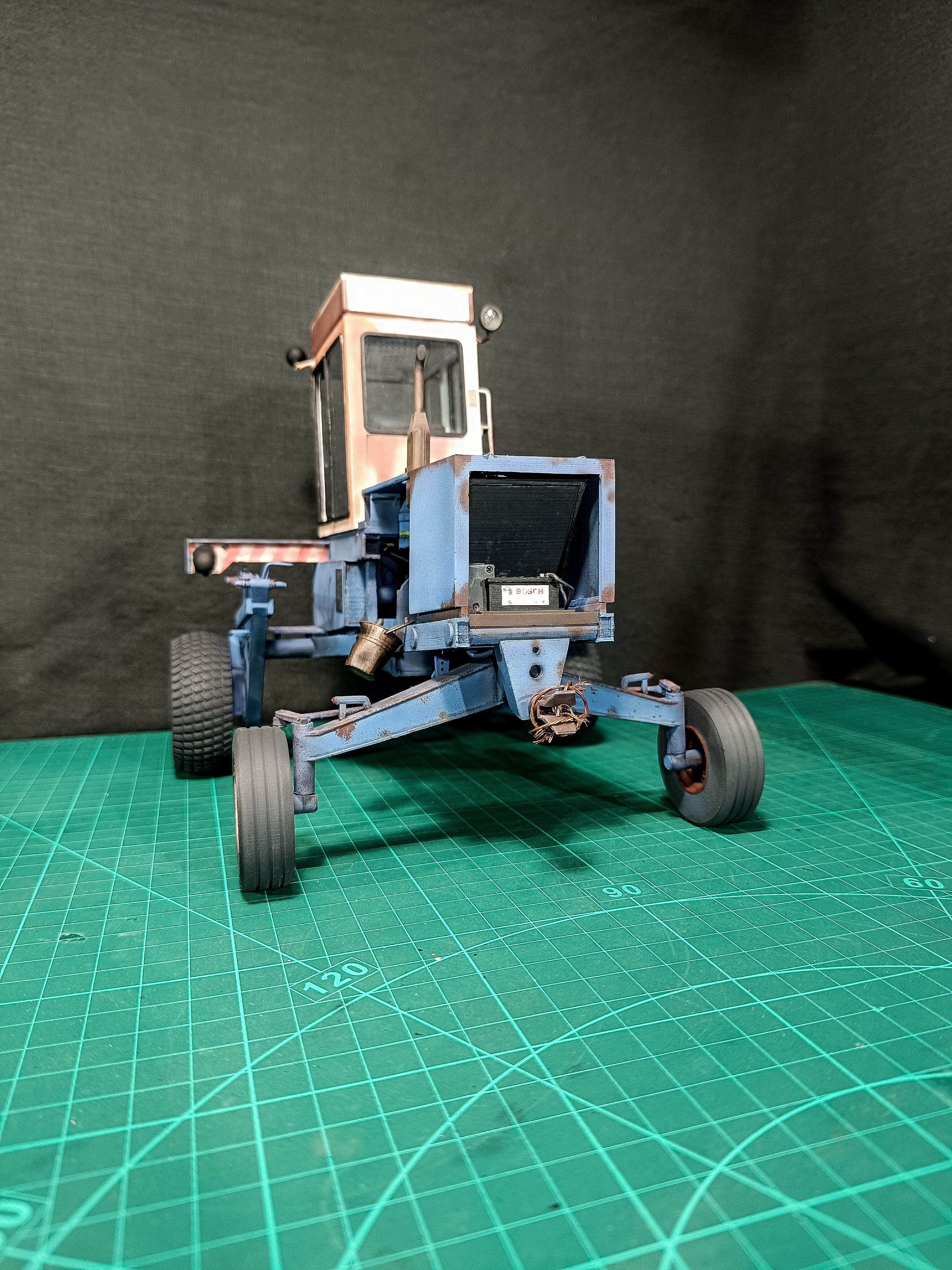

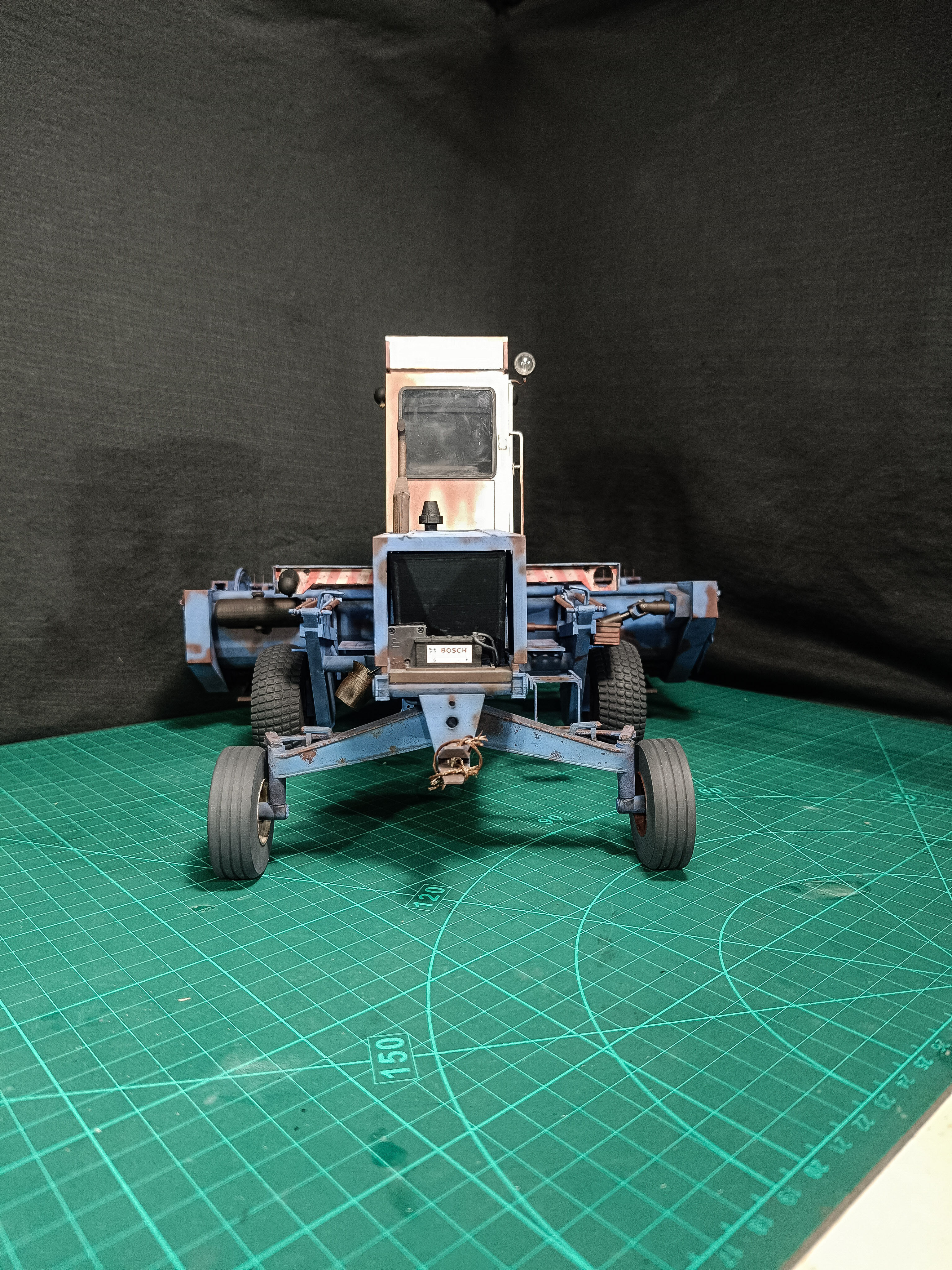

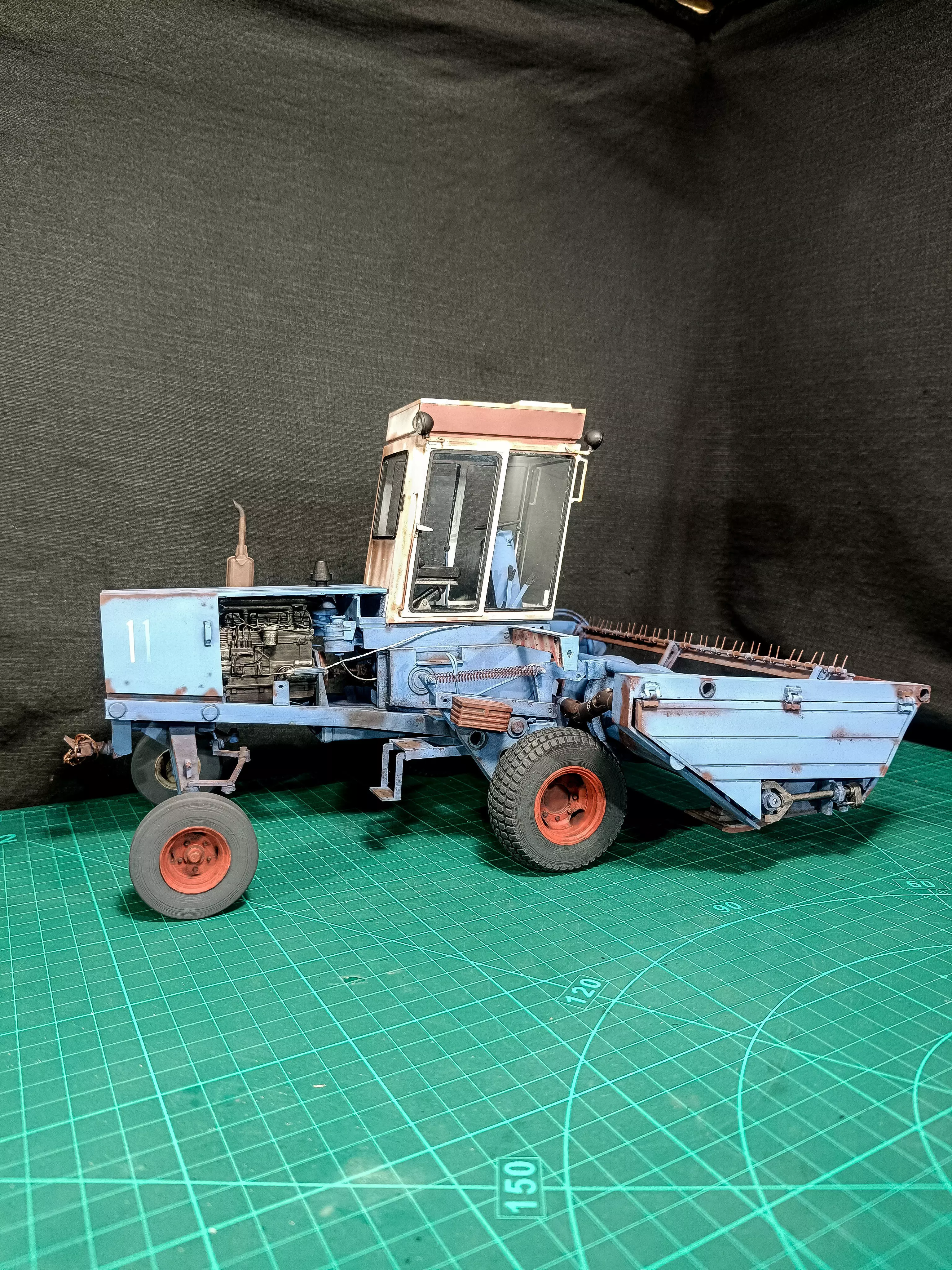

The radio-controlled model of the Fortschritt e301 mower with a D-243 diesel engine is made on a 1/18 scale. When designing this model, special attention was paid to the engine and mechanical components.

The archive contains:

self-propelled part

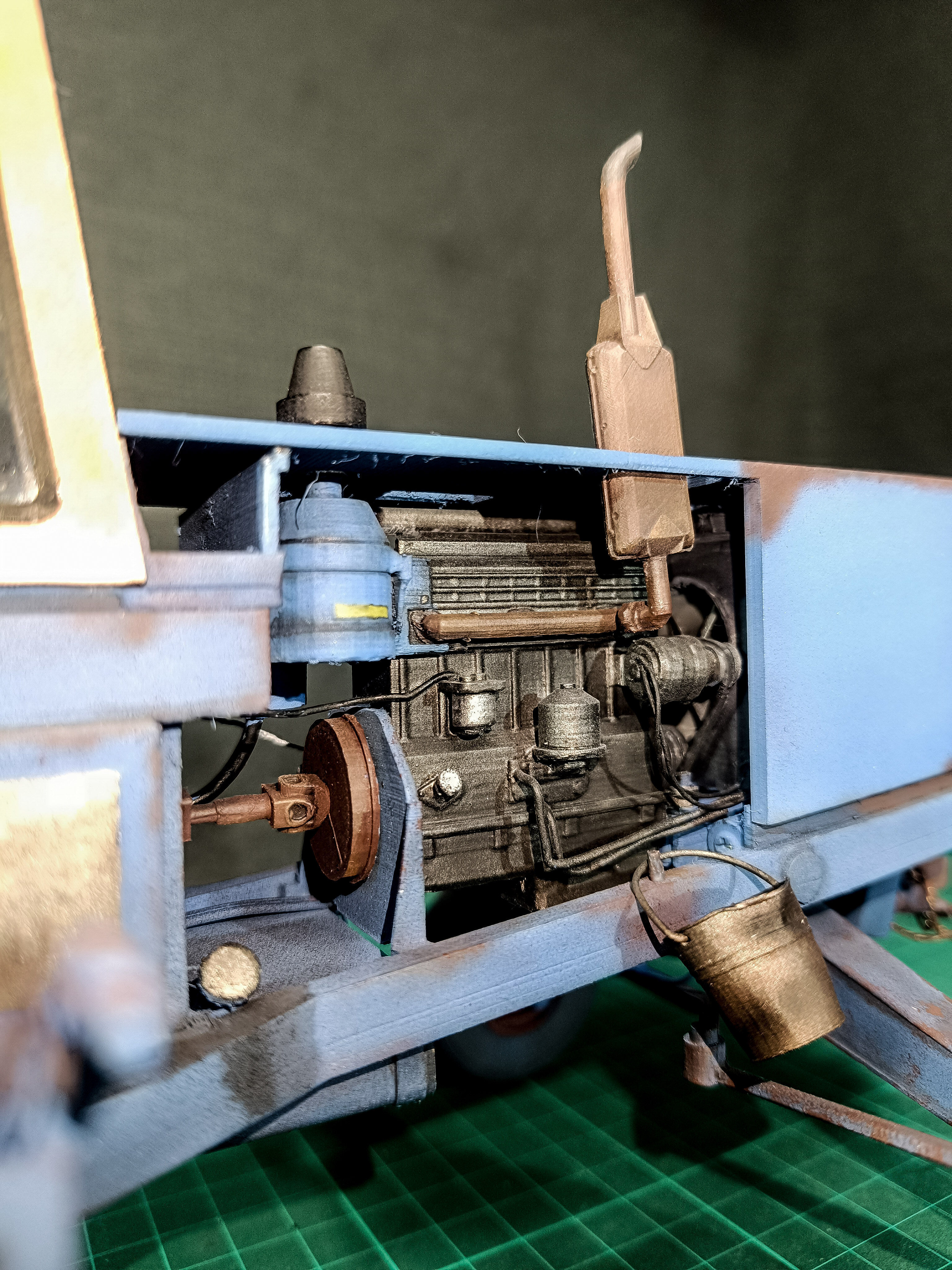

engine d-243

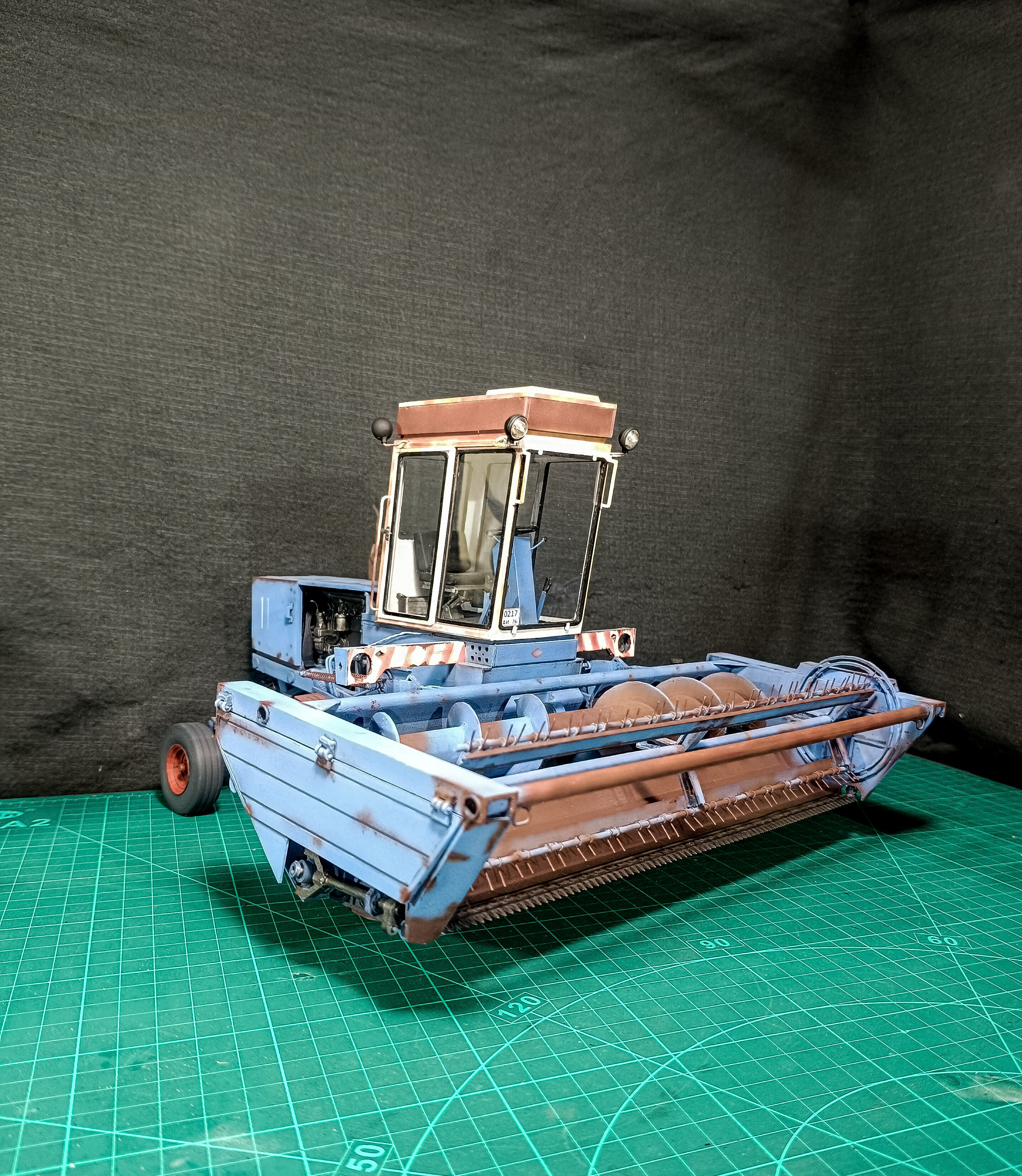

reaper

additions in the form of tools, an additional water tank, tool boxes

Moving parts:

sliding door moves

the rear beam moves and copies the surface topography

all pulleys, a cooling fan and a flywheel with a propeller shaft are movable in the engine

the header lifting mechanism operates due to clamps (raises/lowers manually)

working headlights, there are connectors for turn signals

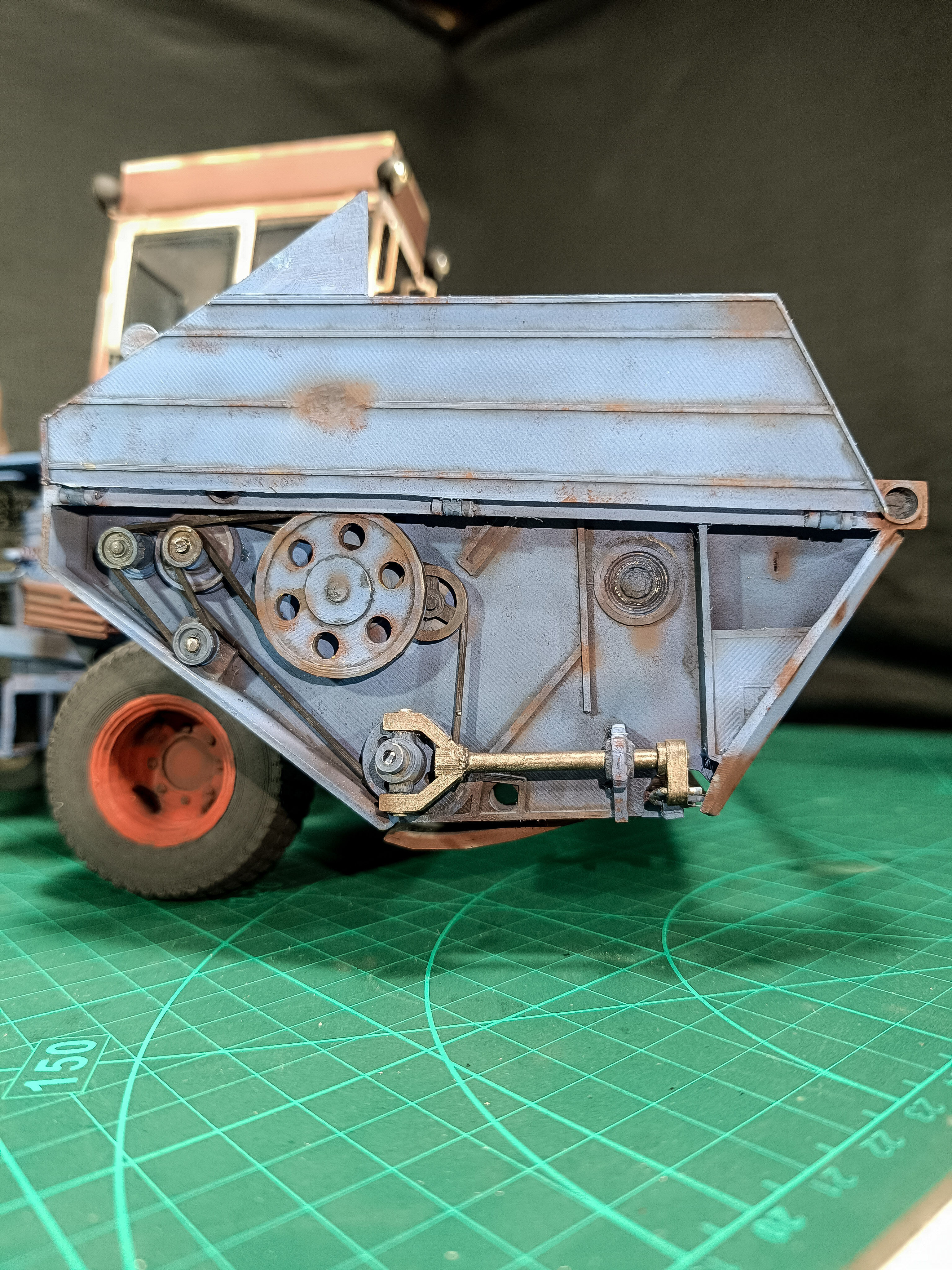

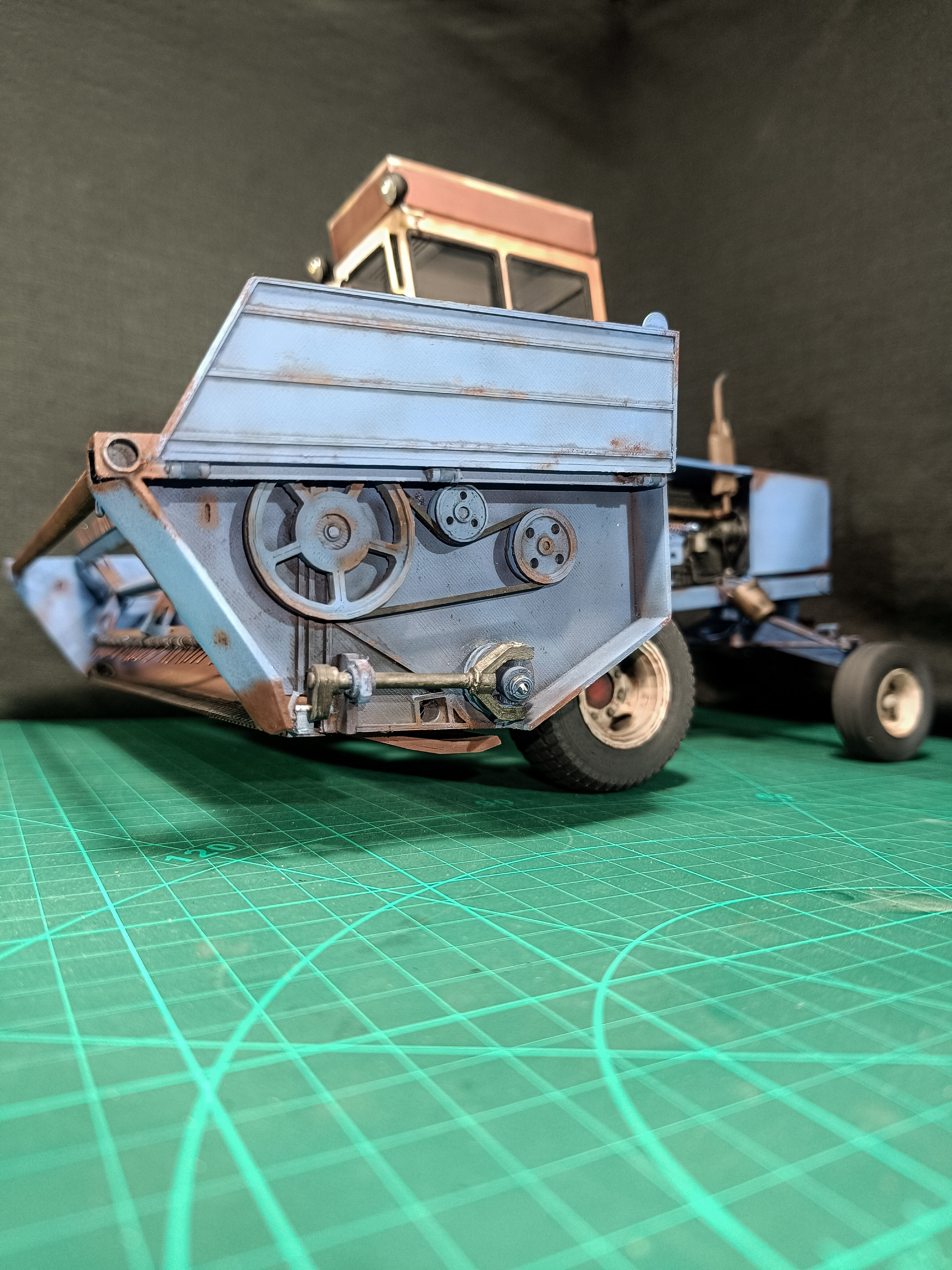

fully working header. Pulleys, auger, reel, connecting rods, braid - everything works as in the original

To assemble the model you will need:

10 bearings mr 105 (5x10x4)

4 geared motor N20 (for engine GA12N 20 6V at 500 RPM; for onboard 2 geared motors N20 Single Shaft 6V 68RPM; for header drive N20 Single Shaft 95-381 RPM 12V (possibly more powerful at a higher number of revolutions)

belts 1x1mm

copper wire with a diameter of 0.6 mm

copper wire with a diameter of 1 mm

steel rods with a diameter of 2mm

6 springs (rod diameter 0.3mm), spring outer diameter 3mm

servo drive SG90

steel rod for PTO with a diameter of 2.9mm and a length of 31mm

8 magnets with a diameter of 3mm and a thickness of 2mm

steel rods with a diameter of 2.9mm and a length of 34mm (2 pieces for connecting rods)

steel rod with a diameter of 2.9mm and a length of 243mm

cardan WPL

3D printing settingslayer height 0.1mm

100% filling

airflow 40%

material PET-G

for TPU tires
