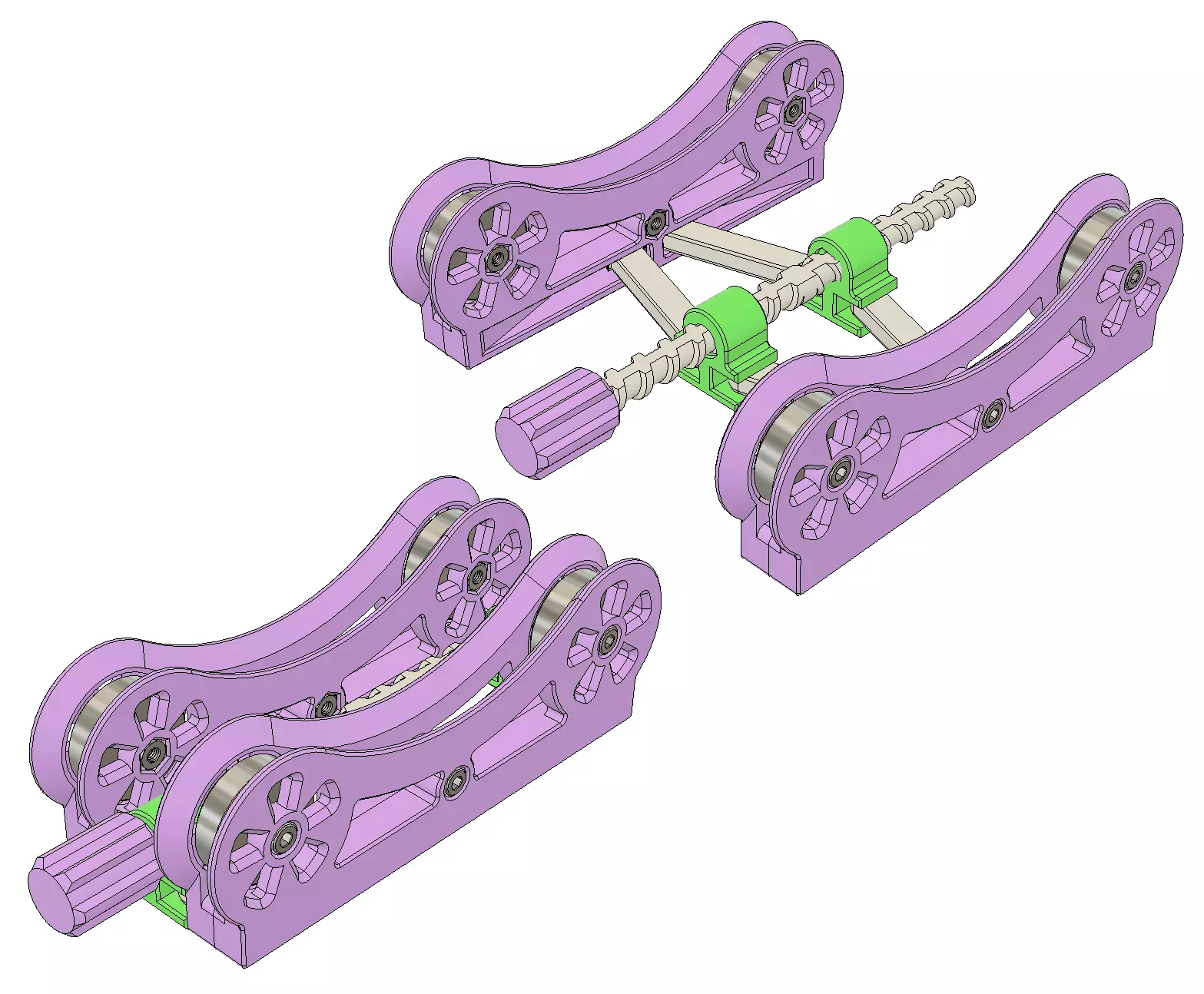

Jack Spool Holder

Compact and adjustable filament spool holder for various spool widths, from 35 up to 105 mm.

Print settings:

  • Material: PLA (screw), PET-G (other)
  • Layer height: 0.25 mm
  • Line width: 0.45
  • Wall line count: 2
  • Top/Bottom layers: 3
  • Infill: 15-25%
  • Speed: 'Arm L/R', 'Nut L/R' and 'Screw' - 15mm/s, other parts - 50 mm/s

Hardware:

  • Bearing 608z / 608zz (22x8x7mm) - 4 pcs
  • M3x12 hex bolt - 6 pcs
  • M3 nut - 6 pcs

Printing:

  1. Print 'Half in' and 'Half out' twice
  2. Print 'Arm L' and 'Arm R' twice
  3. Print the remaining parts once

Post processing:

  1. Remove artificial bridges in holes of 'Half in/out' with 3.5 mm drill bit
  2. If necessary enlarge holes in 'Arm L/R' and 'Nut L/R' with 2 mm (ideally 1.75 mm) drill bit to fit hinge pins made of 1.75 filament string

Assembly:

  1. Put two bearings into pins of 'Half out' part
  2. Cover bearings with 'Half in' part
  3. Screw both halves with three M3 bolts and M3 nuts
  4. Insert 'Arm L' and 'Arm R' into inner slot wide open
  5. Secure arms with 8 mm pins made of filament (slide in filament and cut it with flush cutters - see photo)
  6. Repeat steps 1-5 for the second side of spool holder
  7. Screw 'Nut L' and 'Nut R' onto 'Screw' so that they remain the same distance from the middle of the screw
  8. Put 'Knob' on screw
  9. Connect arms with nuts and secure them with 8 mm pins made of filament
  10. Optionally use a drop of super glue or soldering iron to keep pins in place
  11. Optionally add damper pads to the bottom of spool holder to prevent it from sliding
