Corex foldabe spool holder

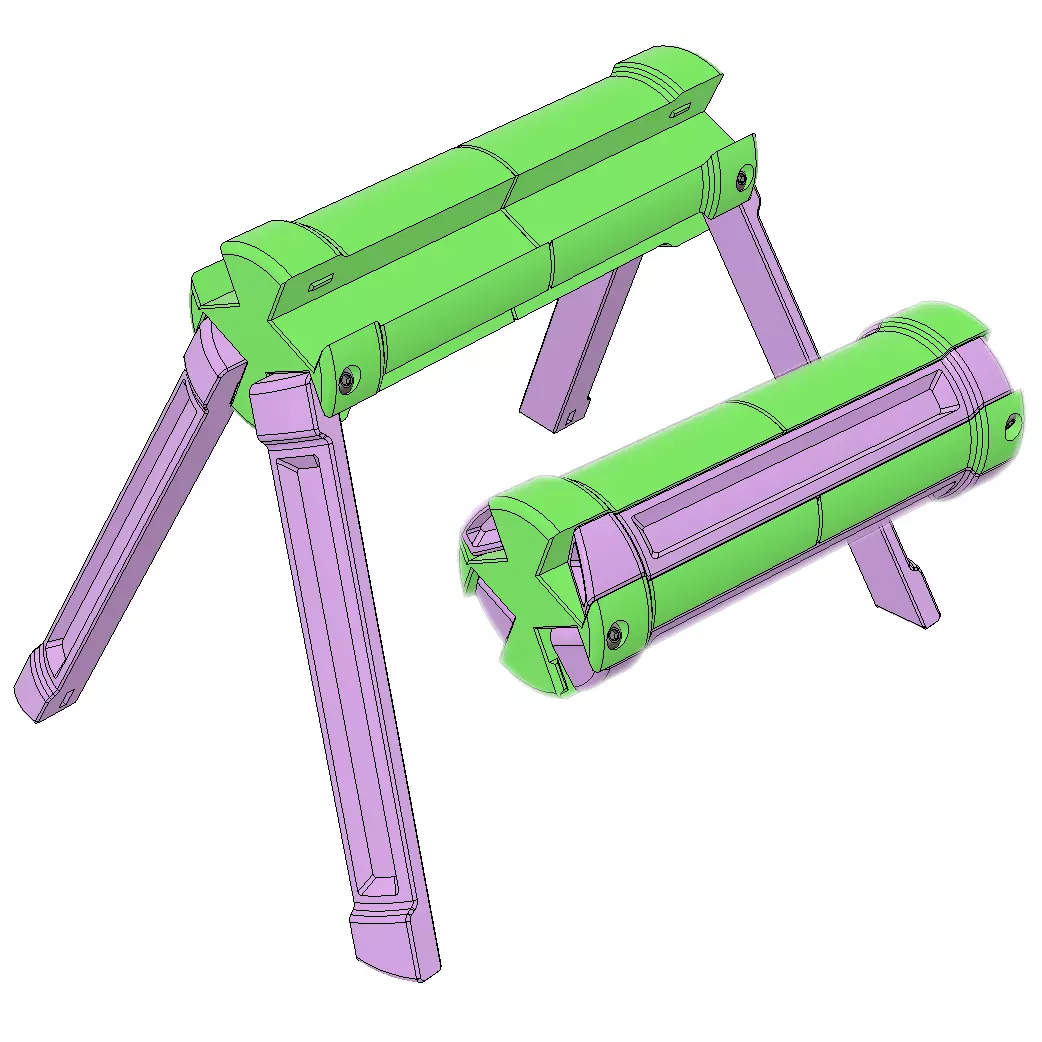

Compact and foldable filament spool holder for spools with inner diameter of min 40 mm and outer diameter up to 205 mm. Dimensions only 132.5 x 44 mm

Print settings:

• Material: PETG
• Layer height: 0.20 - 0.25 mm
• Line width: 0.5
• Wall line count: 2
• Top/Bottom layers: 3
• Infill: 20%

Hardware:

• Bolt M3x20 - 4 pcs

Printing:

• Print 'Core', 'Leg A' and 'Leg B' twice
• Print 'Link' once

Post processing:

• If necessary enlarge holes in 'Leg A' and 'Leg B' with 3.5 mm drill bit to easily fit M3 bolt acting as hinge pin.

Assembly:

1. Insert 'Leg A' and 'Leg B' in matching hinge slots of 'Core' and secure with M3x20 bolts
2. Slide 'Link into 'Core' and turn by 90 deg
3. Slide other end of 'Link' into second 'Core' and turn it by 90 deg
