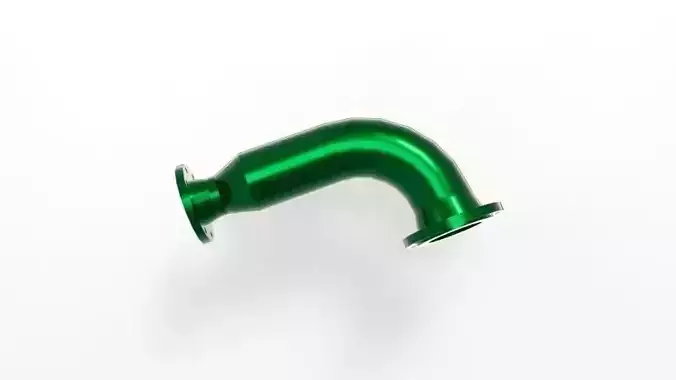

Flanged offset elbow

Flanged offset elbow 3D print model

Description

A flanged offset elbow is a specialized pipe fitting designed to change both the direction and alignment of piping systems while providing flanged ends for secure bolted connections. Unlike a standard elbow that only redirects flow at an angle (typically 45° or 90°), an offset elbow also shifts the pipeline laterally or vertically, helping to navigate around structural obstacles or equipment. Commonly made from steel, stainless steel, or PVC, these components are widely used in industrial piping, HVAC systems, chemical plants, and other applications requiring precise alignment and robust joint integrity.

Item rating
0 0
Flanged offset elbow
$10.00

Royalty Free No Ai License
Flanged offset elbow
$10.00

Royalty Free No Ai License
Response - % in - h

3D Model formats

Format limitations
  • Other 1.03 MB
  • Stereolithography (.stl)587 KB

3D Model details

  • Ready for 3D Printing
  • Publish date2025-07-10
  • Model ID#6280814
