3D Printable Iris mechanism-3DP2BLROD40A

3D Printable Iris mechanism-3DP2BLROD40A 3D print model

Description

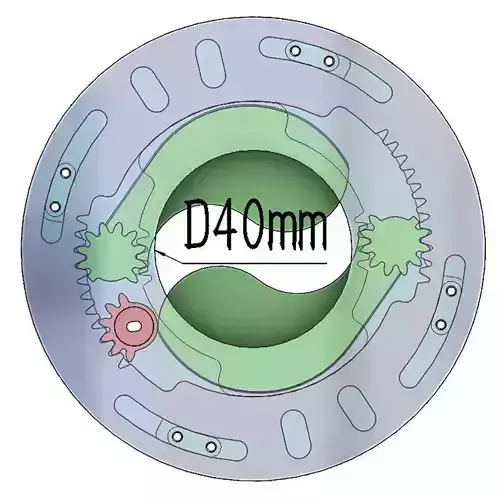

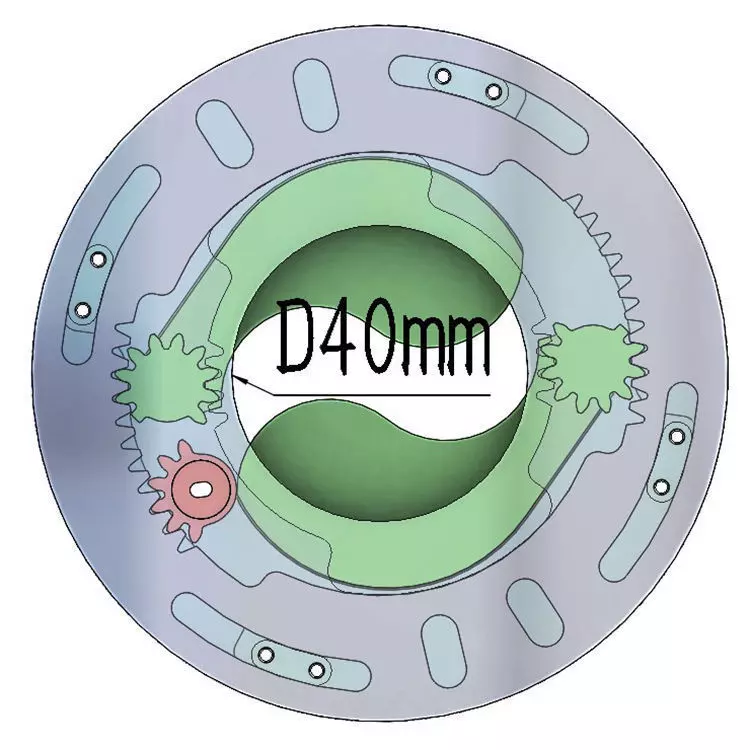

Iris mechanism or taiji mechanism designed for 3d print. There are 2 leaves. Then you rotate the Drive Partor the middle plate, the center hole can open or close gradually. The center hole is diameter 40mm, the outer size is diameter 94mm and thickness is 8.2mm. To assemble the parts togther,some M2 screws are needed. Parts are designed for 3d printing. It is best to use resin material when 3d printing. And you may need to sand some parts due to the 3d printing quality. Parts should be printed separately and then assembled together. The FBX and OBJ format files can be deleted,they are only for cgtrader's requirement.

Item rating
0 0
3D Printable Iris mechanism-3DP2BLROD40A
$5.90

Royalty Free License
3D Printable Iris mechanism-3DP2BLROD40A
$5.90

Royalty Free License
Response 100% in 2.8h
3D Modeling
3D Print Modeling
Low-poly Modeling
3D Scanning
Hire me

3D Model formats

Format limitations
  • Stereolithography (.stl) (5 files)4.55 MB
  • PDF (.pdf) (2 files)1.15 MB
  • OBJ (.obj, .mtl)539 KB
  • Autodesk FBX (.fbx)539 KB

3D Model details

  • Publish date2022-01-03
  • Model ID#3487873
  • Ready for 3D Printing
