This is a fan made replica model, and neither myself nor this product is affiliated with Microsoft or 343 industries.

3d file in .stl format for 3d printing with all added detail from game textures and cinematic cutscenes.

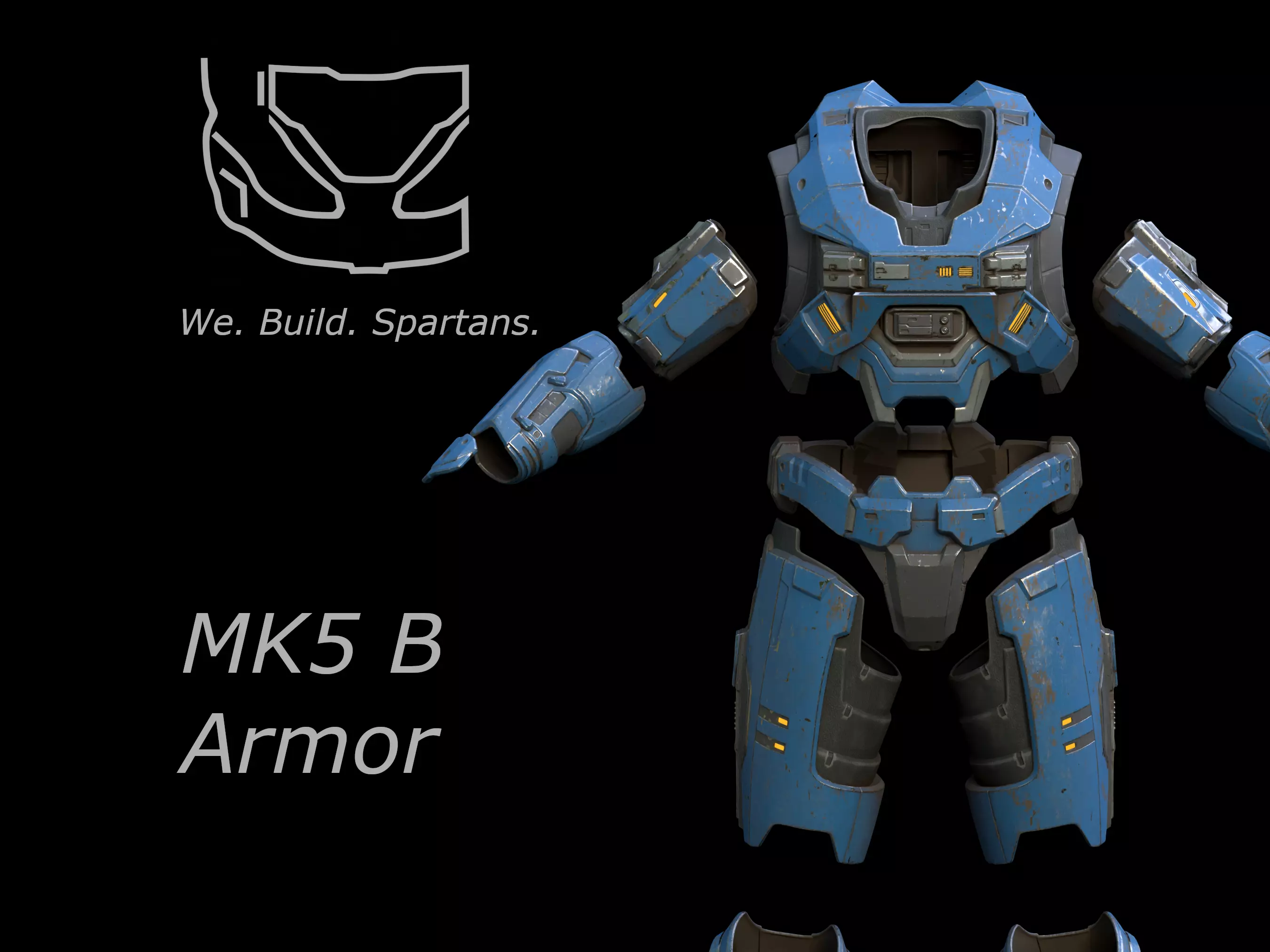

Includes three file packs with armor for chest front and back, chest rig back strap guides, chest rig details, chest inner, chest inner seals, chest lights (to be printed in something transparent), cod back, mid back, mid, mid front, front, bicep L for undersuit and without undersuit, bicep light, forearm split, hand armor, boot armor, shin, thigh lights, thigh solid and split. I am also including the fj para knee, undersuit file for pepakura, as well as thigh design for pepakura.

The chest of the suit follows along with the design of the mk6, having a middle core everything will attach onto. It is recommended to make the core out of eva foam and glue/attach onto the chest back. Both have slots on the top, back, and bottom for 1.5in straps to slide through and attach together (like a backpack). The front of the chest slides on with friction mounts, but can be sanded down to install 6, 1/2in x 1.8in neodymium magnets on the back and 6 on the front. There are also slots for two 80mm fans, sections to install lights, and slots for wires and batteries.

The bicep has two versions, one keeps the original look, while the other is more for aligning with the undersuit, or just to have more shoulder/arm room.

The forearm separates in the front with a total of 4 of the same magnets as are in the chest, allowing the users hand to more easily slide through.

The cod is fully segmented and each part aligns together, having a 1.5inch slot run through them all for a strap/belt to slide through. The thigh comes either as a fully solid version, or a separated version to be used with the thigh undersuit print file in something flexable, or foam with the undersuit files for pepakura.

Armor files are scaled for a 5ft 10in individual, but highly recommended to re-scale each piece corresponding to your specific needs.

Feel free to message me directly if you have any questions. Printer too small? I would recommend a slicer software for your printer, PrusaSlicer is free and easy to use. It can cut your model into smaller bits as well as any filament or printer tweaks before you print.

Interested in printing and selling my designs for your business? Business use Patreon membership is available, note this only gives access to sell physical prints while the membership is held, no digital file selling is allowed.
