Scale: H0e (1/87) N-scale track gauge 9mm (750mm in reality) + the model frame width is for the H0 axis

Size: x: 102,5 mm; Y: 25 mm; Z = 9,3 mm

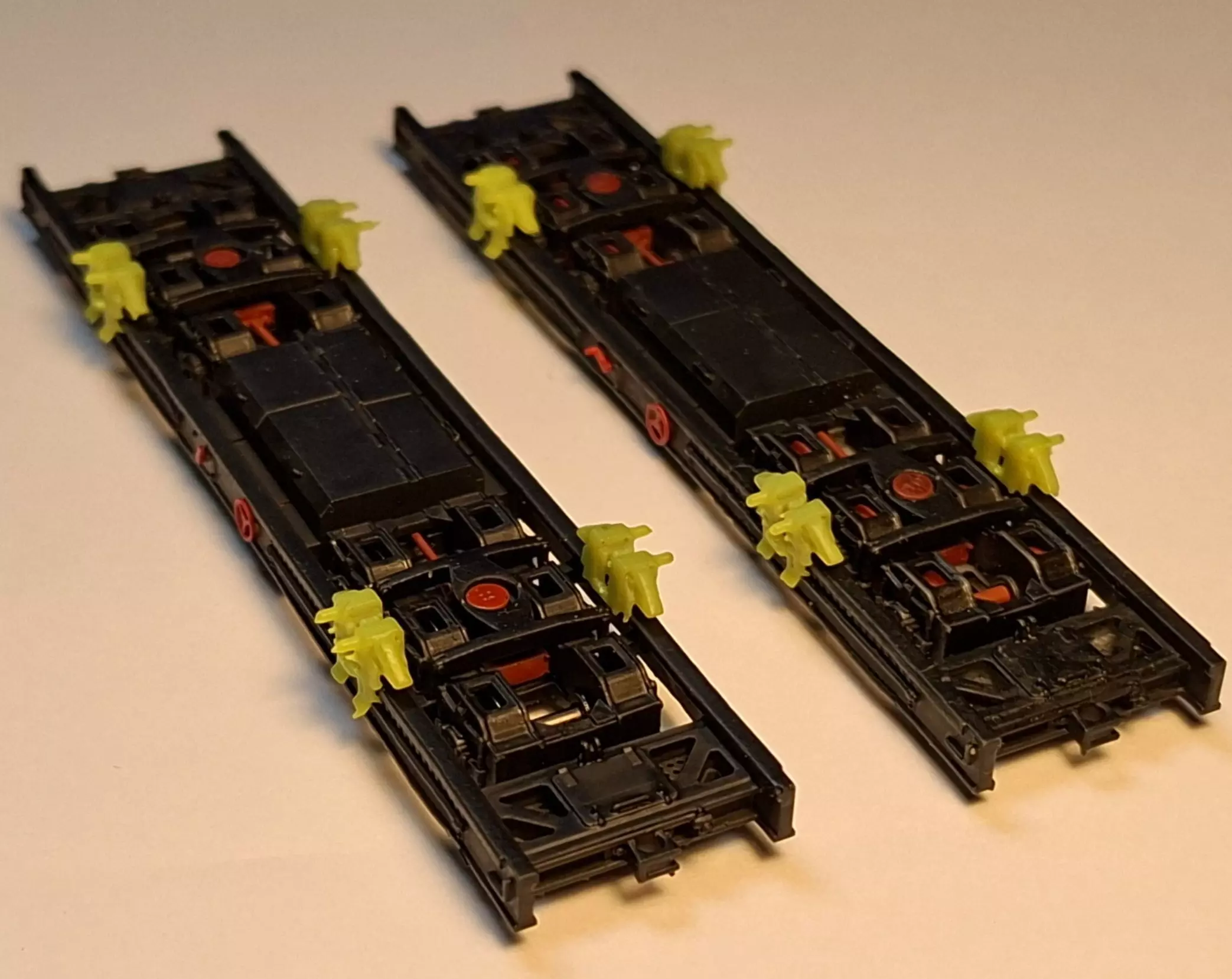

Note: To make painting the model easier, the project is divided into elements by color (see model photos)

The model includes print-ready files (with supports). All you need to do is load the files into the slicer and print the models. Files 'model' (without supports) are also attached

Note: A critical design point is that the N-scale axle must be placed between the H0-scale tracks. Be aware that the model's turning radius is limited by these dimensions and is beyond the control of the model designer. Therefore, the model will not pass through tight curves. It is better to treat this model as static. The model's axles are standard for N scale - you can replace them with metal ones. The project includes four lengths of connecting rods and a model of the wagon wheel lock - print these elements in tough resin.

You can view the project in 3D by downloading the file here:https://www.cgtrader.com/free-3d-print-models/hobby-diy/hobby-accessories/h0e-train-carriage-transporter-tw7-tg-750mm-model-view-only
