Description

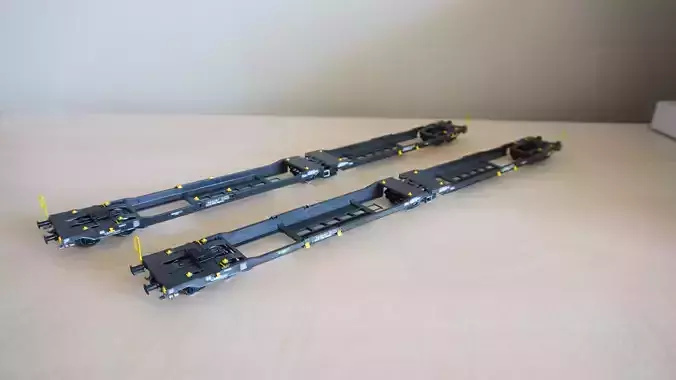

Printable 1:87 scale (h0) model of the Sdggmrss pocket wagon. The model can be assembled in different configurations, for trailers and containers (20ft). It includes both unsupported and pre-supported files. All of the details that are prone to breaking off during painting and testing the wagon are separated and need to be assembled. This wagon comes with a newly designed and highly detailed bogies.

Two small springs are needed to keep the NEM sockets in place as well as standard H0 wheel sets (length=24,4mm, diameter=10,4mm) and NEM-compatible couplings. To minimize the risk of small parts breaking off, it is recommended to use a proportion of flexible resin (~20-30%), especially with parts that are exposed to dynamic loads like the NEM shaft.

To print the pre-supported parts you will need a 3d printer with a build voulume of at least 169x40x148mm.

Druckbares Modell im Maßstab 1:87 (H0) des Taschenwagens der Bauart Sdggmrss. Das Modell kann in verschiedenen Konfigurationen zusammengebaut werden, für Lkw-Anhänger und Container. Es sind sowohl die Modelle ohne als auch mit Stützstrukturen enthalten. Alle Details, die anfällig dafür sind, während des Lackierens und Testens des Wagens abzubrechen sind separate Teile und müssen angeklebt werden. Dieser Wagen hat neu konstruierte, hochdetaillierte Drehgestelle.

Um die Teile mit Stützstrukturen drucken zu können, wird ein 3d-Drucker mit einem Bauraum von mindestens 169x40x148mm benötigt.

Zusätzlich zu den druckbaren Teilen werden noch Kupplungen, Federn und Achsen (24,4x10,4) benötigt. Um das Risiko des Abbrechens von filigranen Teilen zu minimieren, wird empfohlen, einen Anteil von flexiblem Resin zu verwenden (~20-30%). Besonders bei Teilen, die dynamischen Beanspruchungen ausgesetzt sind (NEM-Kupplungsschacht) sollte dies getan werden.

O
obmecjufan2024-11-09 00:11:44 UTC
Would love to buy this model but where do I get the springs for the NEM pockets?
A
additiveManufacturer2024-11-09 09:23:29 UTC
This is where I got mine from: https://minischrauben.com/zugfeder-federstahl-0-2-x-2-2-x-8mm-fezu-0-0-2-2-2-8
K
karlu2023-11-04 16:14:15 UTC
Great
Item rating
2 1
O
obmecjufan2024-11-23 04:41:36 UTC
Not Recommended
The model prints well enough but in reality is under-engineered when it comes to the strength required. Much to thin in places. If you are looking for a working model that is durable for your model railway then avoid this particular model. Not good value for the dollars and regret the purchase.
P
pemuliwo2024-03-03 09:27:18 UTC
Recommended
*****
M
mdeja2021-12-29 09:46:22 UTC
Recommended
I would like more details about pressure supports and wheels
