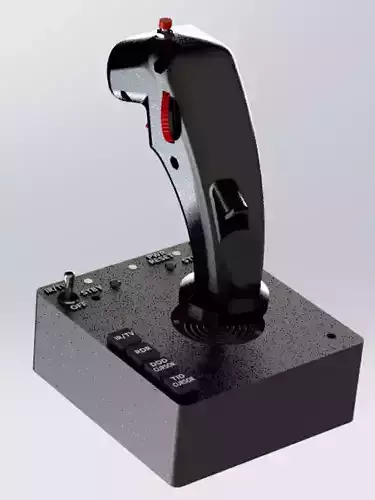

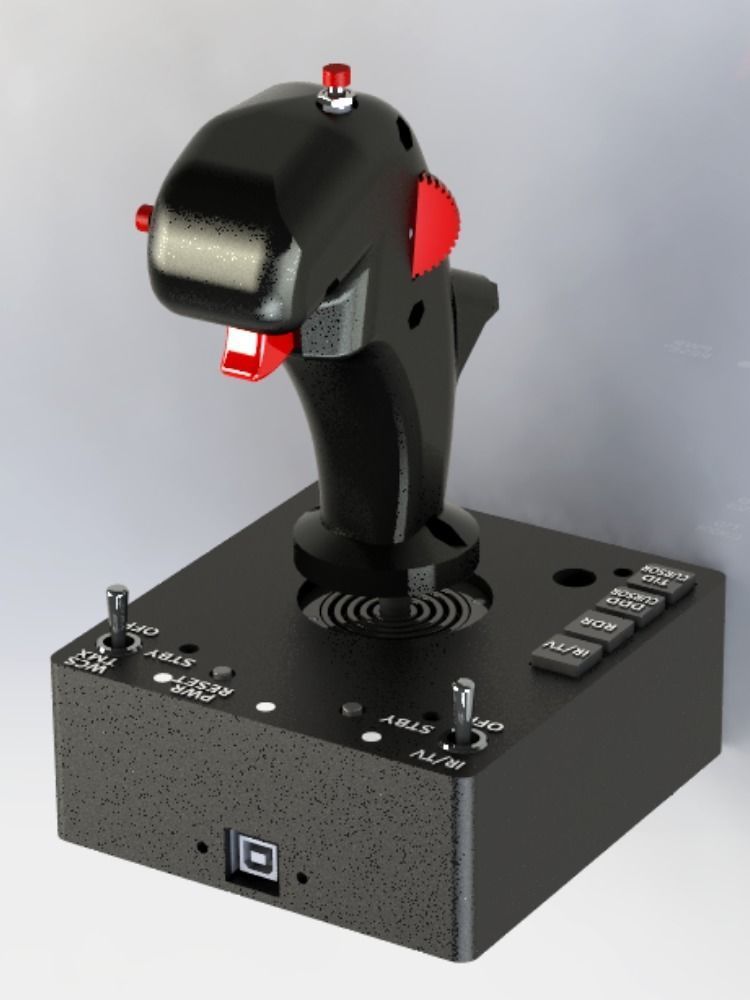

F-14 Flight Simulation RIO HCU (Hand Control Unit) Model Including Micro Stick and Electronic Components

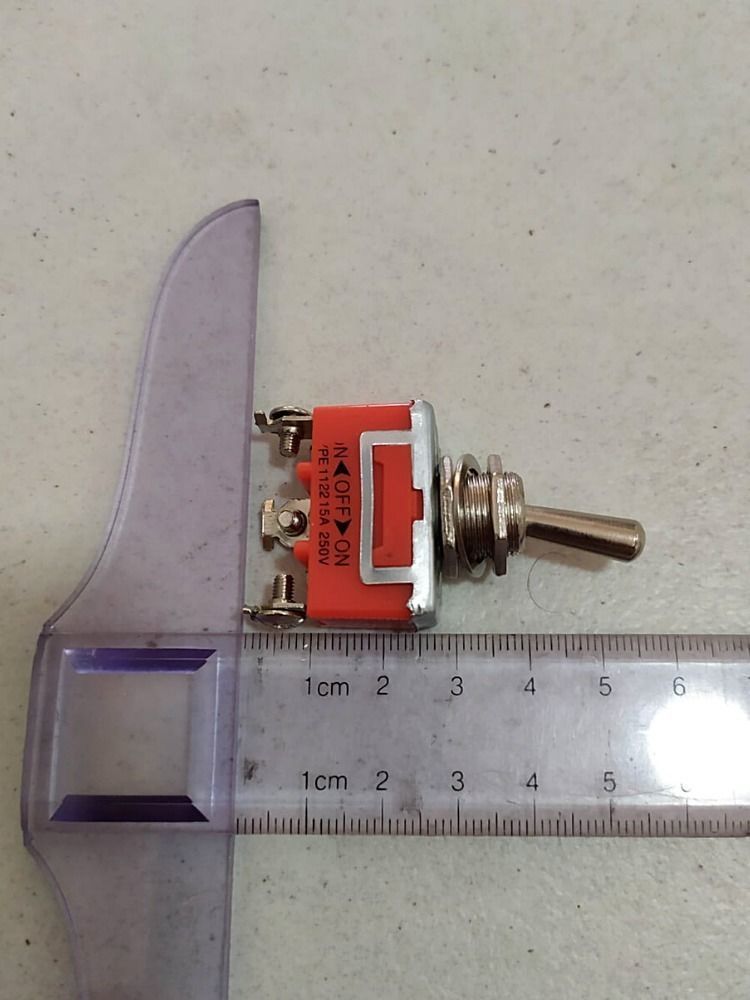

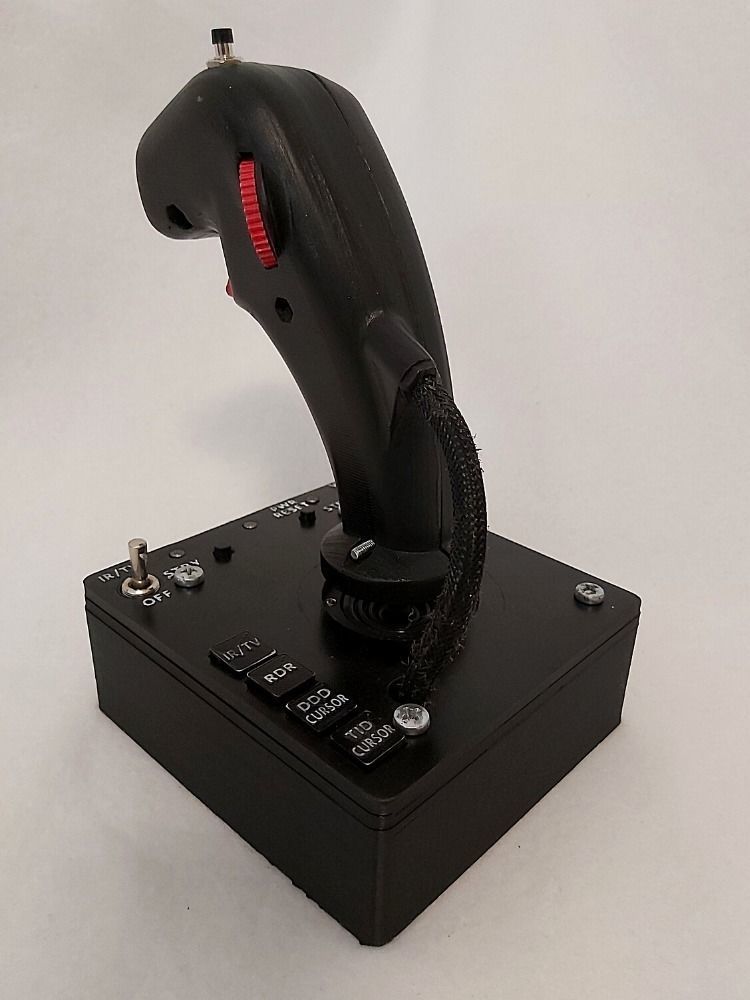

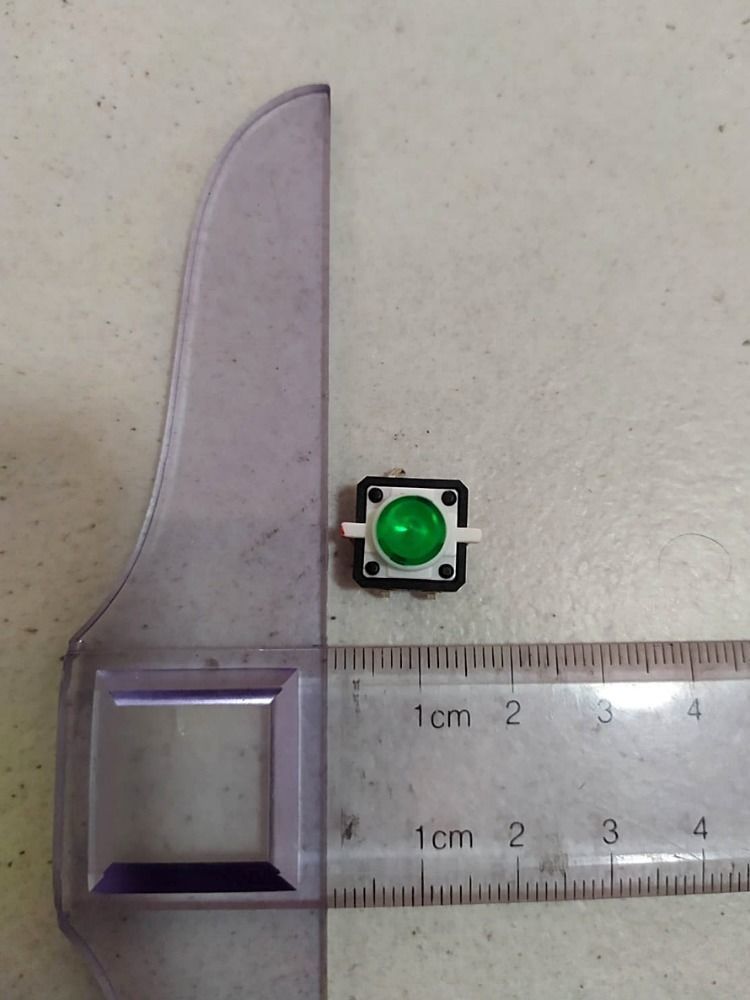

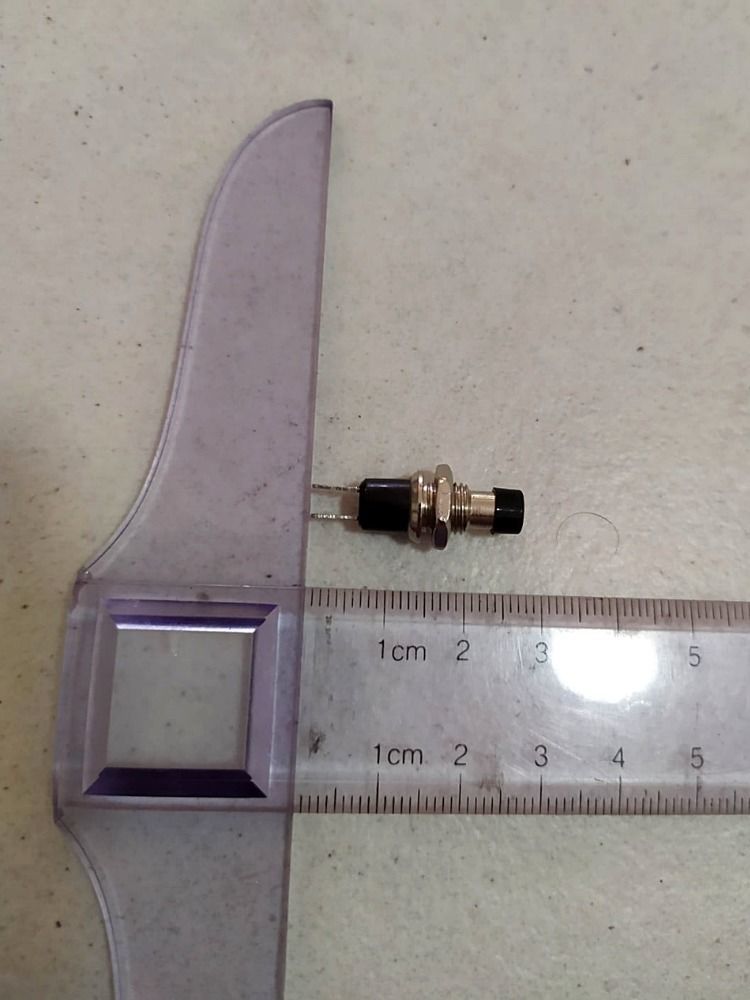

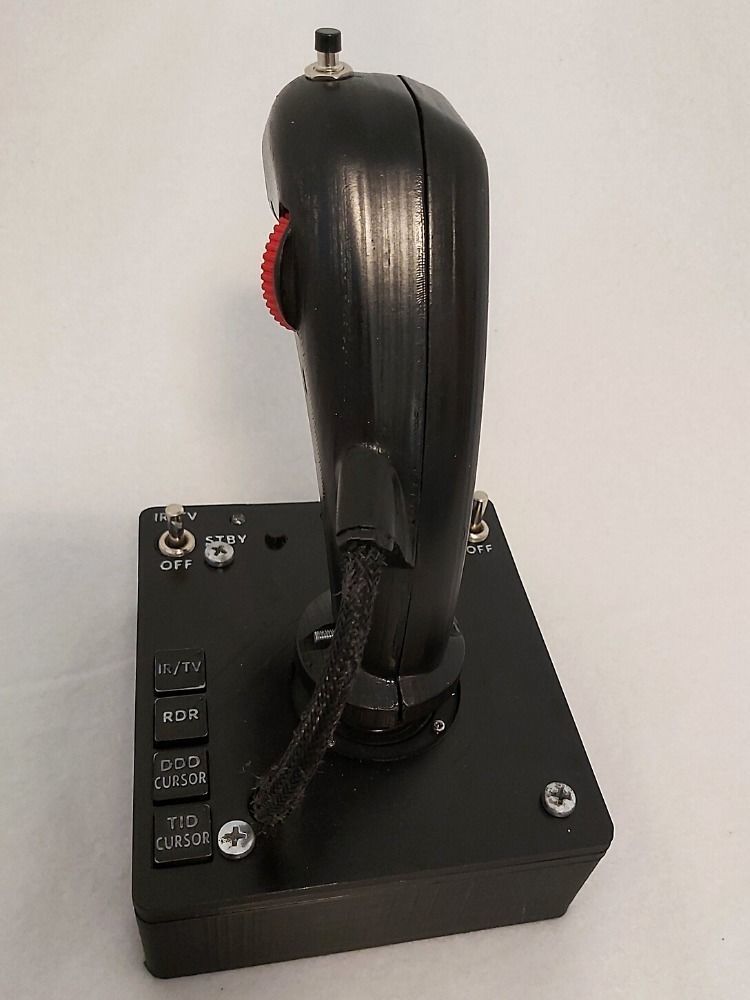

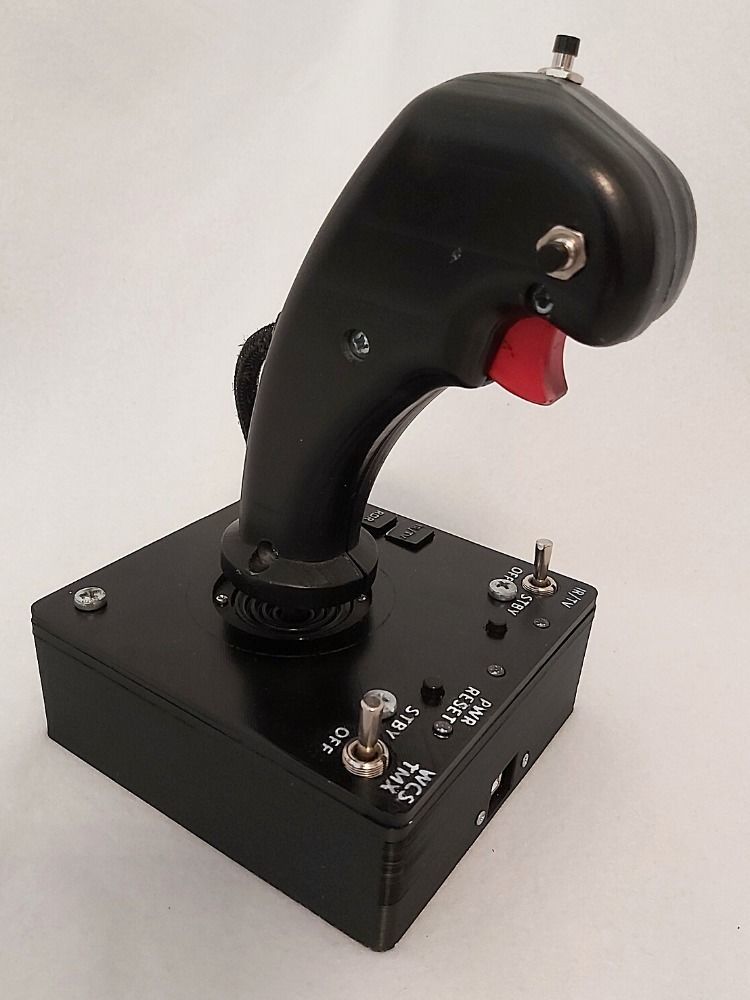

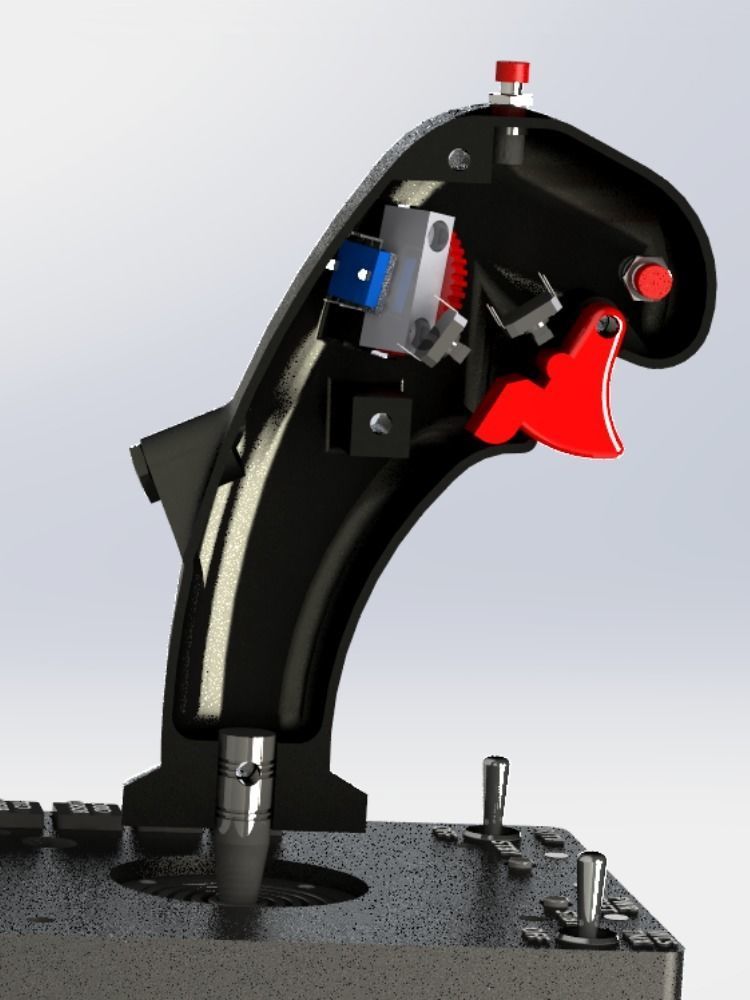

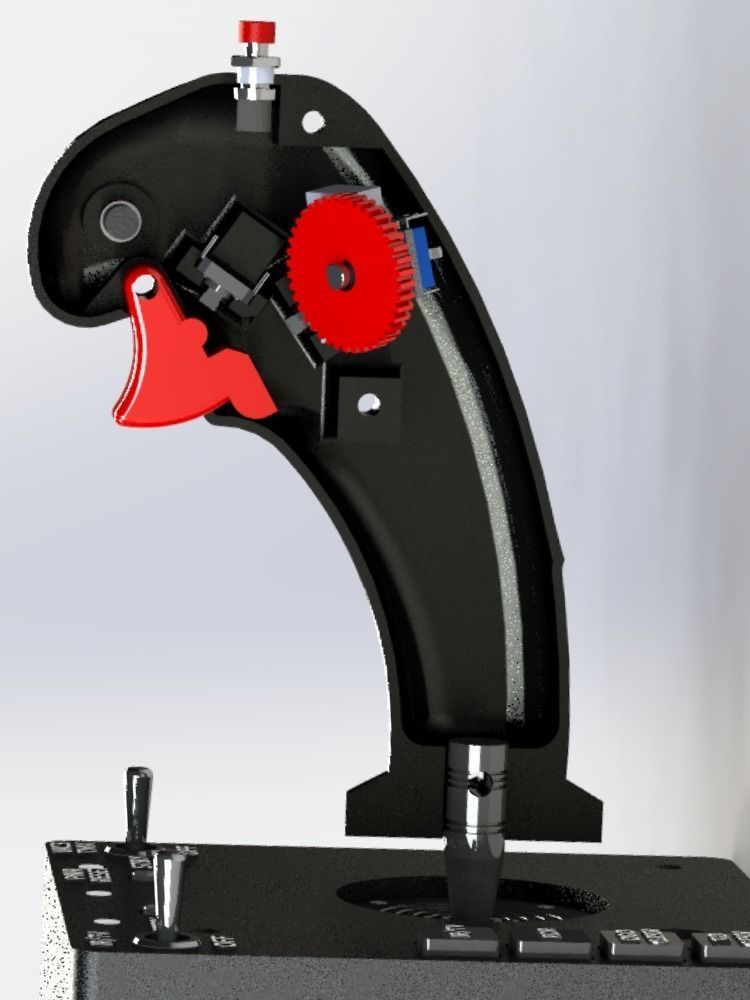

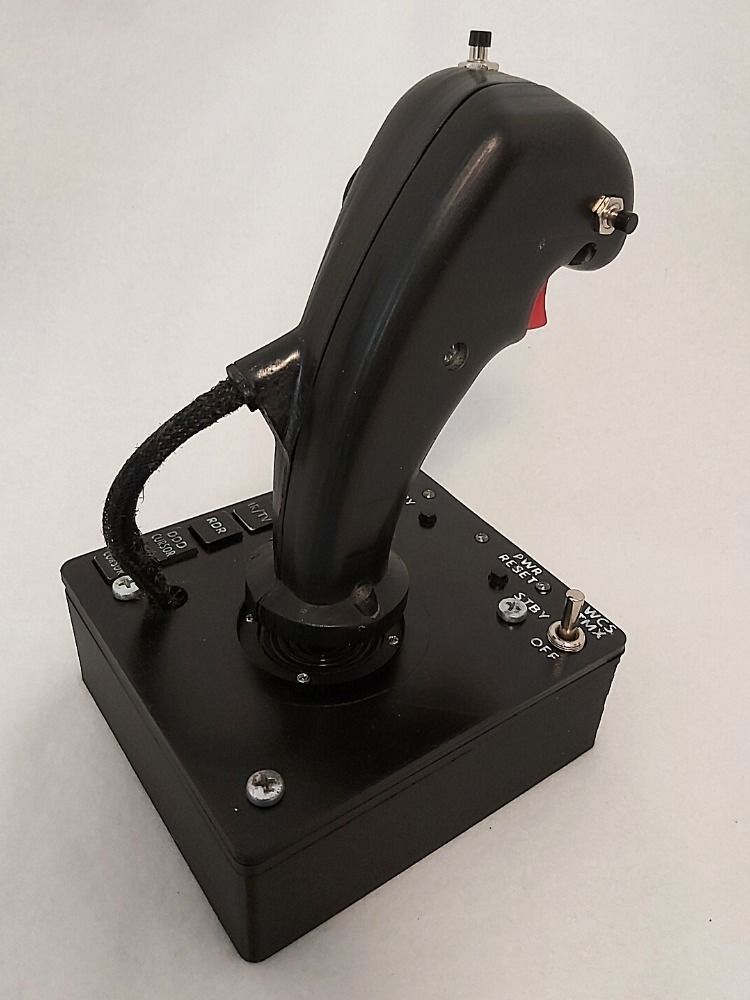

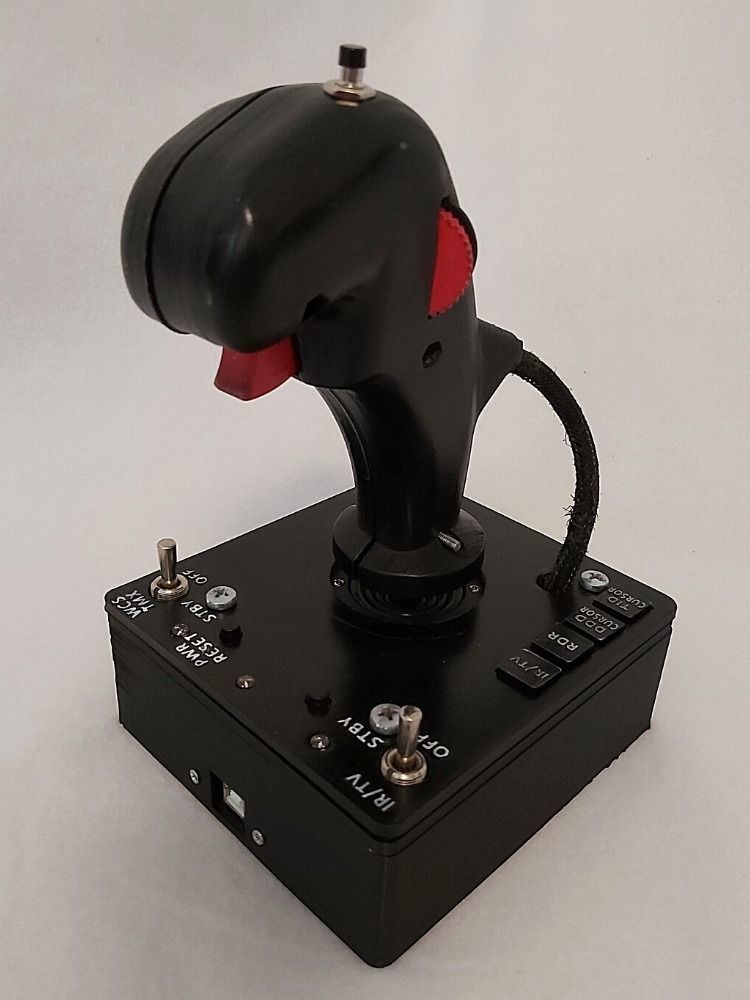

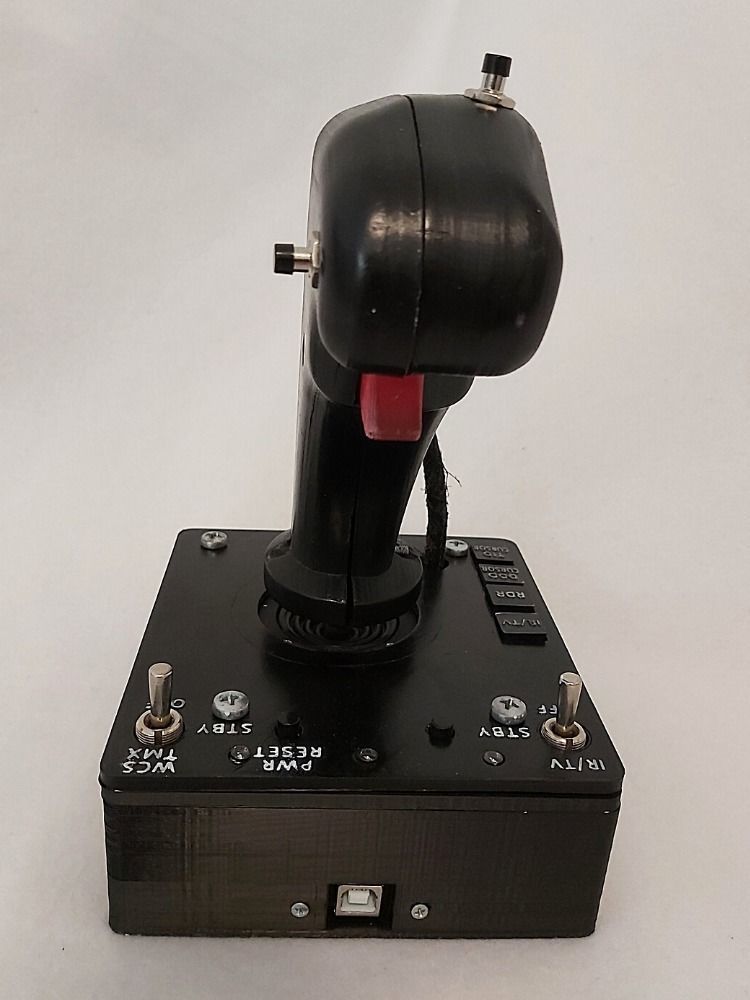

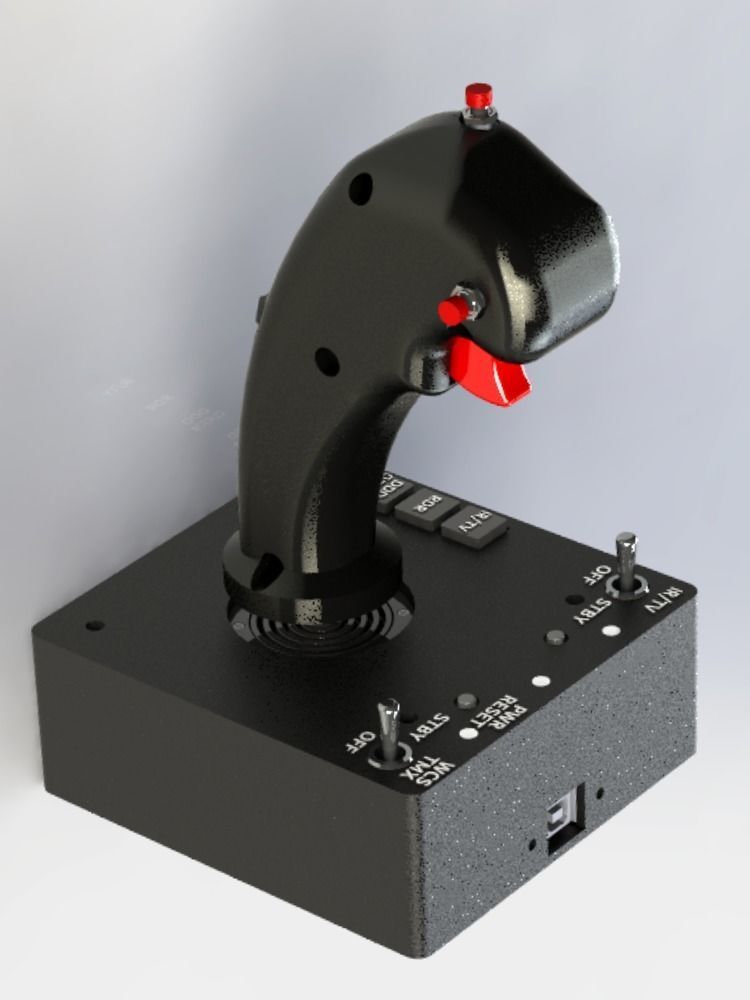

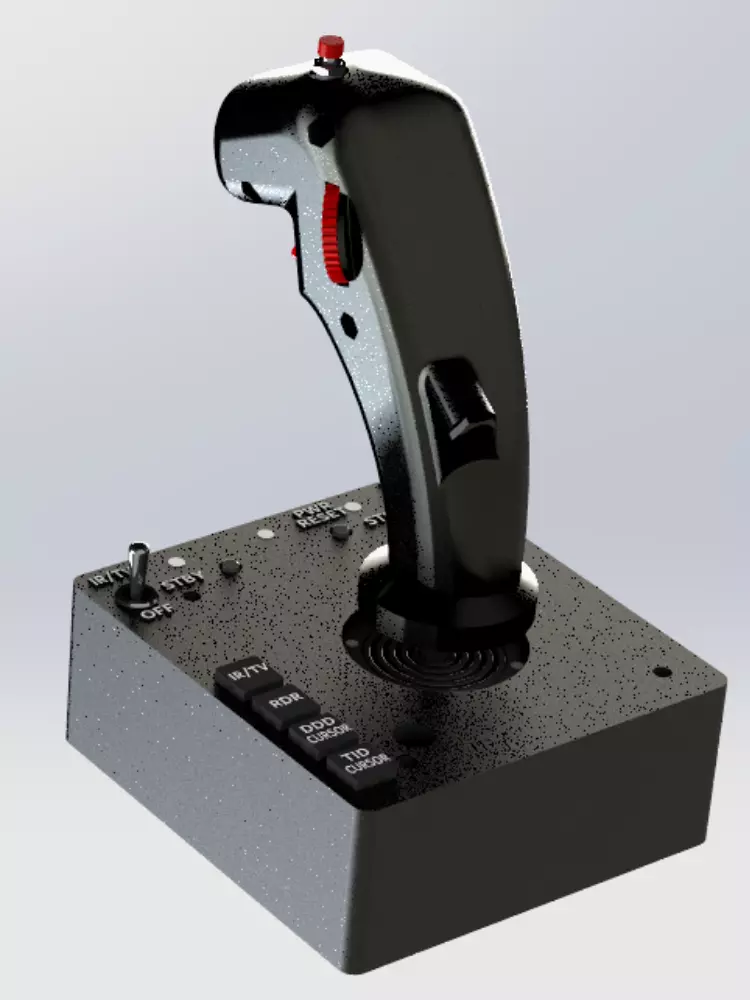

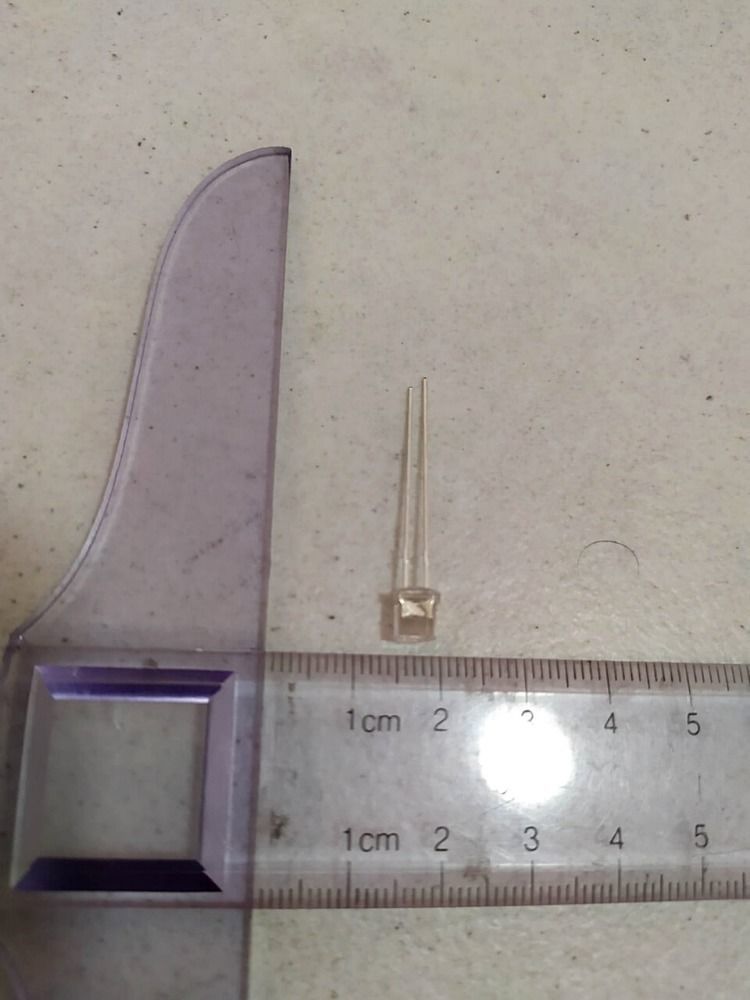

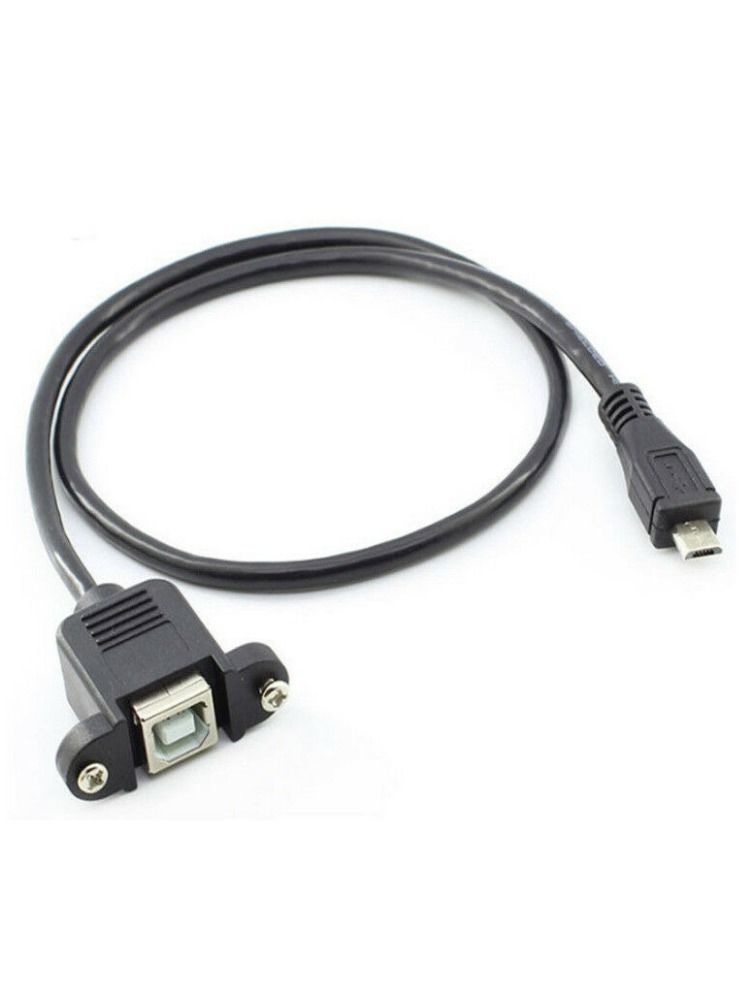

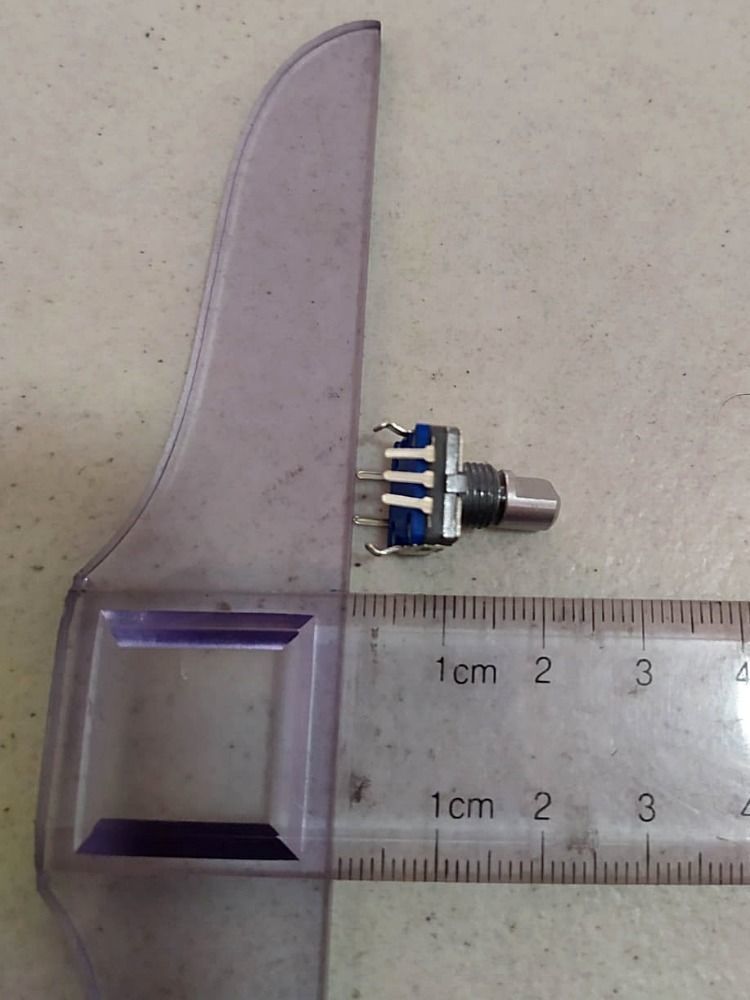

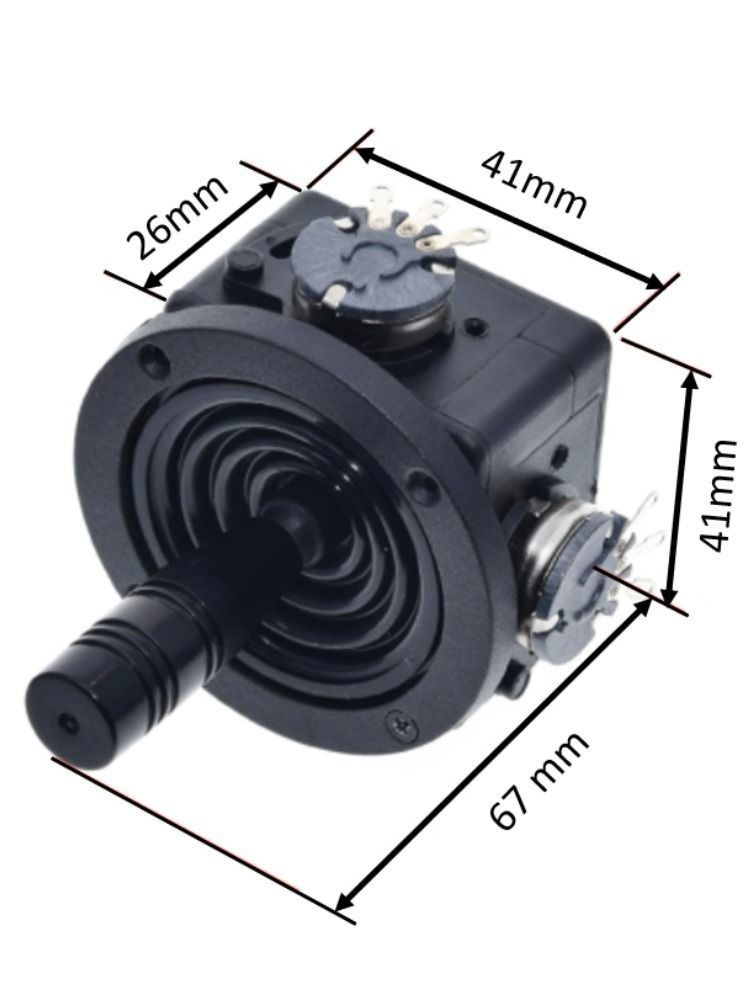

DescriptionThis is an F-14 RIO HCU model replica. The model includes all electronic parts and micro-stick with potentiometers needed for 3d-printing and assembling a fully functional F-14 RIO HUC that operates with flight simulations.For illuminated buttons - use white material for printing, paint in black and then gently sand the text (illuminated micro-switch modeled).All electronic parts are standard parts, as can be seen in the pictures.File Formats Included:STL - 30 STL files, in 1 zipped fileSTEP - 1 zipped STEP filePARASOLID - 1 zipped X_T fileMechanical parts needed for assembly: M4 bolt, length 30 mm with M4 nut - for the stick body.. M4 bolt, length 30 mm - box closureM2.5 bolt, cone head - for the connector adapterSpring, diameter approximately 5 mm, length approximately 20 mm - for the first detent trigger.Electrical parts needed for assemblyMicro stick JH-D202X-R2 - for the main stick.Rotary Encoder Push Button 12 mm - for the thumb wheel.ON/OFF/ON Toggle Switch - for the WCS, IR/TV On/Off toggles.Push Button Mini Switch - for 2 buttons on the stick and two on the box.Lighted microswitch 12 mm - for the backlight buttons.Micro USB 5 Pin Male to USB 2.0 B Female Panel Mount Type Cable with ScrewsMicroswitch 12 mm - for the two stages trigger.LED green 5 mm flat head - for 3 lights on the box.Printing Recommendations:For a metal feel of the grip - Use Aluminum infused PLA.Printing in normal setup:Layer Height: 0.12-0.22mmPrinting Speed (for all parts): 50 mm/secTemperature according to the printing material. For the buttons and box cover:Layer Height: low - 0.12-0.15mmPrinting Speed: 30 mm/secColor Recommendation: White color printing, with black painting and gentle sanding of the writing.All settings are relevant to Flashforge Creator Pro printer and may differ from one 3d printer to another.
