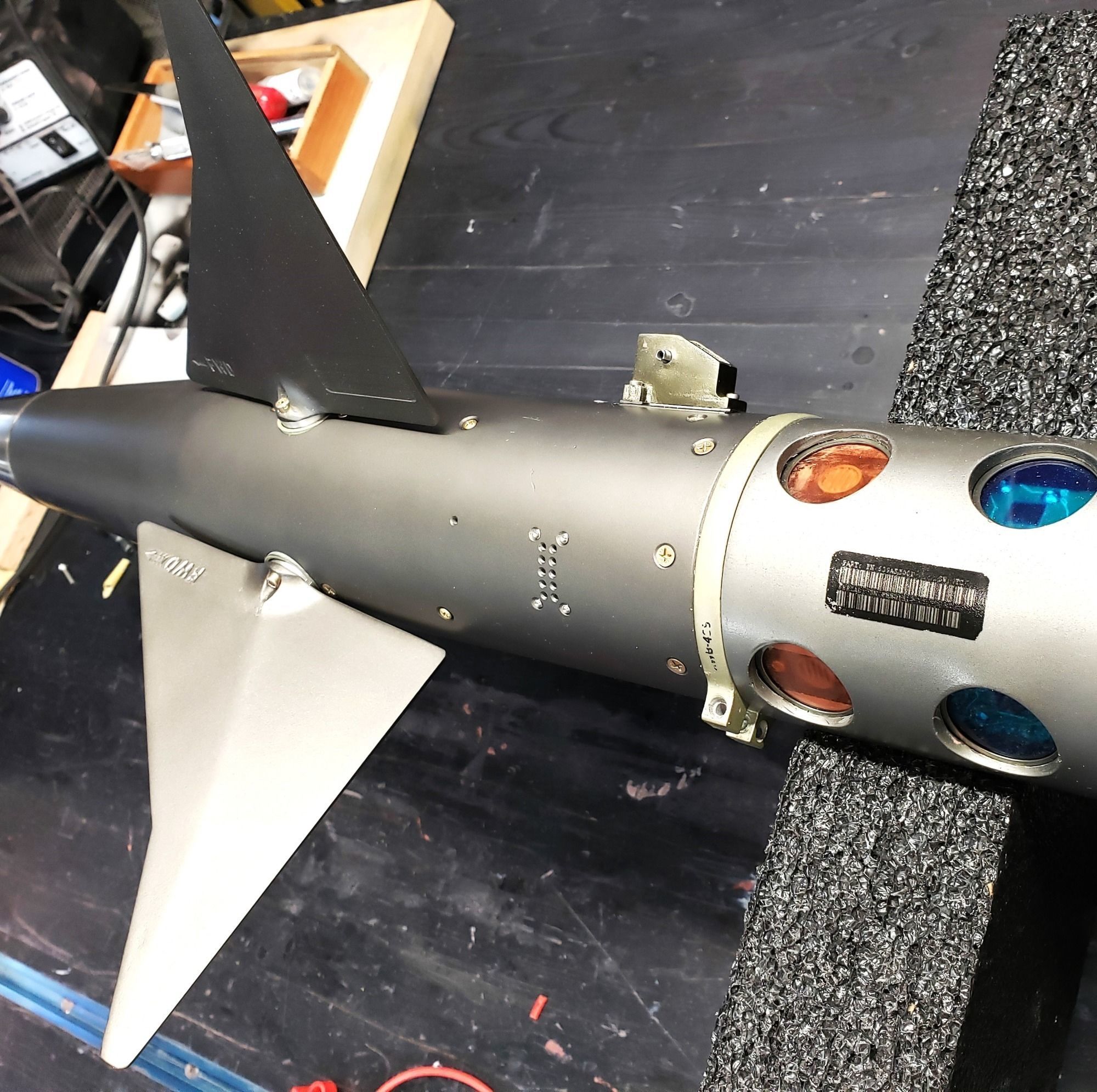

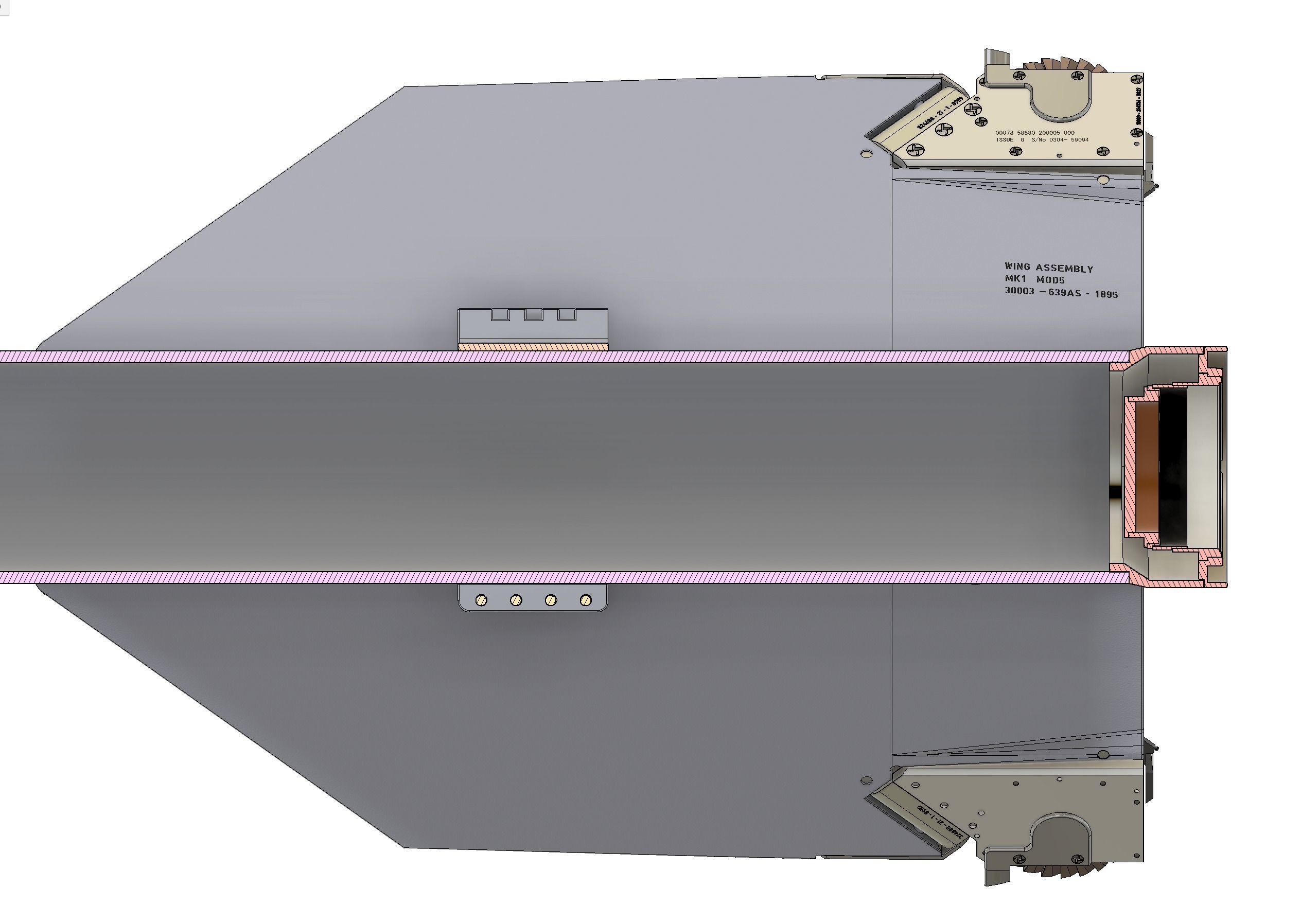

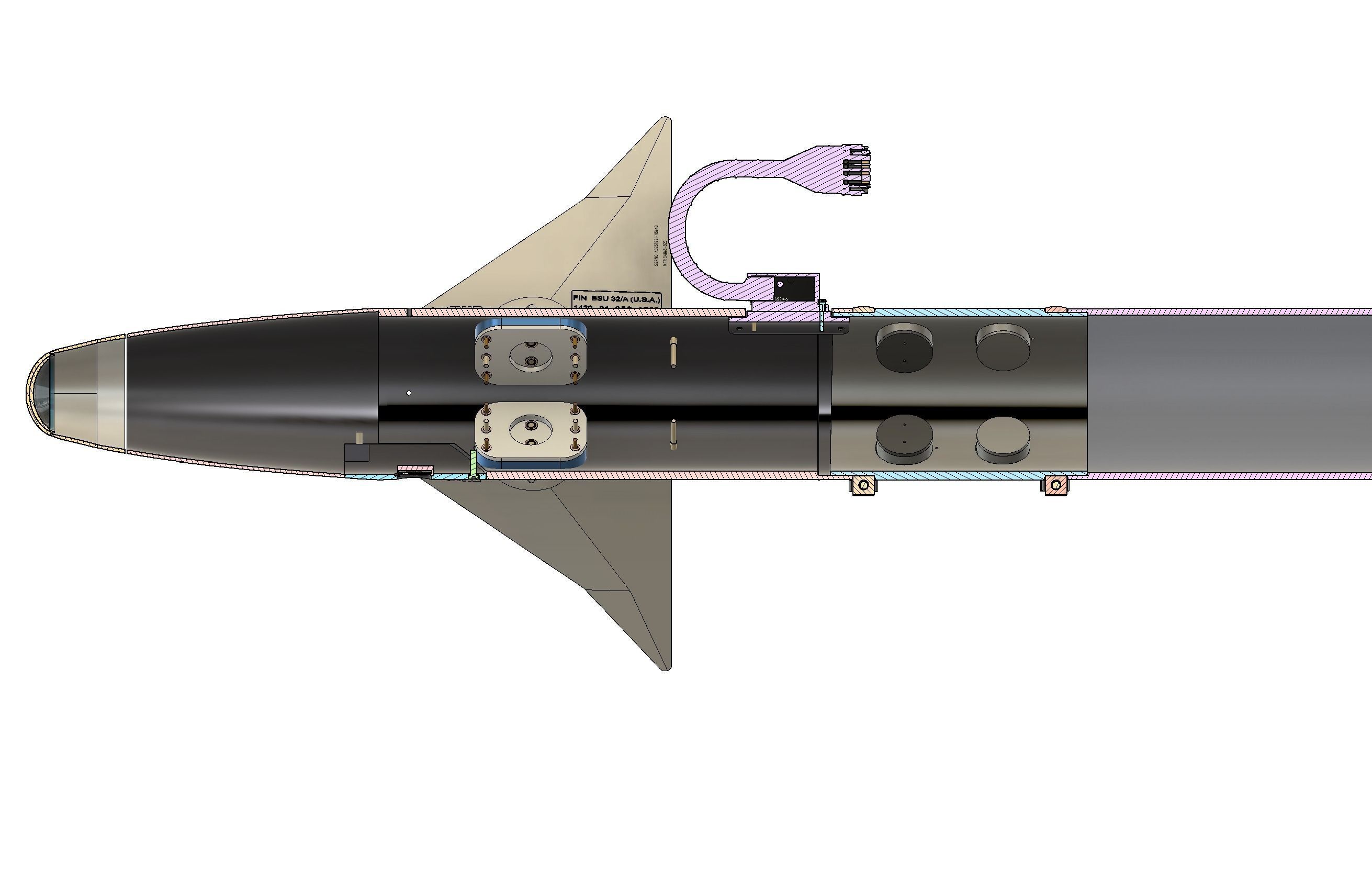

This is my extreme detailed 3D printable replica of the Raytheon AIM-9L Sidewinder Missile with LAU-105 Launch Rail. Every effort was made to include EVERY possible detail as accurate as possible. Entire rear wing assembly is rendered from real AIM-9L parts. This model is extremely accurate and ridiculously detailed!There are over 100 printable parts and more than 300 fasteners. Fastener rendered files are included but you can use real fasteners for a more realistic look. The live models I build look so realistic because I use as many separate parts as possible.
A complete fastener and hardware list is included so you don't have to go crazy trying to figure out what you need or where to get it. The list I provide has all real U.S. Military Mil-Spec Standard Fastener part numbers, but you can substitute with hardware store fasteners. Most fasteners have McMaster Carr or Amazon parts numbers. eBay is also a good place to source hardware. This can be used to directly order parts or as a reference of what substitutes to order.The LAU-105 Launch Rail is rendered from a real LAU-105 I own. It is extremely accurate. The AIM-9L will attach to the LAU-105! You do NOT need to 3D Print the LAU-105 Launch Rail, It's Optional
These 3D models are replica props only. They are non-functional, unarmed, and not intended for real-world use in any military or defense capacity.

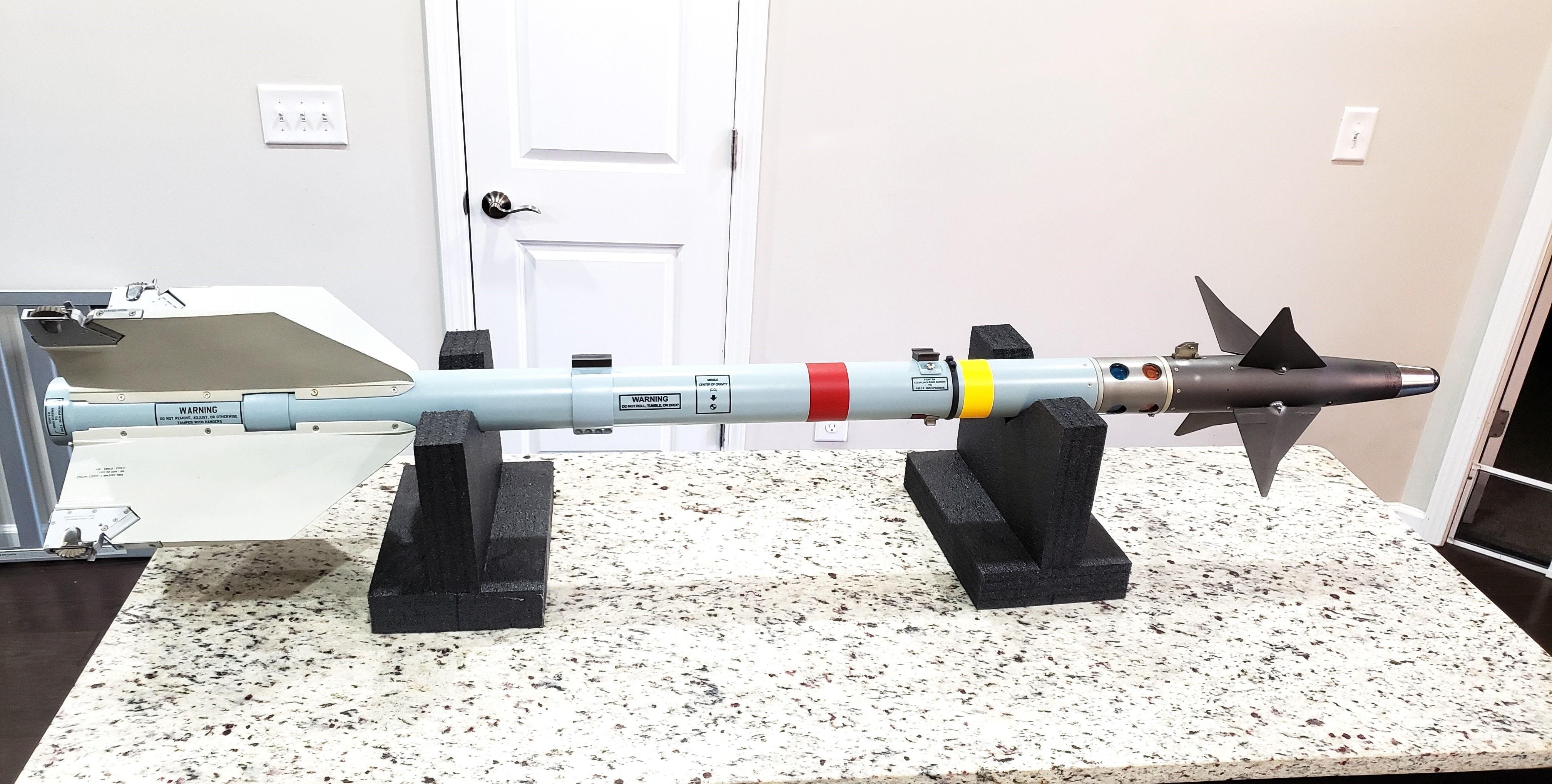

IMPORTANTA full-scale AIM-9L Sidewinder replica I built for a customer from one of my 3D Digital Renders was jokingly listed for sale on the customer's company website. The listing appeared so realistic that two FBI Agents were dispatched from Langley, Virginia and flown to California to investigate my customer. After inspection, they confirmed it was just a non-functional display piece—and had a good laugh.
To avoid confusion or legal headaches, do not misrepresent your finished builds as real weapons. Always disclose they are replicas.
TRUSTED BY THE MILITARYI’ve proudly sold several completed, full-scale replicas—based on my digital designs—to both retired and active-duty military personnel, including:
Their trust in the accuracy and quality of this model is something I take seriously and am honored to uphold.
WHAT’S INCLUDED• 30+ 3D Print Ready Files to Build AIM-9L Sidewinder Missile Full Scale Simplified Version•
• Multiple file formats of all necessary parts to build a complete Full-Scale AIM-9L Sidewinder Model• Exploded View 3D Renders & Rendered Reference Images to assist with assembly & decal placement.• Full Hardware List with part numbers and purchase links.• Detailed accurate Decal Set in PDF format• Remove Before Flight Streamer file is included• Nosecone Protector file is included• 3D Printed Parts Checklist to streamline assembly

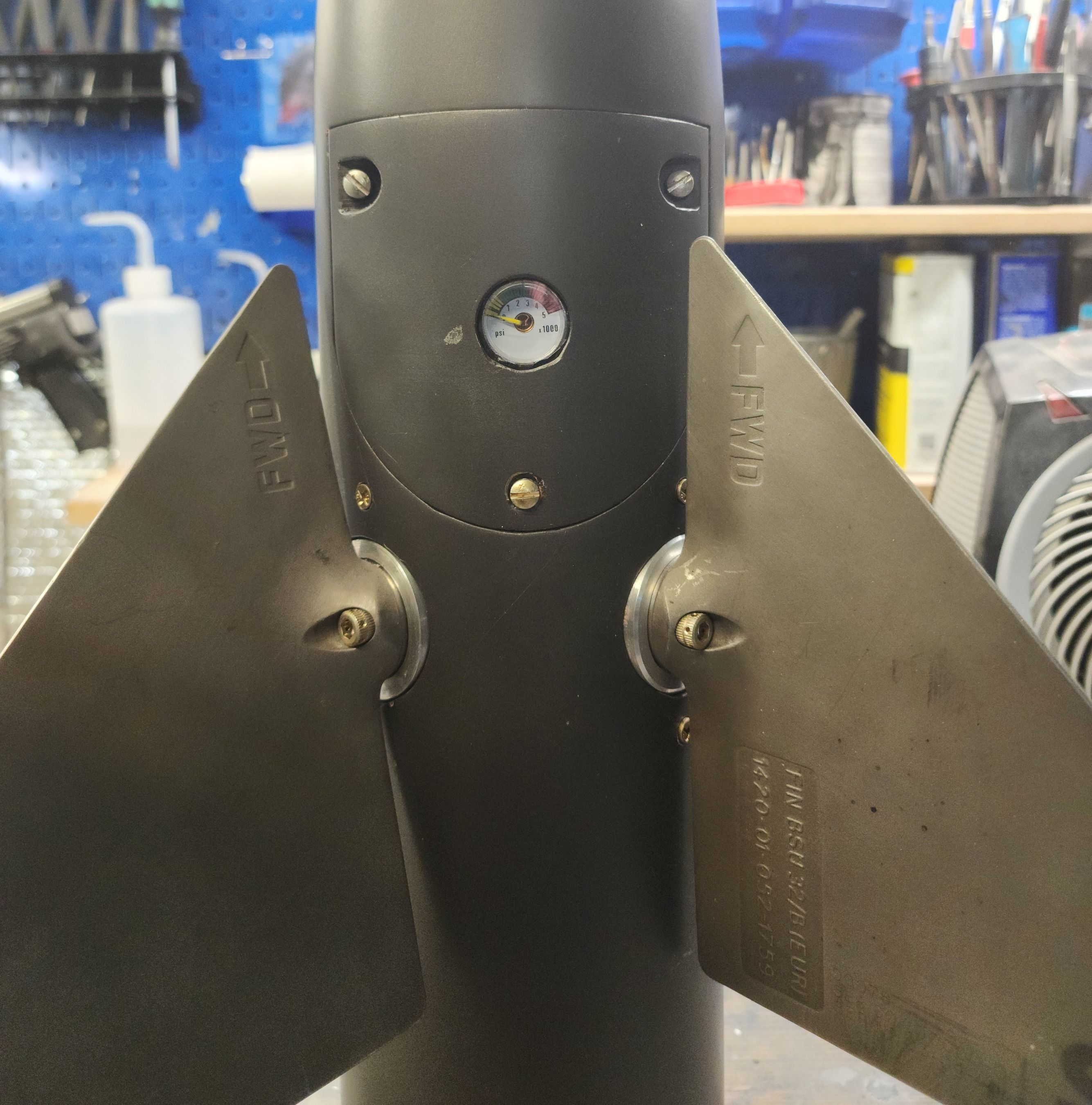

KEY FEATURES• Raytheon AIM-9L Sidewinder Missile 3D Print Files• LAU-105 Launch Rail 3D Print Files• Over 100 Separate Printable Parts for enhanced detail and realism.• Minimal Support Requirements, simplifying the 3D printing process.• Full Assembly/Dismantle Capability for easier storage, shipping, or display customization.• Includes Hardware List with McMaster-Carr or Amazon part numbers for easy sourcing.• Custom Modifications available at no extra cost upon request.• Optimized for FDM printing but also compatible with resin printing.• Rear Wing Assembly & Canards rendered from real AIM-9L Sidewinder parts I own• Canards are rotatable• The Rolleron Assembly swivels and the Rolleron Wheels spin• Targeting Section Sensors are well detailed, created using proprietary images• A full-scale model will fit any real LAU Launcher that is Sidewinder compatible• (I also own a LAU Launcher and verified full-scale Sidewinder model will fit it to the launcher)• The included complete Decal File is detailed and realistic
