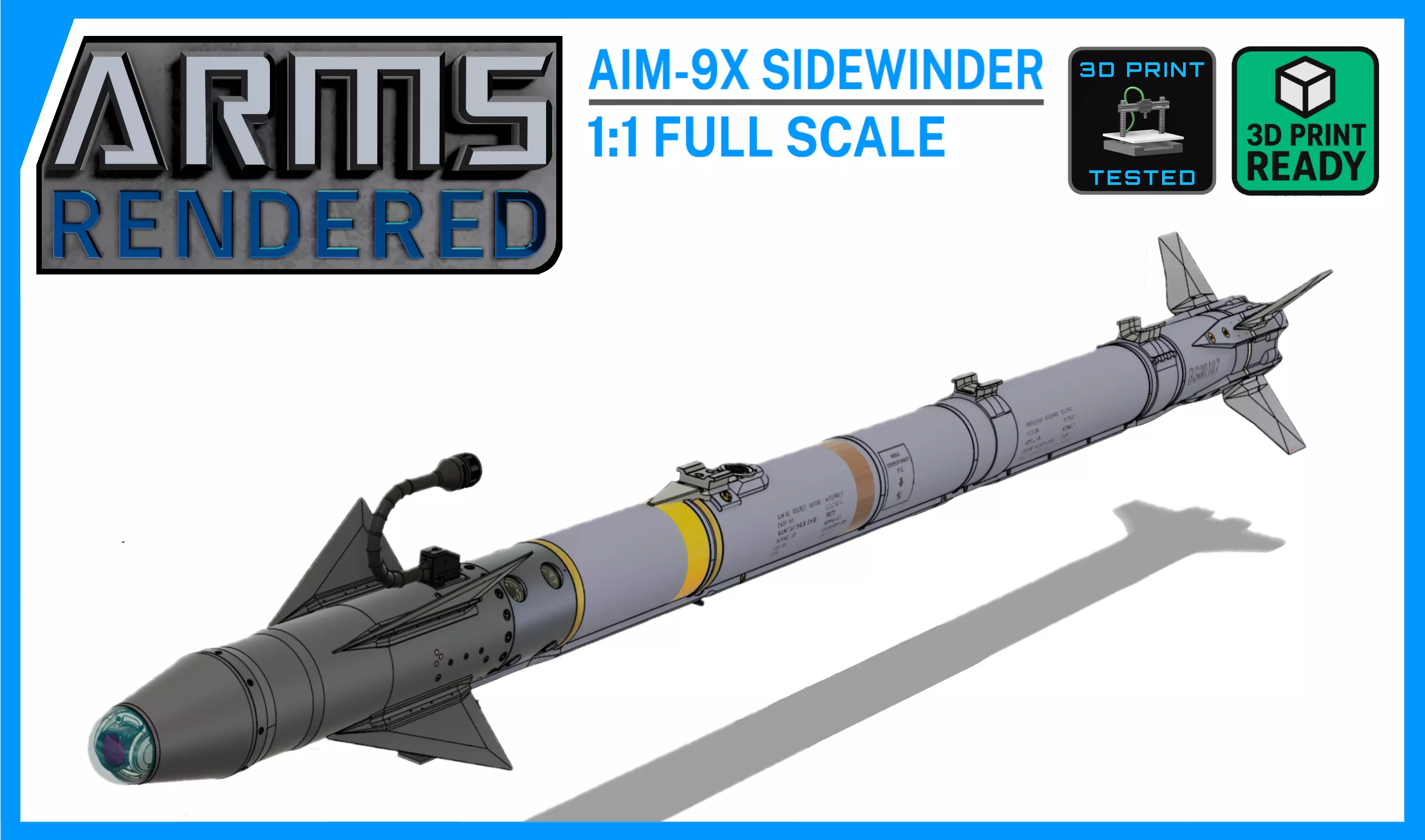

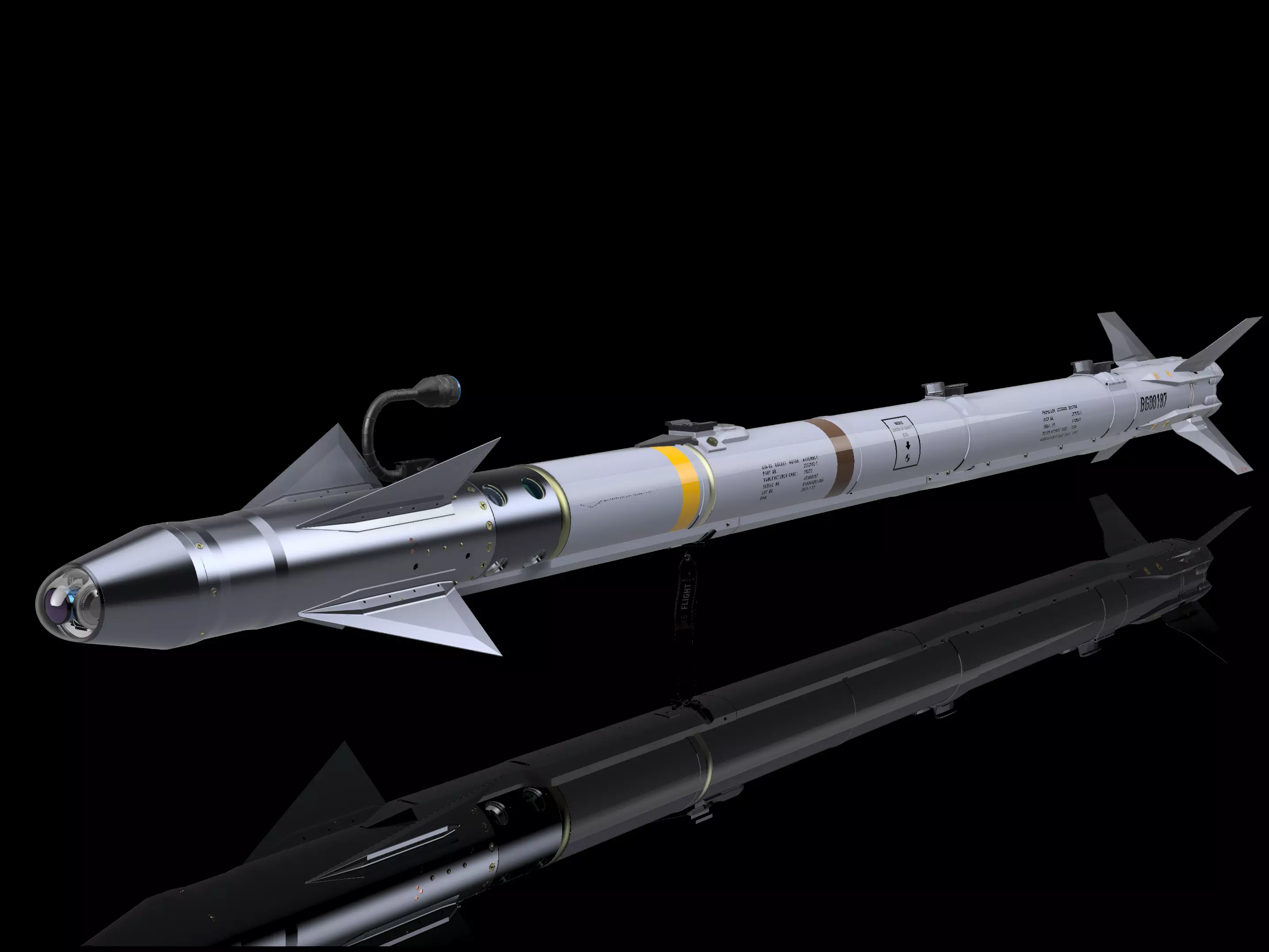

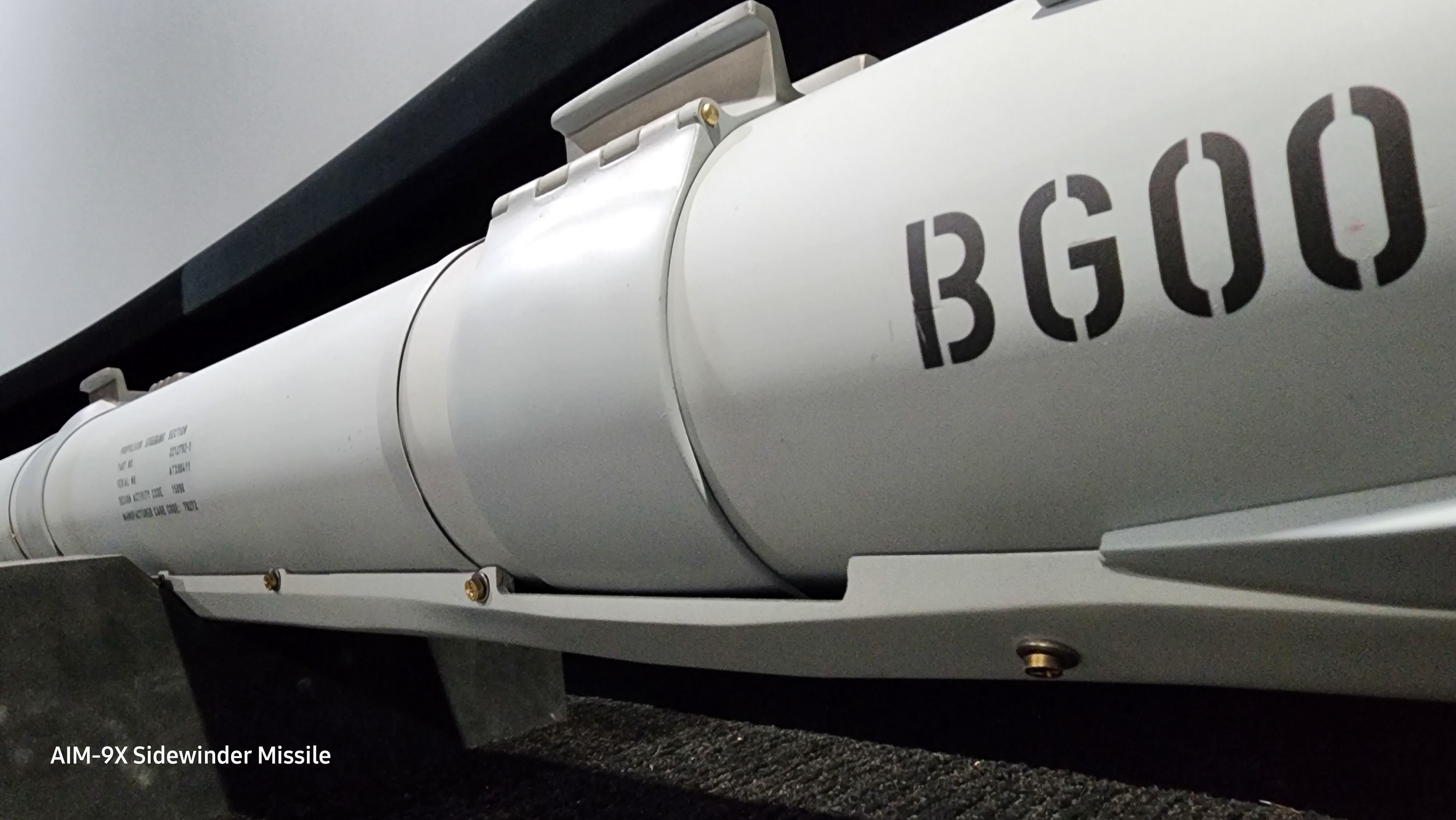

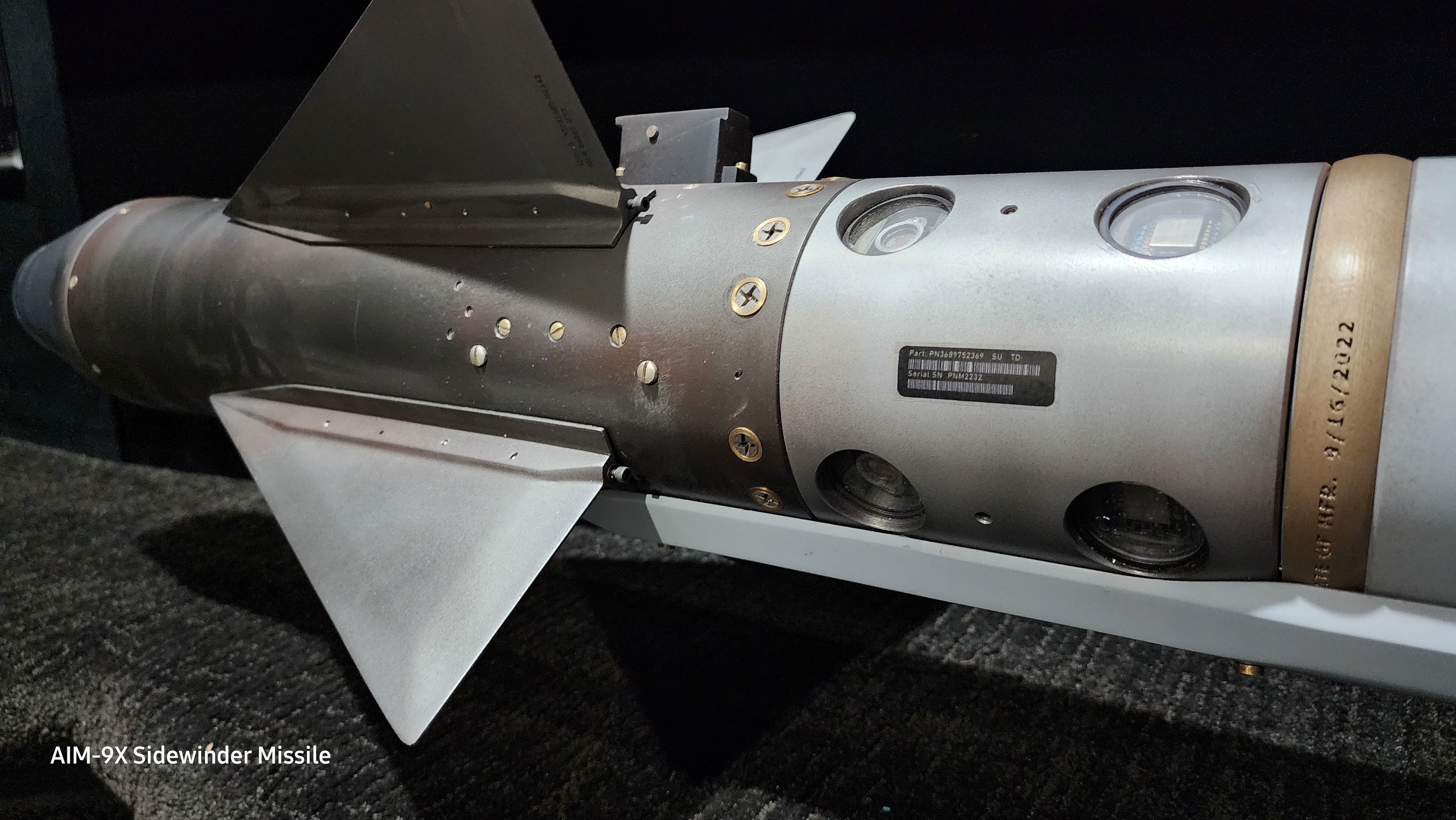

AIM-9X Sidewinder - Extreme Detail-Accuracy - 3D Print Ready 3D print model

This is my full-scale 3D Print ready Replica Model of the AIM-9X Sidewinder Missile. Every effort has been made to include EVERY possible detail, as accurately as possible. I use proprietary reference images of a real AIM-9X Missile provided by a U.S. Military contact to create a highly detailed and accurate 3D Digital Model. Mil-Spec Fasteners are used where possible. They add nice detail but are not required for the build. All Mil-Spec Fasteners can be substituted with standard fasteners, or printed from the included 3DPrint Ready Files.Designed with over 65+ highly detailed parts, it features functional details, modular design, and is 3D print ready.

• The goal with all my 3D Renders is not to create a realistic looking replica…
• The goal is to create a replica that is indistinguishable from the real thing.

These 3D models are replica props only. They are non-functional, unarmed, and not intended for real-world use in any military or defense capacity.

A full-scale AIM-9L Sidewinder replica I built for a customer from one of my 3D Digital Renders was jokingly listed for sale on the customer's company website. The listing appeared so realistic that two FBI Agents were dispatched from Langley, Virginia and flown to California to investigate my customer. After inspection, they confirmed it was just a non-functional display piece—and had a good laugh.

To avoid confusion or legal headaches, do not misrepresent your finished builds as real weapons. Always disclose they are replicas.

I’ve proudly sold several completed, full-scale replicas—based on my digital designs—to both retired and active-duty military personnel, including:

• U.S. Navy Retired F/A-18 Super Hornet pilots
• U.S. Military Industrial Contractors
• A Swiss Army E.O.D. Officer
• Active-Duty U.S. Navy Carrier Deck Crew Members

Their trust in the accuracy and quality of this model is something I take seriously and am honored to uphold.

• All 3D Print Ready Files for a Full-Scale AIM-9X Sidewinder Missile• 65+ Printable parts (not including fasteners)• 3D Printed Parts Check List• Hardware List with Part Numbers and Where to Purchase Them• Accurate and Detailed Decal Set in PDF Format and Individual PNG Files• Color Chart for Accurate Paint Scheme• Guidance Section Wing Template, 3D Print Ready File• All parts have been successfully 3D Printed and assembled, and refined• Model Exploded Views to Help with Assembly

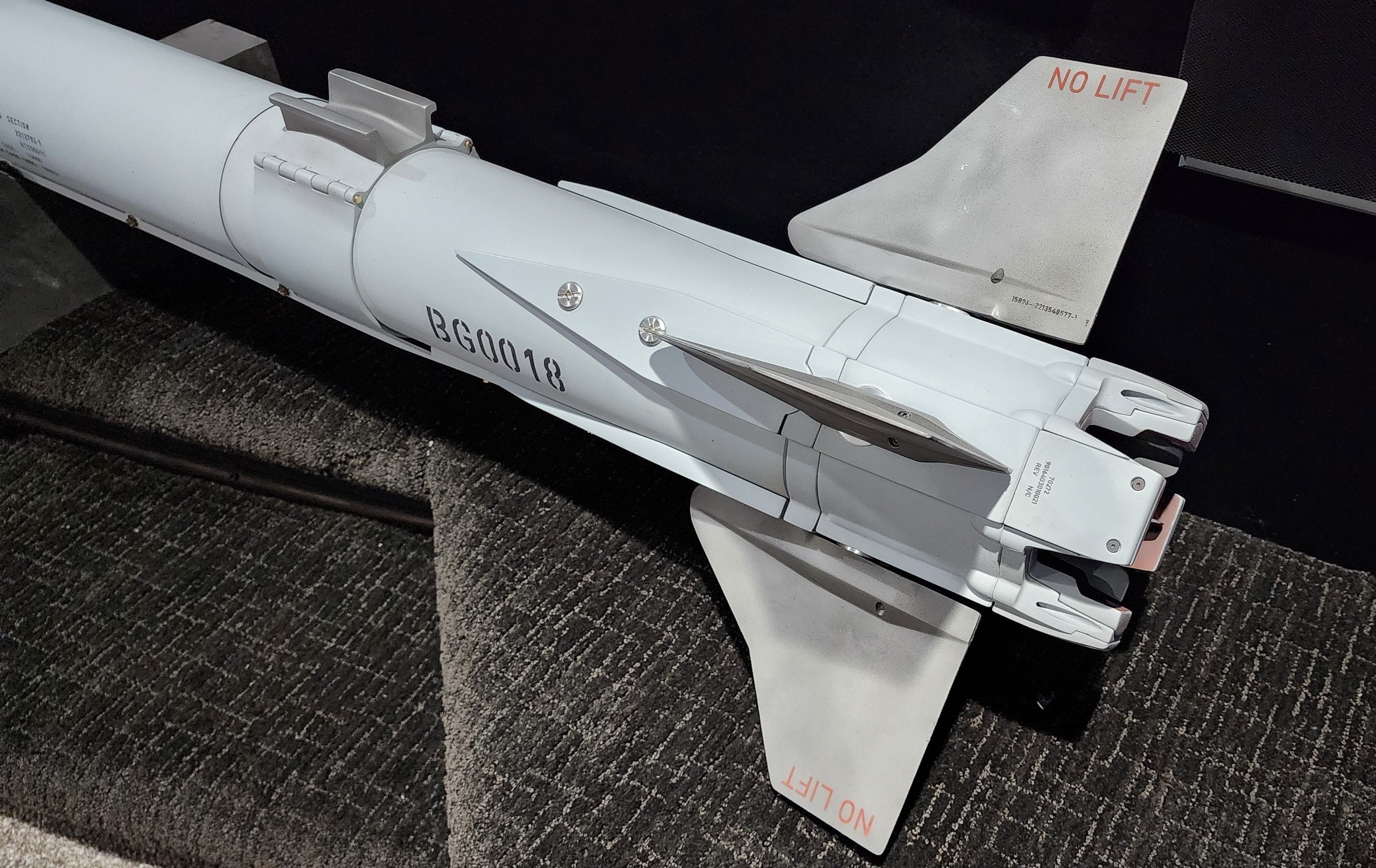

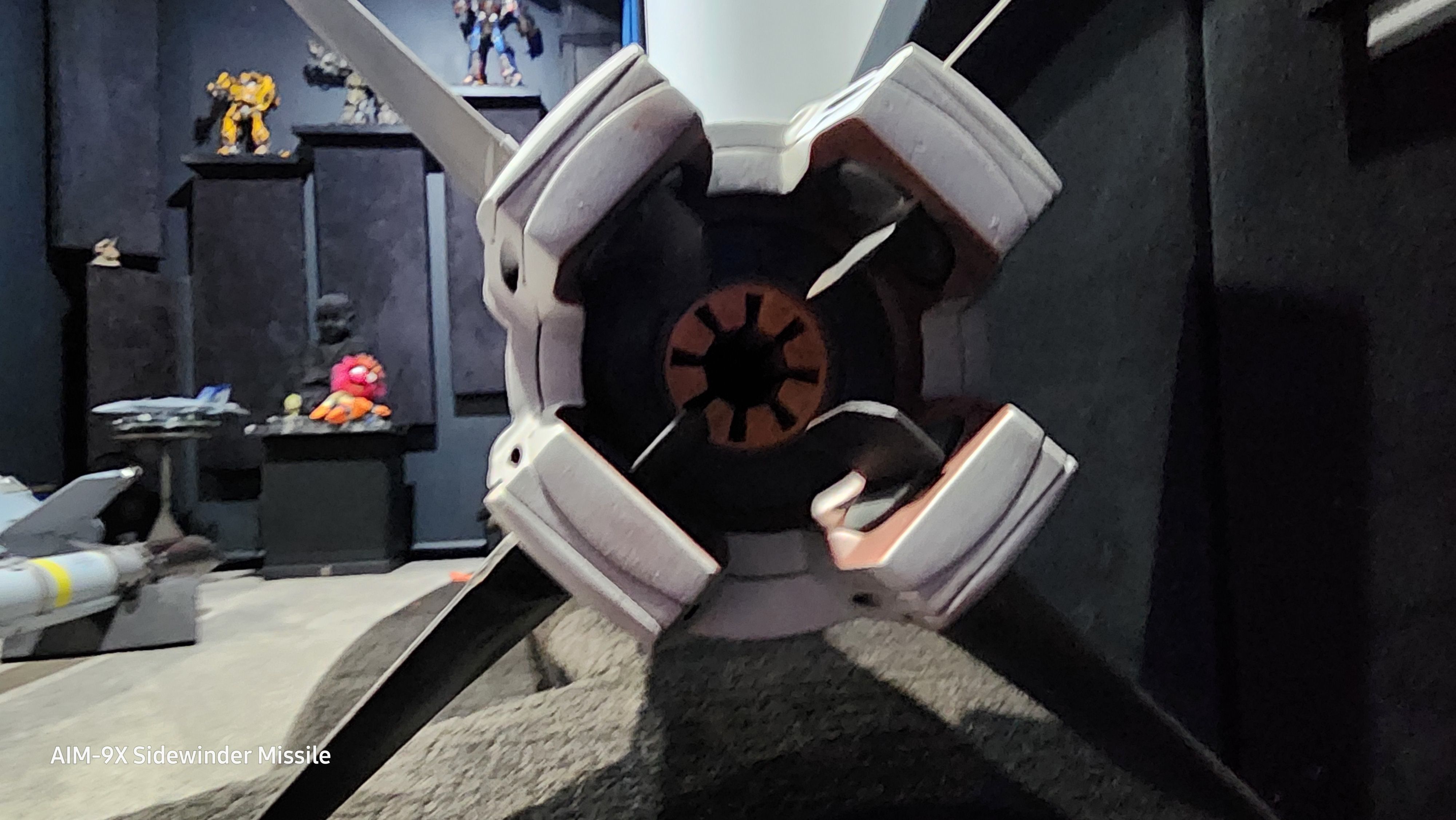

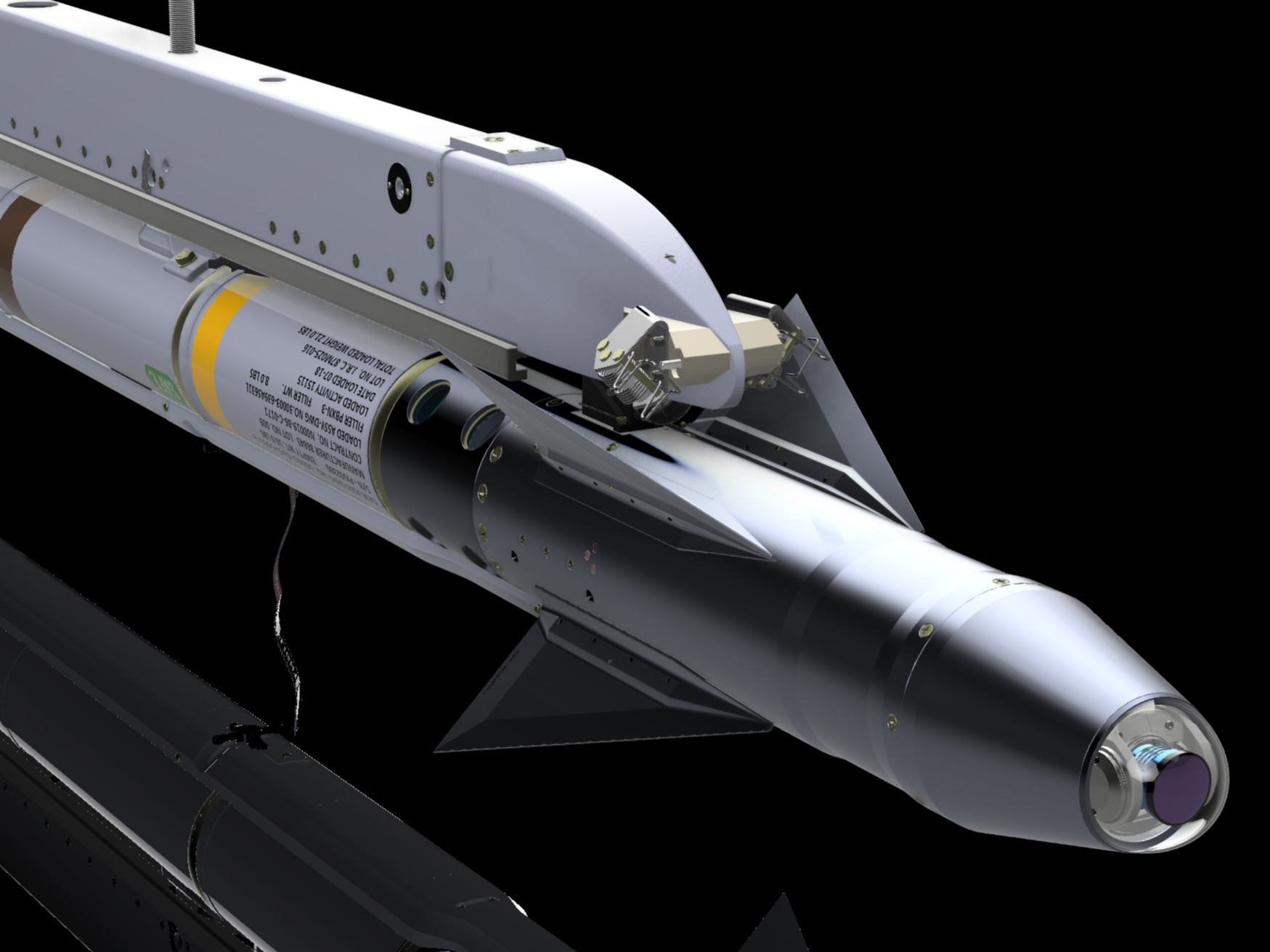

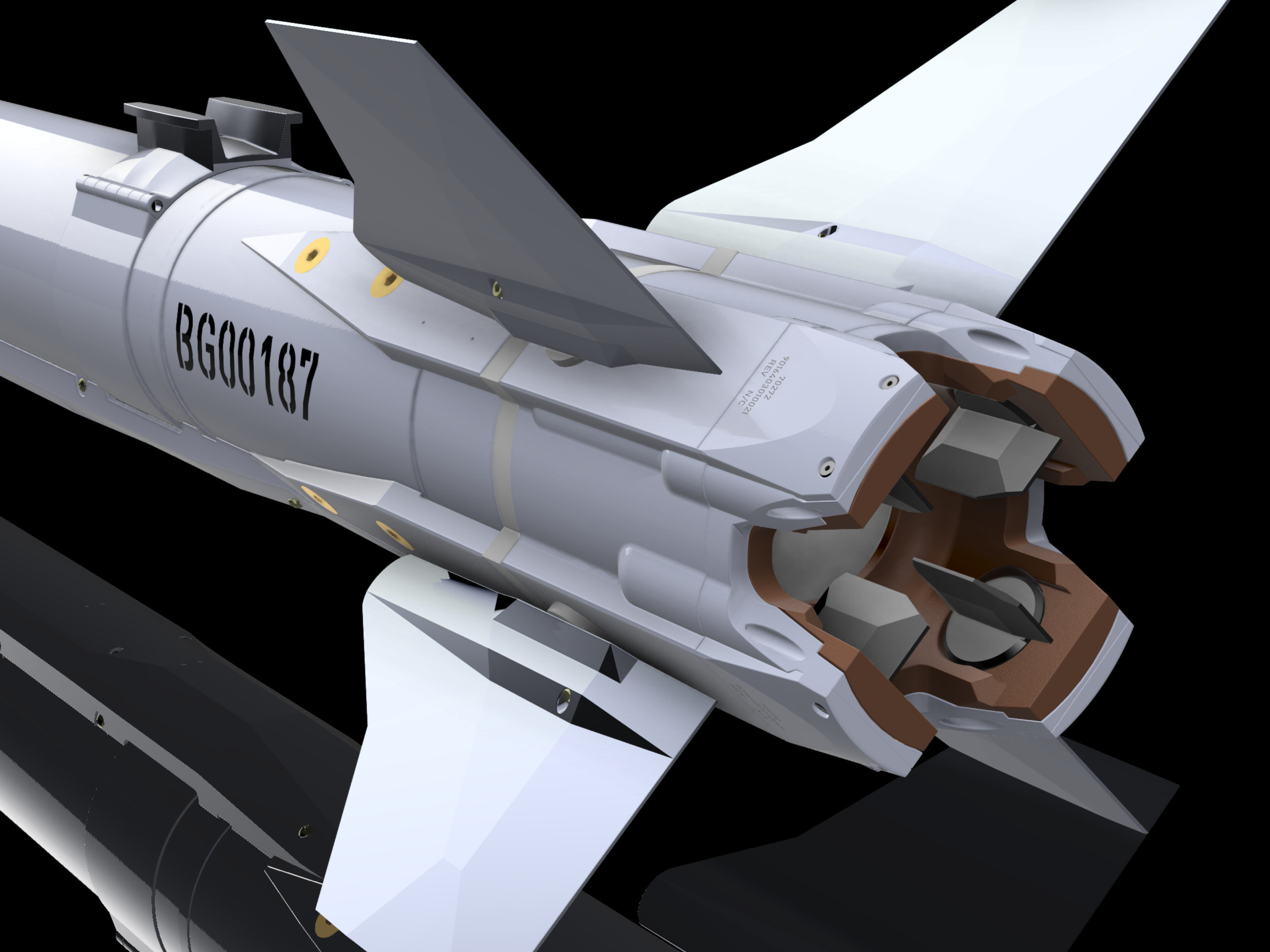

• Over 65 3D Print Ready Parts• Magnetic Wing and Fin Attachments• Functional Components:o Seeker Gimbalo Rear Fins Rotateo Jet Vector Vanes Rotateo Arm/Safe Selector Lifts and Rotates• True full-scale: Missile: 118.25″ L × 5″ Ø• Scalable To Any Size• Only a few parts require support• 3D Print Fasteners, Or Purchase Mil-Spec For Extra Detail, or Standard Fasteners

• F3D – Fusion 360
• STL, 1 file per object
• 3MF, 1 file per object
• STEP
• More Formats On Request

CUSTOMIZATION

Need a specific scale or a part tweaked? Message me:

• Most requests completed same-day
• No extra charge
• I'm active daily on all sites where I list models
