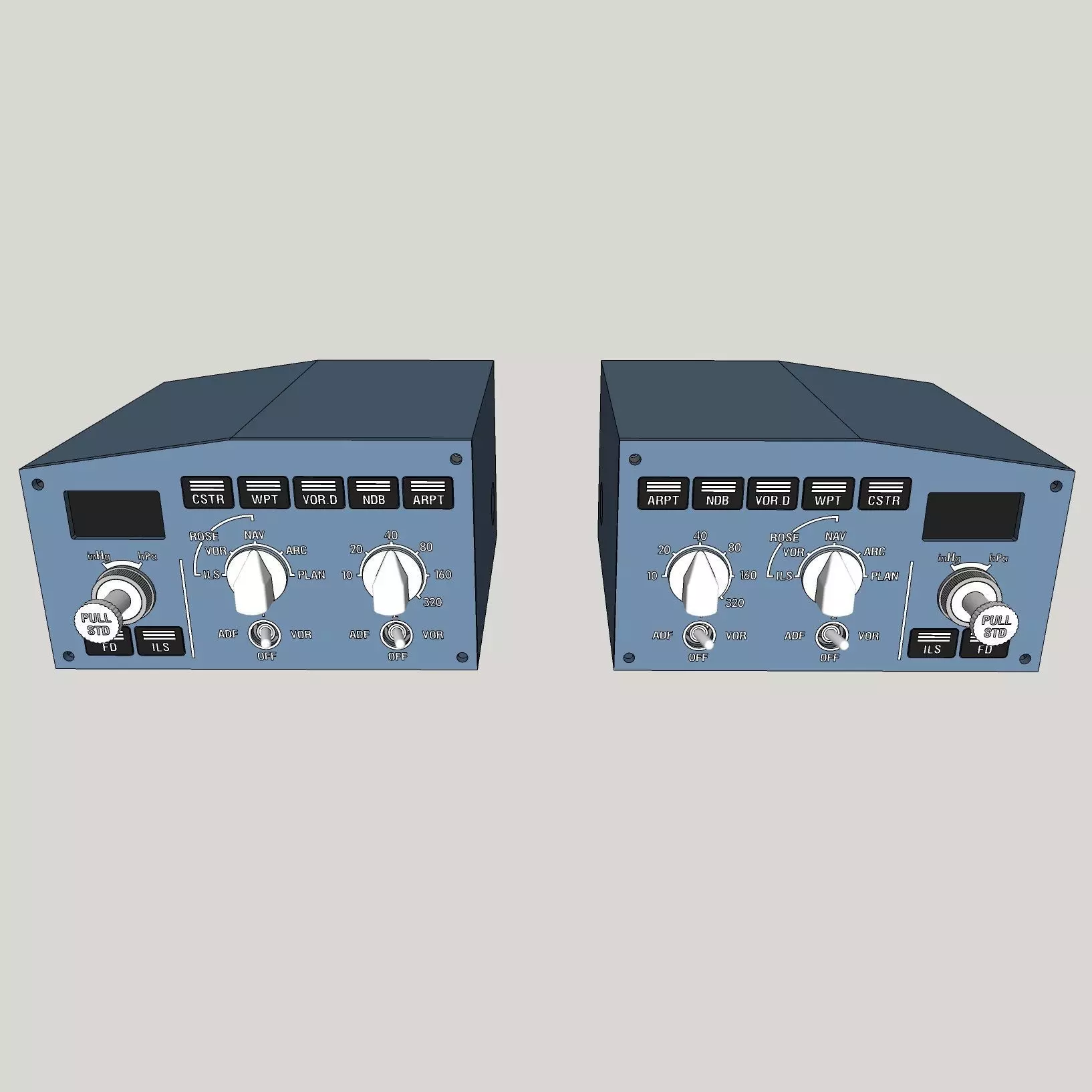

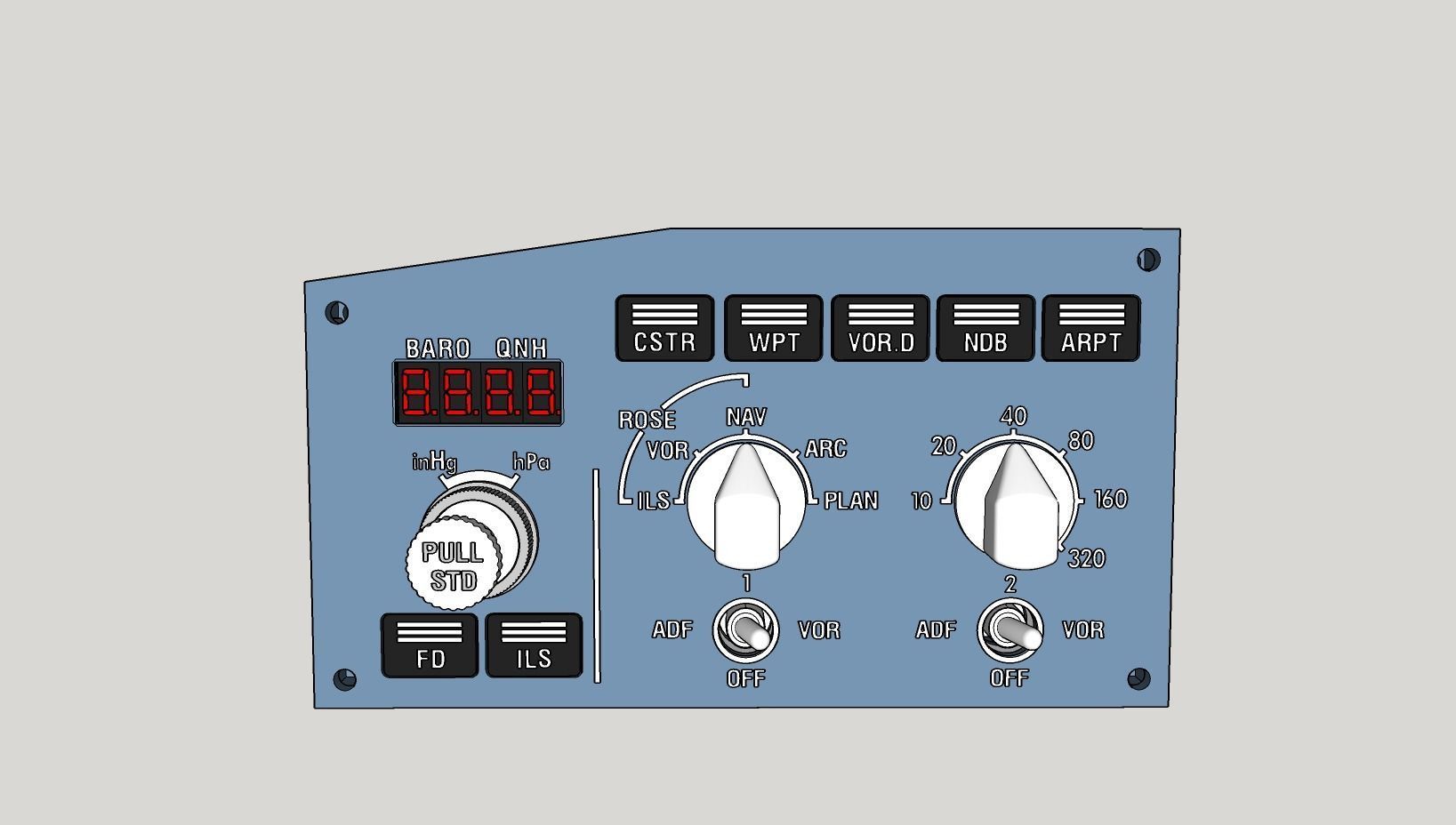

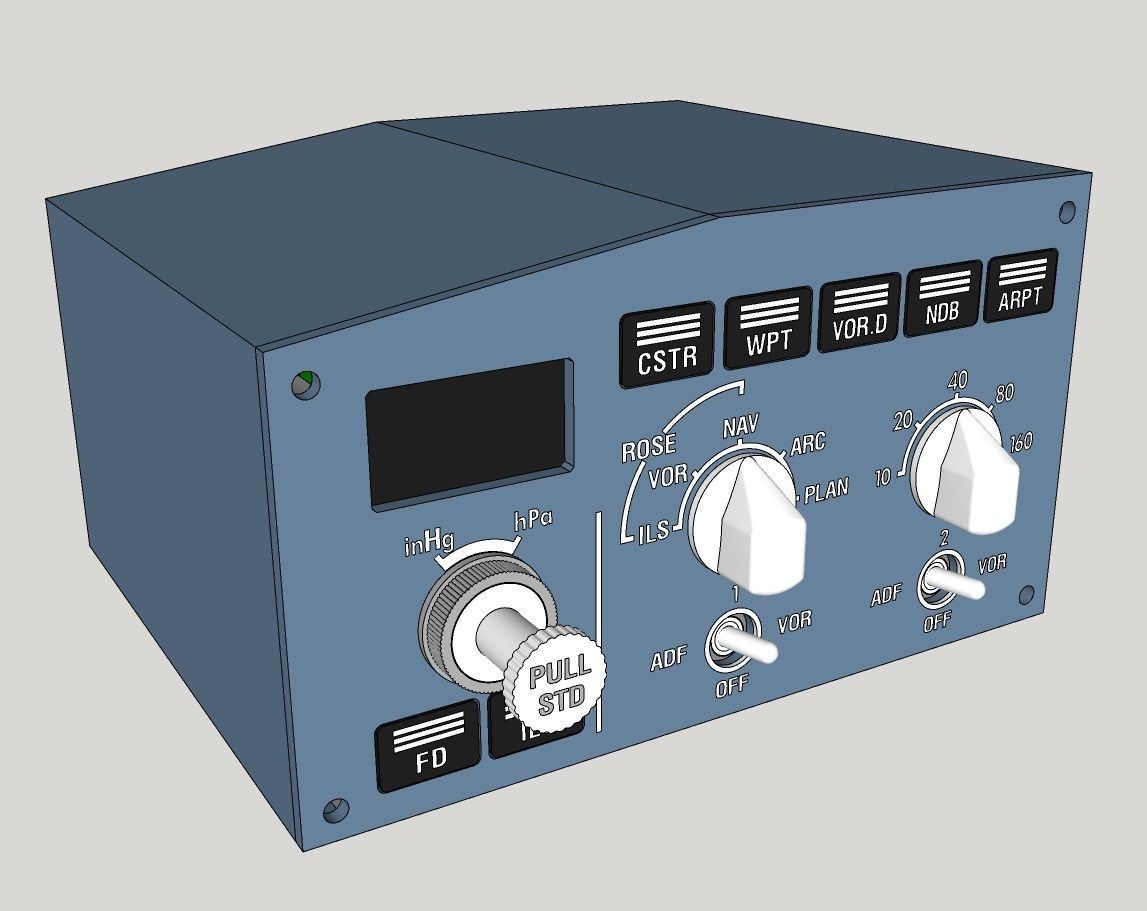

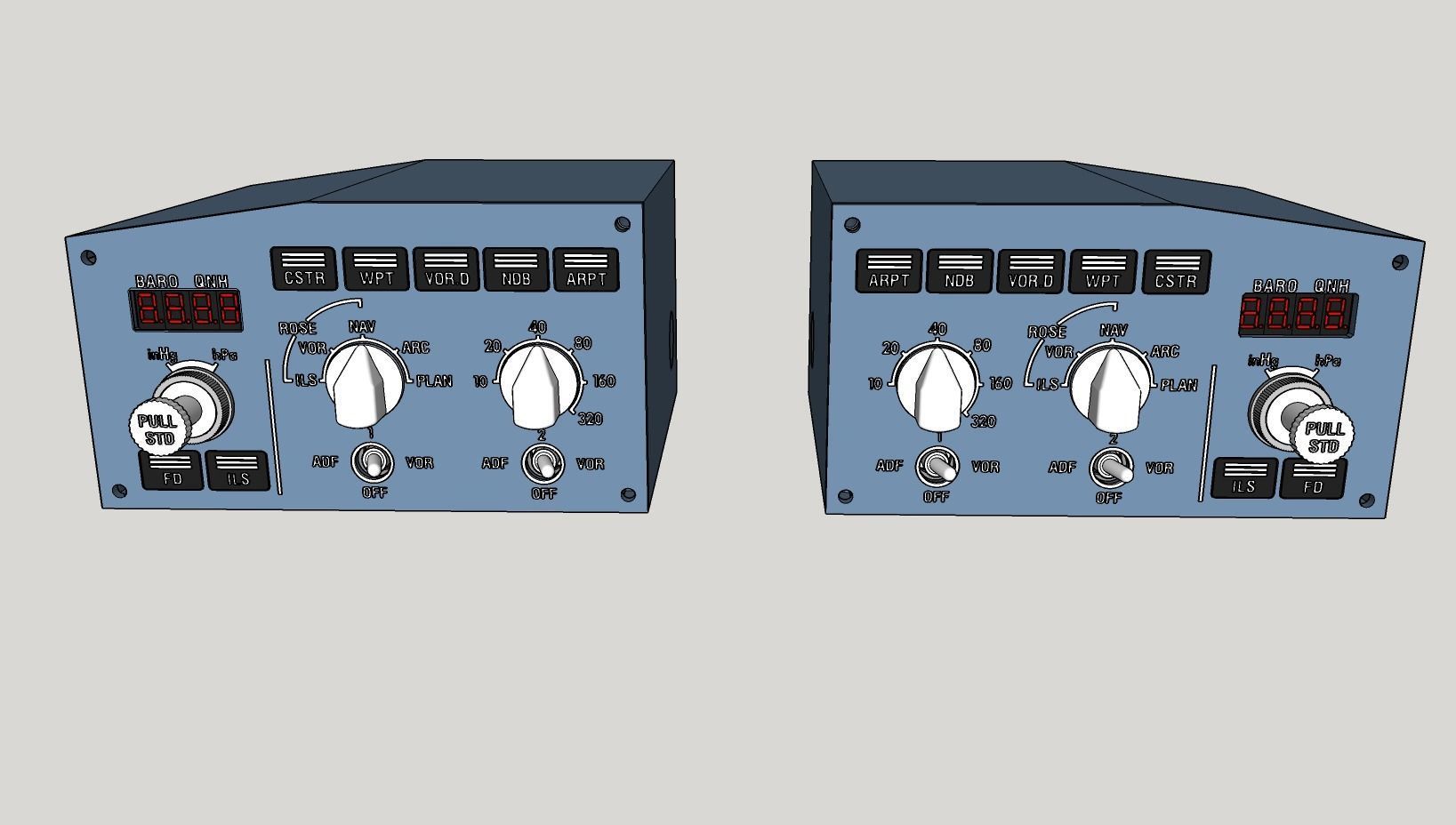

Airbus A320/A330 EFIS control panel for captain and first officer side.

NO PCB NEEDED!

This panel can be fully illuminated and is ready for printing by transparent PLA and painting

The display can be assembled by a 7 Segment LED, KAV Simolations LCD display or by a 1.3" OLED Display.

Detailed instructions on how to assemble each option can be found in the included assembly guide.

Include DXF files for the buttons base for laser cutting and engraving.

Can be connected to FCU panel which can be purchased separately or you can buy both of them at a REDUCED PRICE.

Dimensions:

Width: 155 mm

Depth: 133 mm

Hight: 87.5 mm

Part list:

1 x 7 Segment LED 0.36 inch MAX7219

7 x Mini Push Button Switch DIP Tact 6X6X4.3mm

2 x Toggle switch ON-OFF-ON

1 x Rotary Band switch 2 Pole 3 Position (SR16mm)

2 x Rotary Band switch 1 Pole 8 Position (SR16mm or SR26mm)

1 x EC11 Rotary encoder with Push switch 20MM Half Shaft

1 x Micro Switch 3Pin NO/NC Mini push button

4 x M3X20 Round screws
