Short description:Practical depth gauge for folding rulers – perfect for measuring or marking depths and distances. Includes versions with and without logo. Consists of 3 parts: 2× PETG/PLA + 1× TPU. Easy to print and quick to assemble.

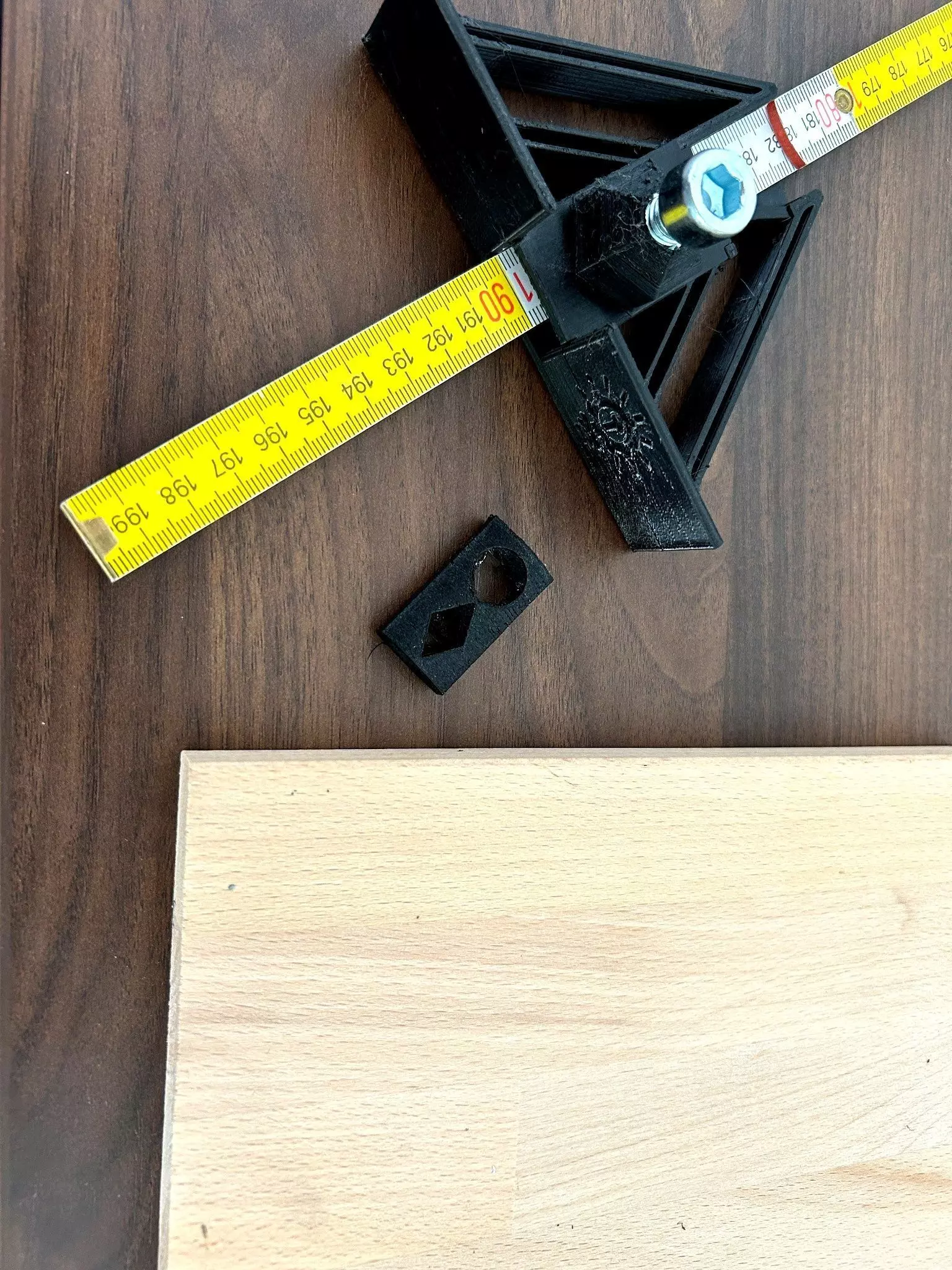

Description:Practical depth gauge for folding rulers – perfect for measuring or marking depths, distances, and drilling positions.The folding ruler is simply inserted into the tool until the desired measurement is reached and then fixed in place with a screw.Thanks to the TPU part (“snapper”), you can also mark directly on the workpiece.

Included in the set (files):

• Version with logo (STL & STEP)
• Version without logo (STL & STEP)

Construction:The model consists of 3 parts:

• 2 parts made from PETG or PLA (body & cap)
• 1 part made from TPU or similar flexible material (snapper)

Assembly:

1. Print all 3 parts.
2. Insert a standard M10 nut into the cap.
3. Fix the cap with a drop of super glue.
4. Screw in an M10 bolt.
5. Insert the folding ruler, tighten the screw – done.

Printing recommendations:

• Layer height: 0.2 mm
• Infill: 20–30%
• Supports: not required
• Material recommendation: PETG for durability, TPU for flexible parts
