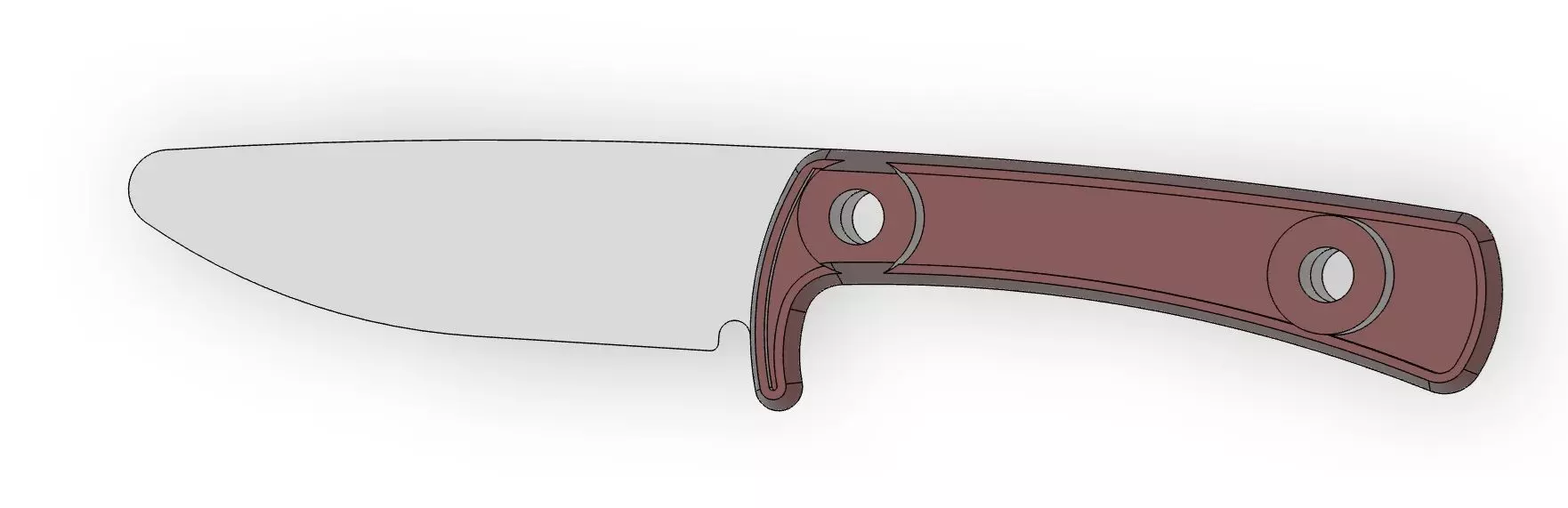

This CAD template is designed for building a safe kids’ knife.It combines the blade and handle in one precise model and allows easy embedding of M5 thread inserts. This enables accurate pre-drilling with a 4 mm drill and secure fastening of the template when needed.

All edges are chamfered for easy marking and transferring the contours onto wood or other materials.The design is based on a real, built, and tested knife.

Bonus: In addition to the 3D files, the blade is also provided as a DXF file – perfect for laser cutting or water jet cutting from steel

Included Files:

• STL – ready for 3D printing the template
• STEP – for further CAD modifications
• DXF – 2D blade contour for laser or water jet cutting

Features:

• Fits M5 thread inserts (heat-set method)
• Accurate drill positions for 4 mm drill bits
• Chamfered edges for easier marking
• Tested and proven design
• DXF file for laser or water jet cutting included
• Suitable for wood or GFRP handles

Technical Details:

• Recommended 3D printing: FDM, PLA or PETG, 0.16–0.20 mm layer height, 15–20 % infill, no supports needed
• DXF format: Compatible with most CNC laser and water jet cutting services
• Model dimensions: True scale 1:1 for accurate production
