Speaker unit assembly kit 3D print model

[About this 3D print model]

This model is a miniature assembly model of a speaker unit. This model is made for people who like speakers and assembly. The size of this model is about 30mm. The structure is similar to the actual one, but the connection terminal is omitted. You can also attach this model to a key ring or strap.

The data format is STL.There are data for each part and combined data. Also, combined data does not reproduce the internal structure. (Only the appearance is reproduced.) The combined STL data has its own color, but the software that can be read is limited. For details, check your software. (Ex: Autodesk viewer is possible.)

When printing separately for each part, you can change the material and color of each part to your liking.

[About printing and Assembry]

The accuracy of the printer is 0.1mm or less. If the printer is not accurate, try changing the scale to a larger size in the printing software.

When the scale is enlarged, the clearance of each part increases, The gap between each part also increases.

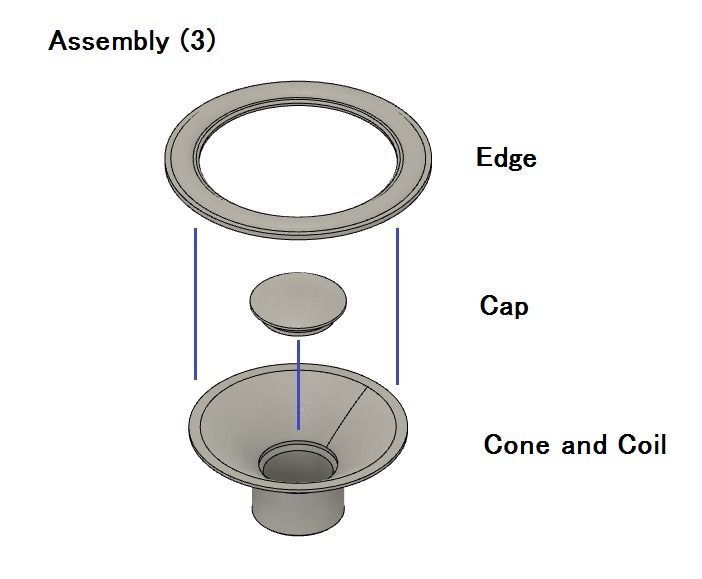

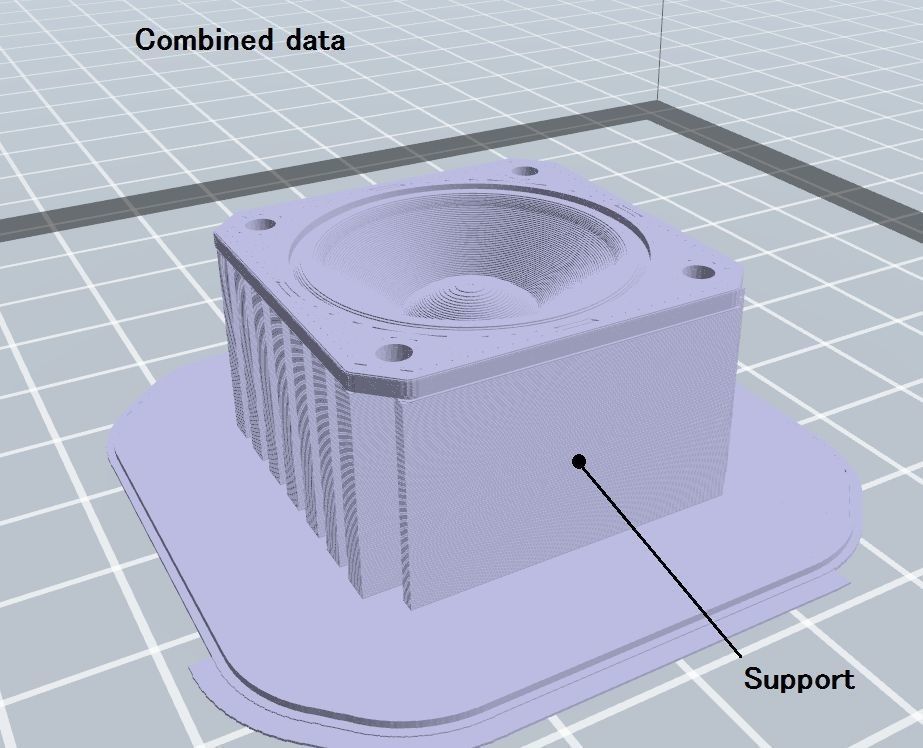

You will not need printing support when printing each part individually. However, when printing combined data, printing support is required. Please refer to the image for print setting and assembly method.

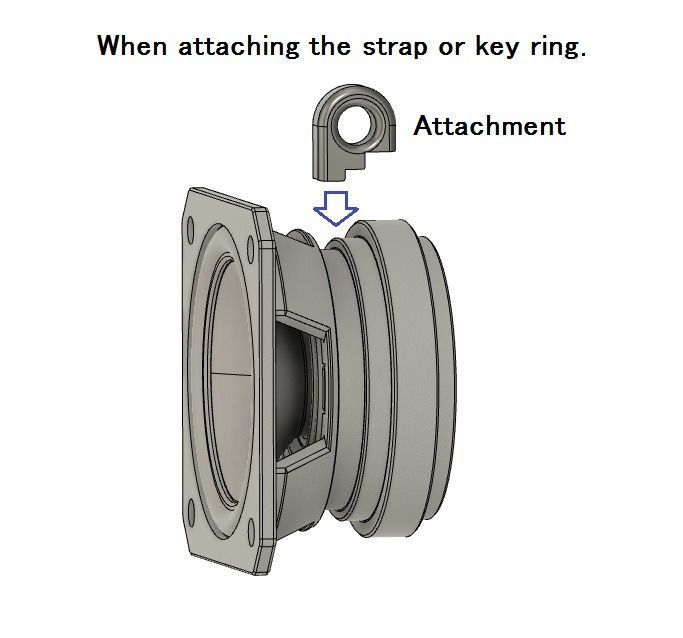

The strap can be attached directly to the frame, or a dedicated attachment can be used.

[Other]

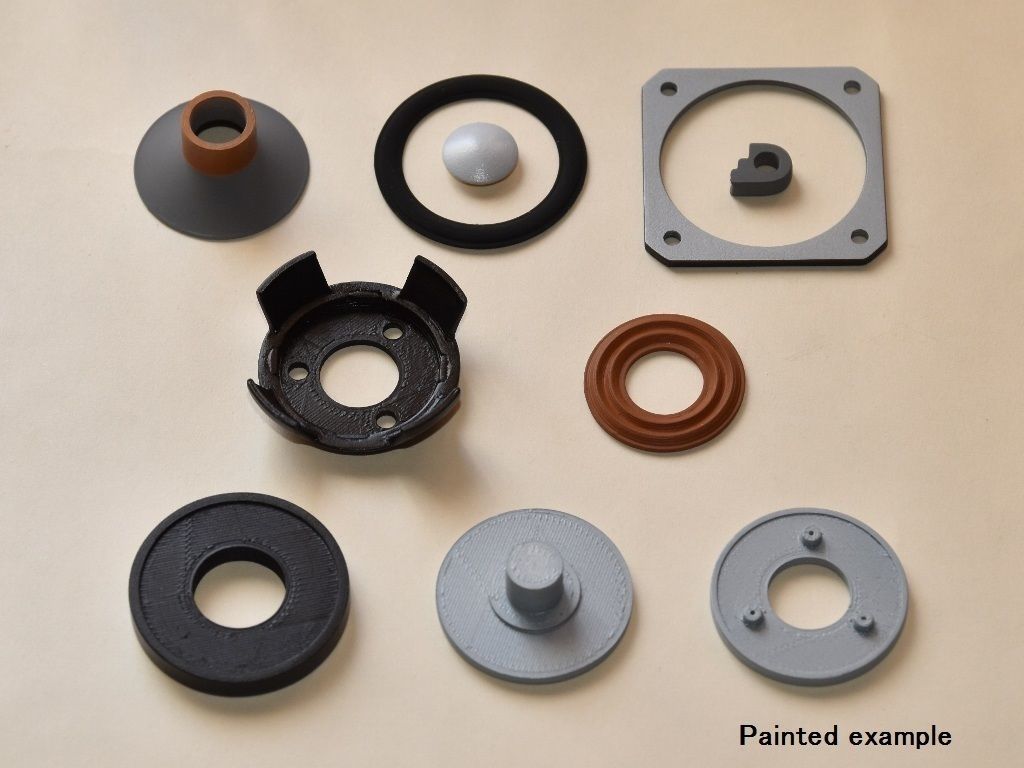

Refer to the photo for the assembled and painted sample. The sample was printed by FLASHFORGE Adventure3.
