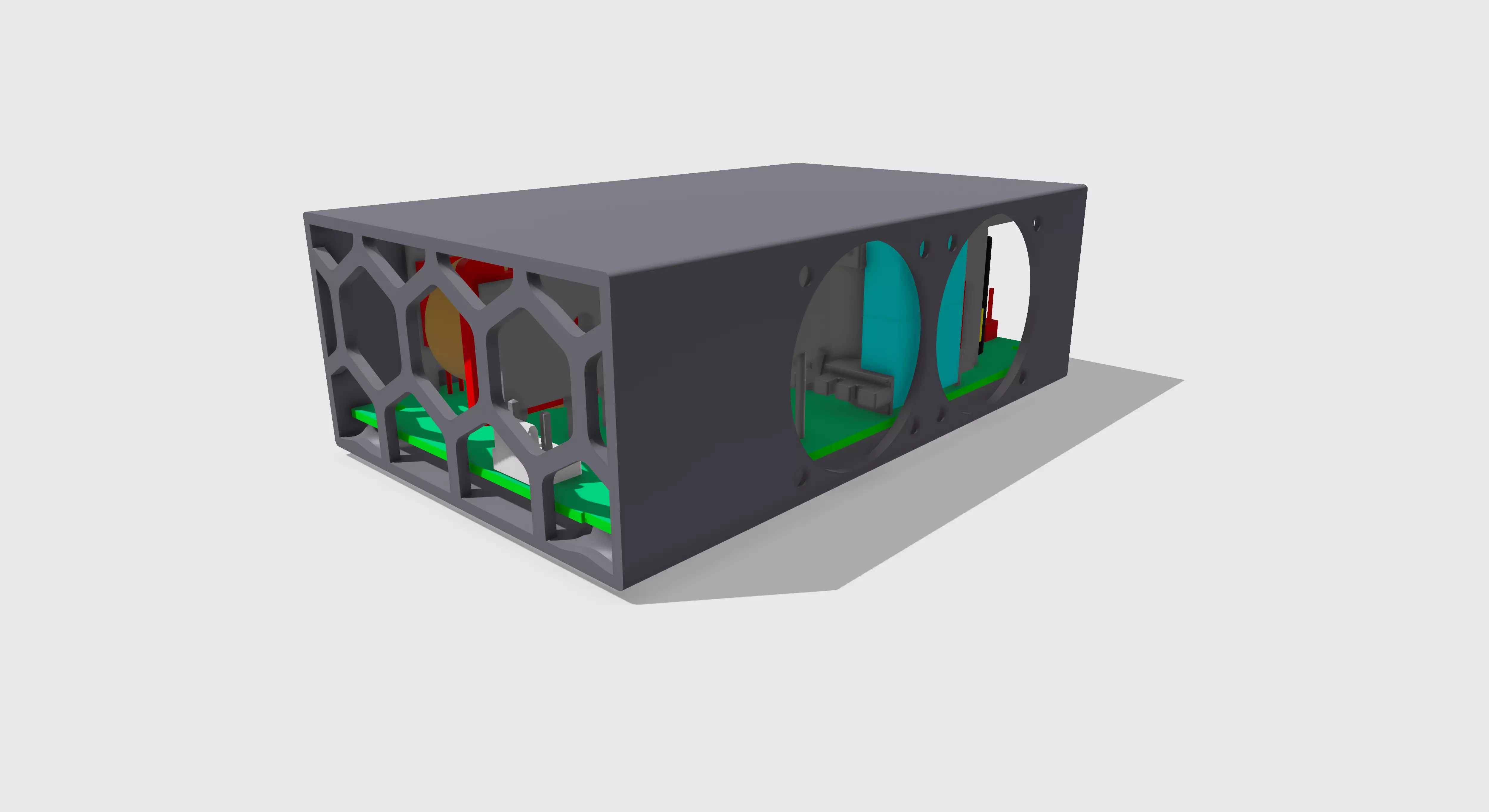

Mean Well EPP 300 400 500 Series PSU Casing Enclosure 3D print model

Description

Support Mean Well EEP series power supply units:

  • EPP-300-12 EPP-300-15 EPP-300-24 EPP-300-27 EPP-300-48
  • EPP-400-12 EPP-400-15 EPP-400-18 EPP-400-24 EPP-400-27 EPP-400-36 EPP-400-48
  • EPP-500-12 EPP-500-15 EPP-500-18 EPP-500-24 EPP-500-27 EPP-500-36 EPP-500-48 EPP-500-54

The PSU should be mounted with 4x M3x6mm screws and 4x M3x5mmx4mm brass heat set inserts.

Outline dimension size:

  • 132mm x 43mm x 81.2mm

Support dual side mounted 40mm DC 12V fans (4010/4020 etc.) mounted by standard M3 FHCS.

Write comment
Item rating
0 0
Mean Well EPP 300 400 500 Series PSU Casing Enclosure
$16.00

Royalty Free License
Mean Well EPP 300 400 500 Series PSU Casing Enclosure
$16.00

Royalty Free License
S
shrubbonfire0p
(0 reviews)
Response - % in - h

3D Model formats

Format limitations
  • STEP (.stp)3.58 MB
  • Other 3.58 MB
  • Stereolithography (.stl)2.5 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2024-10-03
  • Model ID#5563809
