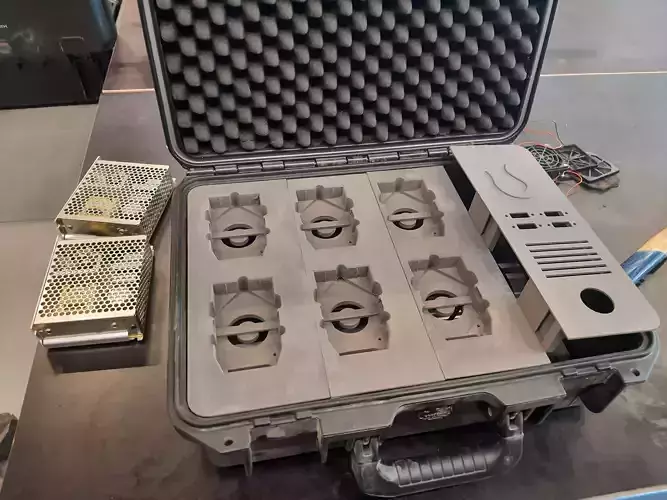

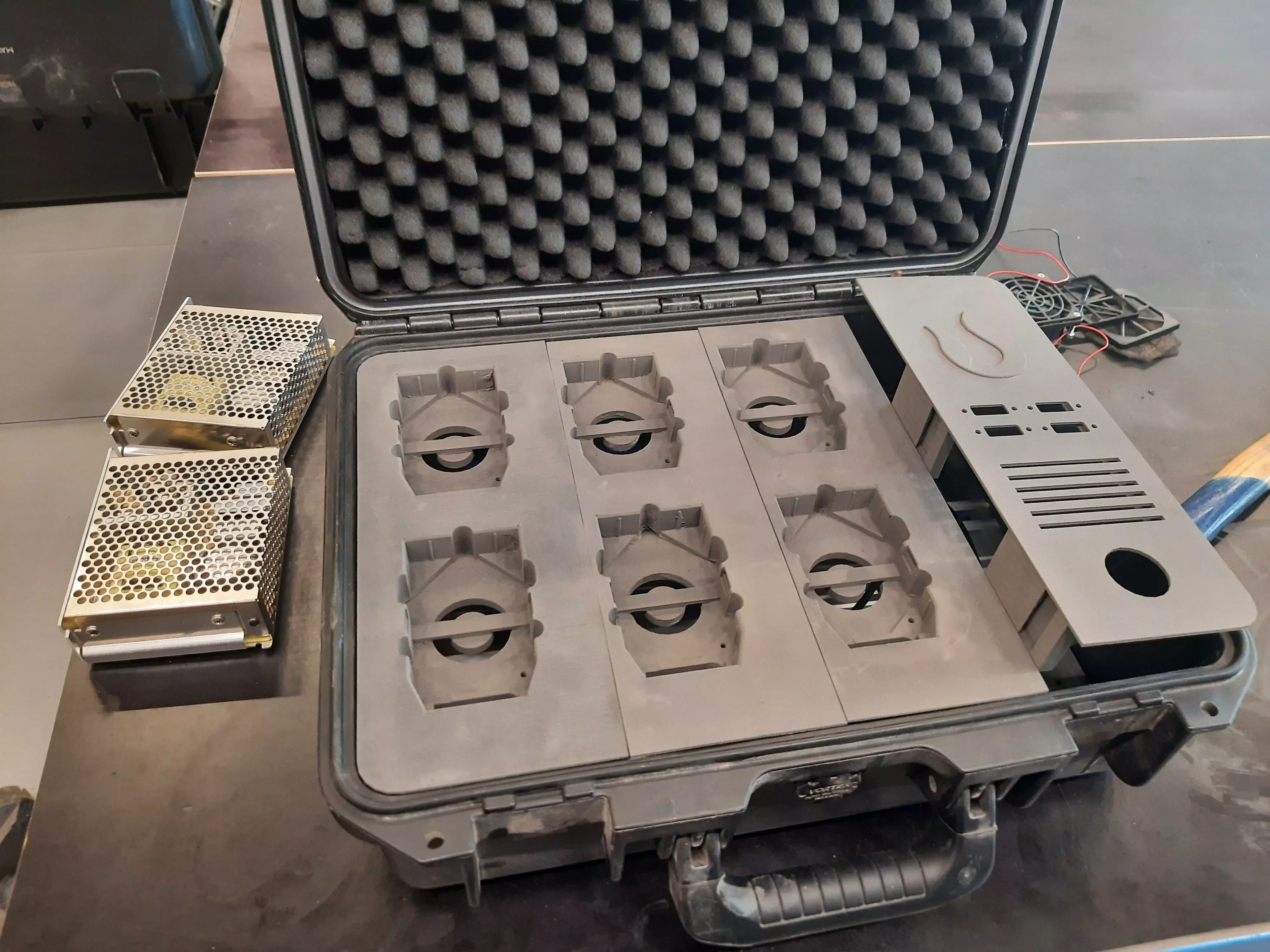

DJI Mavic 2 Field charger for Peli 1450 EU 3D print model

Field charger for DJI Mavic 2.

The charger is built to charge 6 Intelligent Flight Batteries at the same time.

You'll need:

• 2x 5 in one battery charger https://www.banggood.com/5-in-1-Battery-Remote-Control-Smart-Charger-Charging-Hub-with-Switch-for-DJI-Mavic-2-Pro-or-Zoom-Drone-p-1383379.html?cur_warehouse=CN
• 12x Wago 2273-205
• 6xFans (40x40x20mm)
• 6x Snap-action switch 5A 250Vac for ex.: MQ10505202
• 1x power unit for the fans
• 1x Neutric Powercon plug 230Vac
• 1x Peli 1450EU case
• 4x USB Chassis Mount ex: https://cpc.farnell.com/startech/usbpnlafam1/lead-usb-a-male-to-chassis-socket/dp/CS22609
• Some wires

How to: Simply glue with adhesive tape the two blue chargers on the bottom of the Peli case and wire everything up. Please note that the Wagos are only used for the control and the supply of the fans.
