Haltech UC-10 Mounting and Sizing Template 3D print model
thumbnail
thumbnail
DESCRIPTION

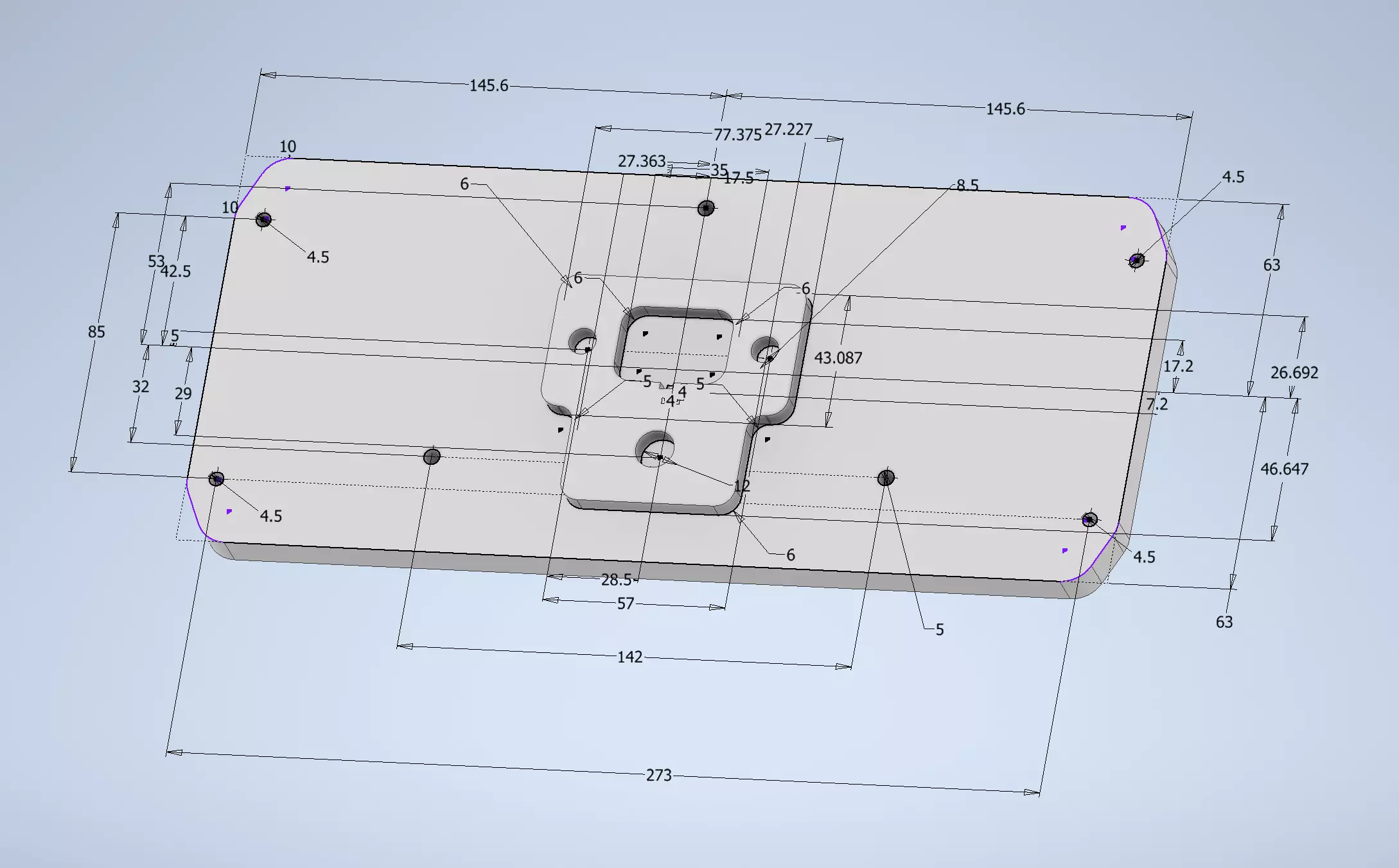

Scaled and re-drew the Haltech UC-10 Digital Dash Display mounting schematics into a CAD-friendly format. Hole center locations and overalls taken directly from Haltech's dimensions. The overalls were scaled and traced accordingly. Makes it easier for someone to design a UC-10 into their project.
