Exhaust header manifold flange

Exhaust header manifold flange 3D print model

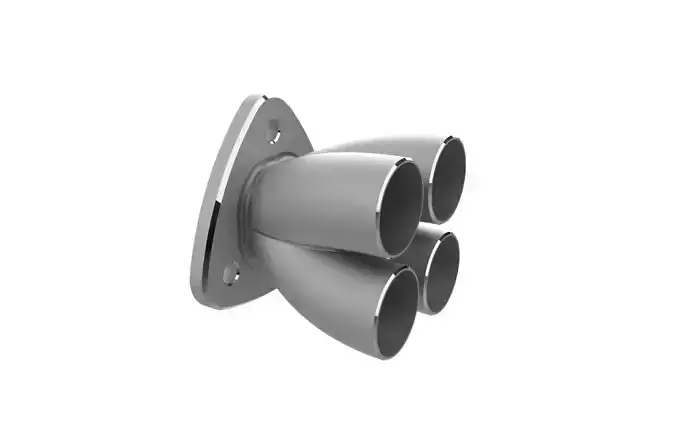

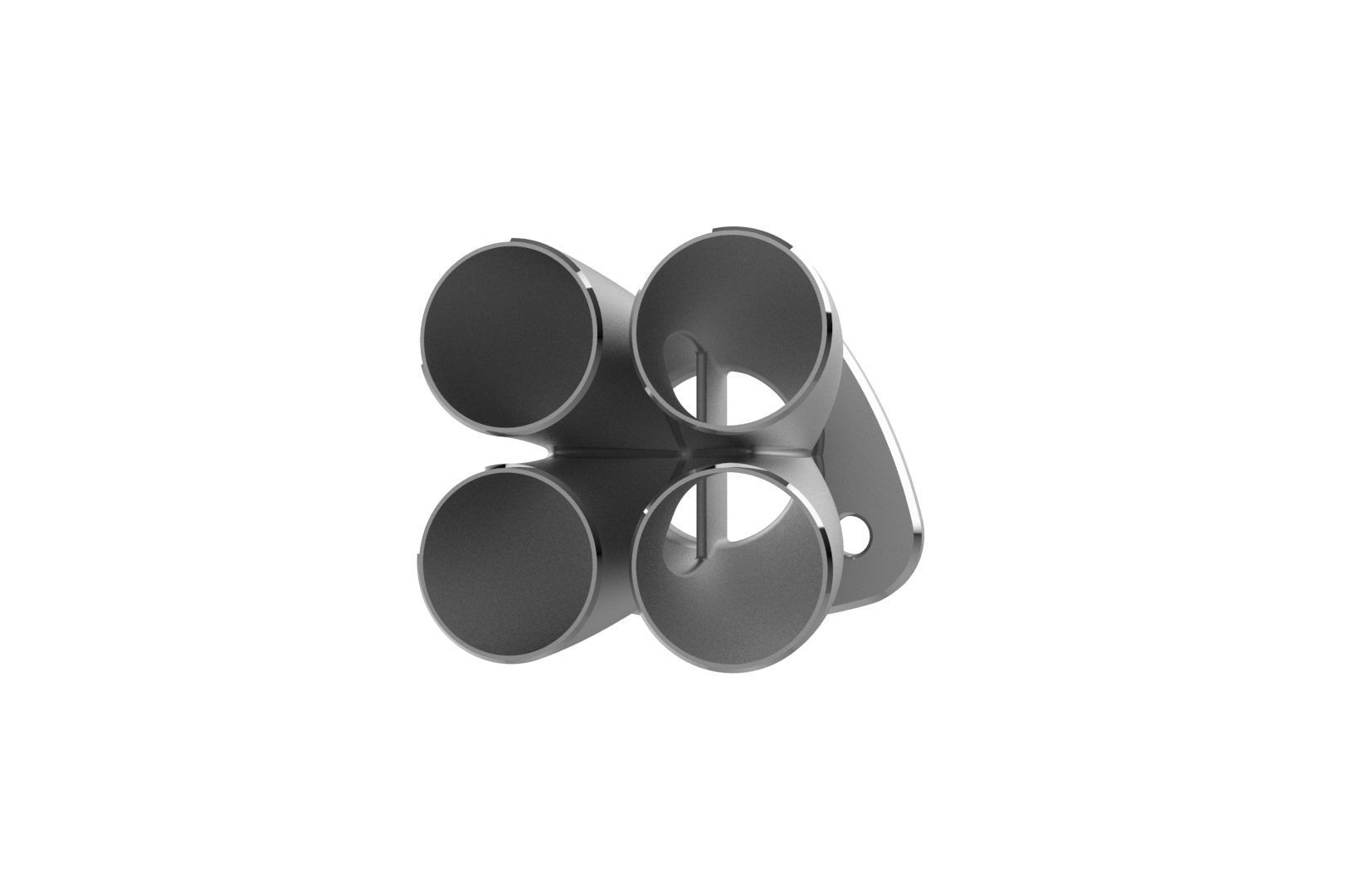

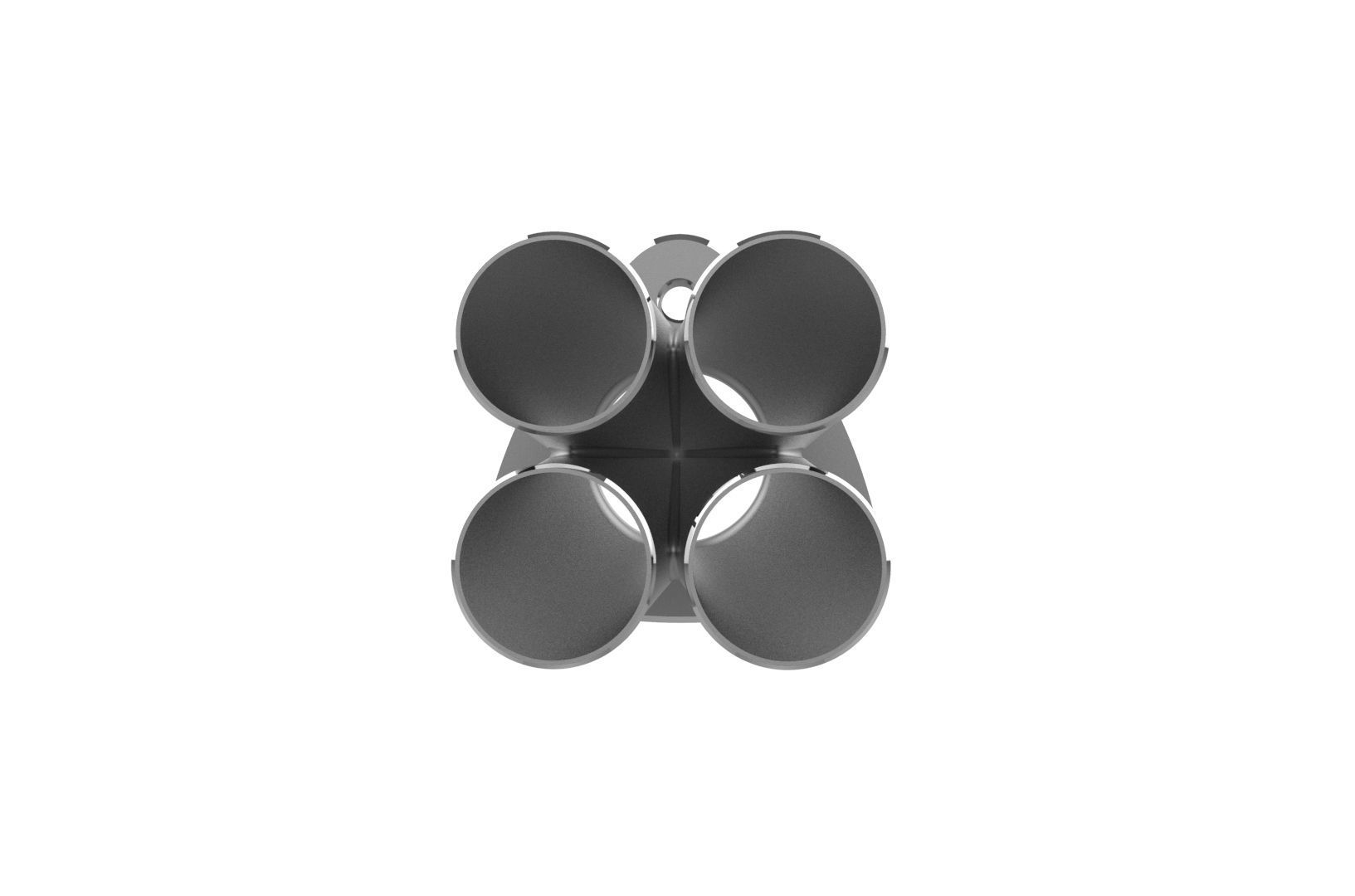

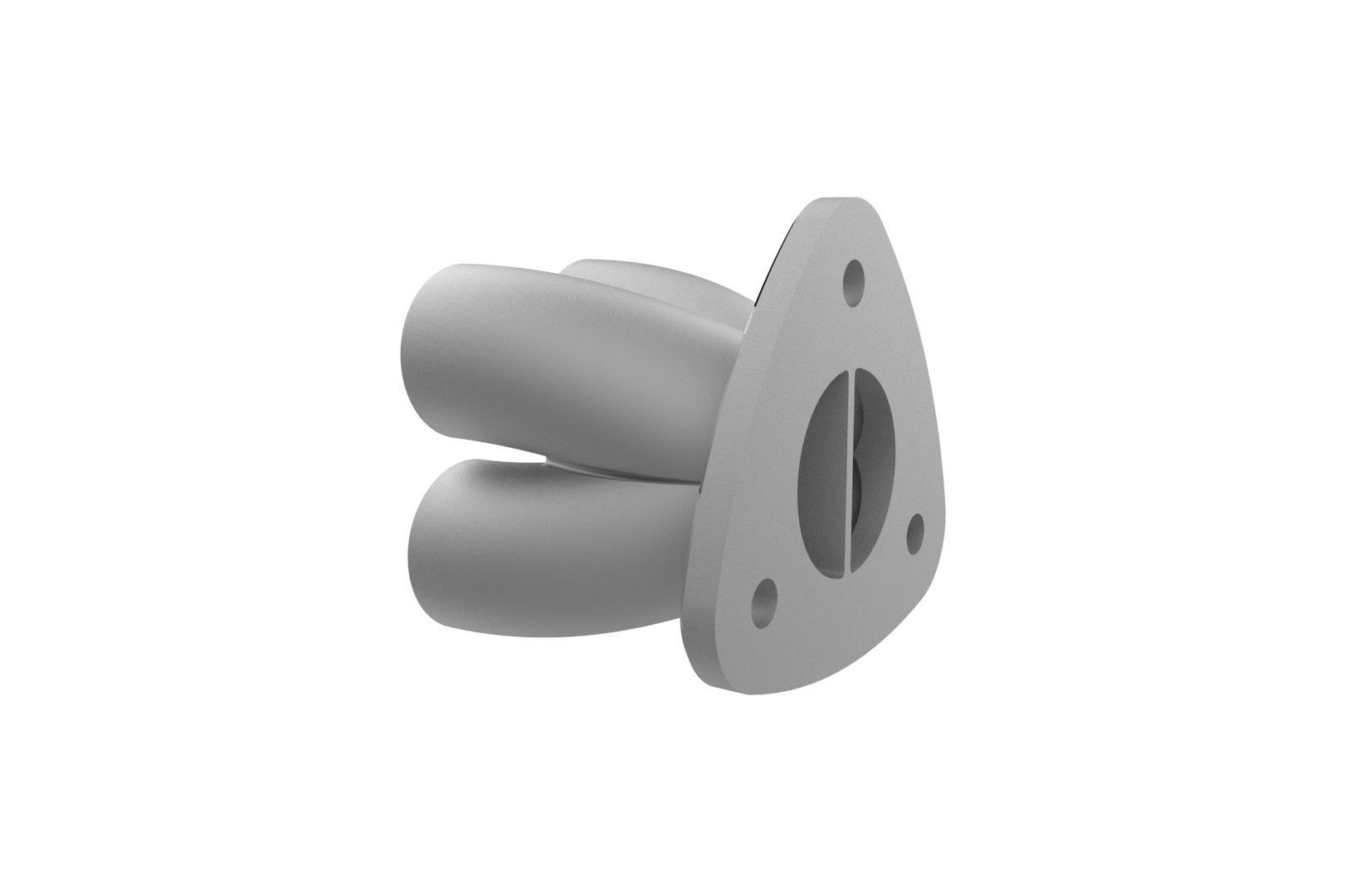

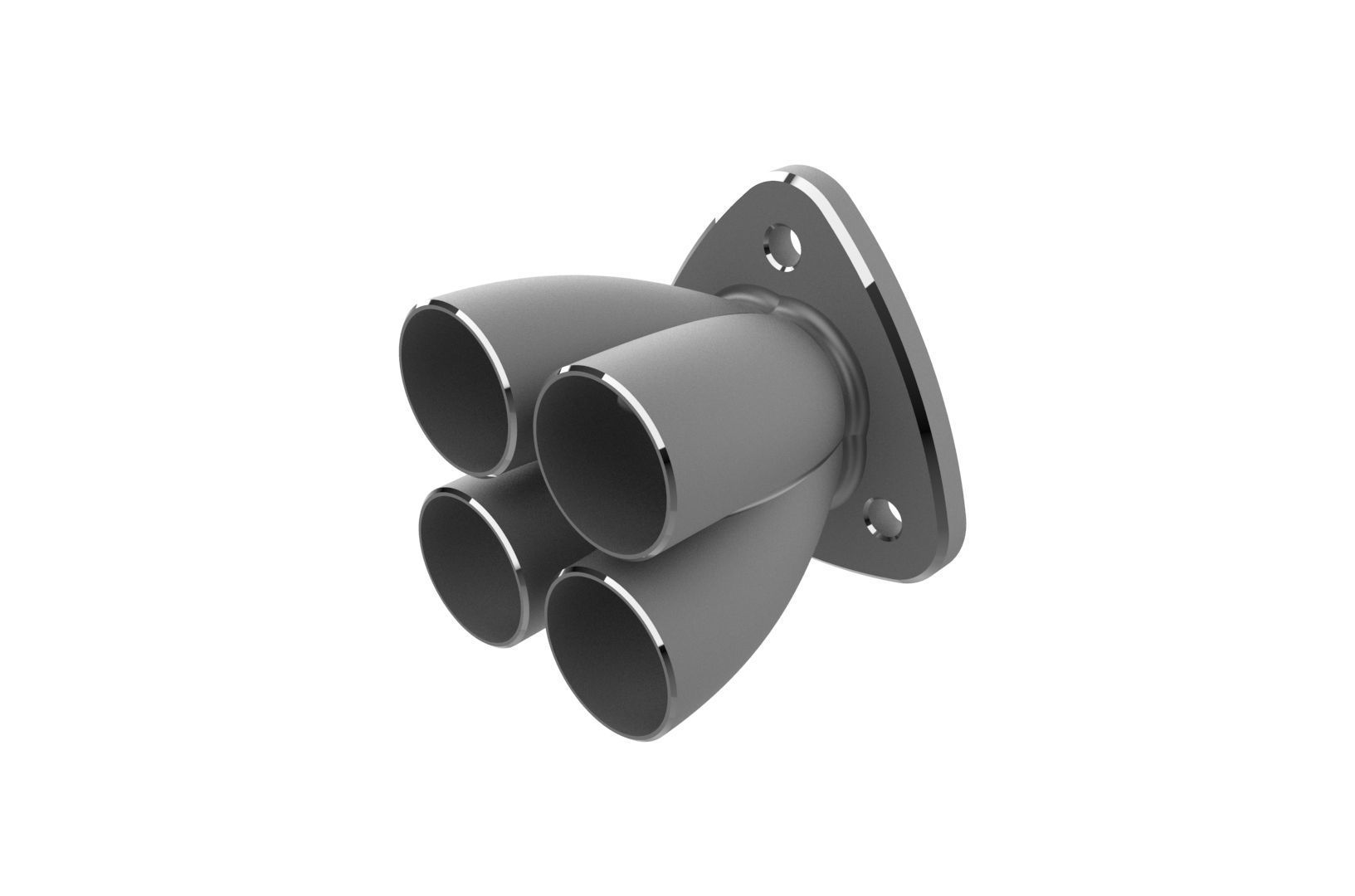

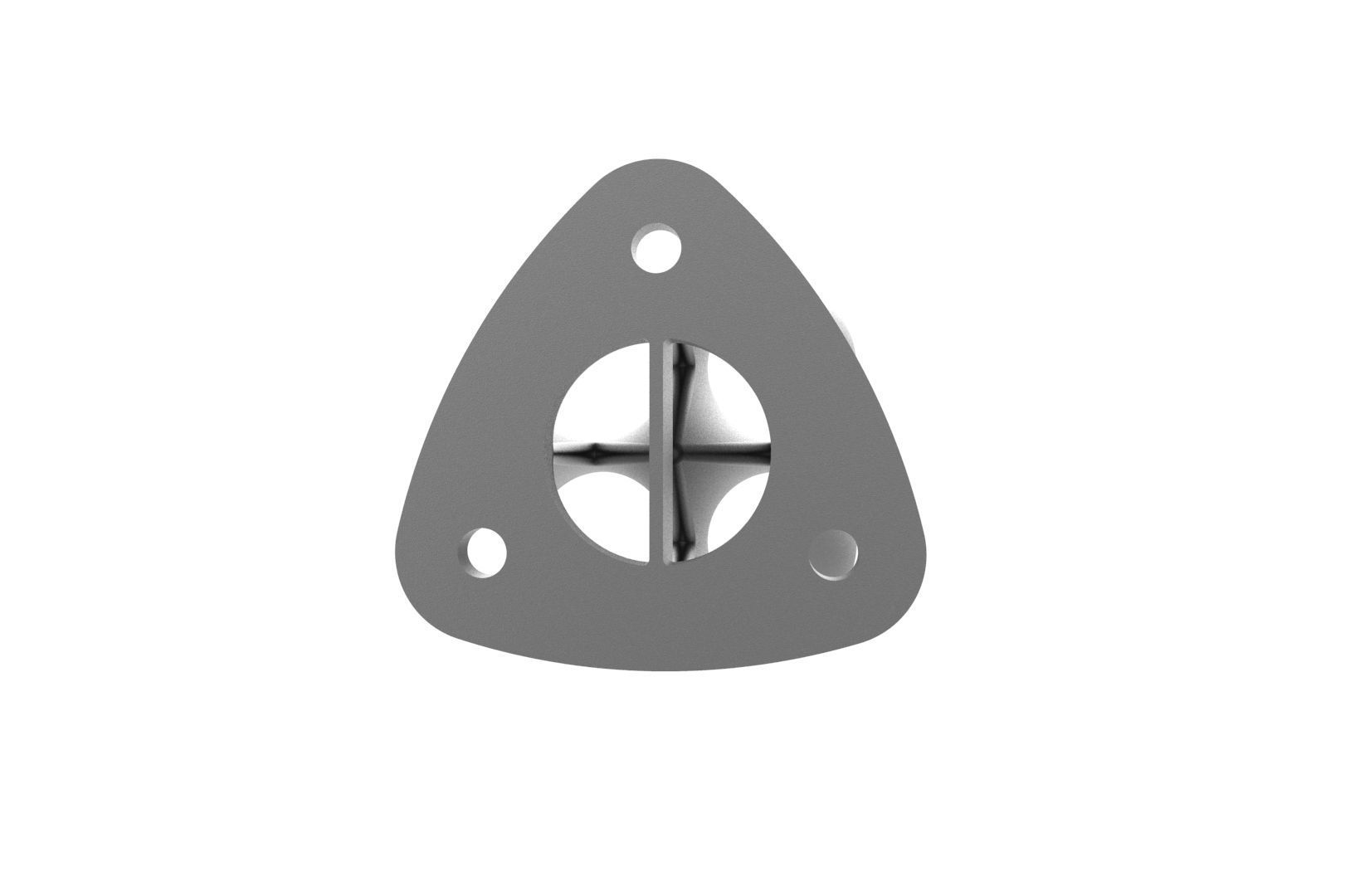

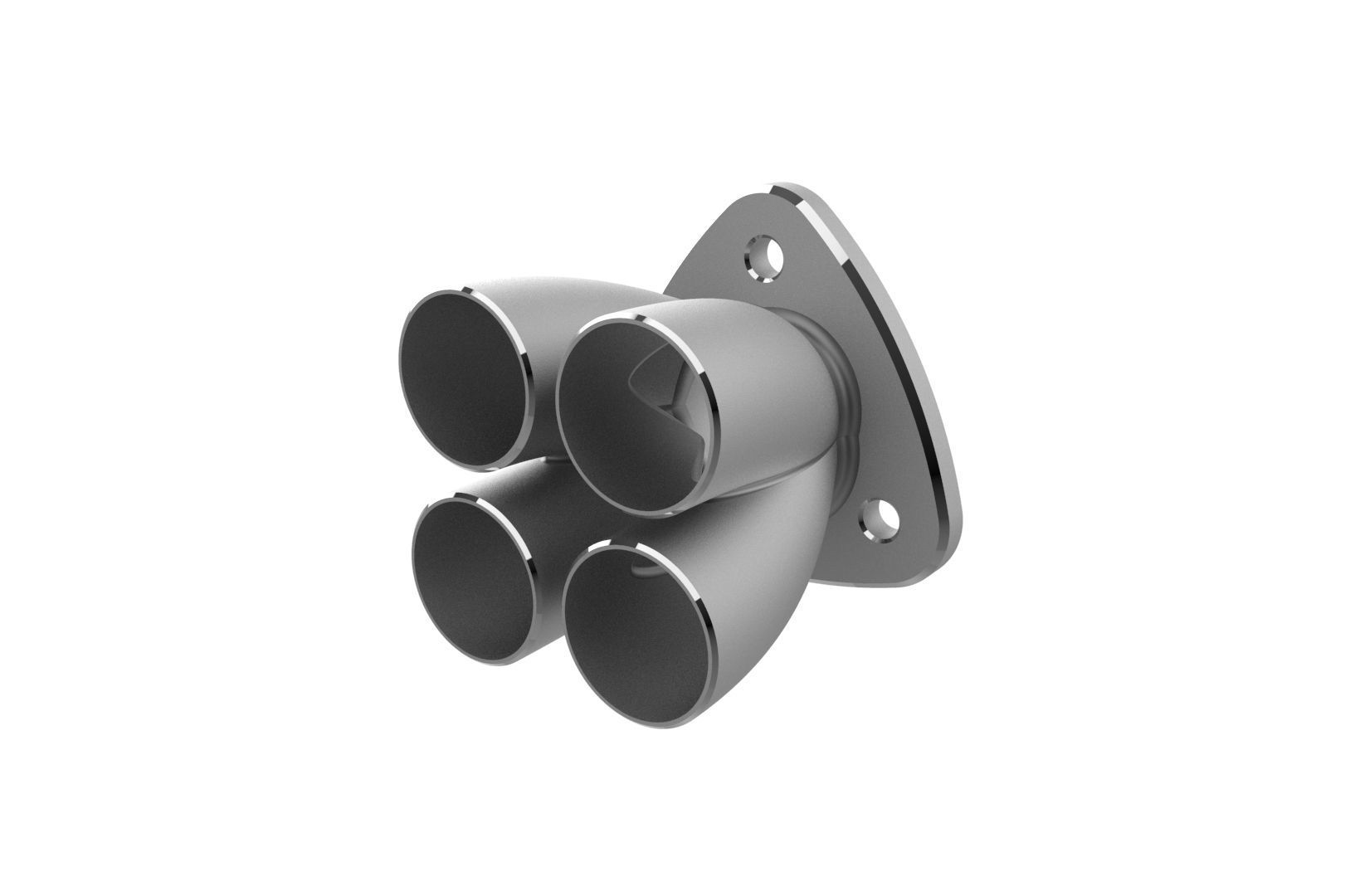

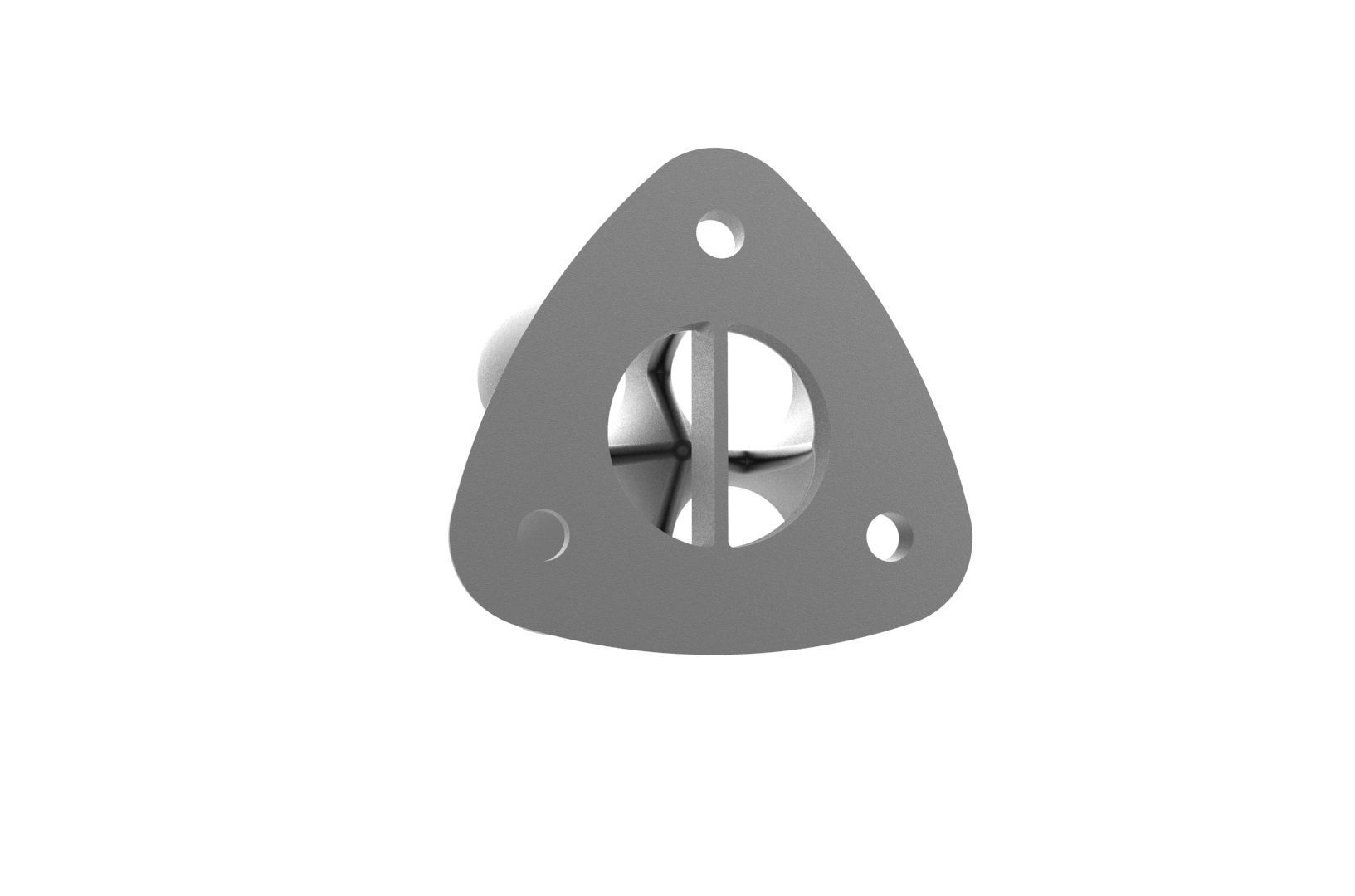

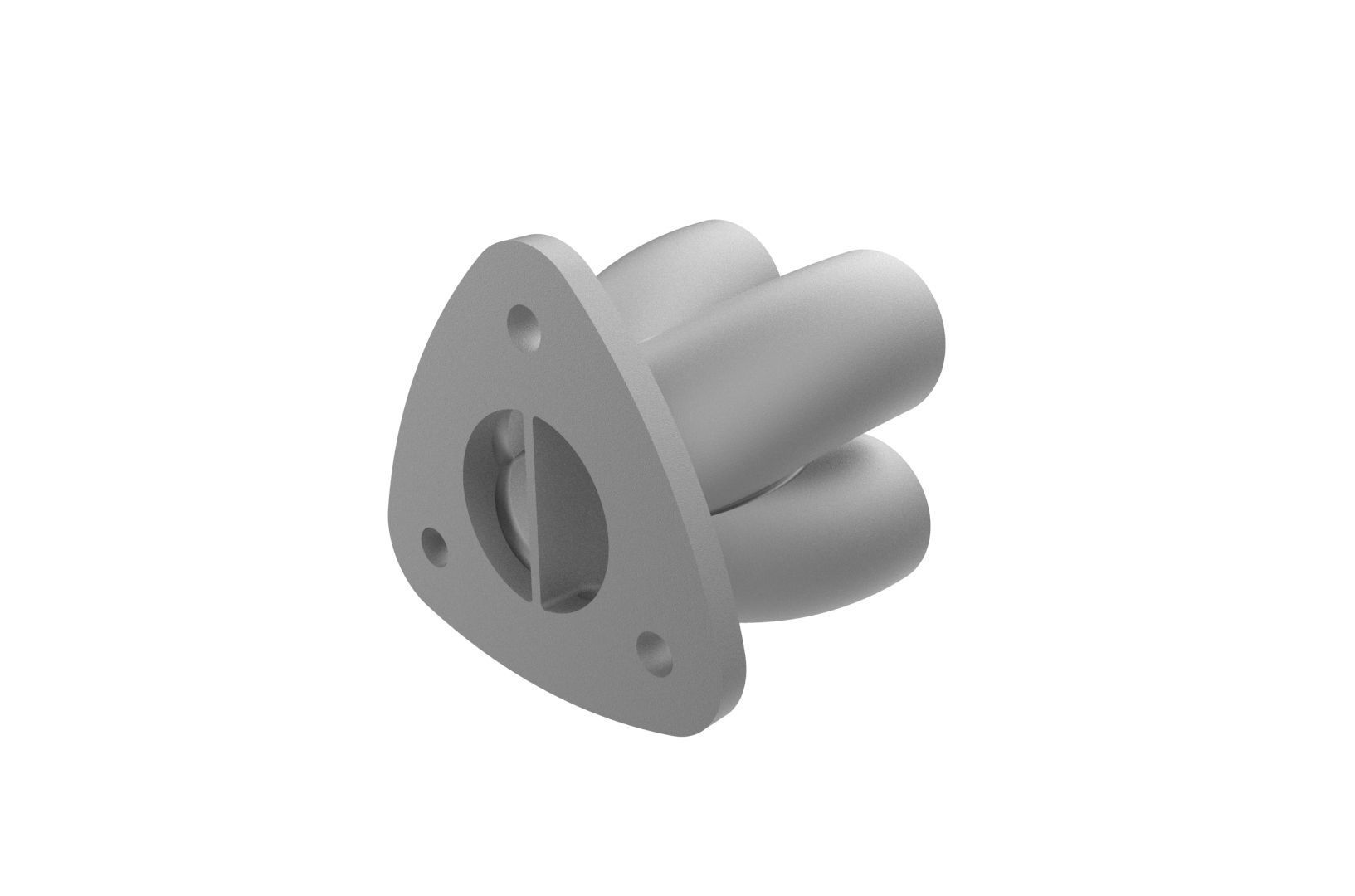

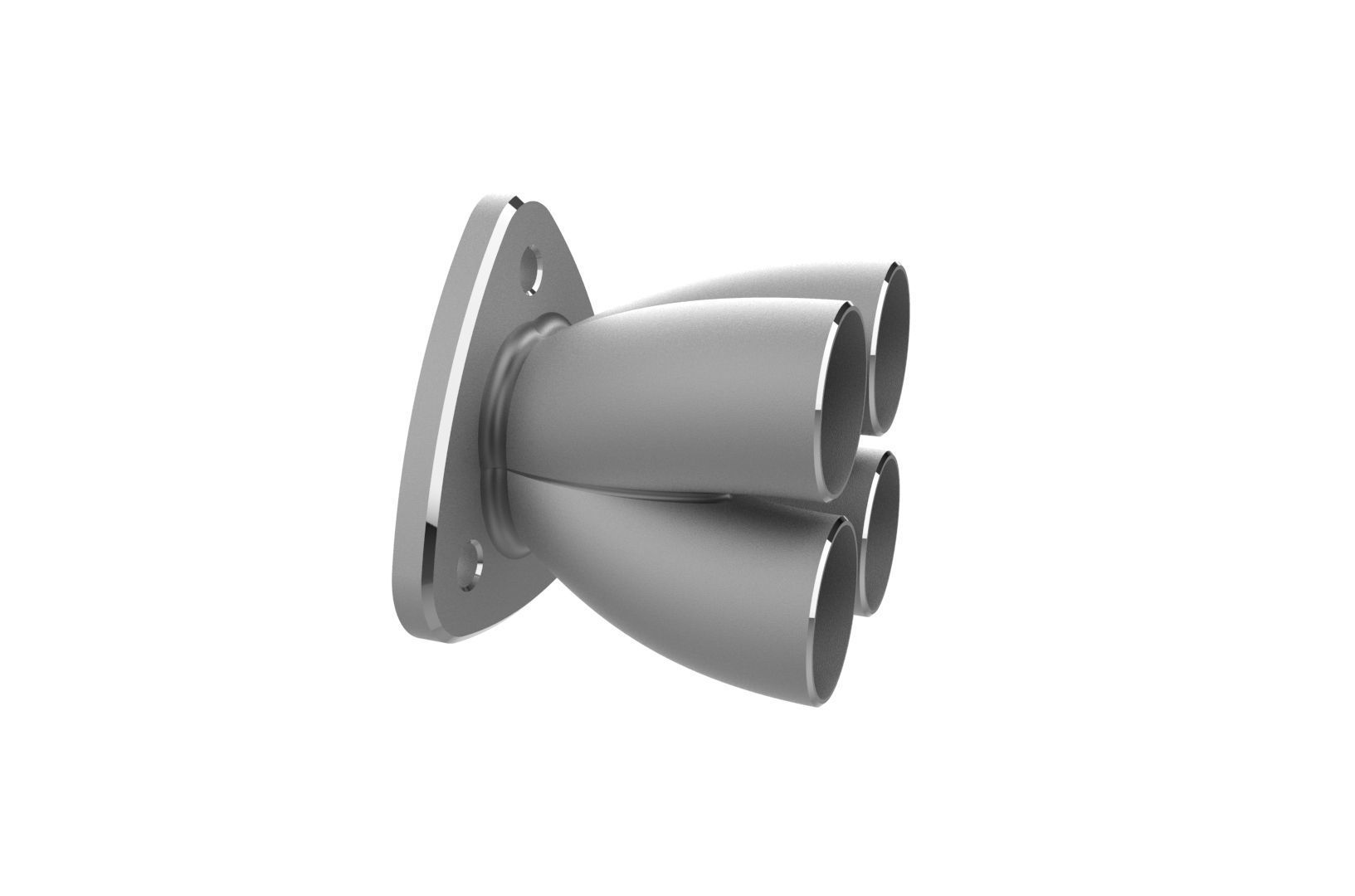

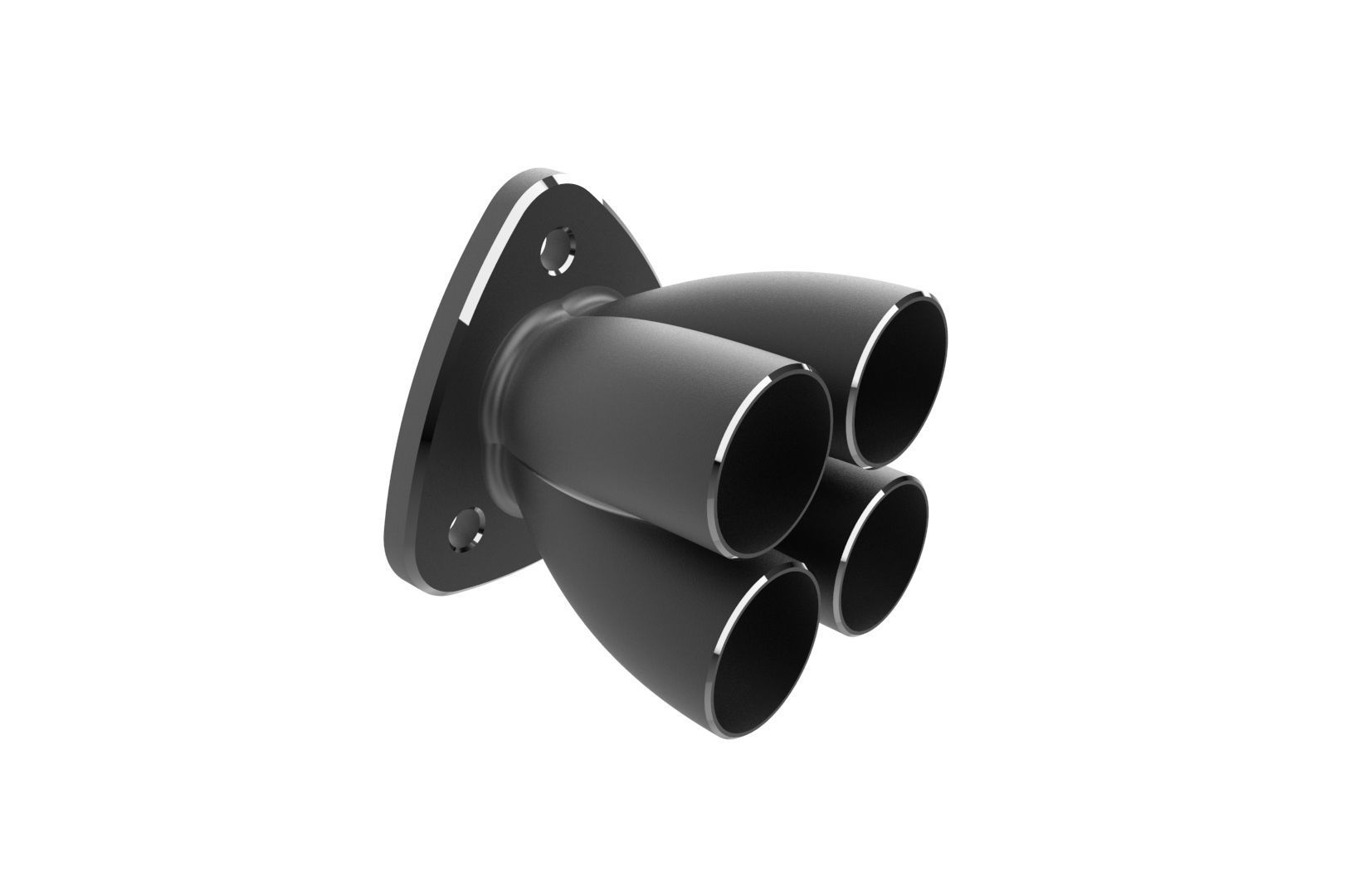

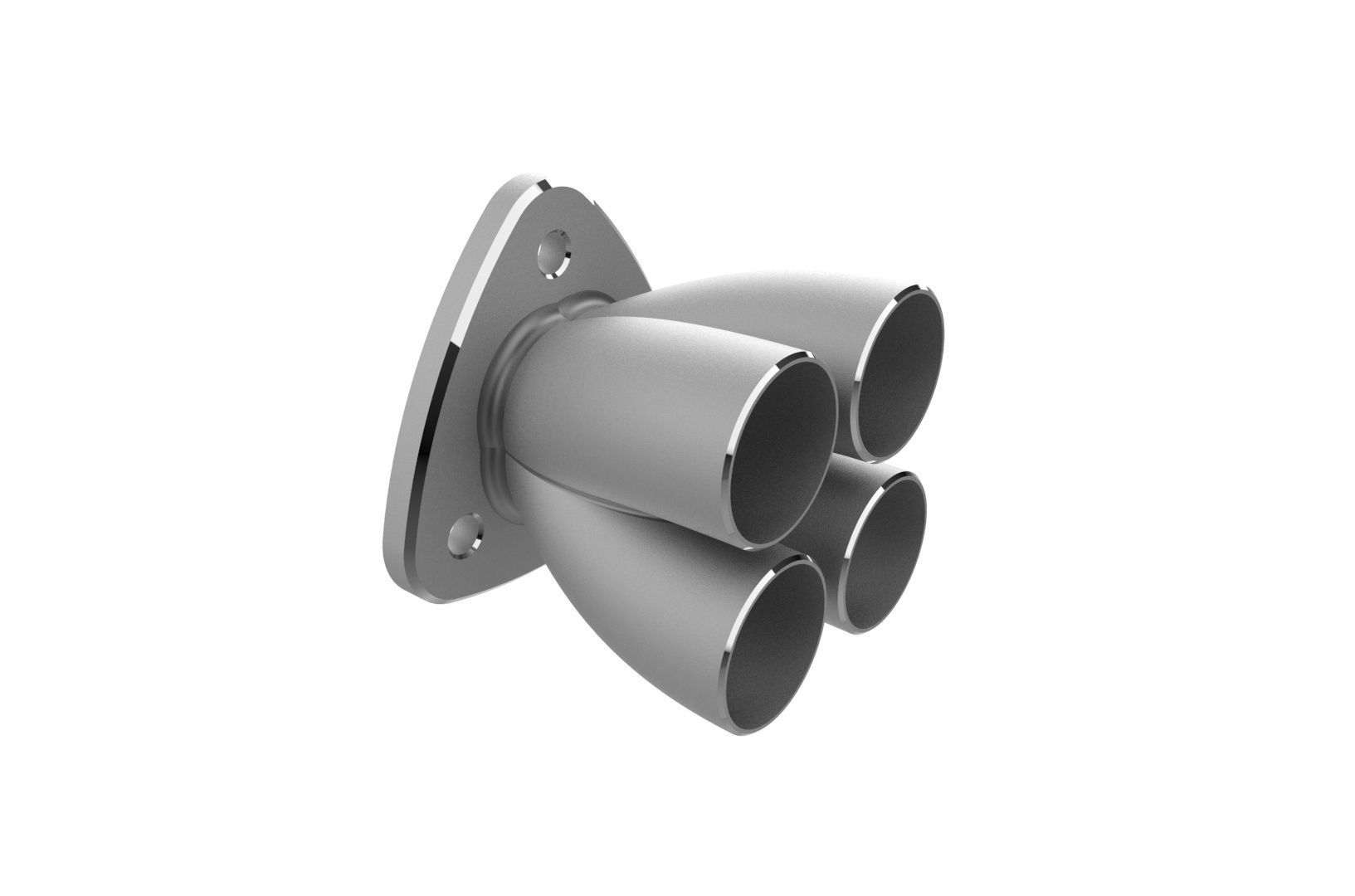

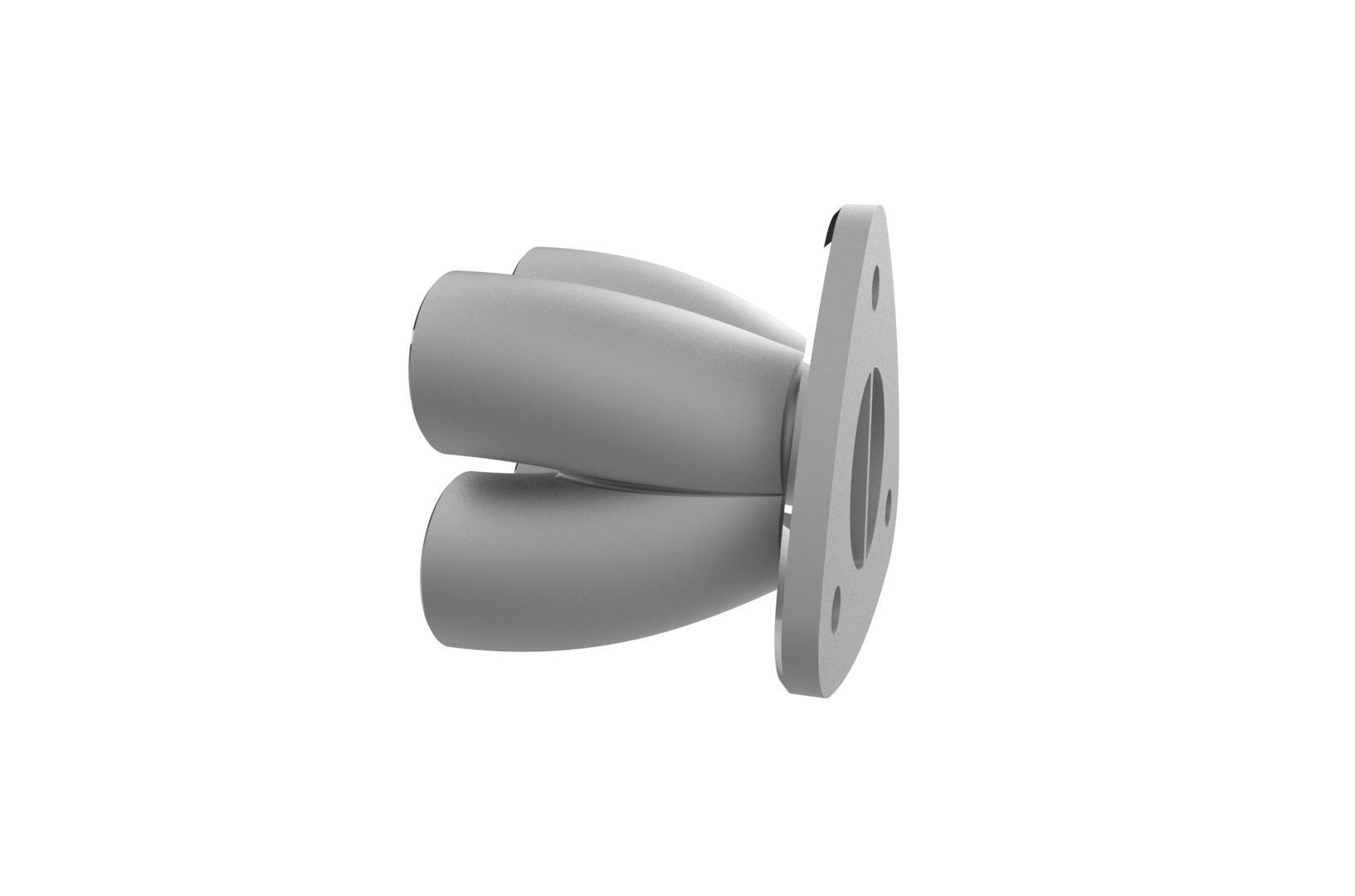

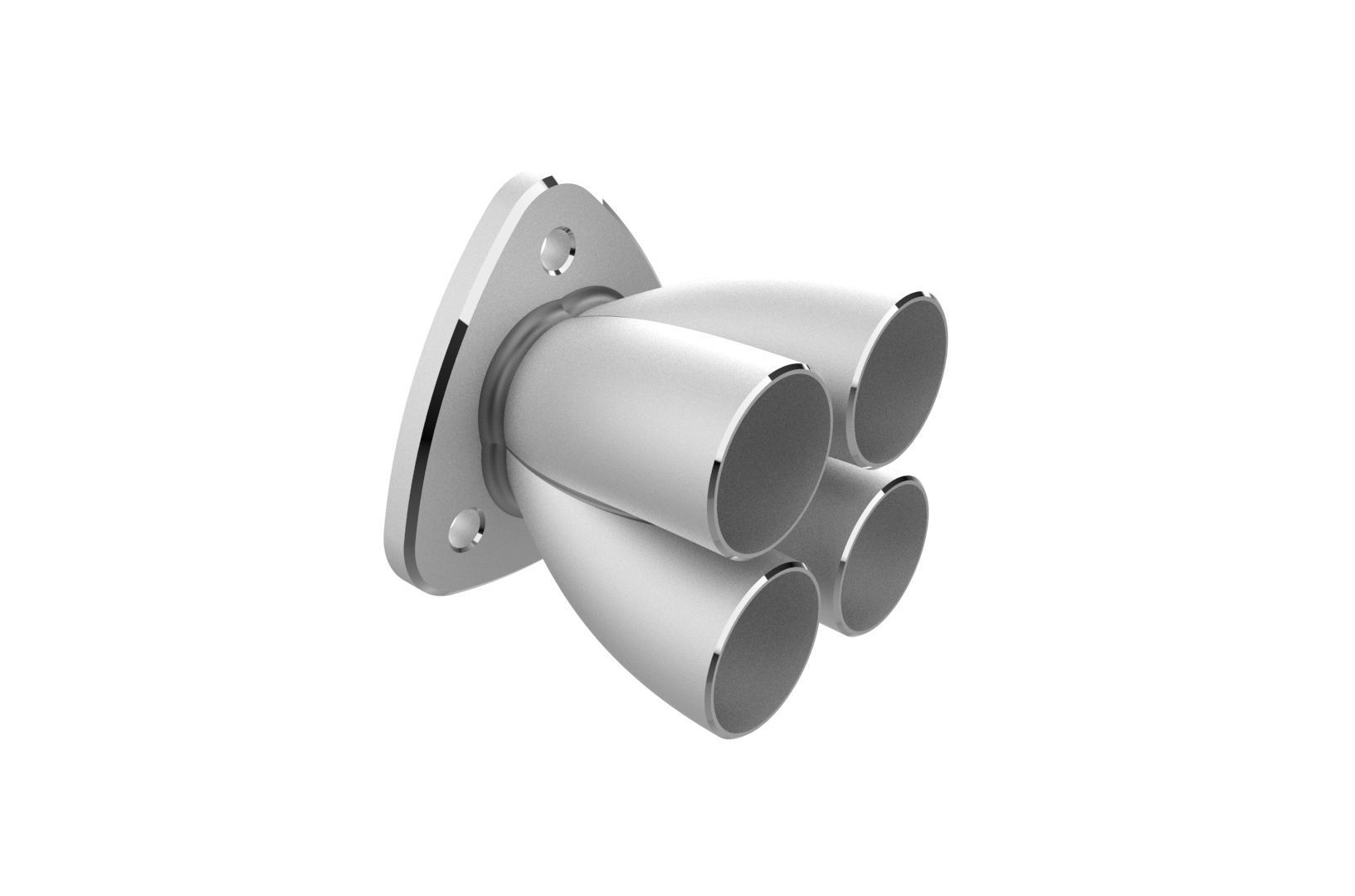

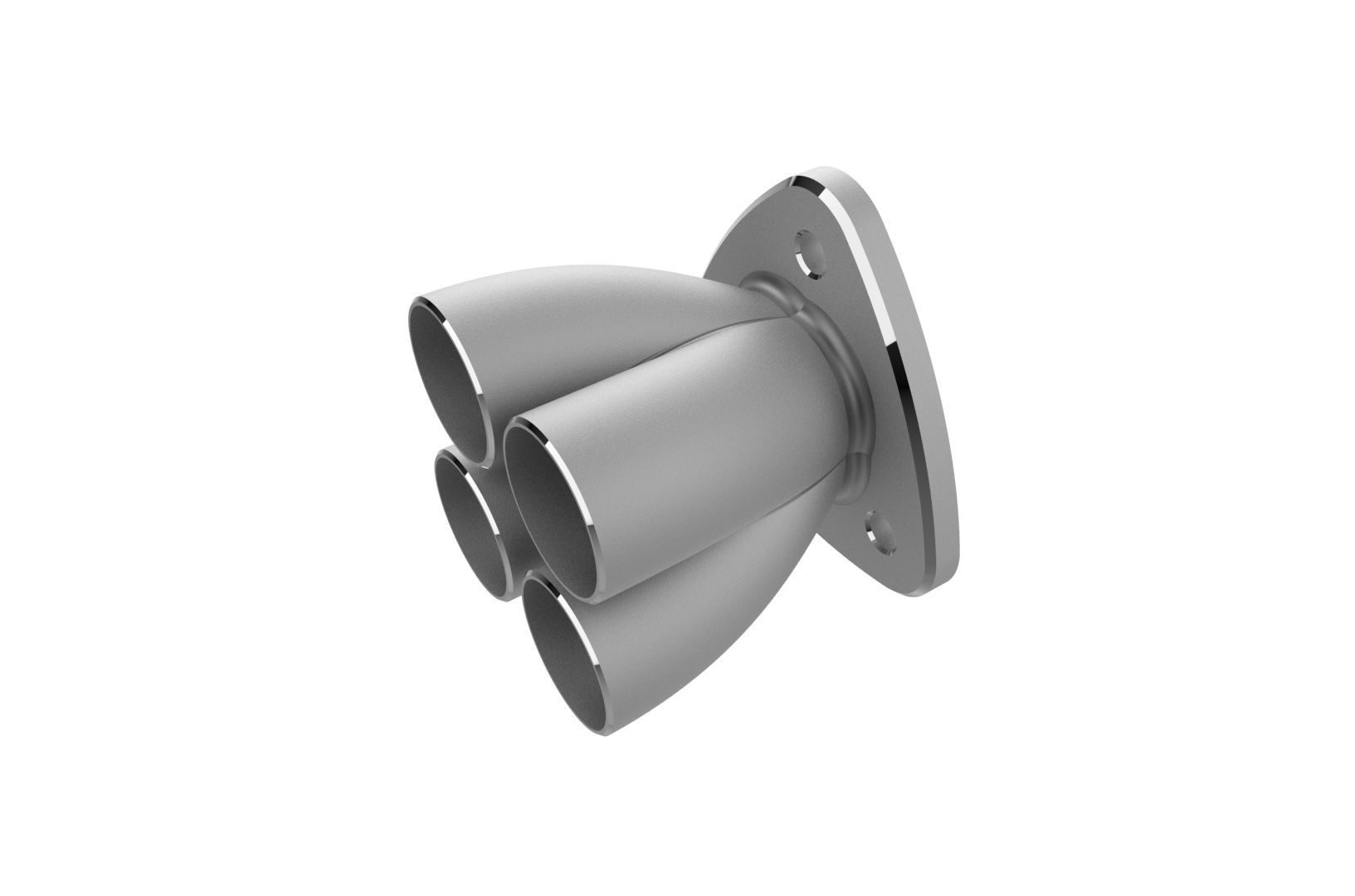

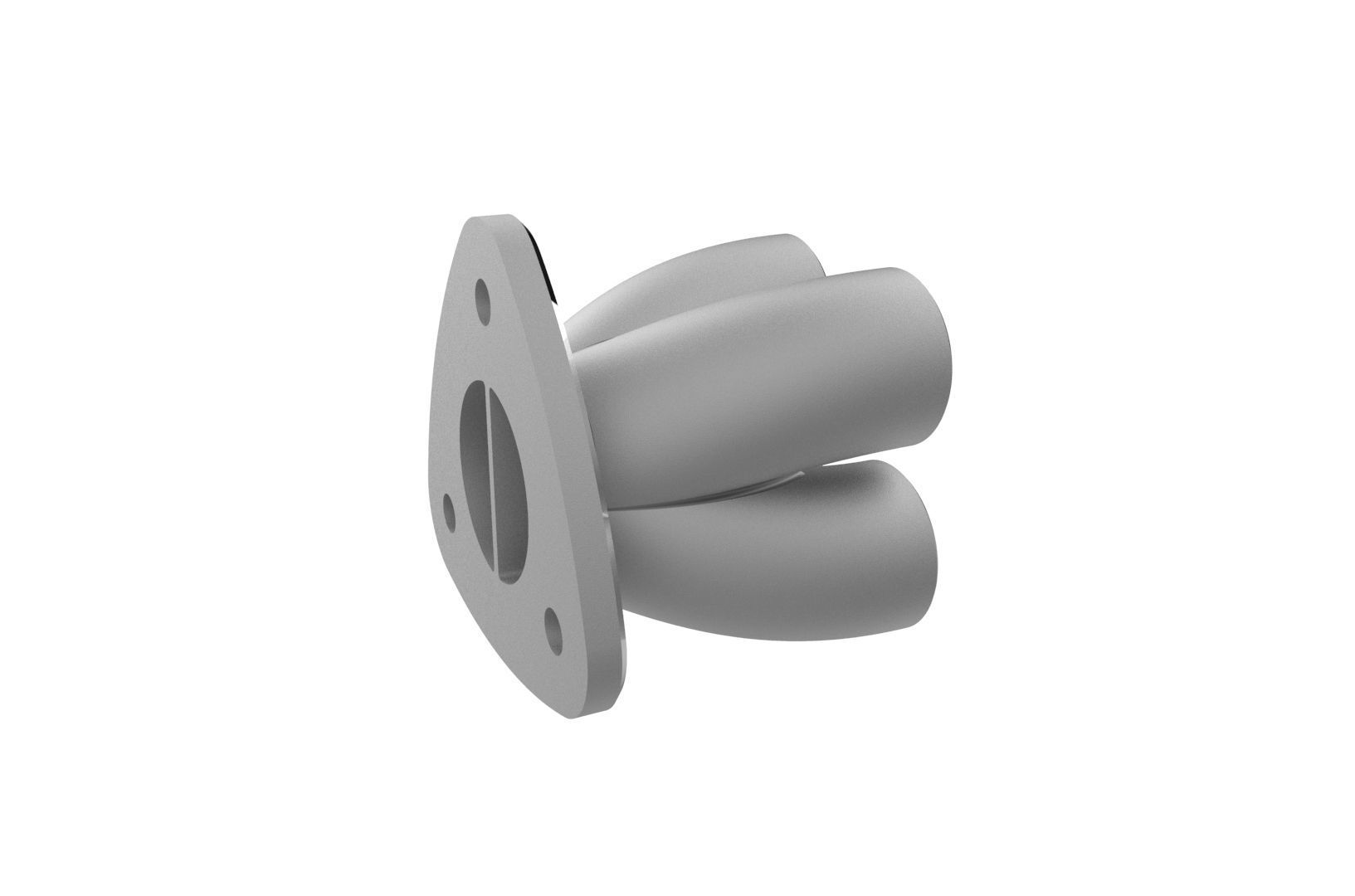

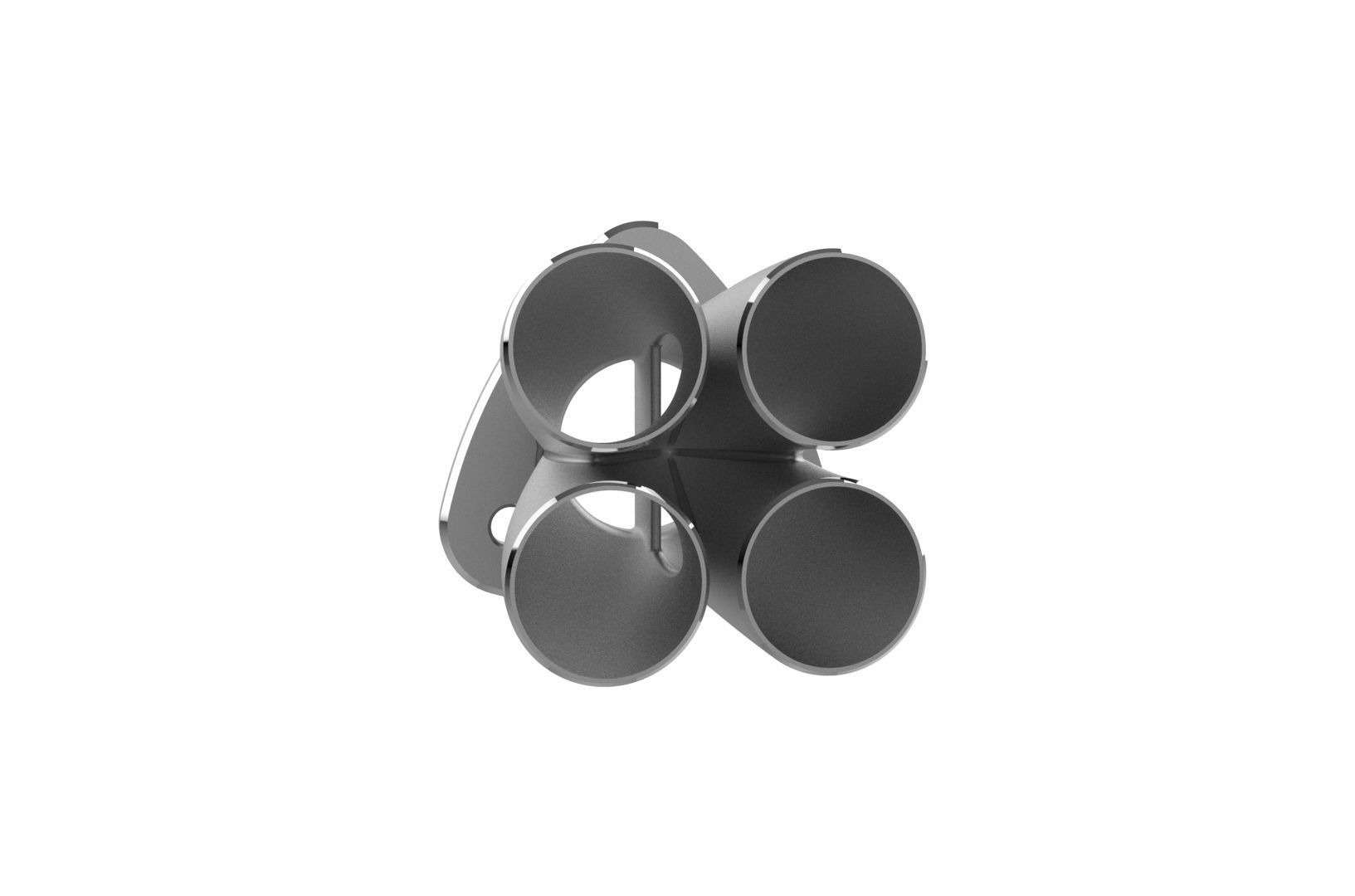

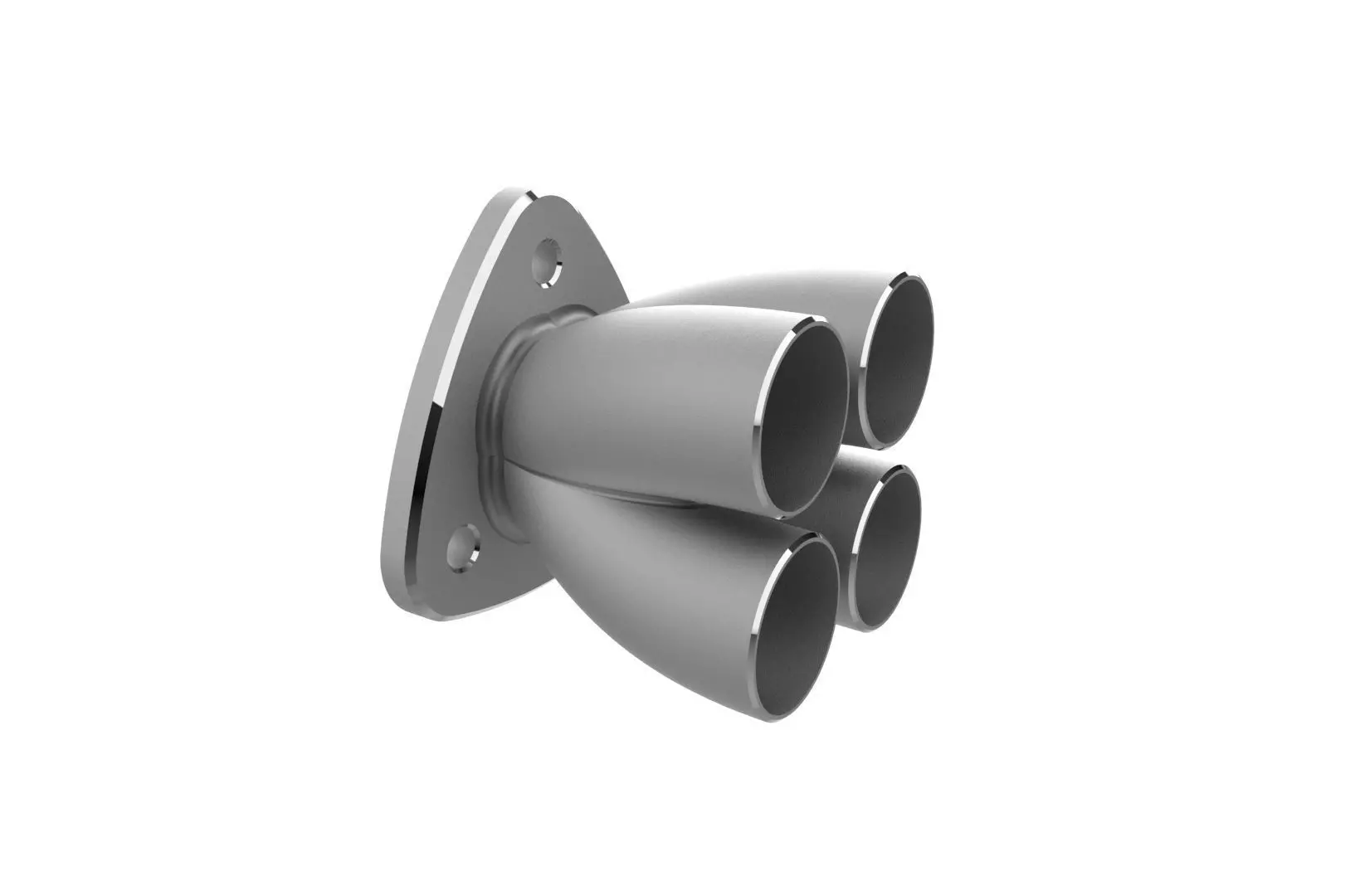

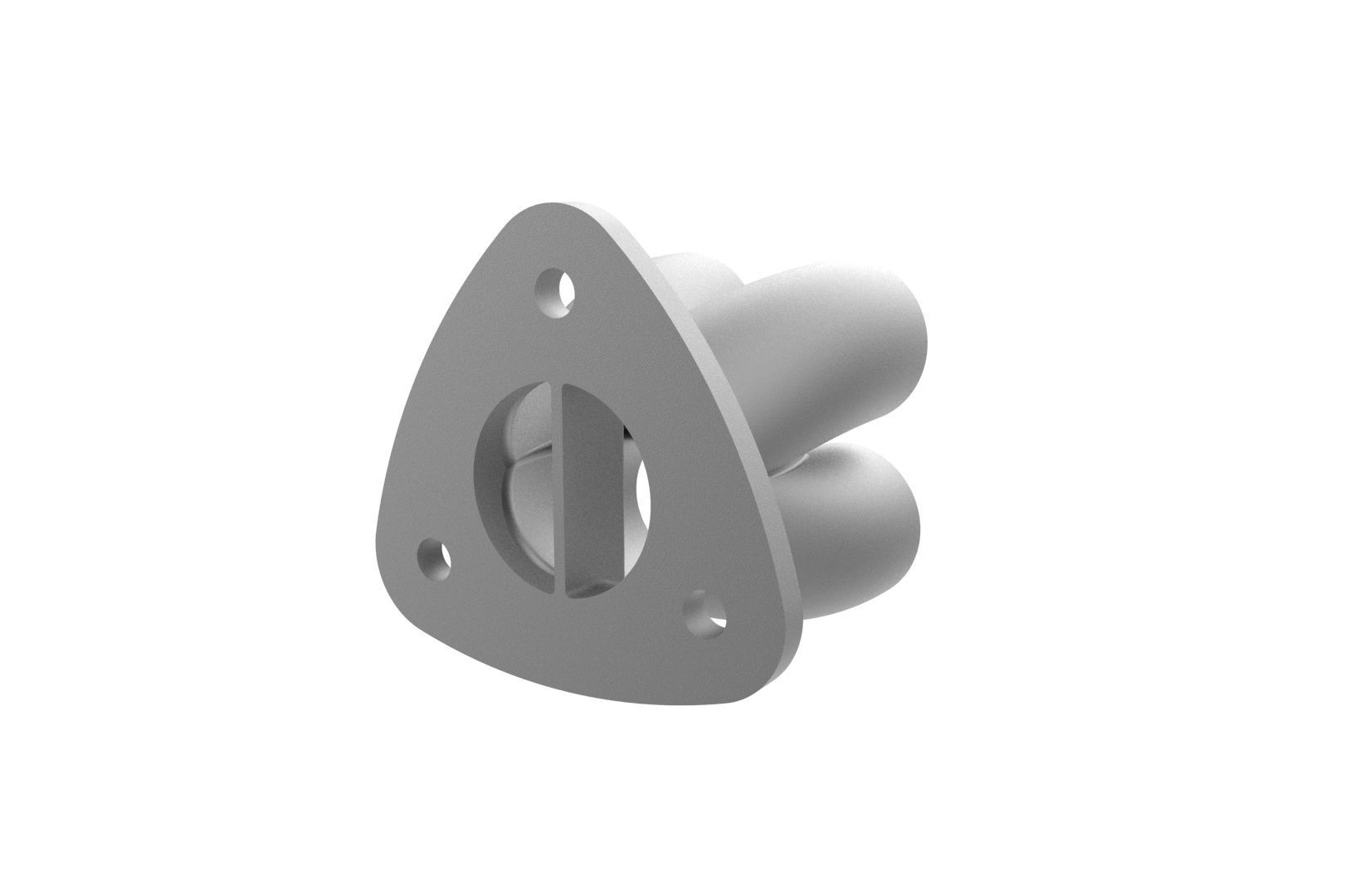

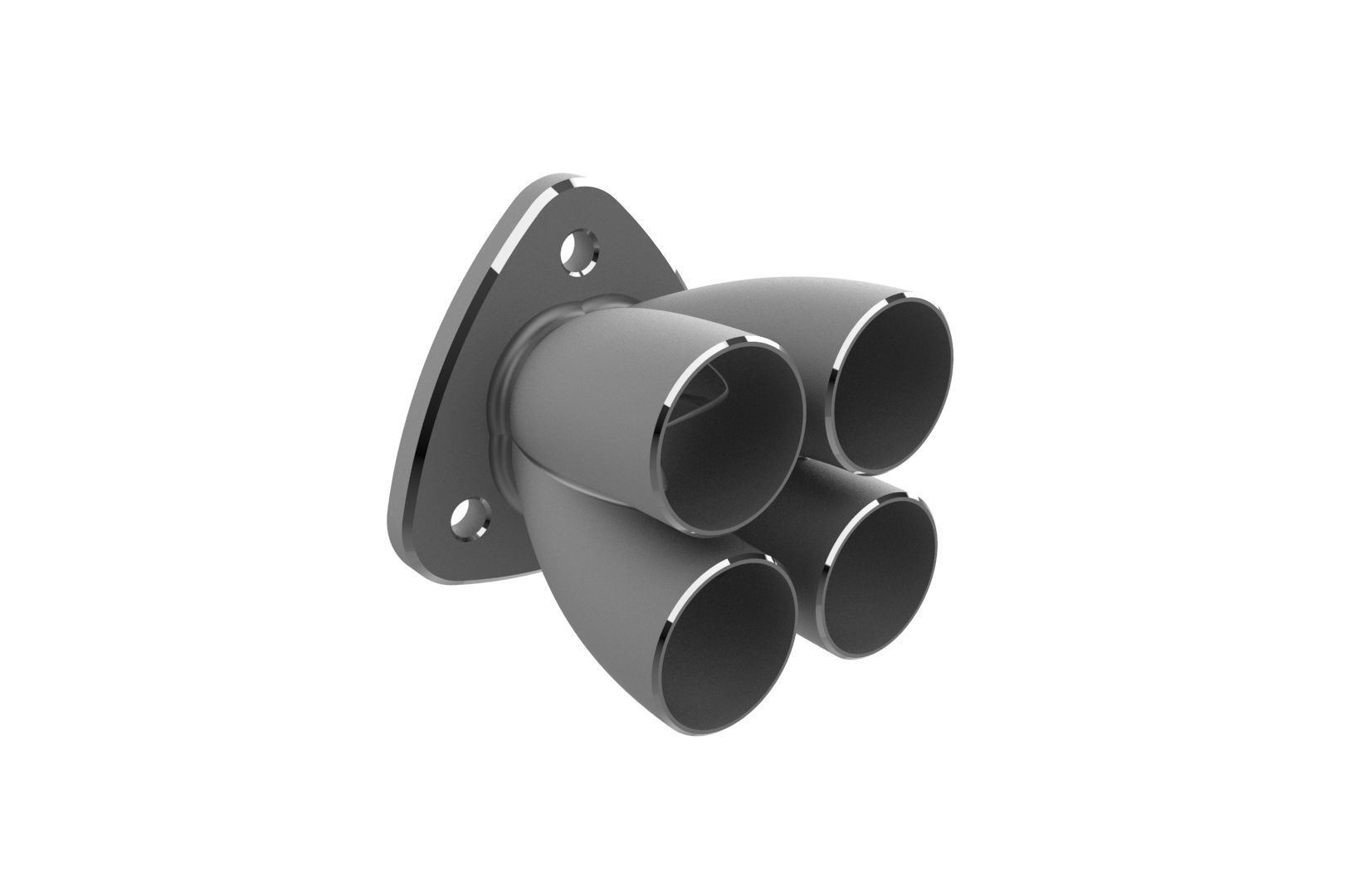

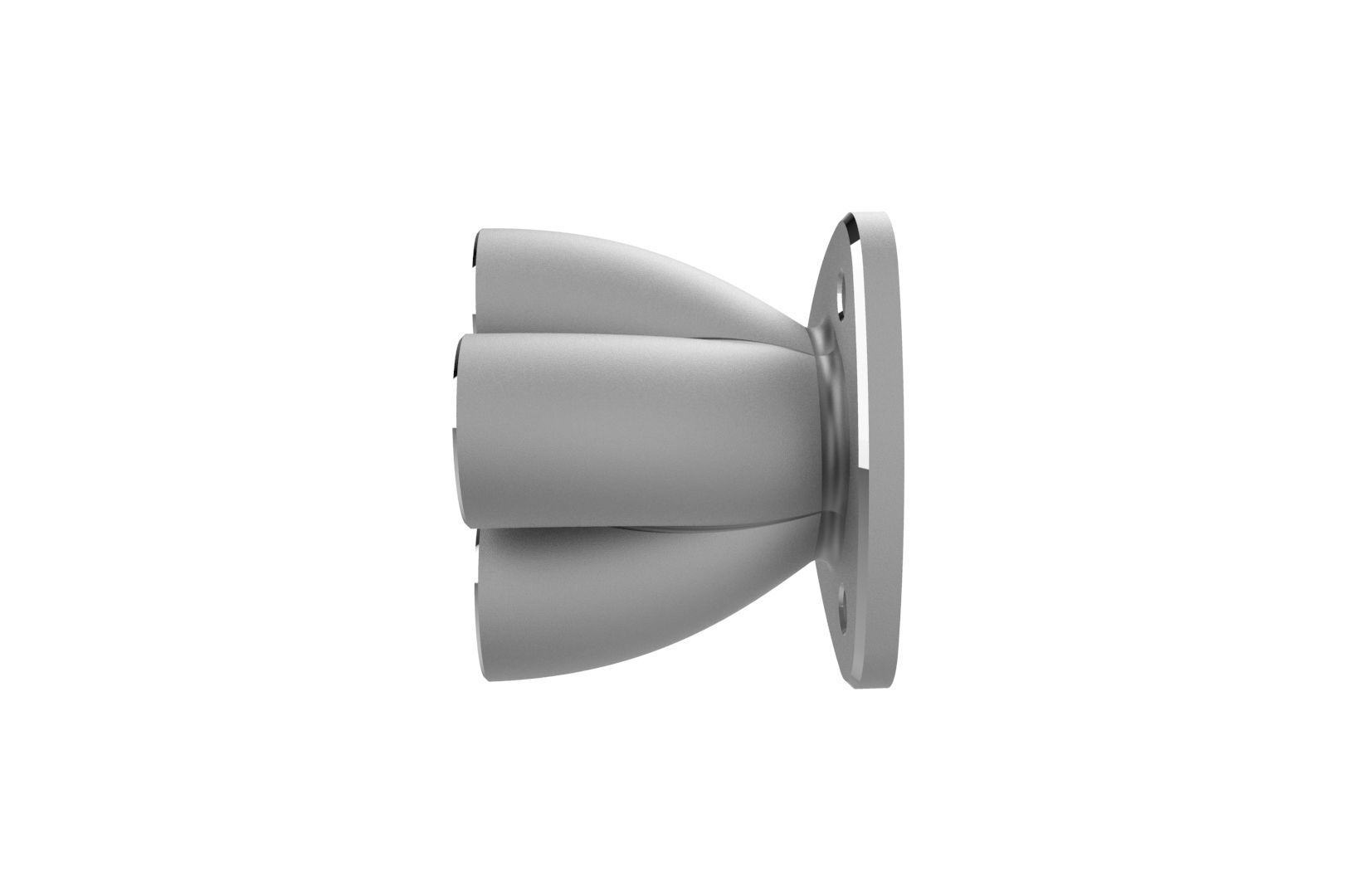

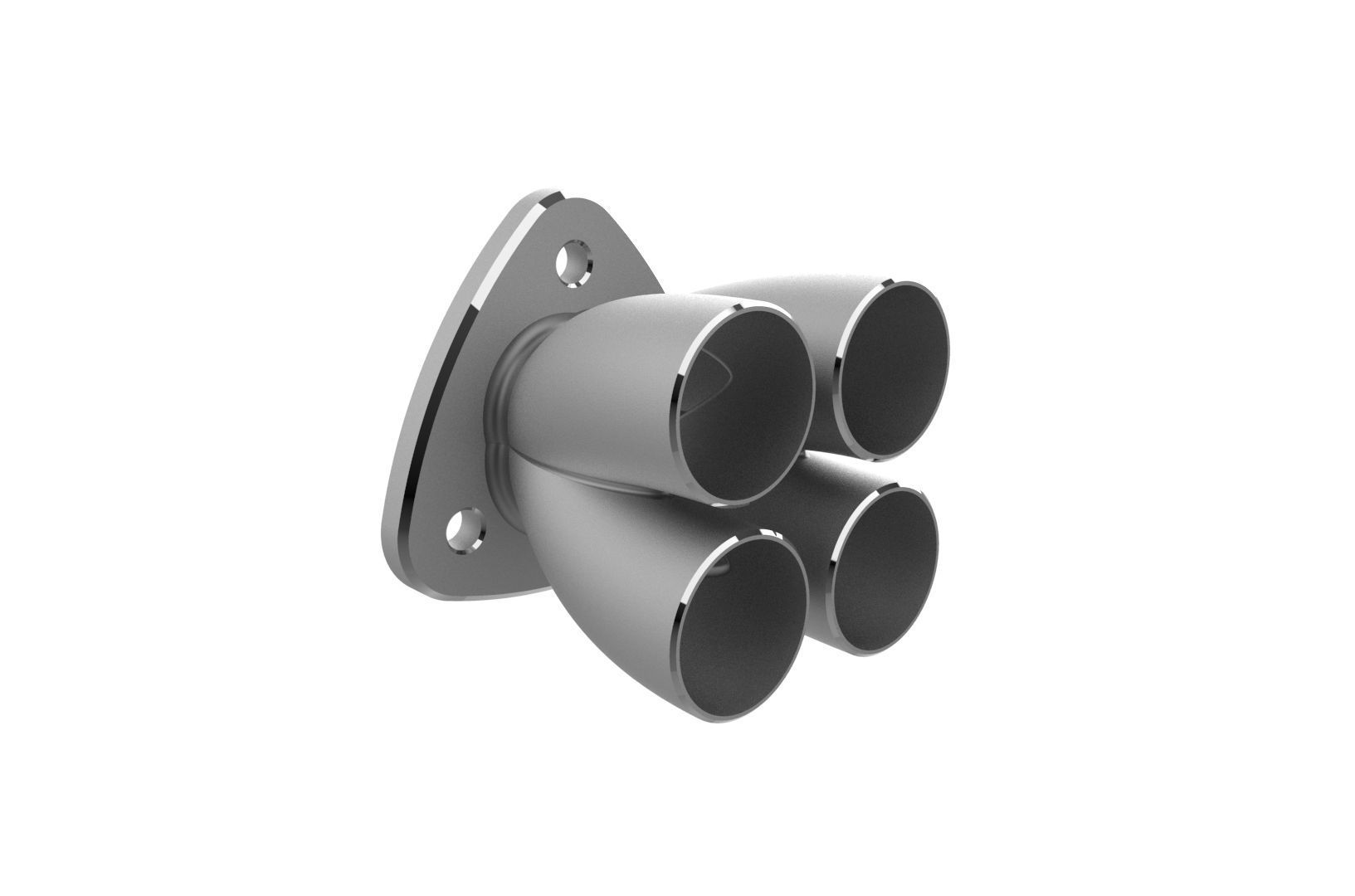

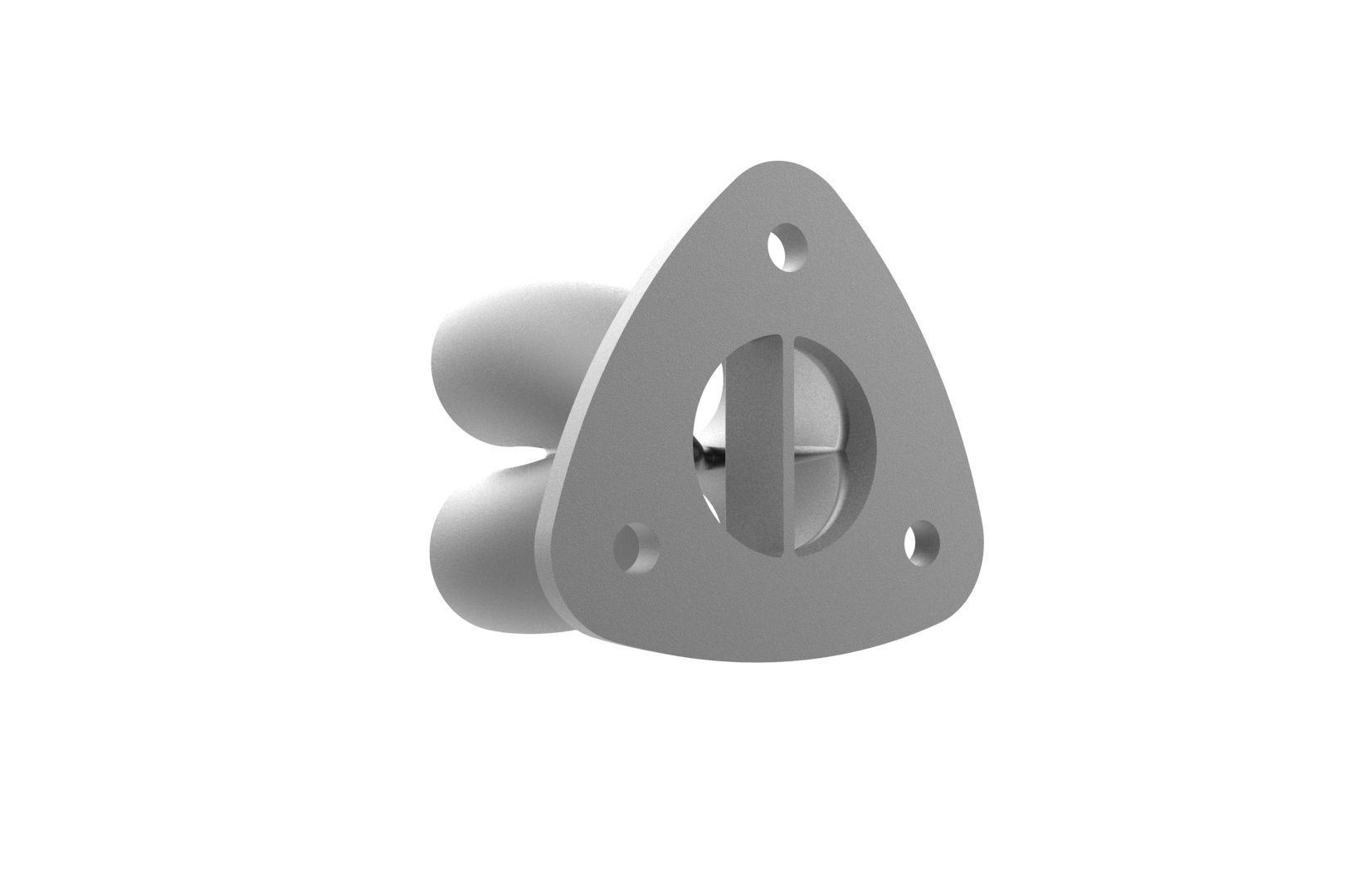

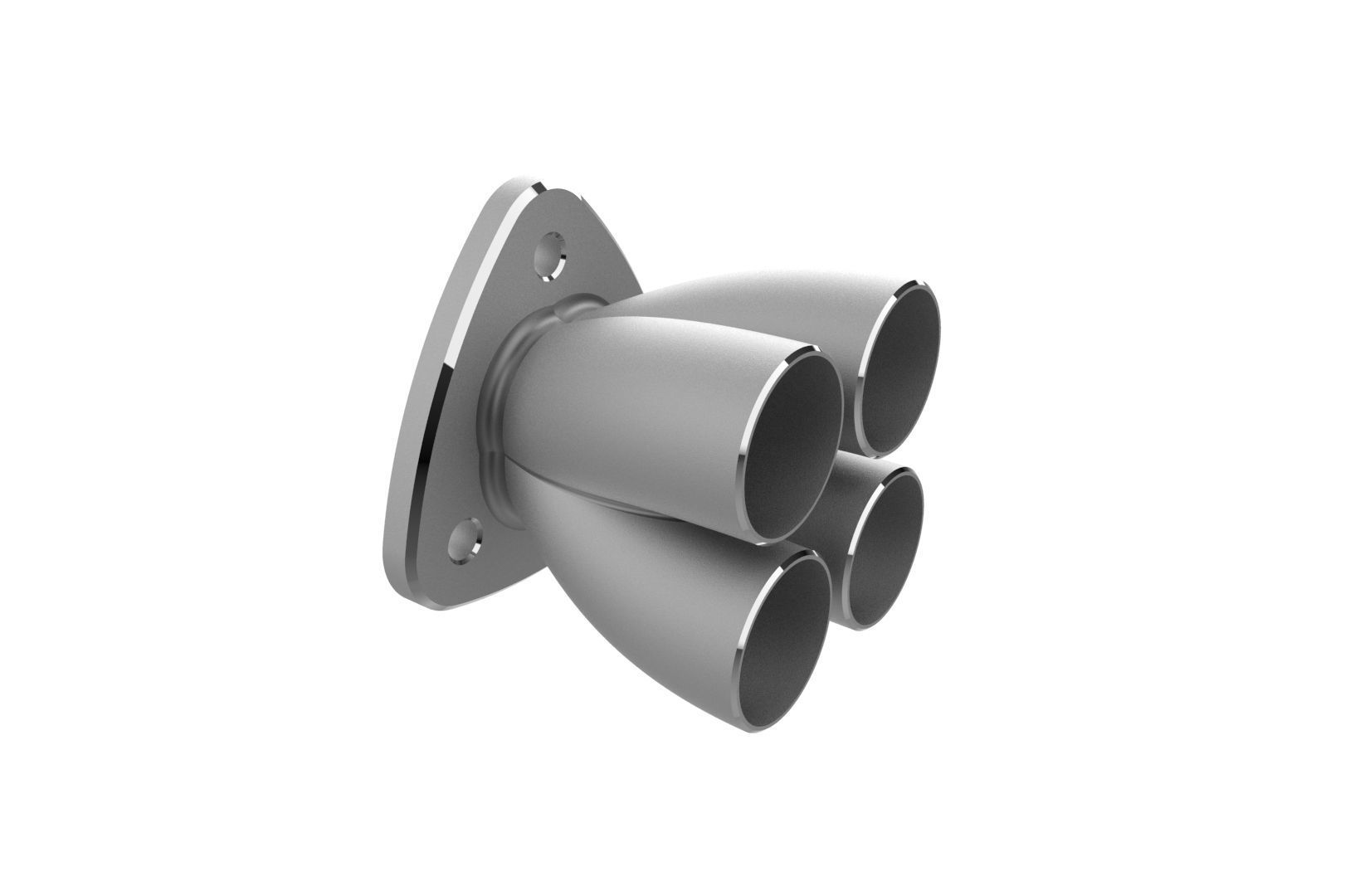

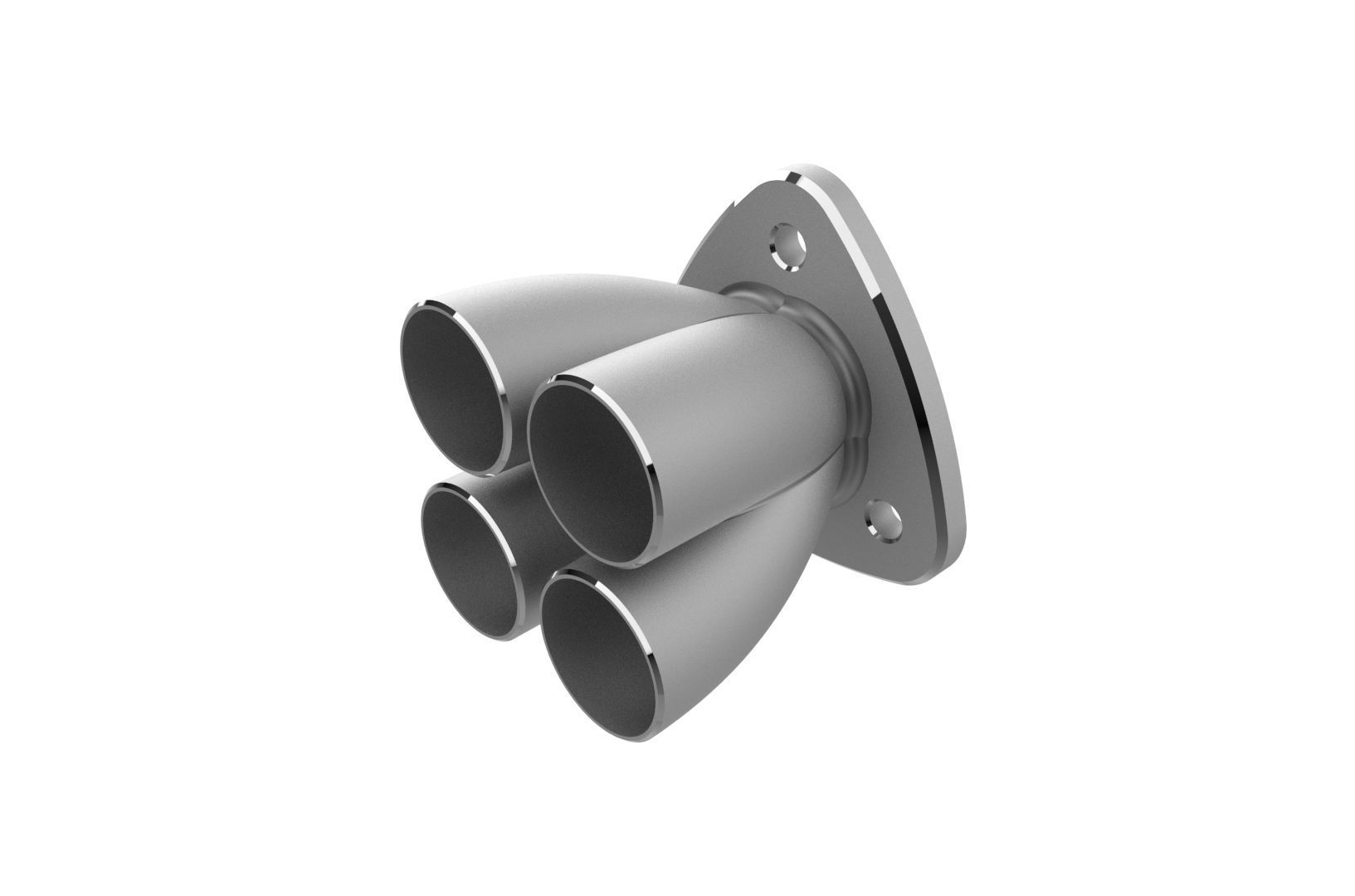

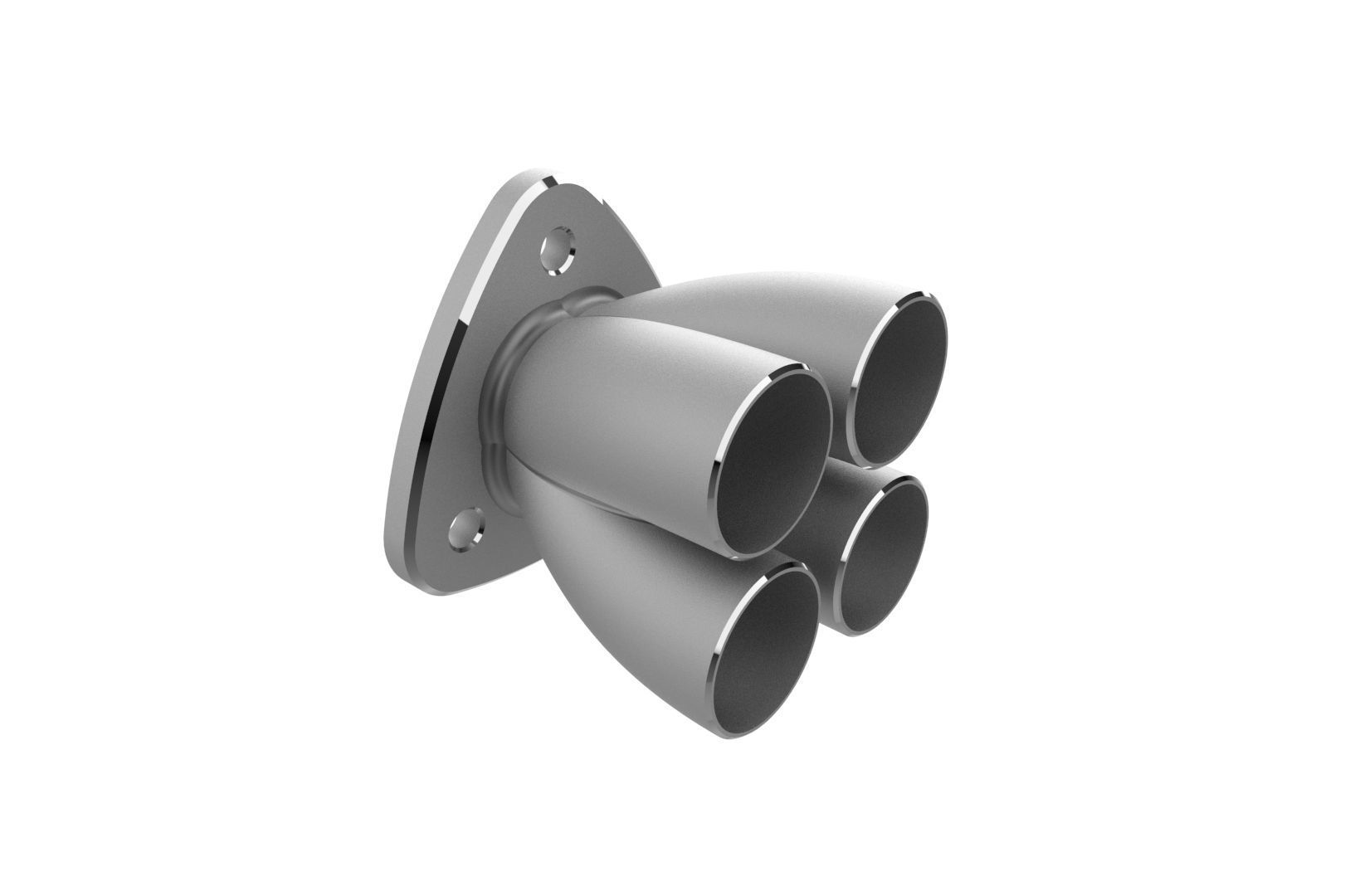

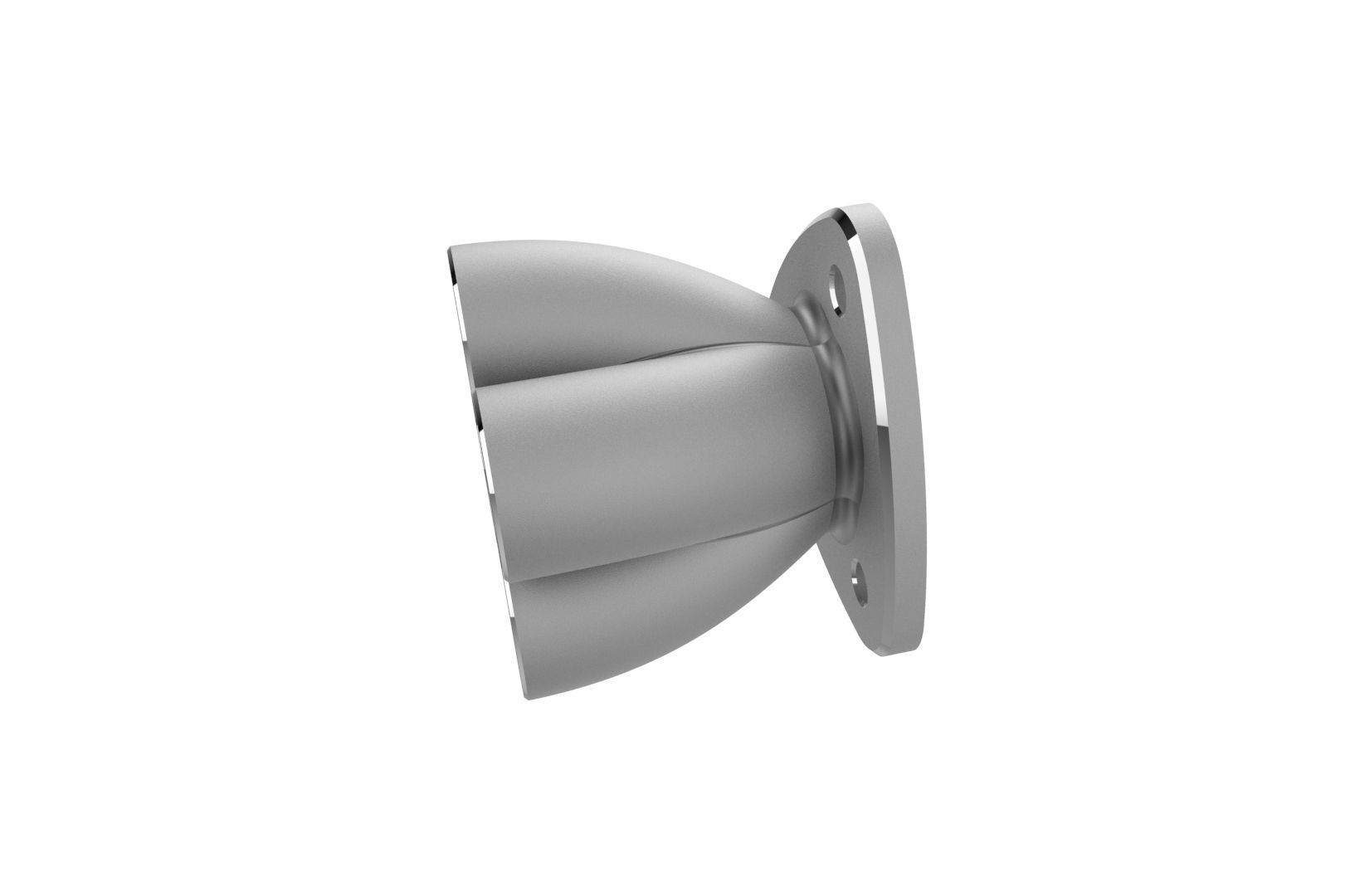

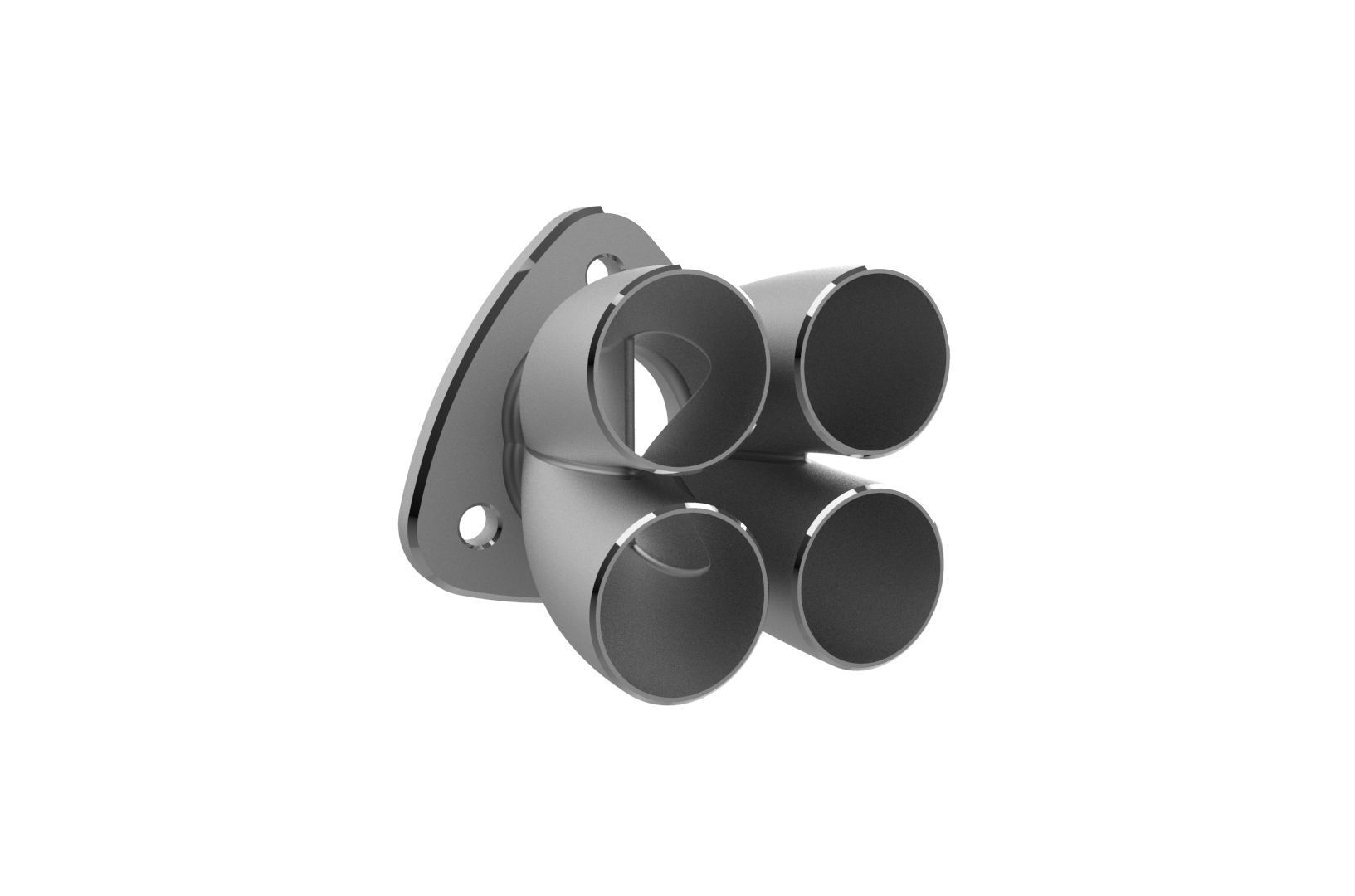

This is a 3D model of an exhaust header manifold flange. It includes the end part of the exhaust header which converges the gases from all 4 exhausts to a single output that drives that turbine wheel. It is custom designed for a 4 cylinder header and can be modified according to your needs if required. Please feel free to contact me if you need any modification or other versions. Size is random but can be scaled to whatever size you wish. Along with the native Solidworks file, you can also find parasolid, iges and step formats as well as stl, amf and 3mf. Polygon file is also attached. Can be used for 3D printing.

Item rating
1 0
pjh-mml 2022-09-18 08:22:32 UTC
Printed many time, its become my go to test pieces for fdm
Exhaust header manifold flange
Royalty Free License
Exhaust header manifold flange
Royalty Free License
Response 79% in 1.8h
3D Modeling
3D Print Modeling
Low-poly Modeling
3D Scanning
Hire me

3D Model formats

Format limitations
  • SolidWorks 2020 (.sldprt, .sldasm, .slddrw)2.23 MB
  • amf (.amf)3.55 MB
  • IGES (.ige, .igs, .iges)6.44 MB
  • 3D Manufacturing File (.3mf)509 KB
  • STEP (.stp)4.81 MB
  • Stereolithography (.stl)1.69 MB
  • Ply (.ply)844 KB

3D Model details

  • Publish date2021-03-31
  • Model ID#2957586
  • Ready for 3D Printing
