brake oil reservoir bracket mt 07 Fz 07 yamaha 5 designs 3D print model

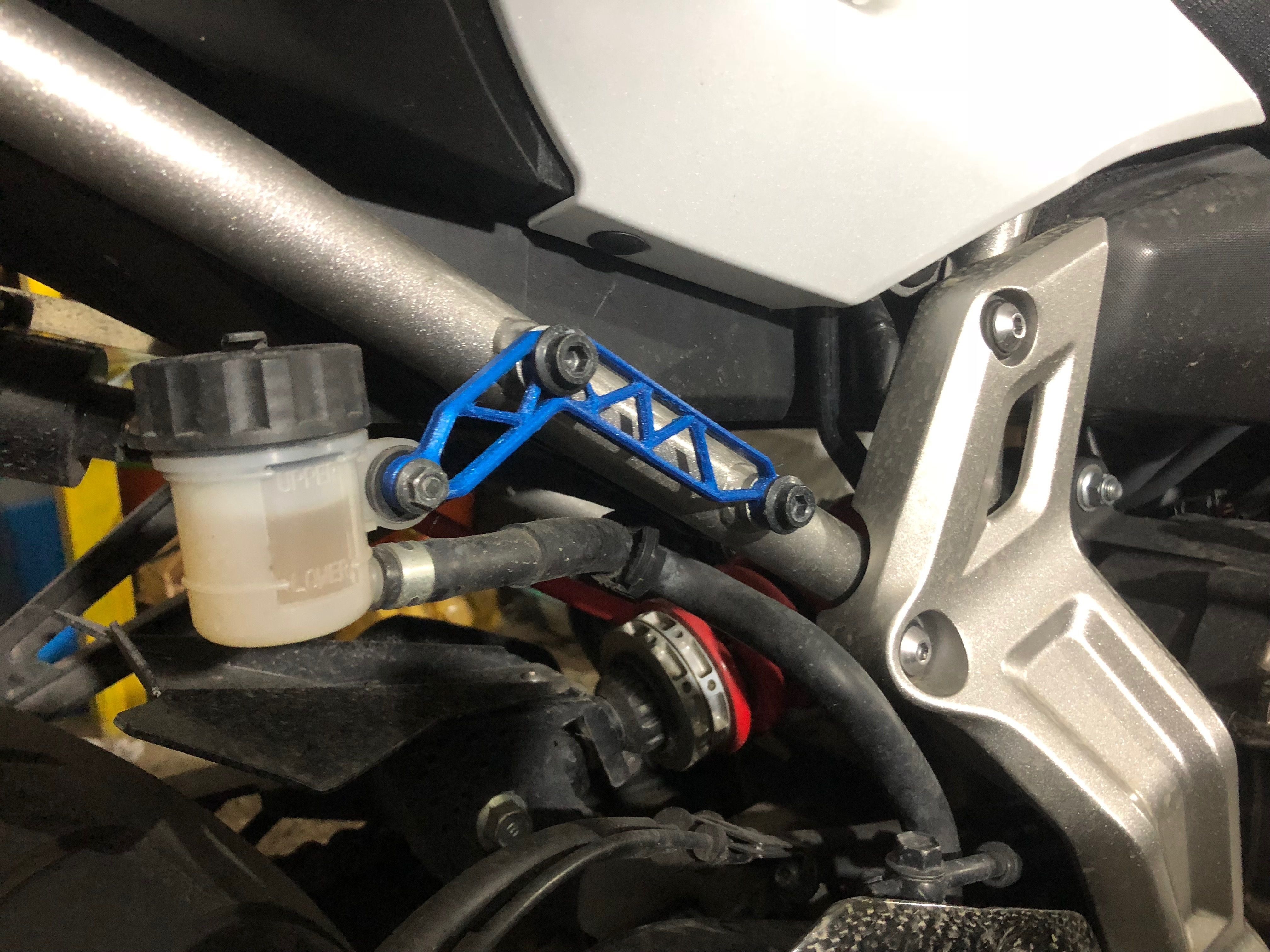

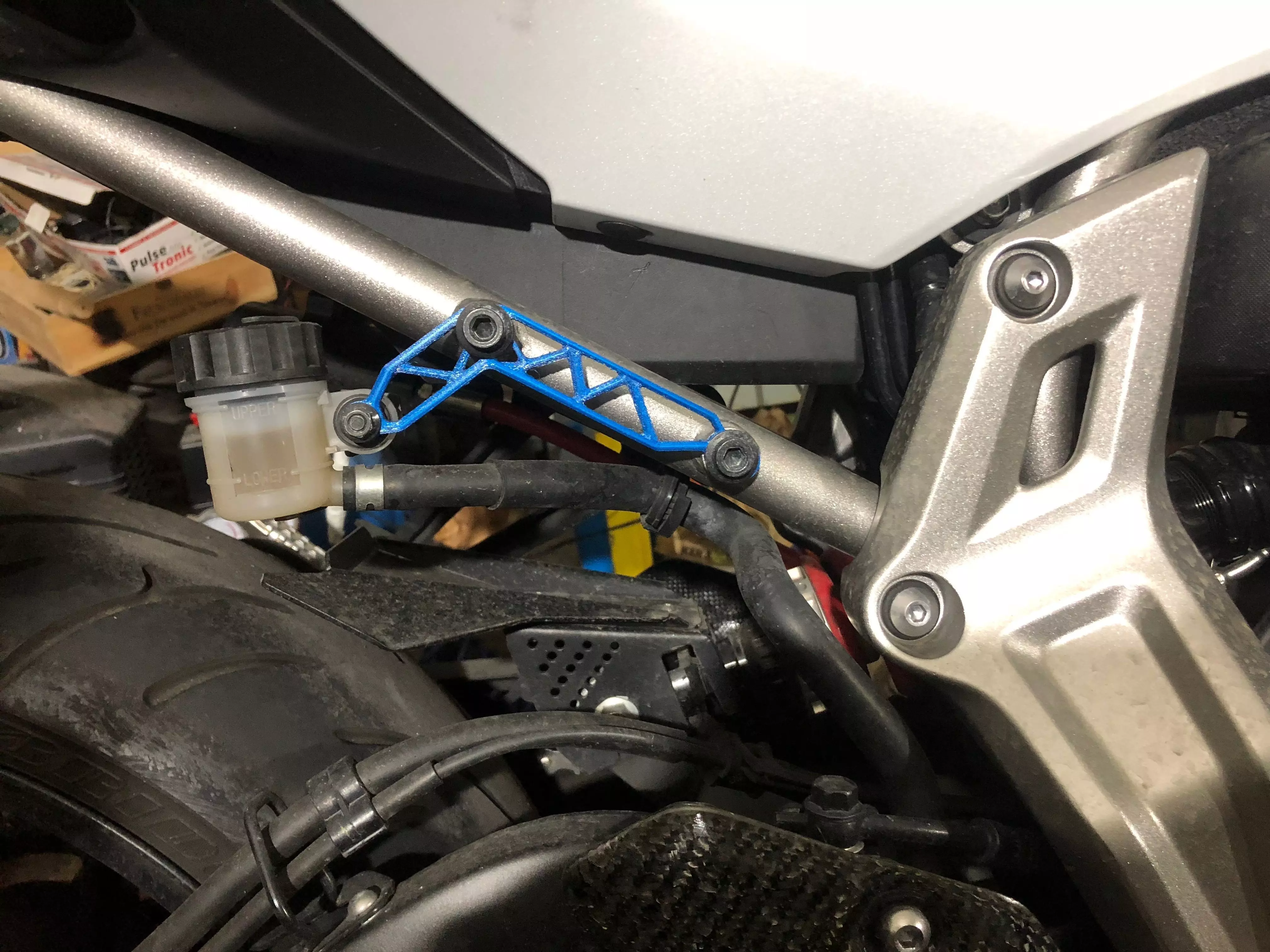

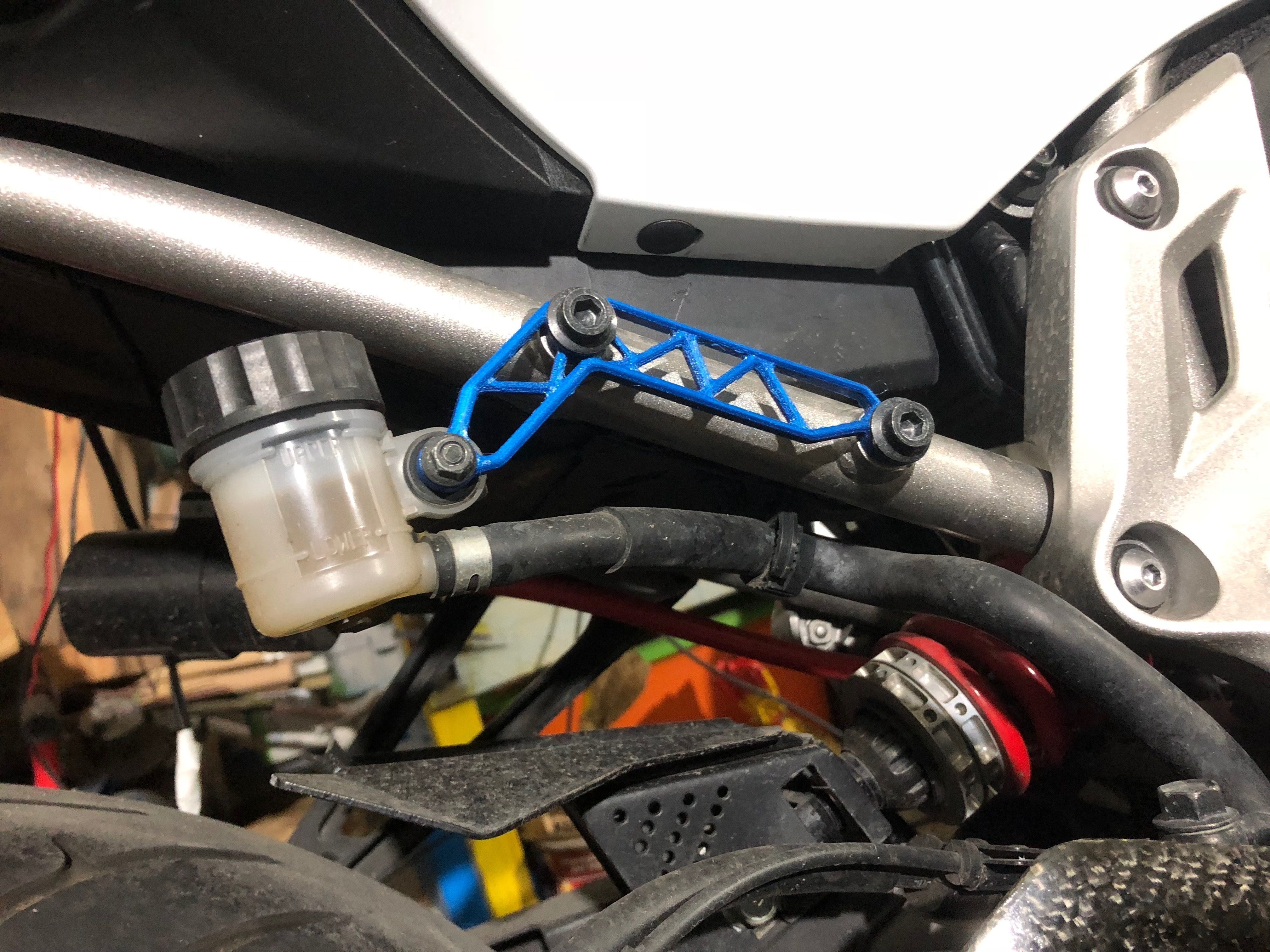

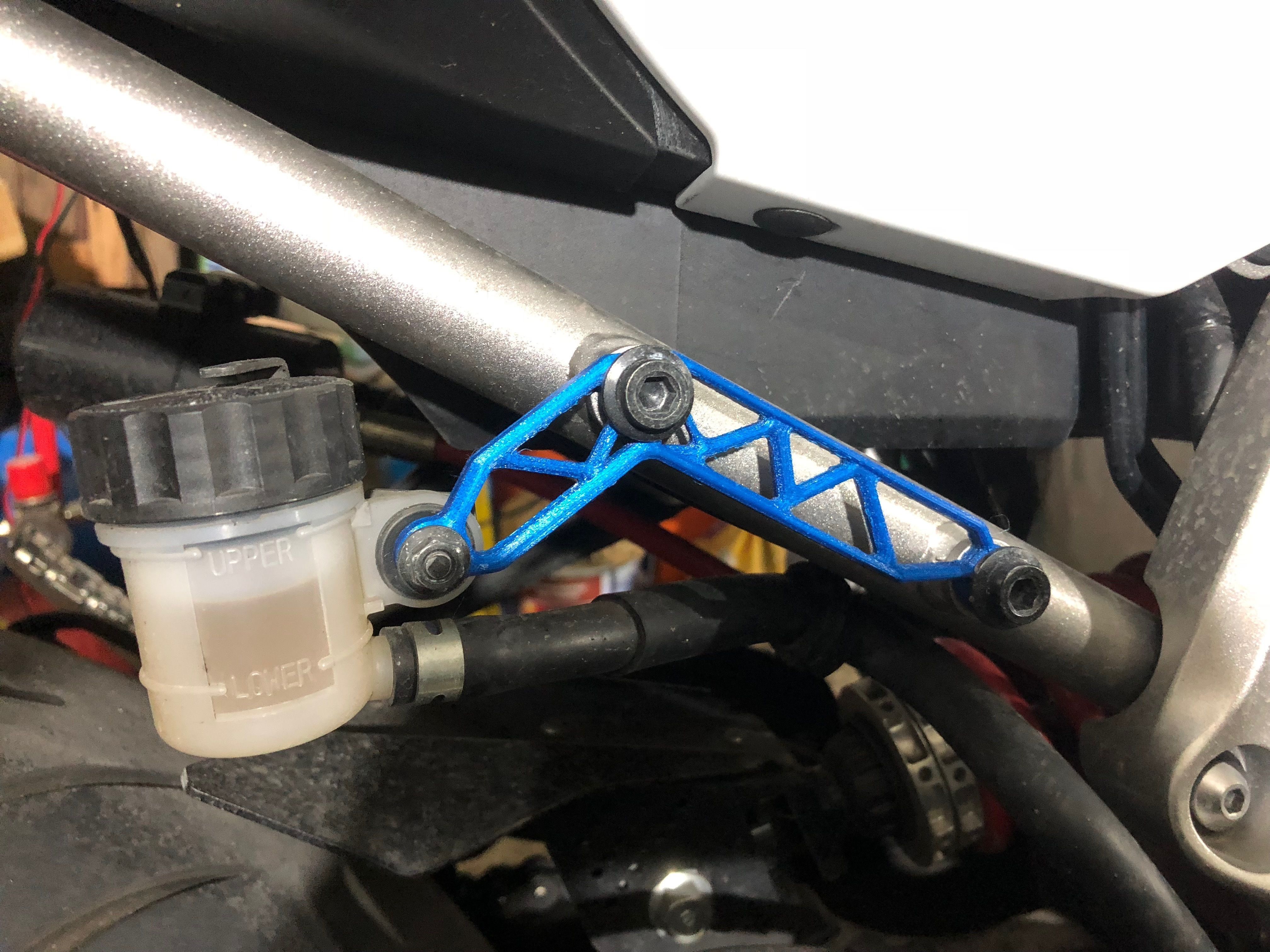

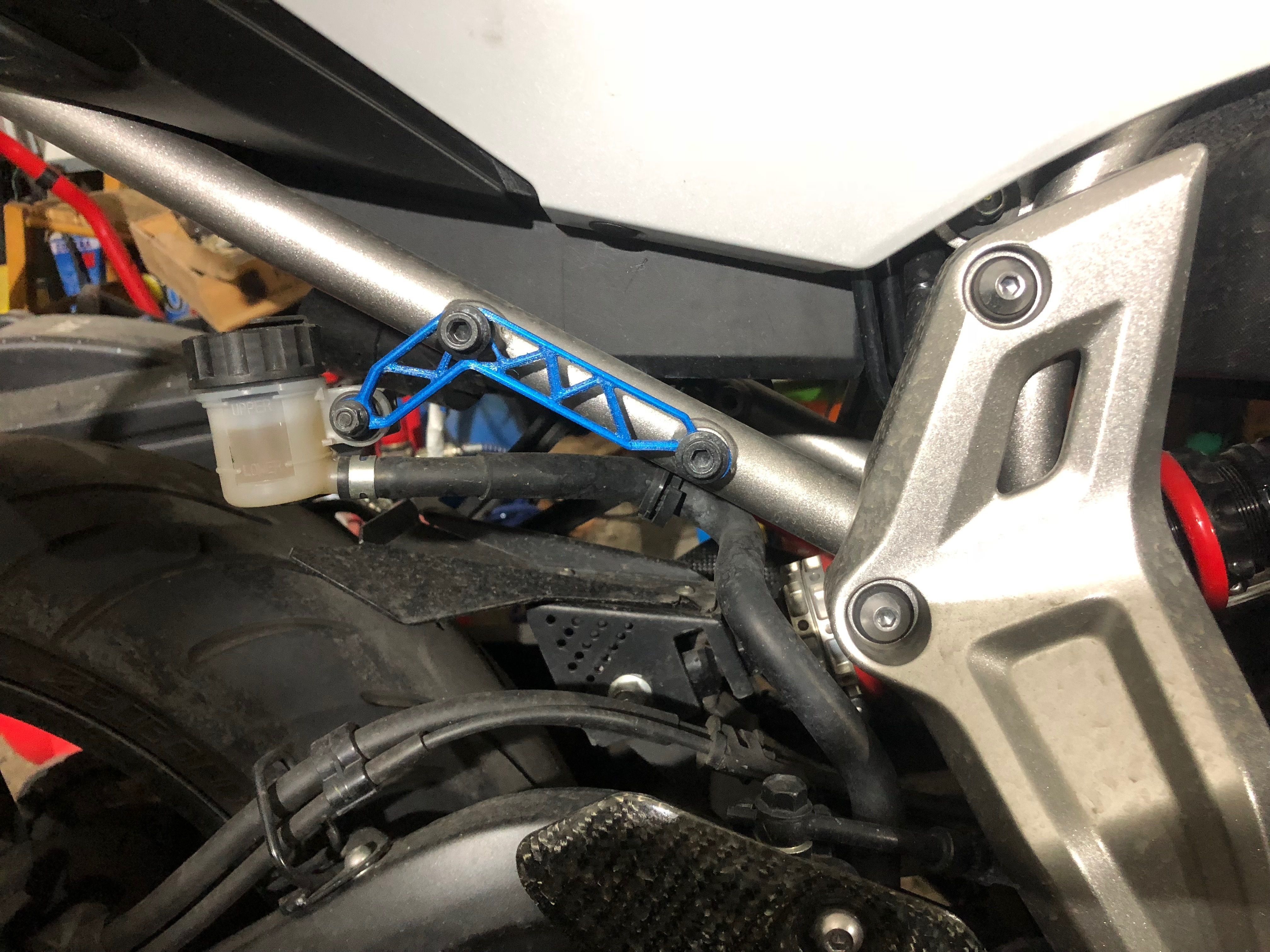

This is a set of brackets used to remove the oem passenger pegs and be able to use the original brake oil reservoir .

I designed and tested various versions of this bracket, some intended to be made in carbon fiber , some in aluminium , some in plastic . every single one is strong enough to work, but those 5 are the best designs meant to be cnc milled or 3d printed .

this set contains :

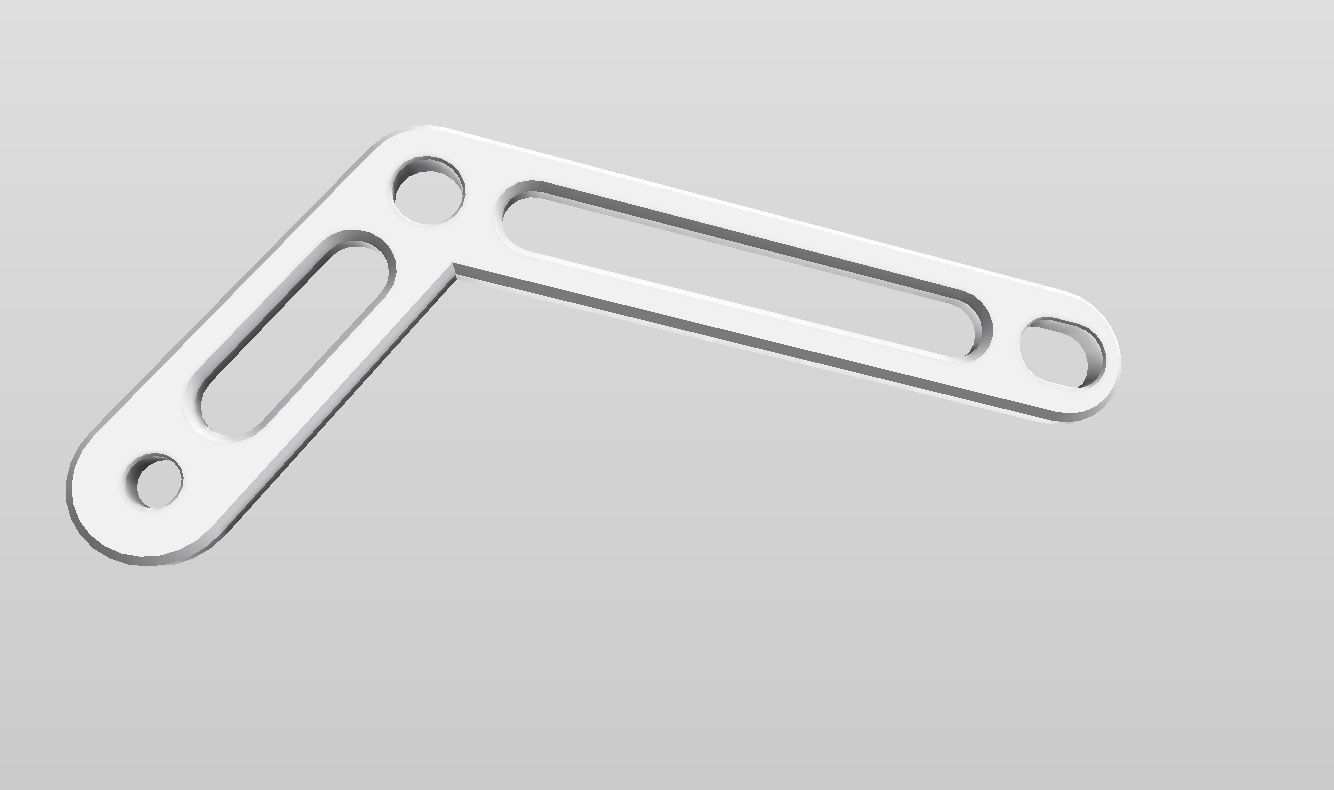

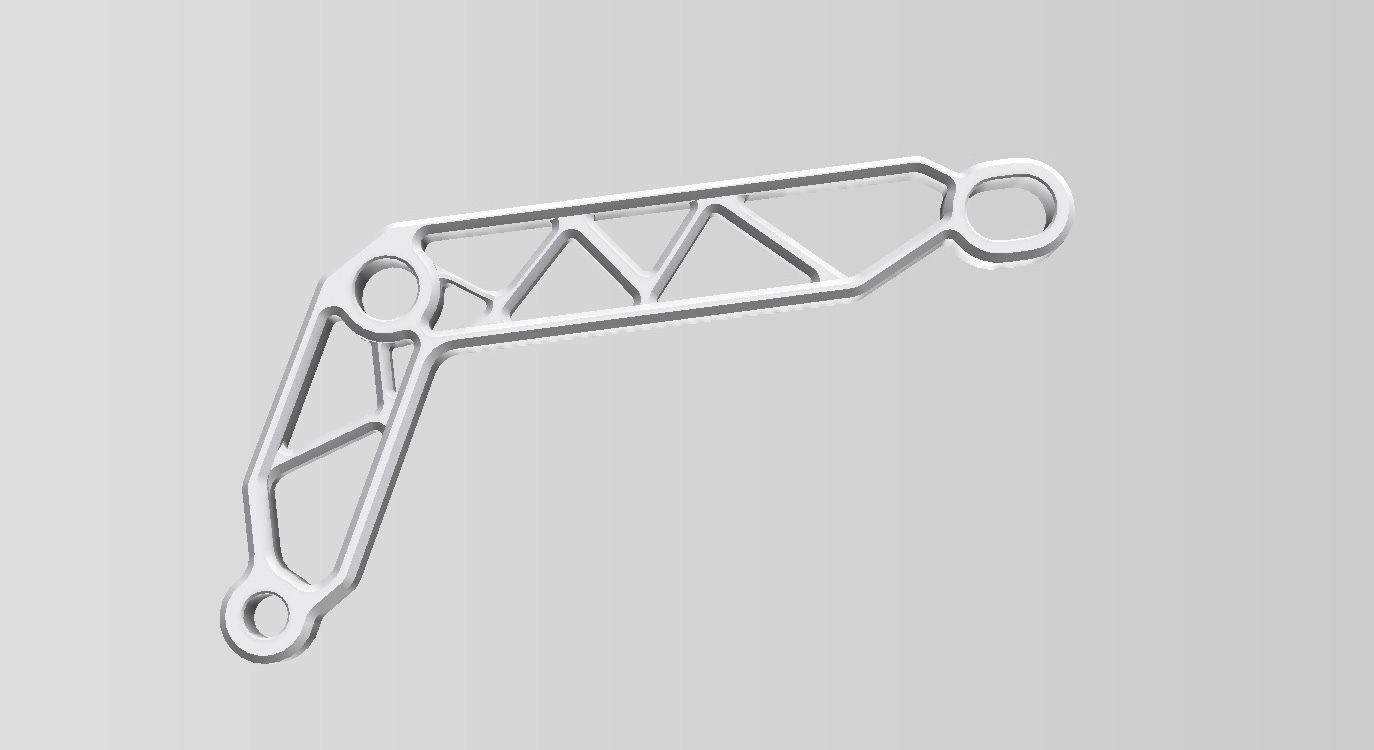

  • Bracket classic : , classic race style , easy to print , perfect for cnc milling . intended for cnc milling , will work well if 3d printed

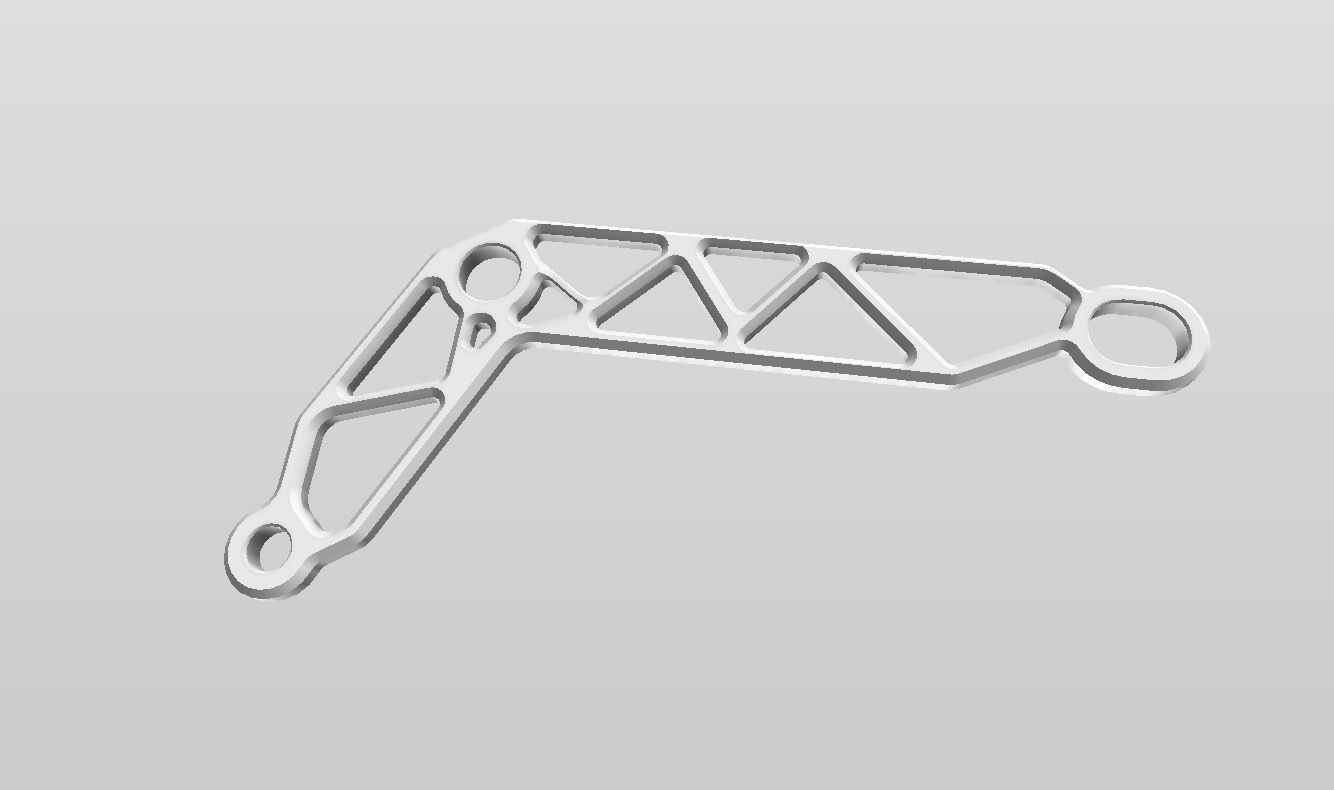

  • Bracket optimized : perfected with topology optimization , prints with minimal to no support , harder to mill and print than bracket classic but easier then Bracket 3d optimized , a great compromise between the two

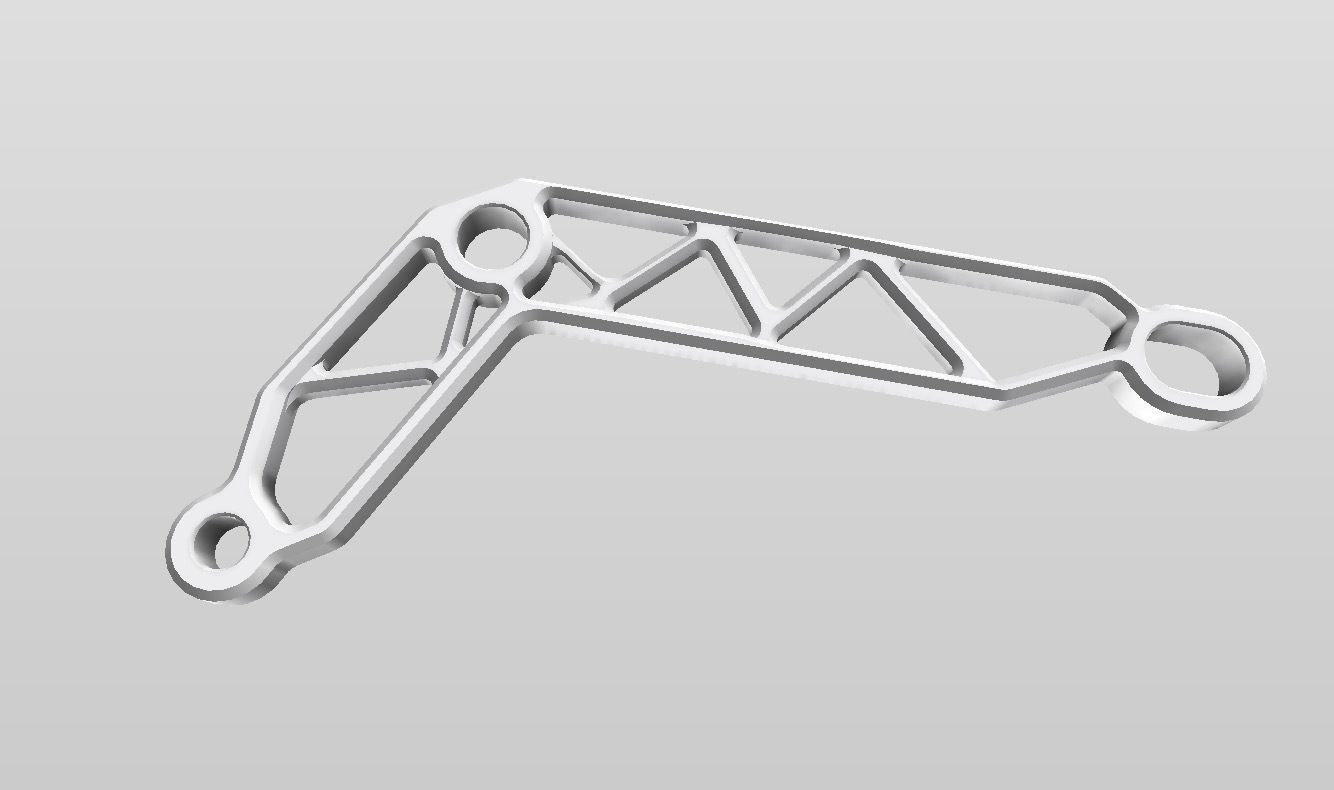

  • Bracket 3d optimized : the most difficult to print /mill , the strongest one . need's support .

  • Bracket 3d optimized simplified : a cleaner looking Bracket 3d optimized.

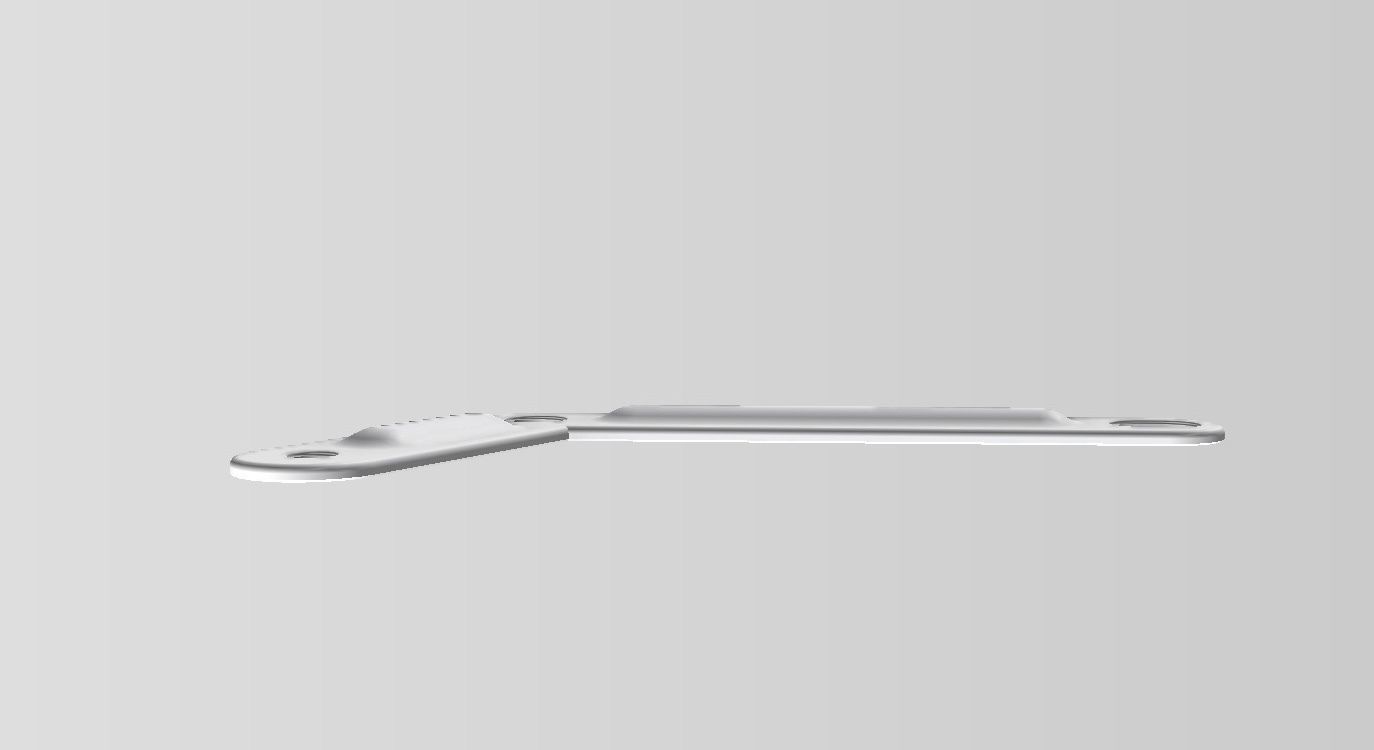

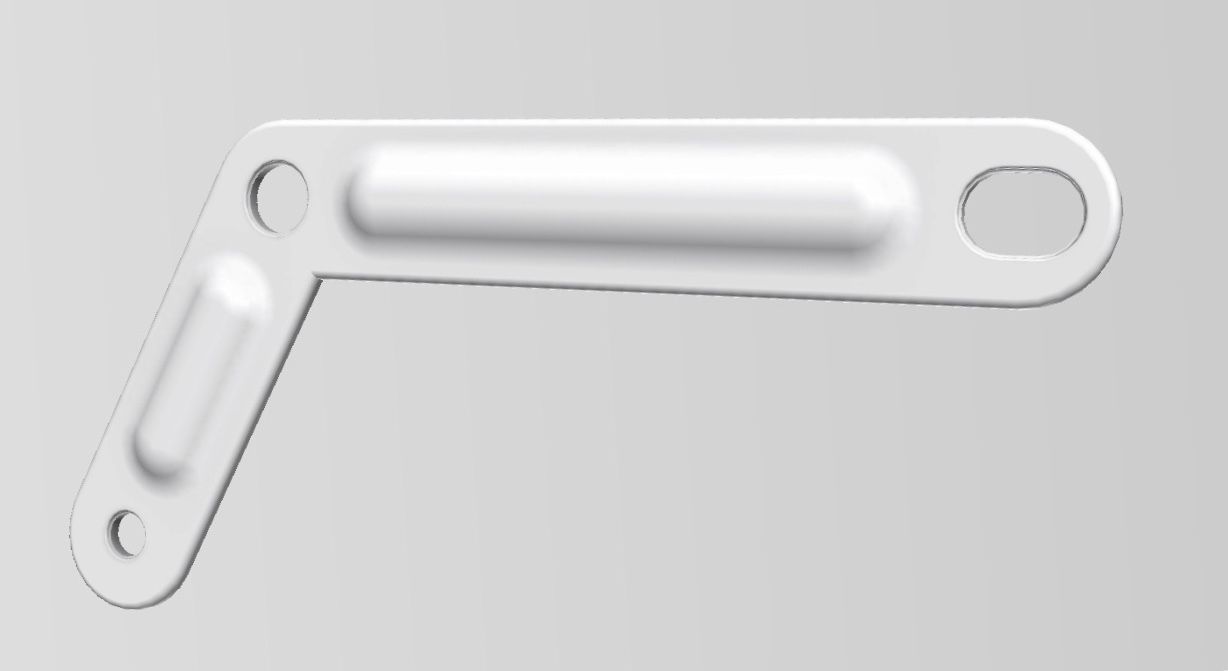

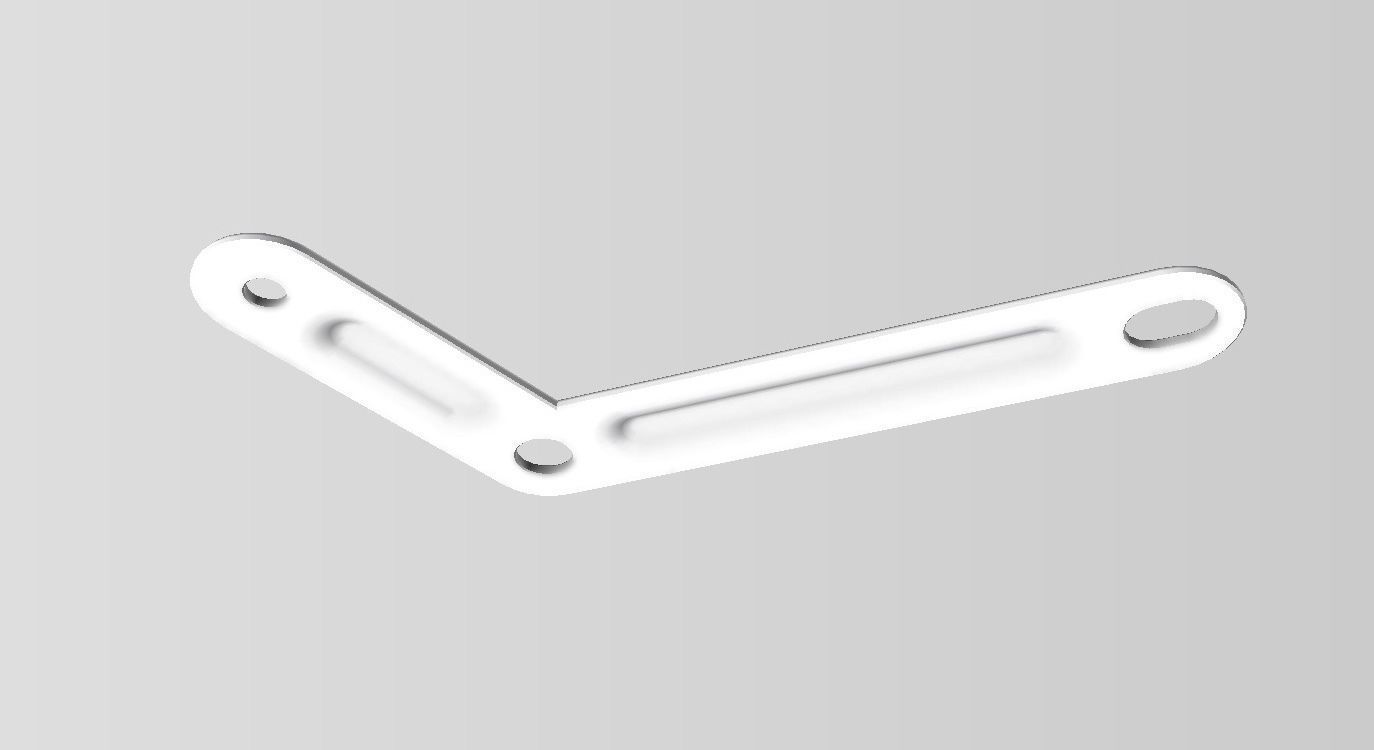

  • Bracket carbon fiber : will work if 3d printed , intended to be used to create a mold for composite materials such as carbon fiber .

As a bonus this kit includes the original mesh from the topology optimization , I quite like the organic look but is not ideal to print or use

petg, abs or better

-Bracket classic - no support -Bracket optimized - minimal/no support -Bracket 3d optimized - support -Bracket 3d optimized simplified - support -Bracket carbon fiber - minimal support

    This product has no reviews yet
    brake oil reservoir bracket mt 07 Fz 07 yamaha 5 designs
    $5.50
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Send your price offer to the author if you want to buy it at lower price.
    Editorial License
    The product can only be used in an editorial manner (educational, non-commercializable<br/> personal project, in newsworthy and of public interest events) and may not be used for any<br/> commercial, promotional, or merchandising purposes.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response - % in - h
    3D model formats
    • Stereolithography (.stl) (6 files)-
    3D model details
    • Publish date2020-05-28
    • Model ID#2442994
