Fully 3D-printable wind-up car gift card 3D print model

These files are the Fusion 360 source files of this project.

Quick note: 02/04/2020 -> I've added an updated manual for the updated gift cards 1 and 2 V2 which includes all the additional parts.

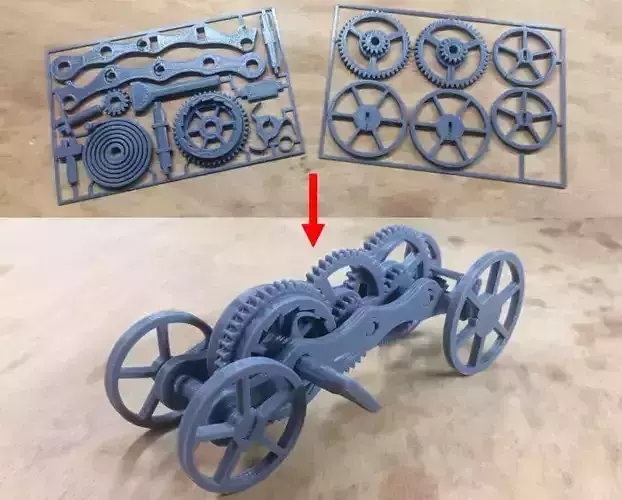

You can chose to print the 2 gift cards to give them to someone as a gift or to just assemble it yourself and relive some of your childhood ;-). You can also print all the parts seperatly so you don't have to remove any card material. The whole car can be assembled without the need for any glue. The print time for gift card 1 (the one with the most parts) is about 4 hours. The print time for gift card 2 (the one with the wheels) is about 2 hours. I decided to print them with 100 percent infill because there wasn't that much of a difference with 25 percent infill, the print time was about the same. Another reason for 100 percent infill is that the spring is being printed better. I tried to arrange all the parts on the card so that it is possible to print the 2 cards in 2 different collors and still look good (eg: not 1 wheel on one card and the 3 others on the other card).

The original idea to make a 3D-printable gift card came from the christmas reindeer model that I saw on thingiverse. I thought it would be very nice to design a gift card with some mechanical pieces so you could show people what is possible with 3D-printing (combination of gears, springs, clickers). Everything is build up from scratch. Mainly because all the parts had to be relatively flat in order for it to become a card.

I used fusion 360 to design all the parts, mainly because it has an easy to use gear generator and because (in my opinion) fusion is a very userfriendly program.

Video can be found here: https://www.youtube.com/watch?v=cB1Z3DeYrwQ

More info can be found here: https://hackaday.io/project/162942-fully-3d-printable-wind-up-car-gift-card

Recommended Tools:

3D-printer: https://www.banggood.com/Creality-3D-Ender-3-Pro-V-slot-Prusa-I3-DIY-3D-Printer-Kit-p-1346320.html?p=E01411629100201406T1&custlinkid=677427
