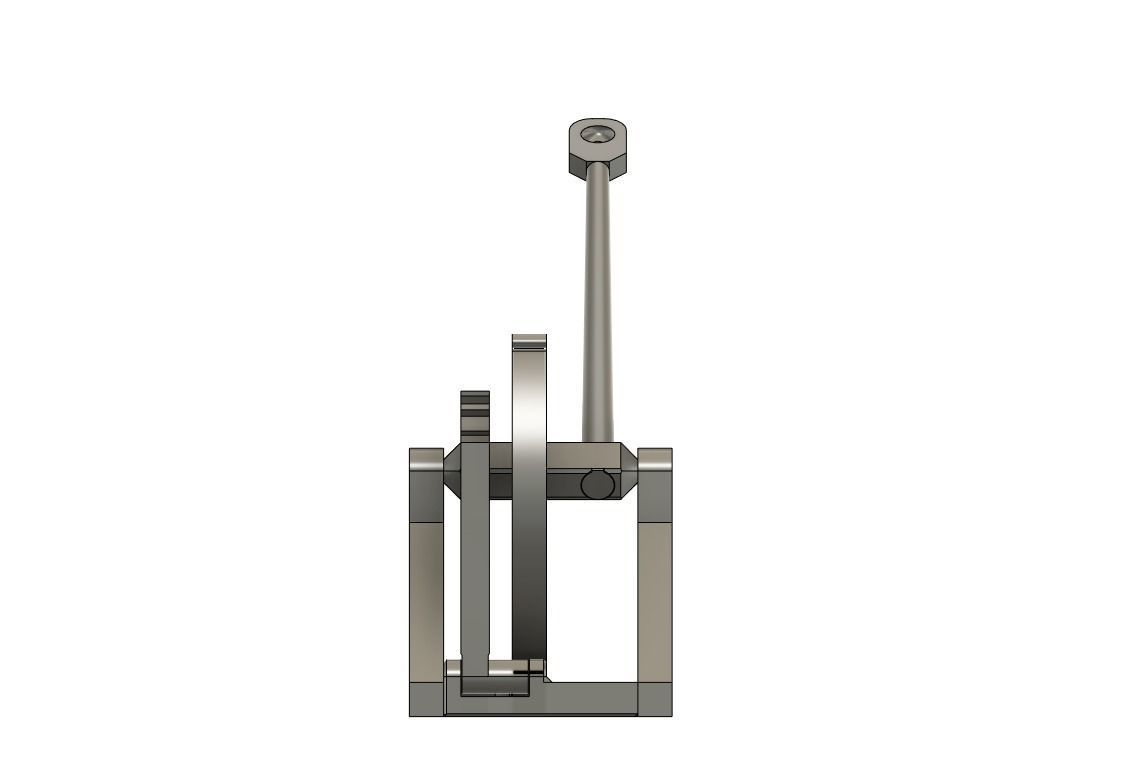

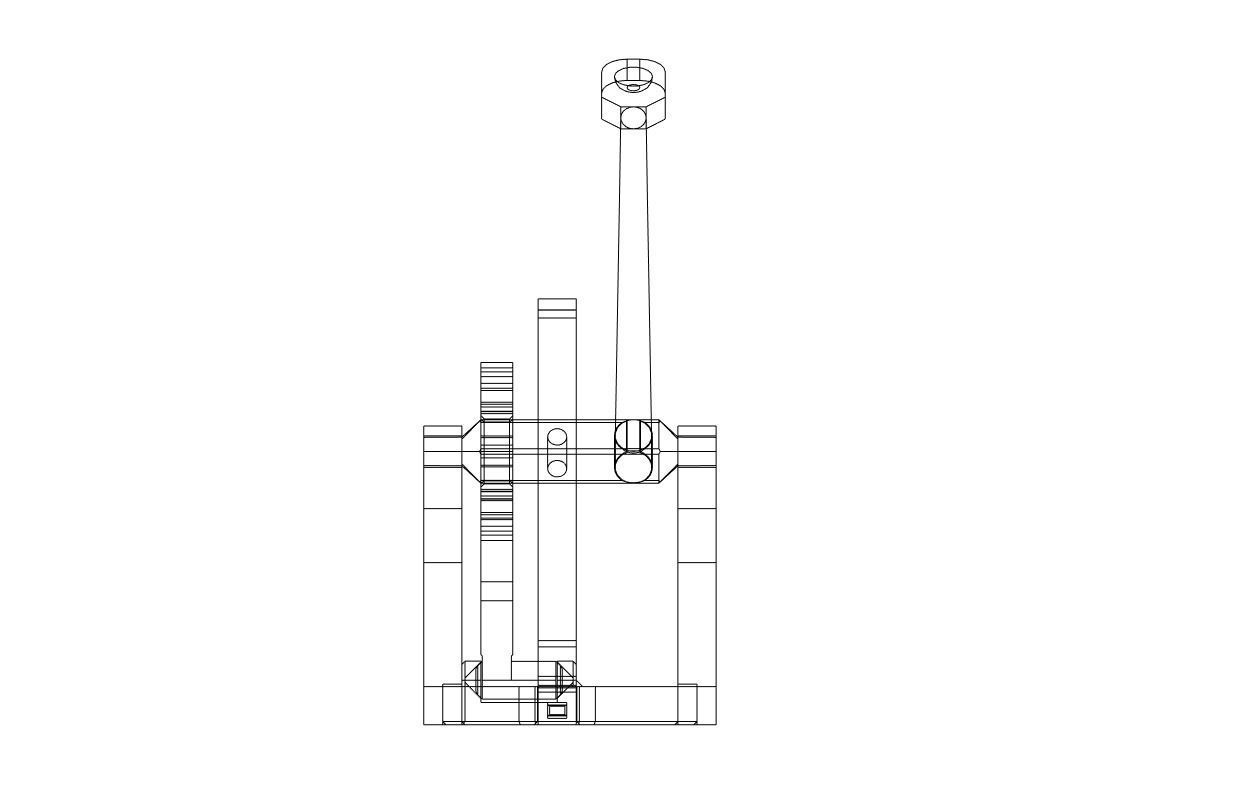

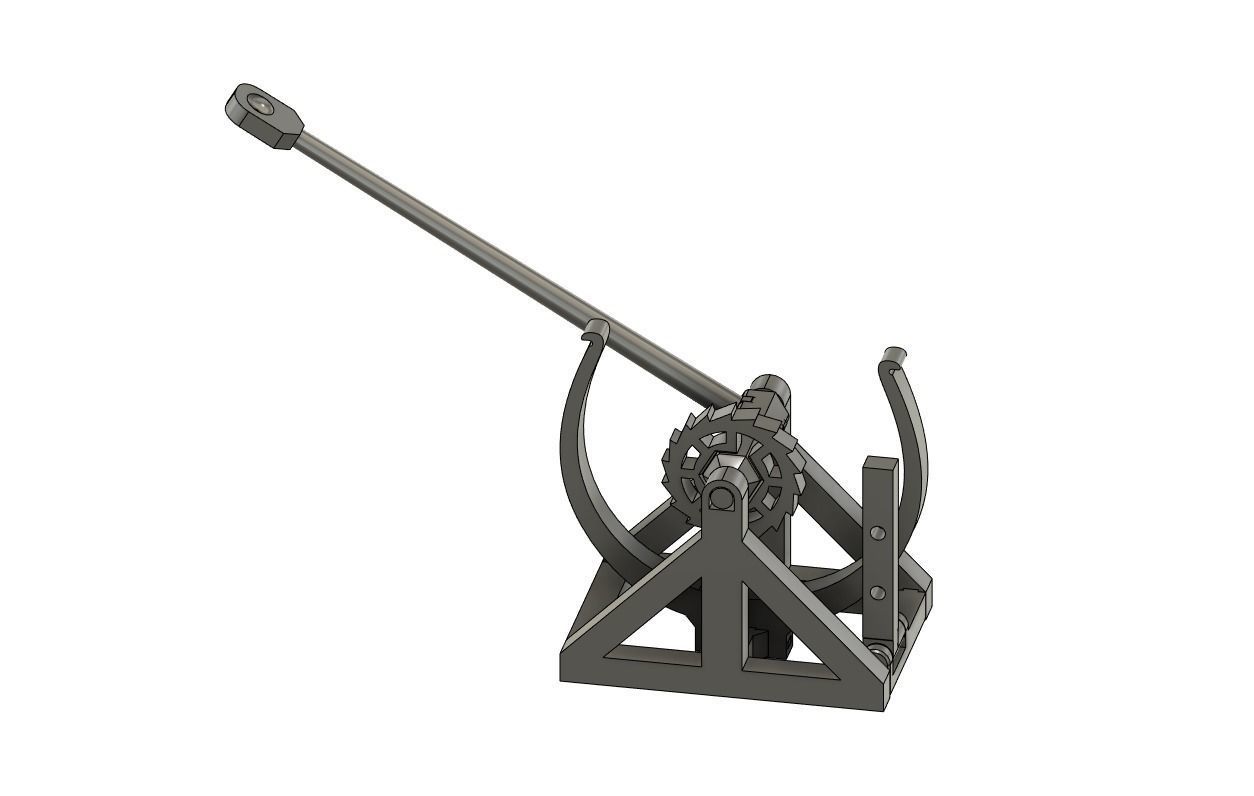

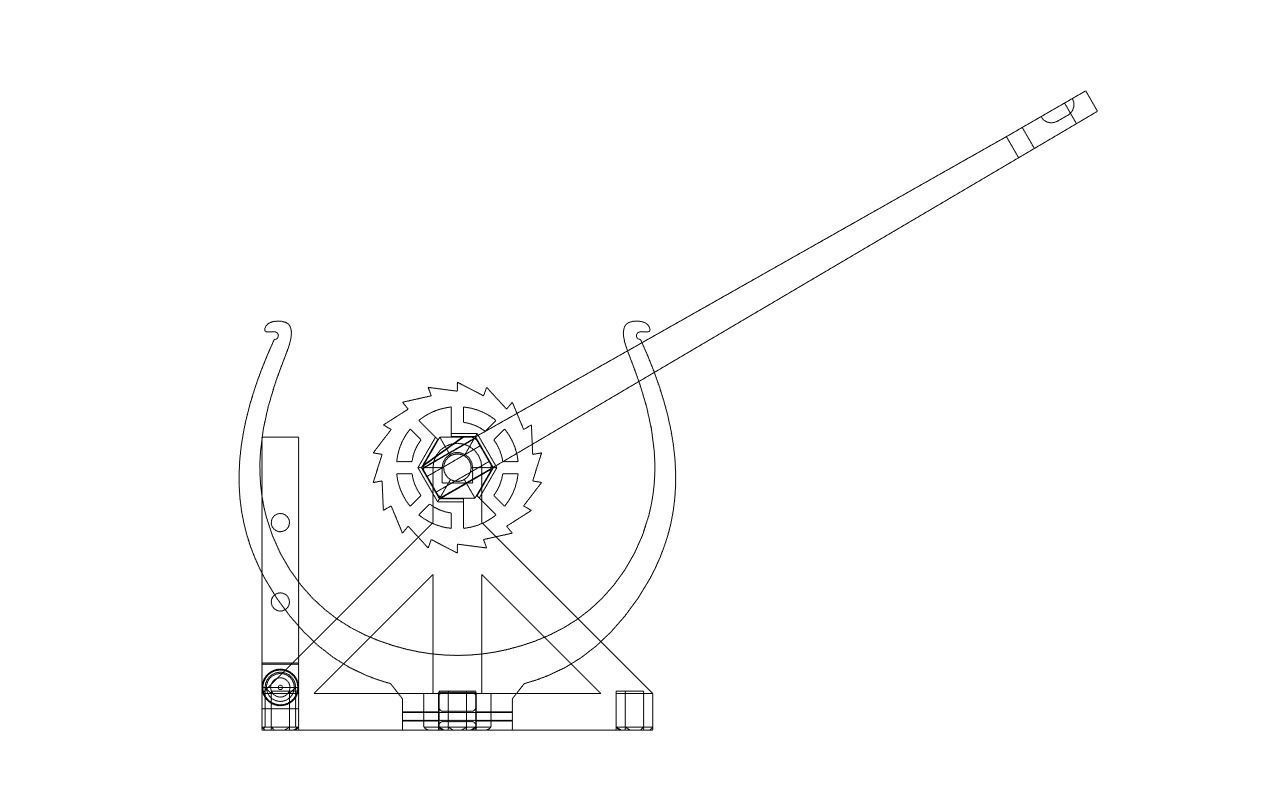

3D-printable Davinci catapult gift card 3D print model

Video can be found here: https://youtu.be/0SO7Gl-gxPo

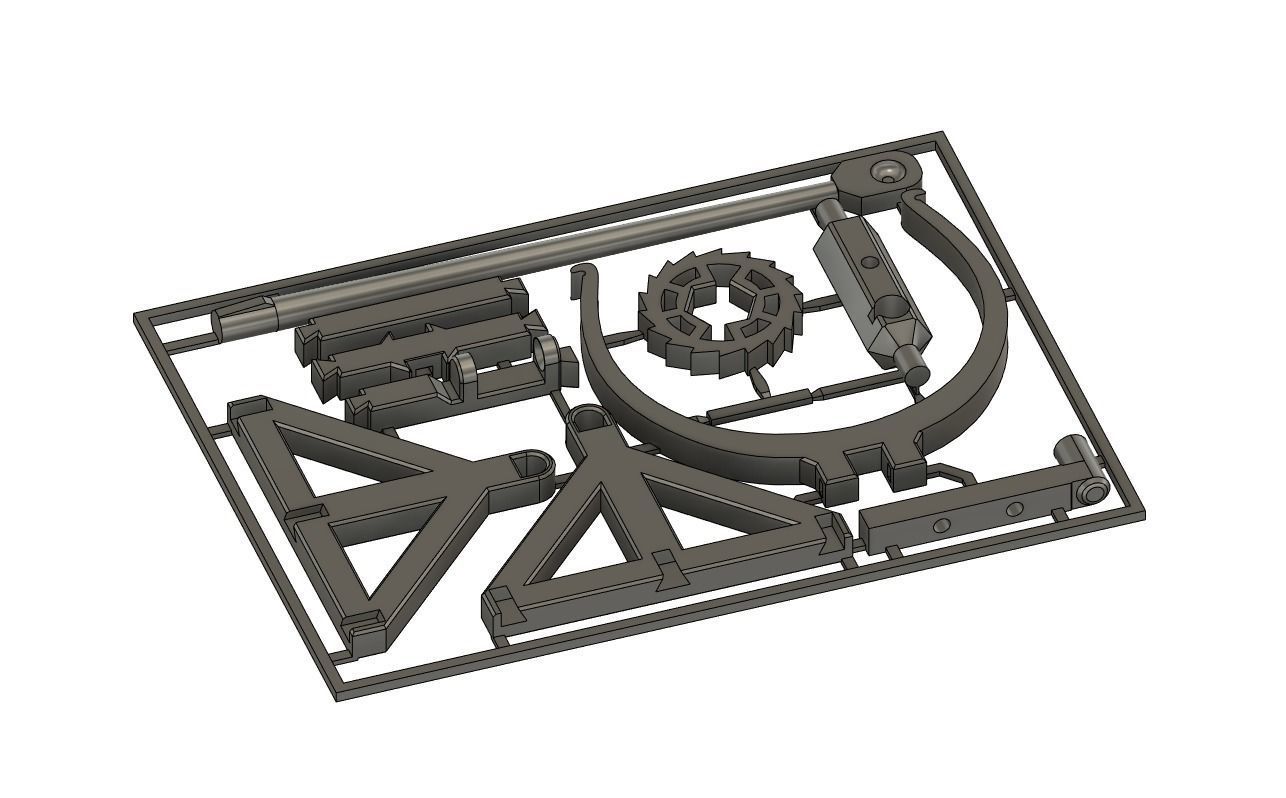

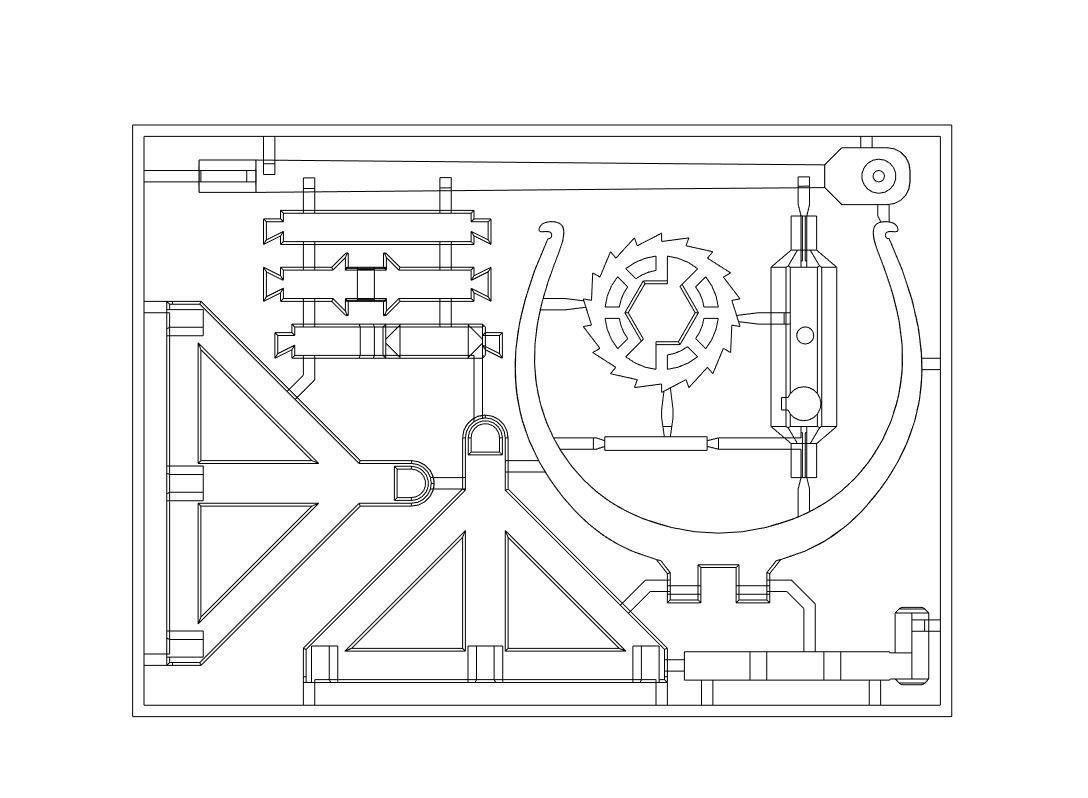

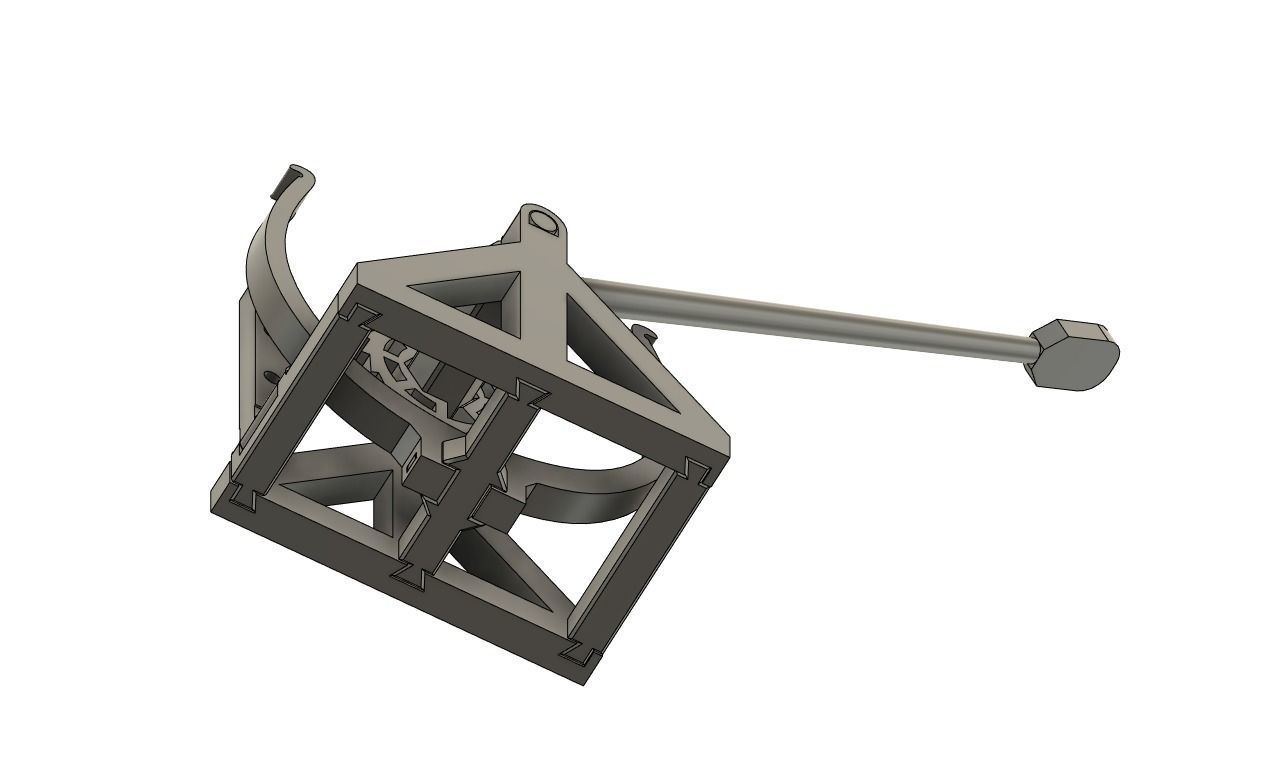

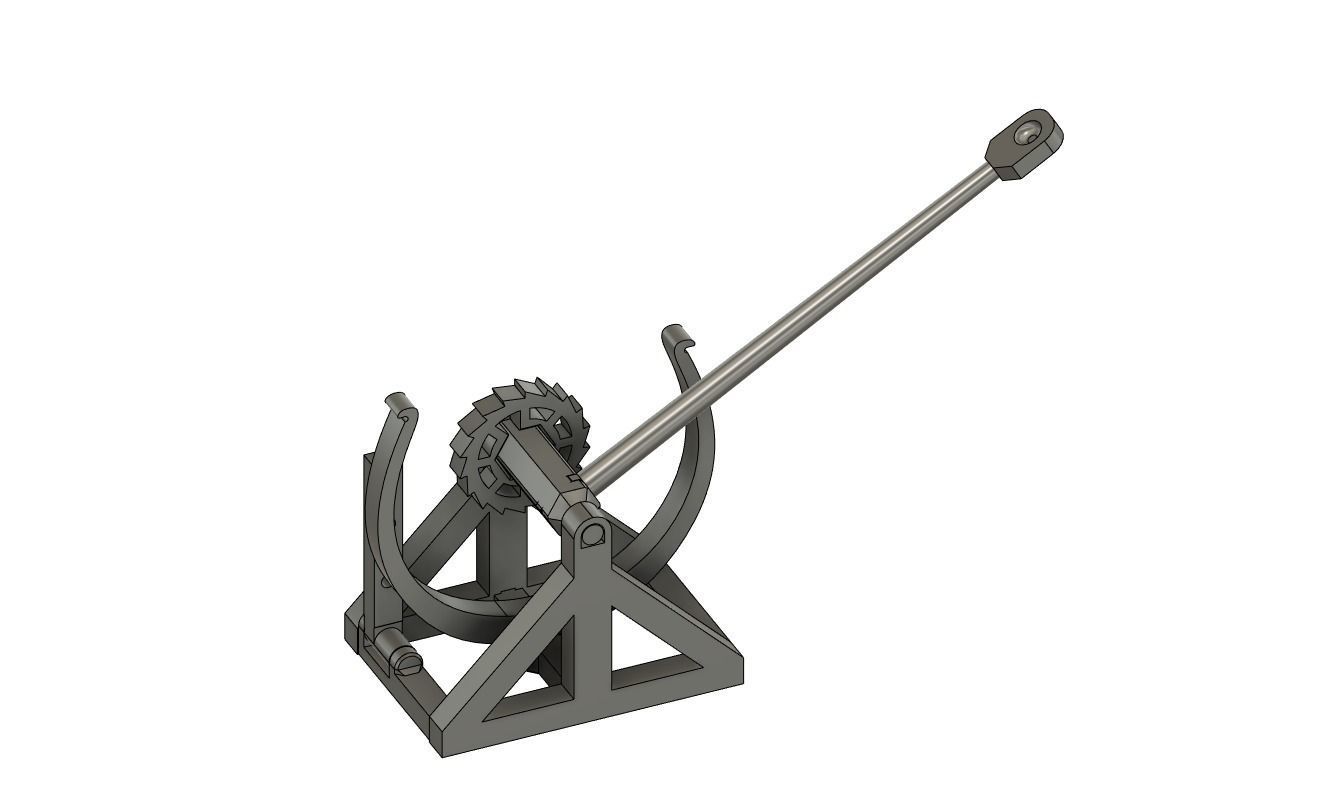

These files are the Fusion 360 source files of this project.

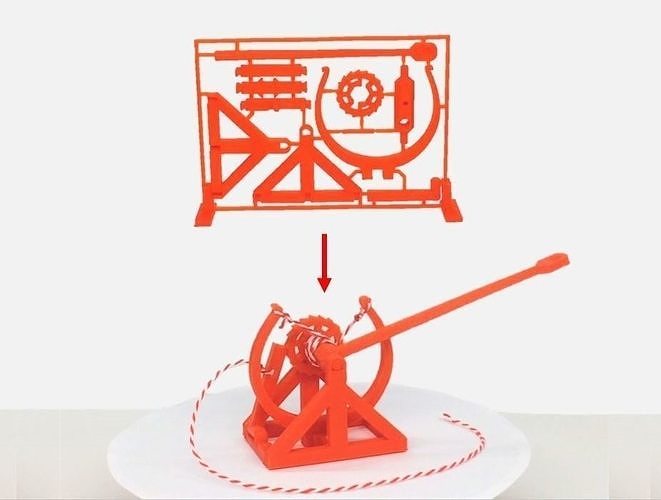

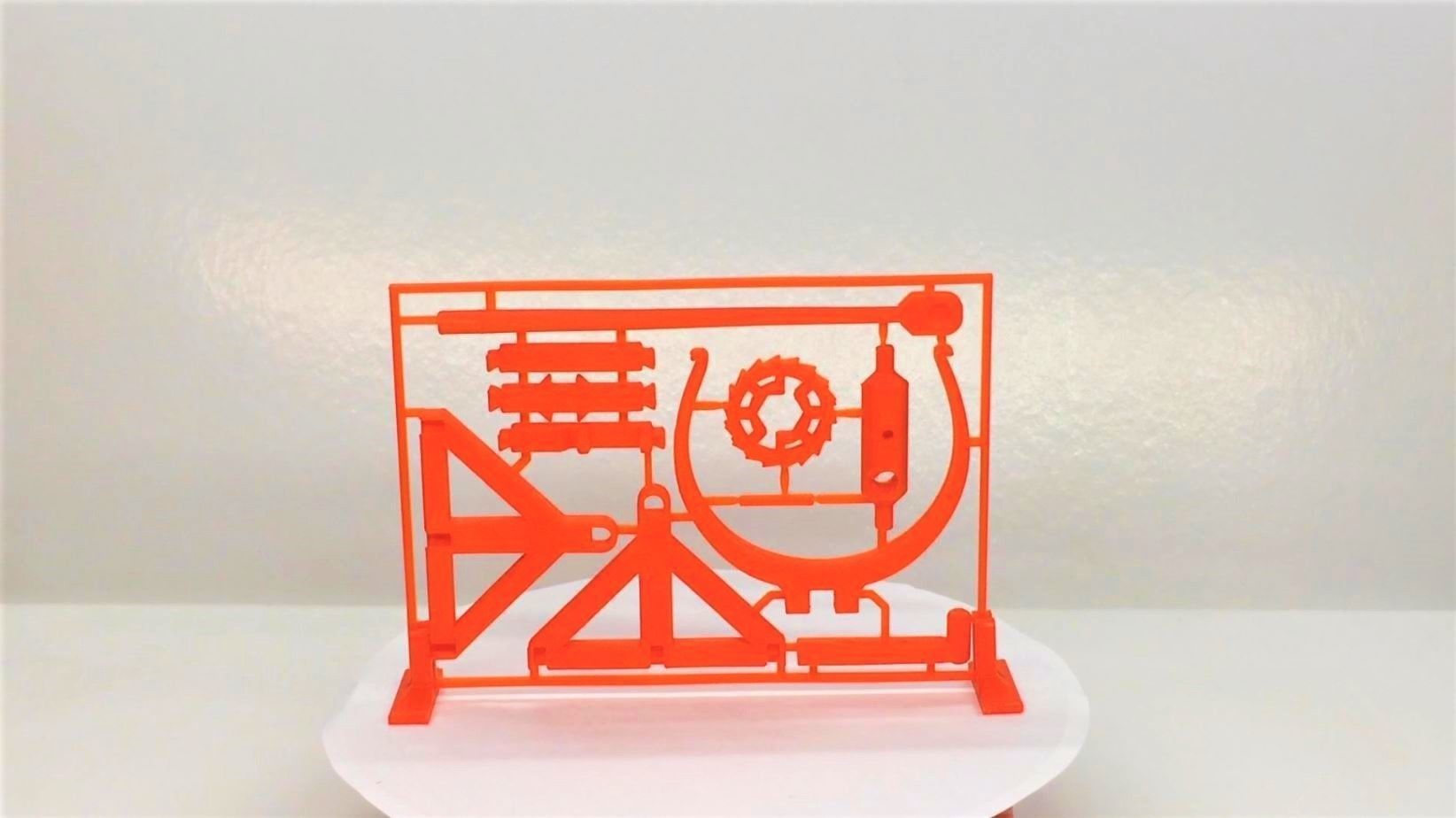

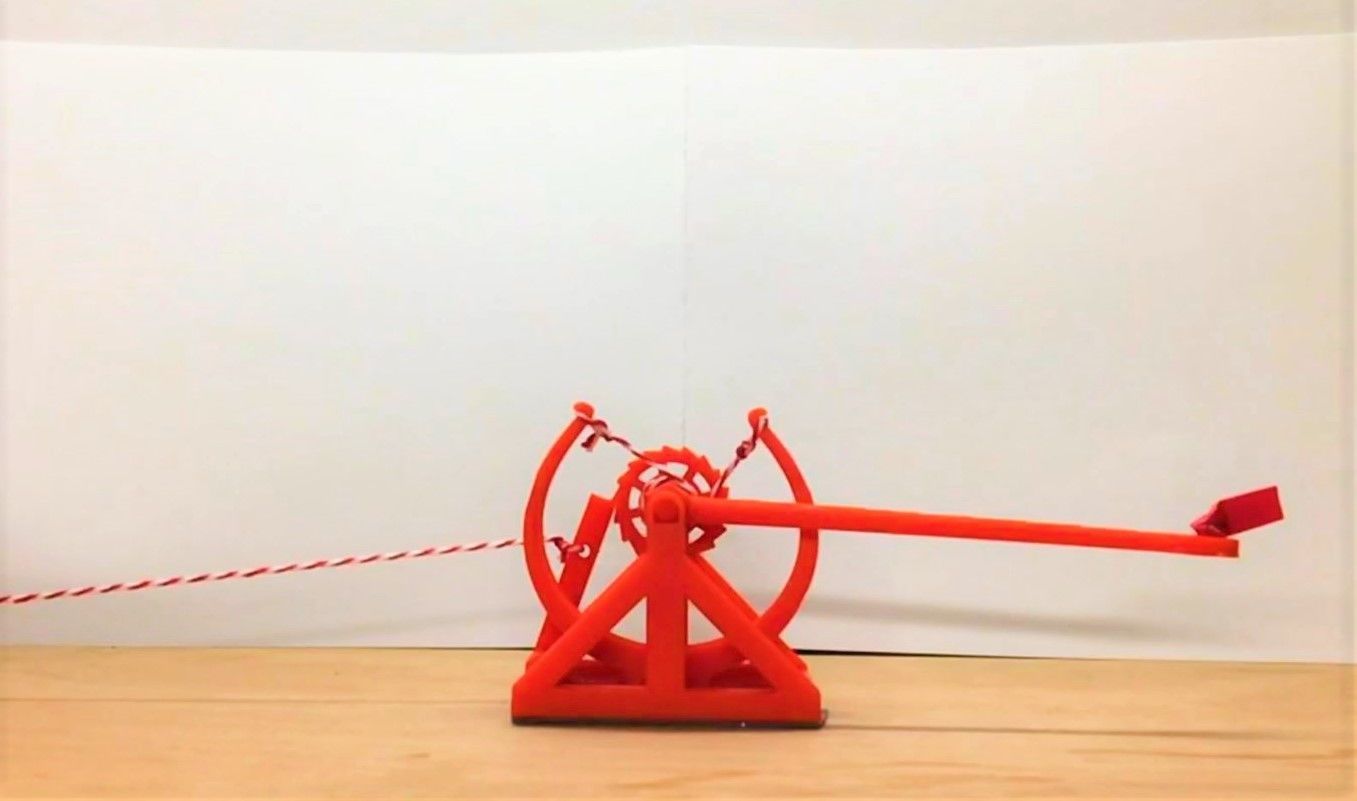

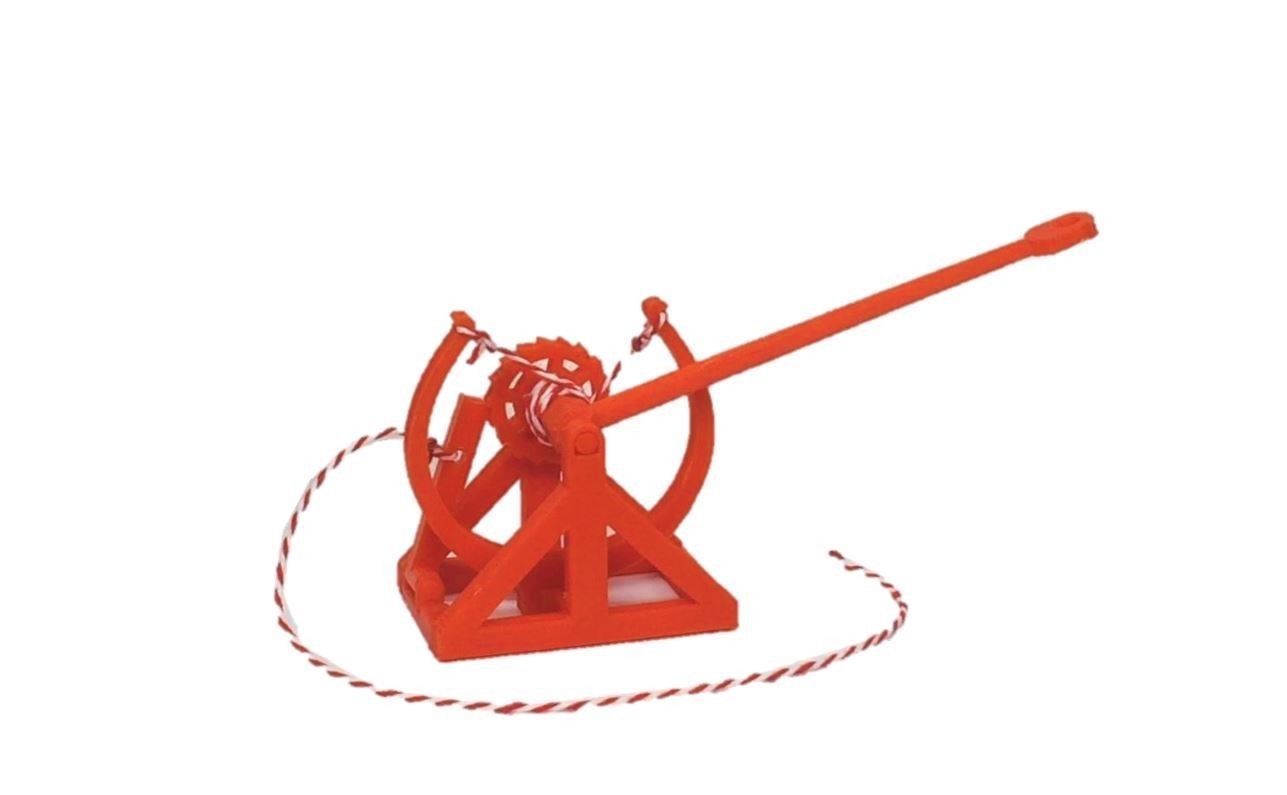

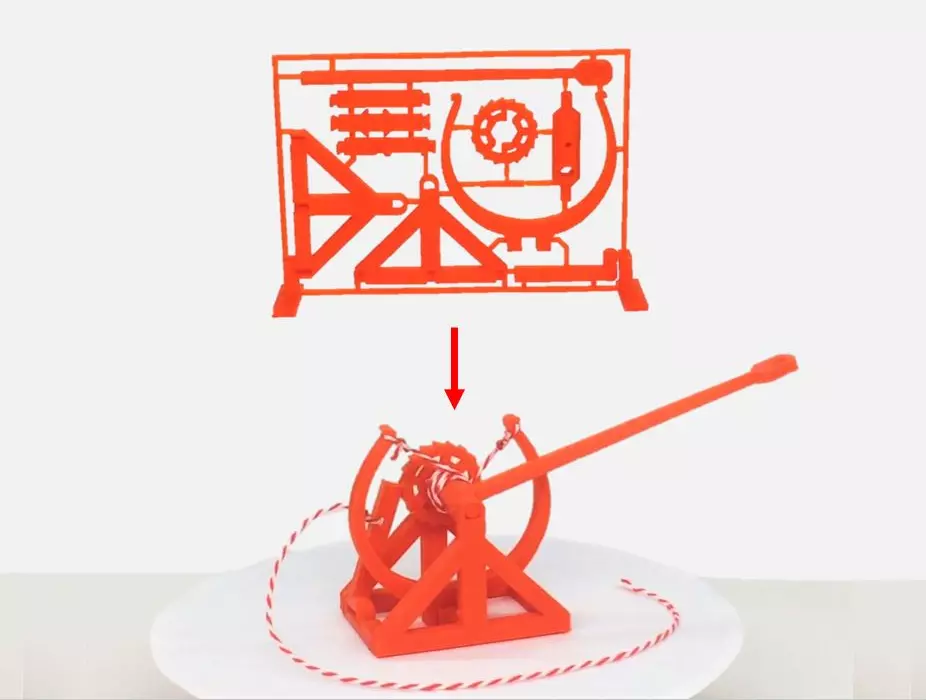

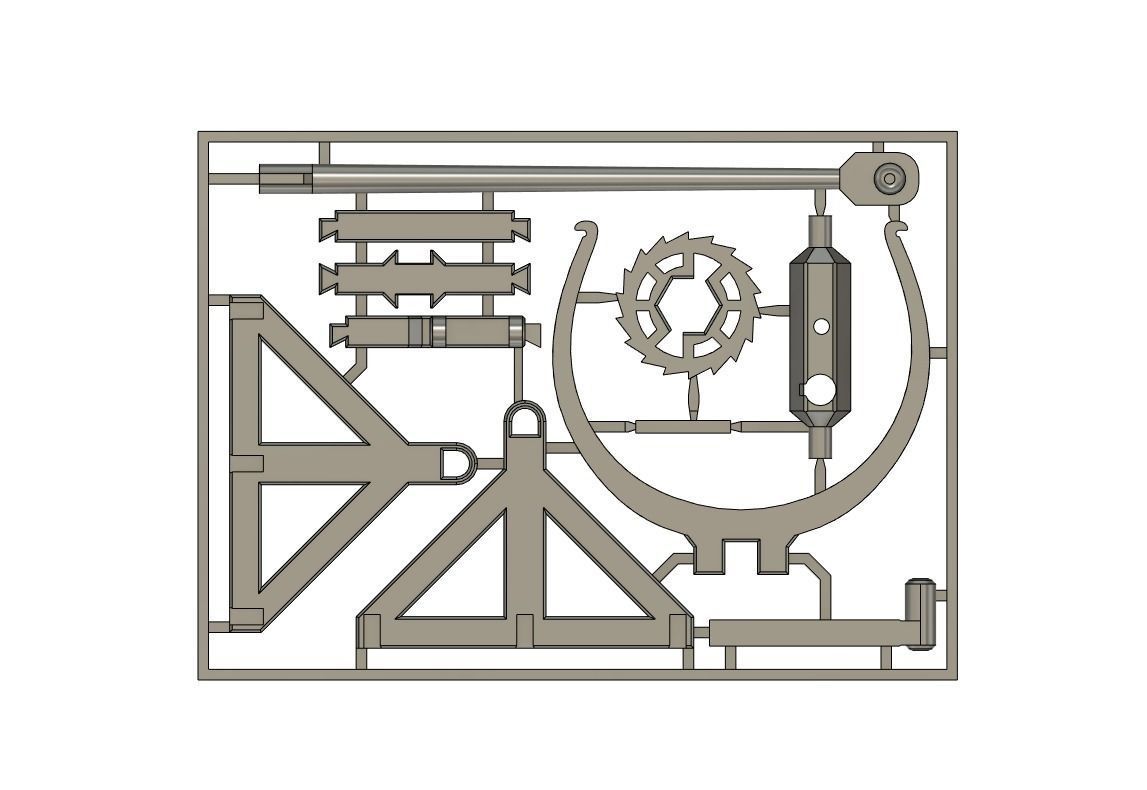

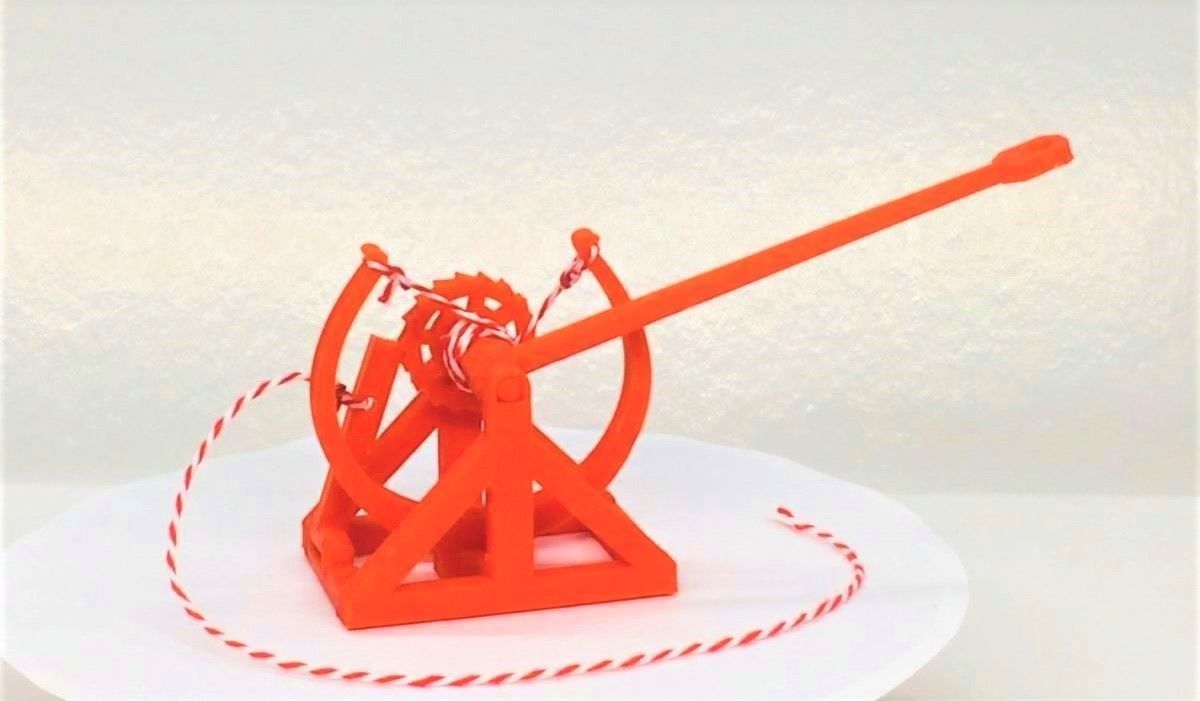

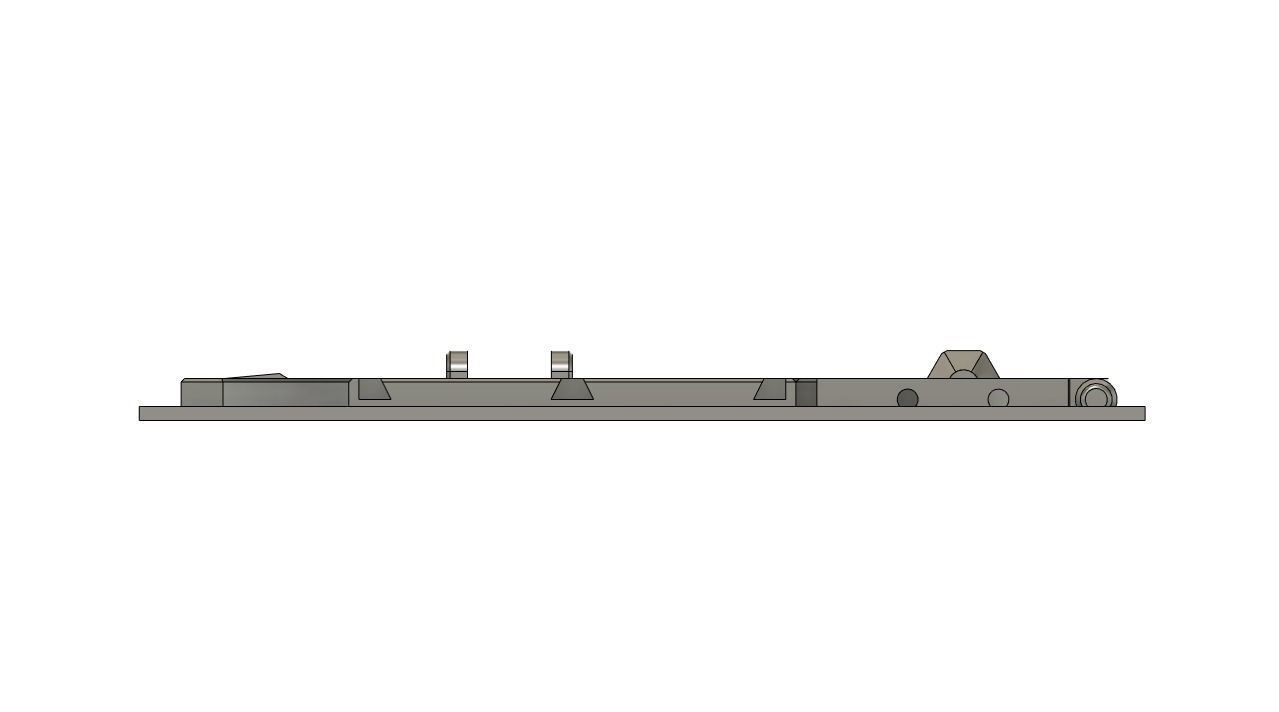

Because a lot of people liked my previous gift card (Fully 3D-printable wind-up car gift card: https://www.thingiverse.com/thing:3308710 ) and asked if I could create another version of it, I decided to make this Leonardo Davinci inspired catapult gift card. The whole card can be 3D-printed in one go, you don't need any extra parts except for some wire. The card can be printed without support and the print time is about 3 hours with a 0.2mm layer height. The card can be printed using regular PLA. The whole thing is designed to be able to snap fit together so there's no glue necessary. I did a lot of test prints of different parts of the model until I got some consistent and good results. It is of course possible that depending on which printer you use the result may vary. You can always let me know in the comments which parts work for you and which don't so I can create a second version of the model. I added all the parts seperately to for the people who just want to print the catapult and do not have the intend to give the card as a present.

I also created some instructions to add to the experience of building a model kit. The pdf file can be found in the file section.

Video can be found here: https://youtu.be/0SO7Gl-gxPo

More info can be found here: https://hackaday.io/project/169130-3d-printable-davinci-catapult-gift-card

Recommended Tools:

PLA filament: https://www.banggood.com/Creality-3D-White-or-Black-or-Yellow-or-Blue-or-Red-1KG-1_75mm-PLA-Filament-For-3D-Printer-p-1290153.html?p=E01411629100201406T1&custlinkid=926158

Recommended 3D-printer: https://www.banggood.com/Creality-3D-Ender-3-Pro-V-slot-Prusa-I3-DIY-3D-Printer-Kit-p-1346320.html?p=E01411629100201406T1&custlinkid=677427

  • arturodiarturodi
    2020-08-31 02:00
    Great project!
  • bribro12bribro12
    Author
    2020-09-15 21:06
    If you have any questions about this model, feel free to send me a message.
    This product has no reviews yet
    3D-printable Davinci catapult gift card
    $5.99
    All prices are exclusive of VAT
    Send your price offer to the author if you want to buy it at lower price.
    Editorial License
    The product can only be used in an editorial manner (educational, non-commercializable<br/> personal project, in newsworthy and of public interest events) and may not be used for any<br/> commercial, promotional, or merchandising purposes.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 70% in 2.9h
    3D Modeling
    3D Print Modeling
    Hire me
    3D model formats
    Native
    • Autodesk Fusion 360 (.f3d)6.5 MB
    Exchange
    • 3D ACIS (.sat)3.33 MB
    • Stereolithography (.stl) (13 files)-
    • OBJ (.obj, .mtl)2.11 MB
    • Sketchup (.skp)1.46 MB
    • Autodesk FBX (.fbx)989 KB
    • Autodesk Inventor (.iam, .ipt)1.79 MB
    • DXF (.dxf)10.7 MB
    • IGES (.ige, .igs, .iges)5.48 MB
    • AutoCAD (.dwg)1.71 MB
    3D model details
    • Publish date2020-08-30
    • Model ID#2584134
