A320-A330 DRAIMS panel 3D print model

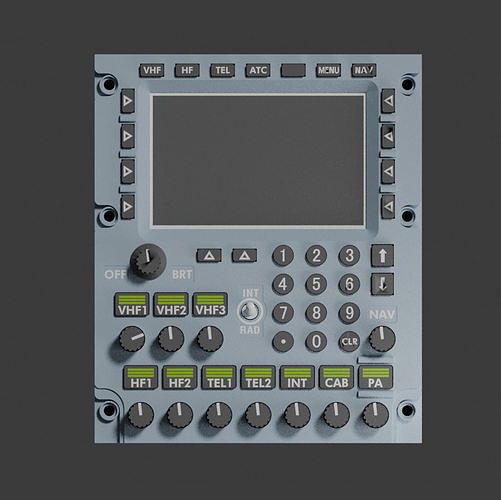

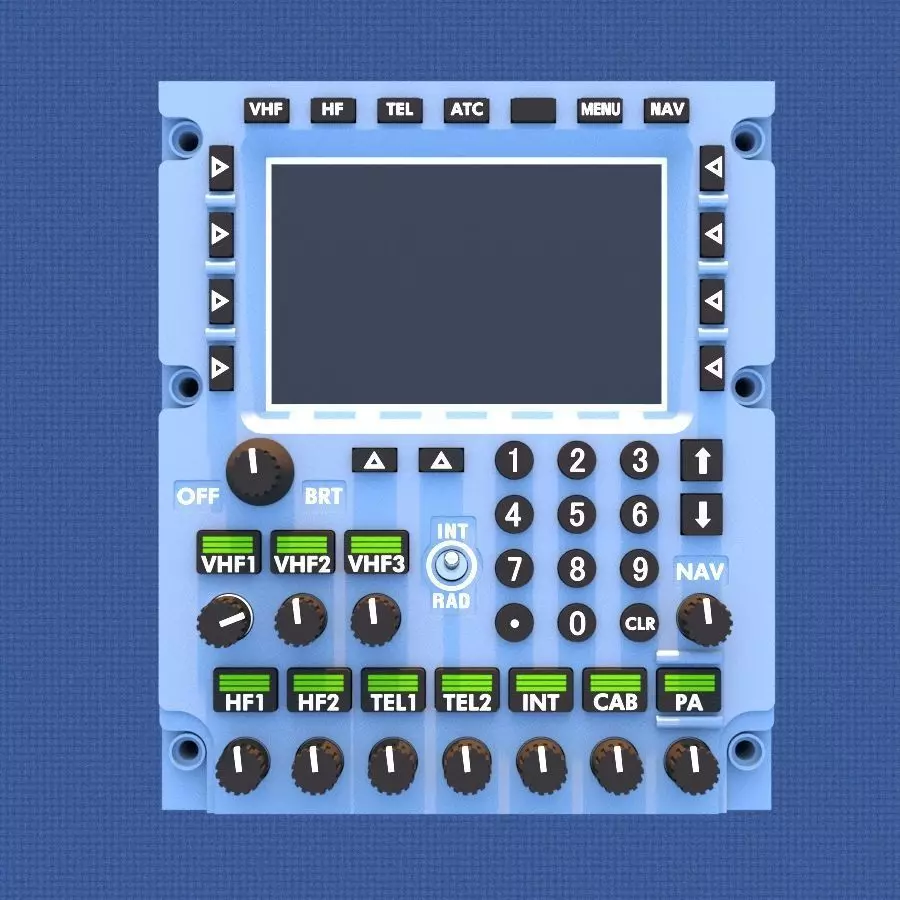

A320 / A330 DRAIMS panel

NO PCB NEEDED!

This panel do not need any PCB as it has the unique Button Base panel for easily insert and attach buttons, switches, rotary, potentiometers and encoders.

It is also possible to print only the board and screw it to a pedestal board.

This panel fits exactly the dimensions of both panels: RMP and ACP so it can be used as a replacement to both of them.

Includes nuts for screws compatible with AIRBUS models.

Dimensions:

148/176 mm

Height: 40 mm (or 10 mm for pedestal installation option)

Part list:

41 x DIP Tact Switch 6X6X4.3mm

1 x Mini Toggle ON OFF (or ON ON) Switch

12 x Rotary Potentiometers 15mm

11 x Self lock 8.5x8.5x14.6mm

1 x 4.3 Inch TFT LCD Display Module 480*272 RGB IPS 40Pin 3.3V ILITTEK Driver 500

4 x M3X12 Round screws

6 x M4X16 Round screws

3D PRINTING SETTINGS

There are 3 printing options:

1) Use a double head printer (dual extruder) and print the inscription in a different color.

2) Use a printer with one head and do not print the inscription so that it is sunken into the panel.

3) Use a printer with one head but print the transparent PLA (TPLA) version so the inscription will stand out above the panel.
