This is a Tesla duct model for M4, P4, T4 cards. Should also fit to A2 & L4, but so far those cards have not been tested with model (use at your own risk). This long narrow duct addresses putting 80x80xXX mm fan aligned with the longest side GPU card (of ~268mm) next to small Tesla (of ~168mm). This mode has brought a side step in order to accommodate more room for for motherboard circuits & their coolers, while also came with a distance for fan GPU cards, as most professionals use fan Quadro's, Titan's or similar cards.

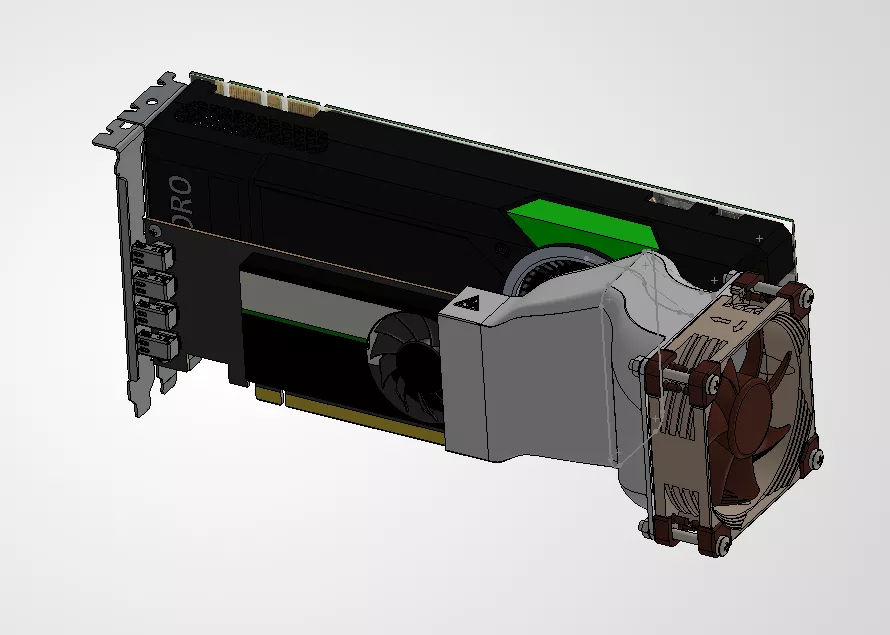

Model is tested for fitting (see pictures) next to smaller Quadro P5000 card & smaller one acting as Tesla card (a Quadro T1000). Cards, which are not included into model!

Item dimensions: 121x80x100m. For fitting into case, add fan width of 80mm fan.

Custom designed shroud is a perfect way of cooling a passive-heatsink NVIDIA Tesla's (not included) listed above in a desktop/workstation/server case. This shroud (together with the fan, not included) is engineered to fit precisely to the card, and to meet/exceed the card's cooling requirements. Model is optimized for good hand feel, without sharp edges & quality of design according to best engineering practices by a engineer with a degree, but also protected with logo (not shown on photo, only in STL). 3D printing material of properties 80+°C is advised: ABS, ASA, HIPS, PP, PC or Nylon.

Model has been made in order to fit Tesla with next to larger GPU fan cards (GeForce, Quadro, Grid / Tesla), so that fans (60x60xXX) are aligned in the back of the GPU card, while also giving room for GPU fan to increase air flow through both cards.

Model is tested & suited for Noctua A8 80x80x25 server fan with tightening material M4x35 ISO 7045 screws, M4 ISO 4032 nuts & A4 DIN 433 washers (tightening material not included)! Using other tightening sizes at your own risk to fit with part.

Also, assembly can be made with NA-SAV2 Anti-vibration mounts for use on model & fan.

For any additional questions &/or suggestion, contact me freely.
