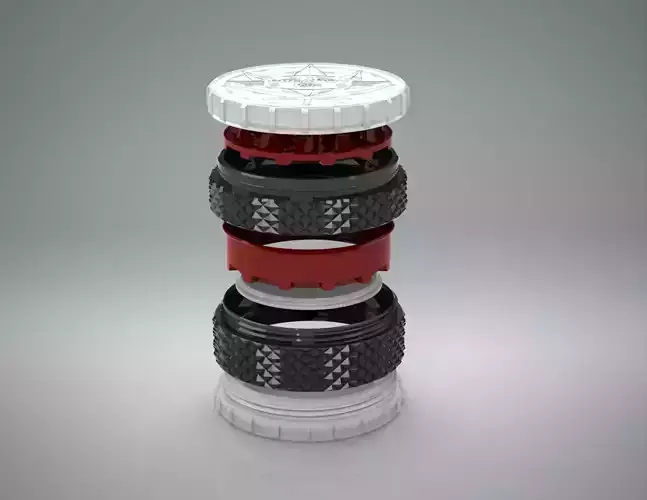

Modular herb grinder optimized for 3d printing.

• Grinds better then most metal grinders.
• Unique teeth design, achieving high strength, while giving consistent and smooth grinding experience.
• customizable
• External threads are identical, so it can be expanded or made smaller
• Interchangeable teeth (default or smallholes) and screens (0.3x0.3mm, 0.5x0.5mm or closed) for further customization. Default teeth are recommended, grind upside down twice for a finer result.
• Excellent grip
• Printable without support
• There is a designed in 0.2mm tolerance between all parts for a tight fit

Recommened print settings

External parts are all printed with a 0.6mm extruson width, 5 shells and 0.3mm layer height, 30% infill, except the TopGrinder, for higher strength and faster print time.Internal parts and the TopGrinder are designed to be printed with a 0.4mm extrusion width, 7 shells and 0.2mm layer height, 30% infill.The BottomGrinder and HerbCollector can be printed without support through bridging (intended).The HerbCollectorScreen's screen is intentionally lifted 0.2mm off the build surface to avoid squishing and/or damaging it when removing, no support or bridging is needed.Takes almost 7 hours to print a complete assembly.

Dimensions 64mm O.D. x 41.5mm
