- REQUIRED SETUP

To prevent missing maps, the Texture folder MUST be kept in the same folder as the max and fbx files.

- 01. Description & Features

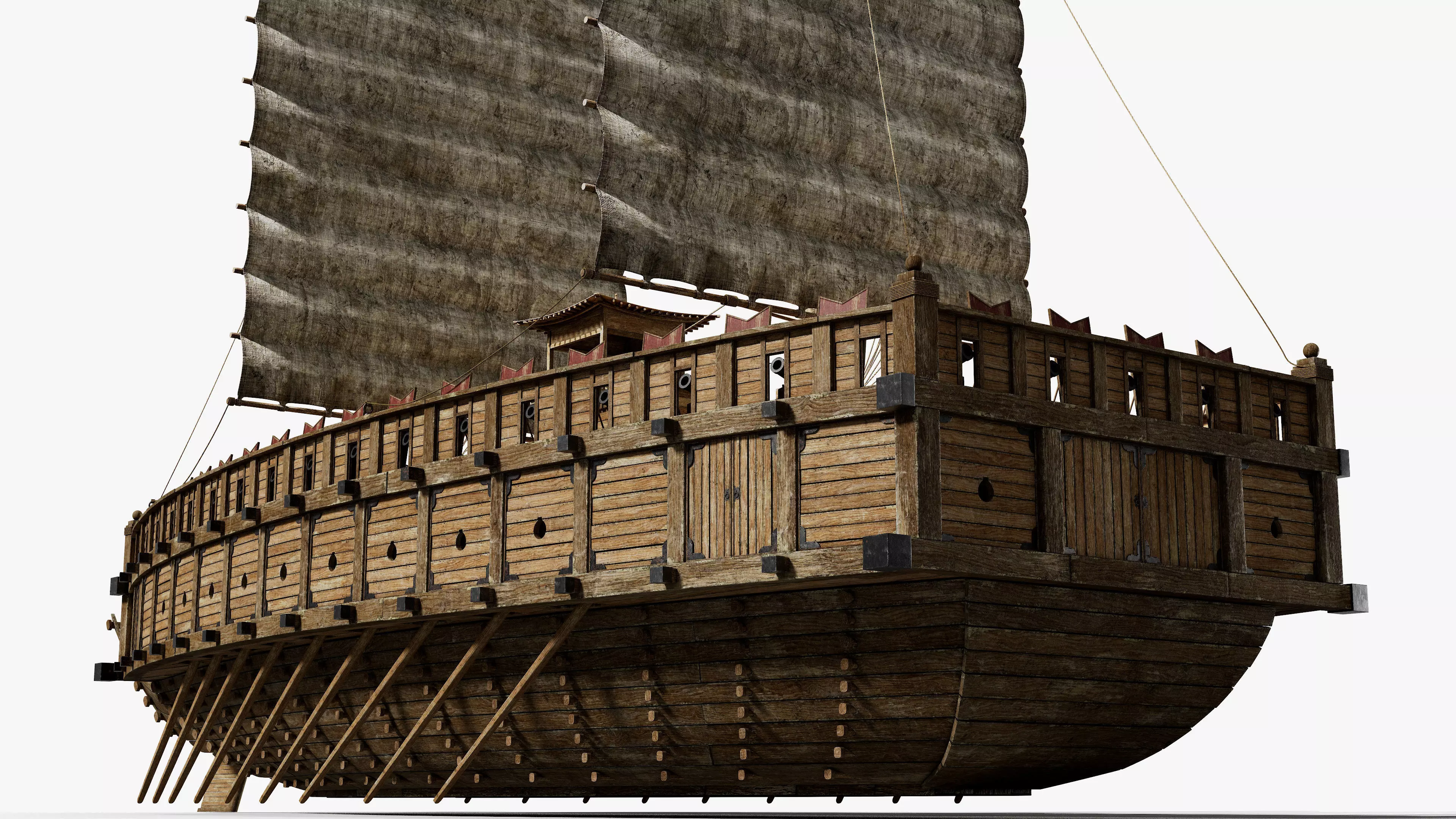

1. Historical Hero Asset: A highly detailed 16th-century Korean naval vessel based on historical research.
2. Cinematic Quality: High-end asset designed for VFX, cinematic rendering, and extreme close-ups.
3. Full Interior: A fully explorable 3-deck structure (1F, 2F, 3F) with complete interior details and props.

- 02. Structure

- 02.01. Ship Layers

1. Lower Deck (1F): Base floor with interior structure.
2. Middle Deck (2F): Rowing floor with interior details.
3. Upper Deck (3F): Combat floor with Pavilion, Flags, and Warehouses.

- 02.02. Props

1. Navigation: Anchor, Paddle, and Rear Paddle.
2. Combat: Cannon and Shield (Red & Green).

- 03. Technical Specifications

- 03.01. Geometry & Scale

1. Polygon Count: 12,731,180 (All Quads).
2. Scale: 3,205 × 1,198 × 2,581 cm.
3. Meshes: 281 separate objects, organized by layers.

- 03.02. Textures & UVs

1. Texture Sets: 144 Sets (BaseColor, Normal, Roughness, Metallic).
2. Formats: 144 PNG / 291 JPG.
3. Resolution: 8K (8), 4K (124), 2K (194), 1K (95), 512px (14).
4. UV Mapping: Non-overlapping unwrapped.
5. Normal Map: DirectX (Invert Y-channel if needed).

- 03.03. Software & Formats

1. 3ds Max: 2024 or higher.
2. Unreal Engine: 5.1 or higher.
3. Renderers: V-Ray (6.0 or higher), Arnold, Scanline.
4. Universal: FBX.

- 03.04. Color Management

1. Mode: 3ds Max Native OCIO (ACEScg Workflow).
2. Color Space: ACEScg (OCIO rule file included).
3. Display / View: sRGB / ACES 1.0 SDR-video.

- 04. Rigging & Interaction (3ds Max)

1. Setup: No Skin/Bone rigging.
2. Interaction: Doors, handles, and props are linked to Dummies.

- 05. Unreal Engine 5 (UE5) Integration

- 05.01. Mesh & Materials

1. Nanite: Enabled.
2. Collision: Complex as Simple.
3. Materials: 2 Master Materials / 4 Parent Instances / 144 Final Instances.

- 05.02. Blueprints

- 05.02.01. BP_Ship

1. Toggle:Structure visibility.
2. Interactive:Door states, Paddle & Rear Paddle rotation.
3. Control:Adjustable speed for interaction.

- 05.02.02. BP_Ship_Static

1. Designed for static placement and posing.
2. Toggle: Structure visibility.
3. Control: Door state.

- 05.03. Demo Levels

1. LV_BP / LV_BP_Static: Testing Blueprint function.
2. LV_Mesh: Showcase level with static meshes.

- 06. Additional Notes

1. Placement: Props are provided as separate assets and are not pre-arranged in the ship scene.
2. Lighting: Custom lighting setup is required (Preview images were rendered with V-Ray 6).
3. PDF Datasheet: Mesh-Material-Texture connections.
4. Plugins: No 3rd-party plugins are required.
