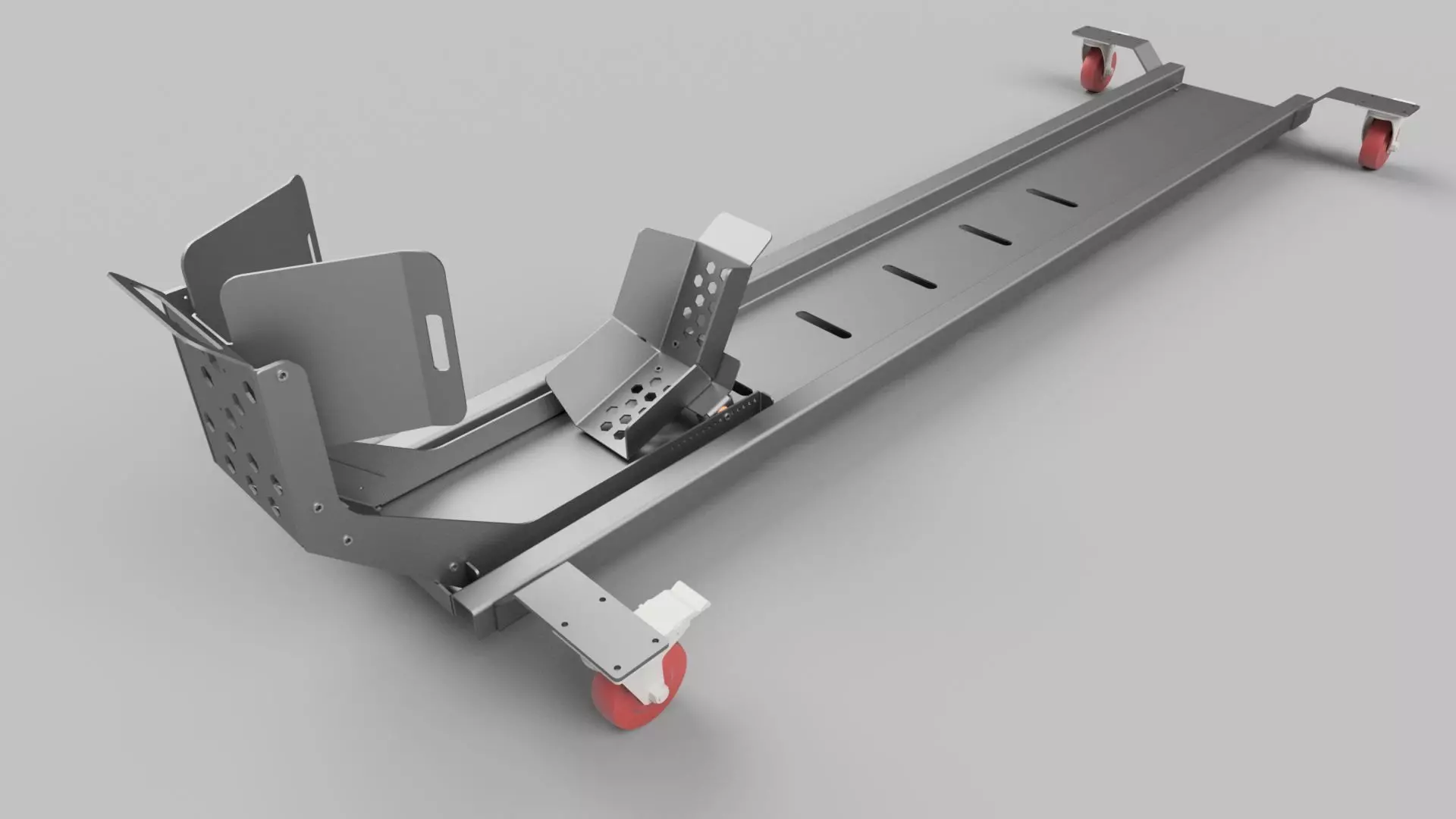

Professional Motorcycle Dolly Plans - CNC Plasma DXF files for Garage OrganizationCreate your ultimate bike storage solution with these detailed workshop plans - perfect for DIY enthusiasts and small fabrication businesses.This rolling stand combines a motorcycle dolly mover, adjustable wheel chock, and turntable base for effortless bike movement and space-saving storage.

Ideal For: Compact garage layouts Workshop maintenance stations Motorbike dealerships Home mechanics

Package Includes:• CNC-ready DXF/SVG files for plasma/laser cutting• PDF Plans - Detailed bending instructions for sheet metal parts

Key Features:• Universal fit: Adjustable 100-150mm wheel chock• Industrial casters: 360° rotation with brake system

PAY ATTENTIONThis listing is for digital download files only. No physical item will be sent by post.

Materials:• 11-gauge (3 mm) sheet metal• (8 mm) sheet metal• 30 x 30 (side 3mm) square tube

This Design Will Require These Operations:• Plasma, Laser, or Waterjet CNC Machine Cutting• Sheet Metal Bending• Assembling with bolts and nuts

Product Dimensions:• Height: 20.8 inches (530 mm)• Width: 26.0 inches (660 mm)• Length: 91.0 inches (2312 mm)

File formats are available for immediate download via CGTRADER once you finish the payment:• DXF• 3D (Inventor, Step, Igs)• BOM• PDF

TERMS OF USESuitable for personal and small business use.Large-scale commercial use is NOT allowed.For personal/non-profit use: Unlimited production of physical items for personal use is permitted.Commercial Use: Limited to PHYSICAL small commercial use only.Attribution is required.

IMPORTANT NOTICEAll images and videos on this site are protected by copyright and intellectual property rights.Unauthorized use, reproduction, distribution, or modification is strictly prohibited and may result in legal action.Strictly prohibited: Digital product sales on any online platform, including physical or digital resale.Unauthorized online sales are illegal and may lead to legal consequences.Do not alter designs. Files cannot be resold, shared, or distributed, including modifications and redistribution.Thank you for respecting intellectual property rights.

NO REFUNDS ON DIGITAL DOWNLOADSUNFORTUNATELY, BUT THERE ARE ABSOLUTELY NO REFUNDS ON DIGITAL DOWNLOADS!
