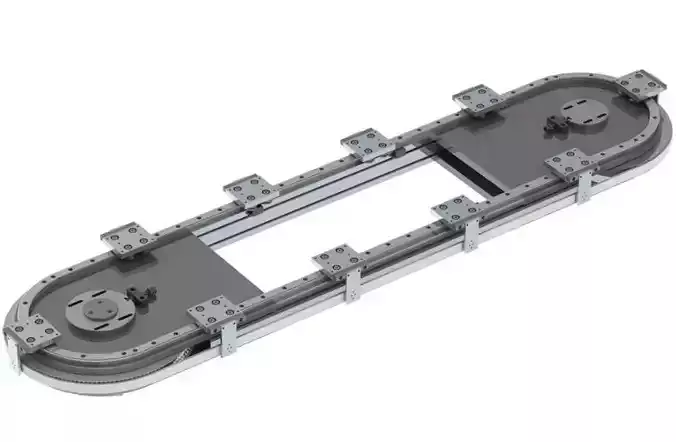

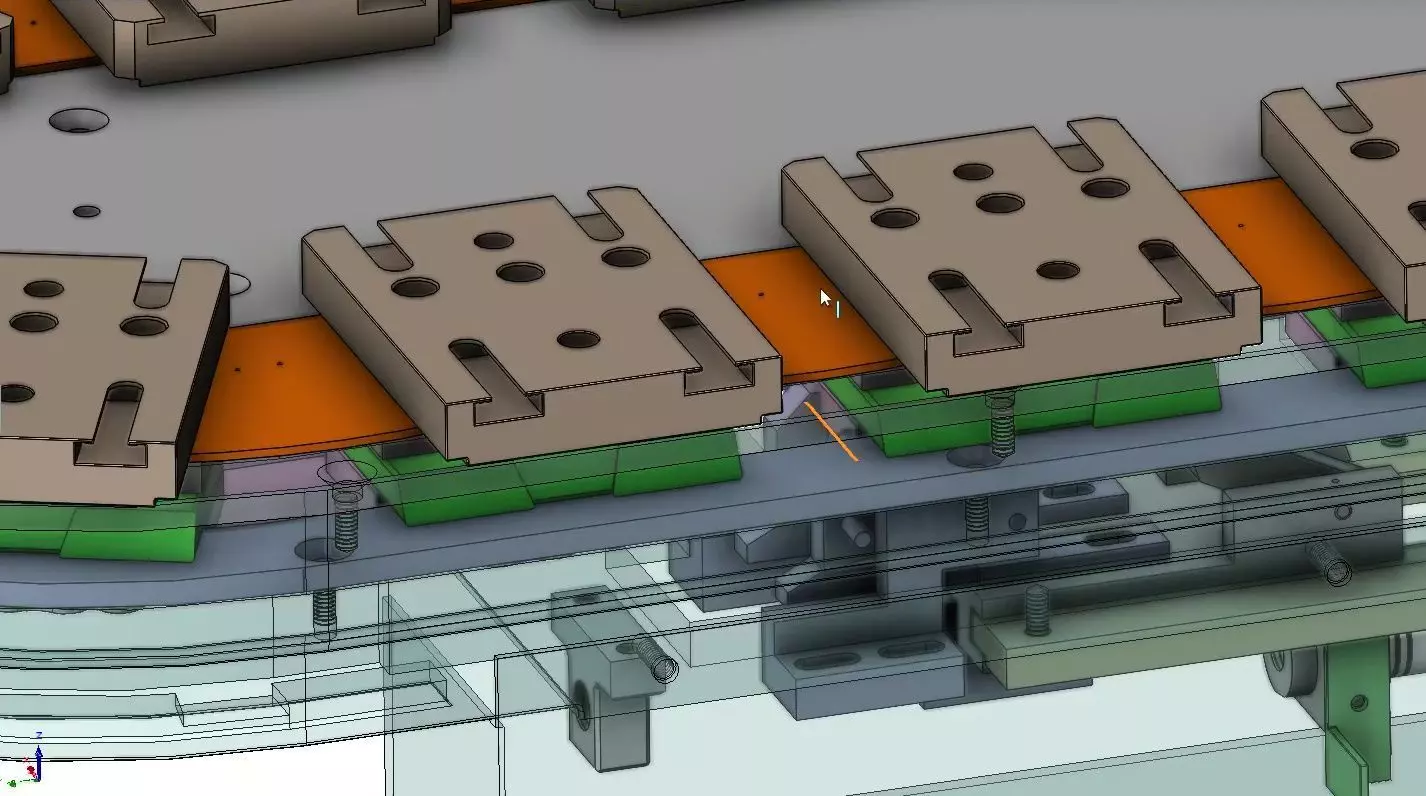

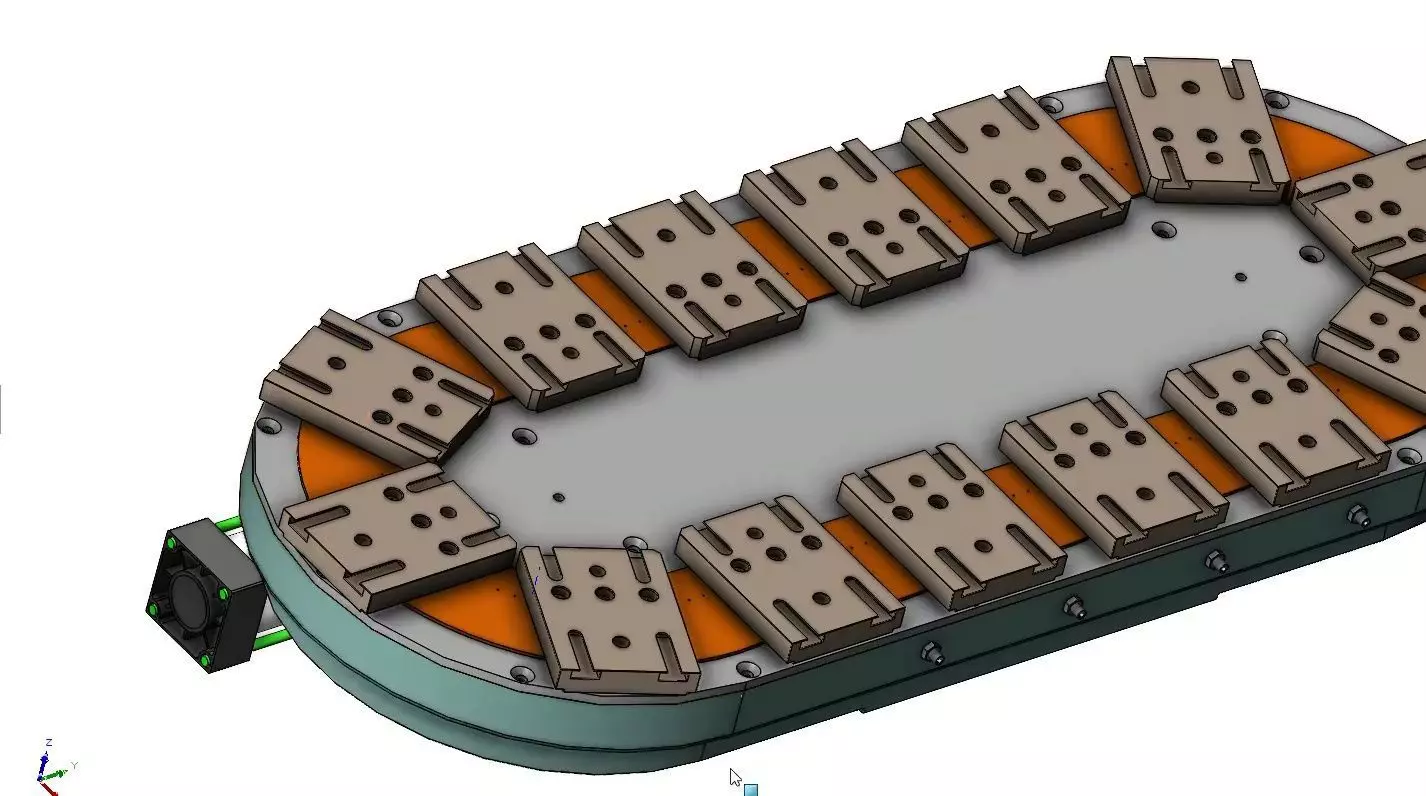

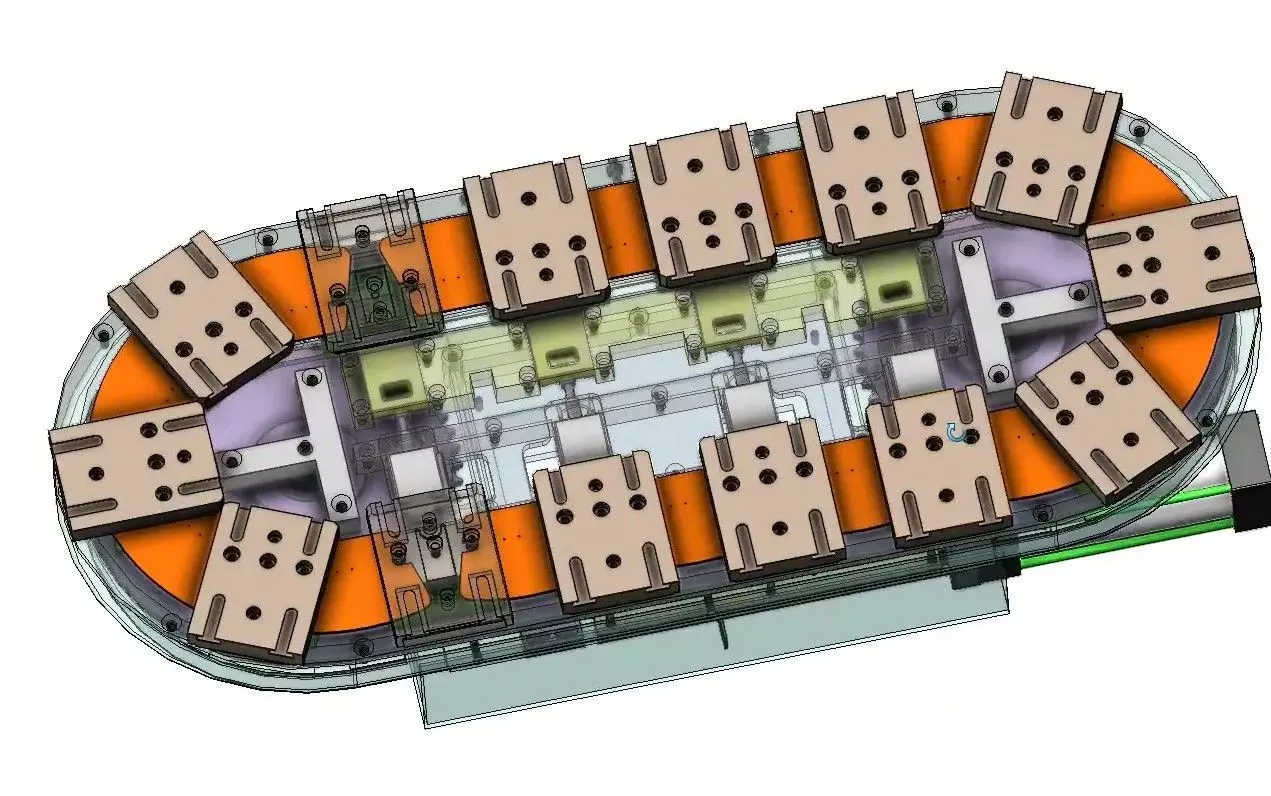

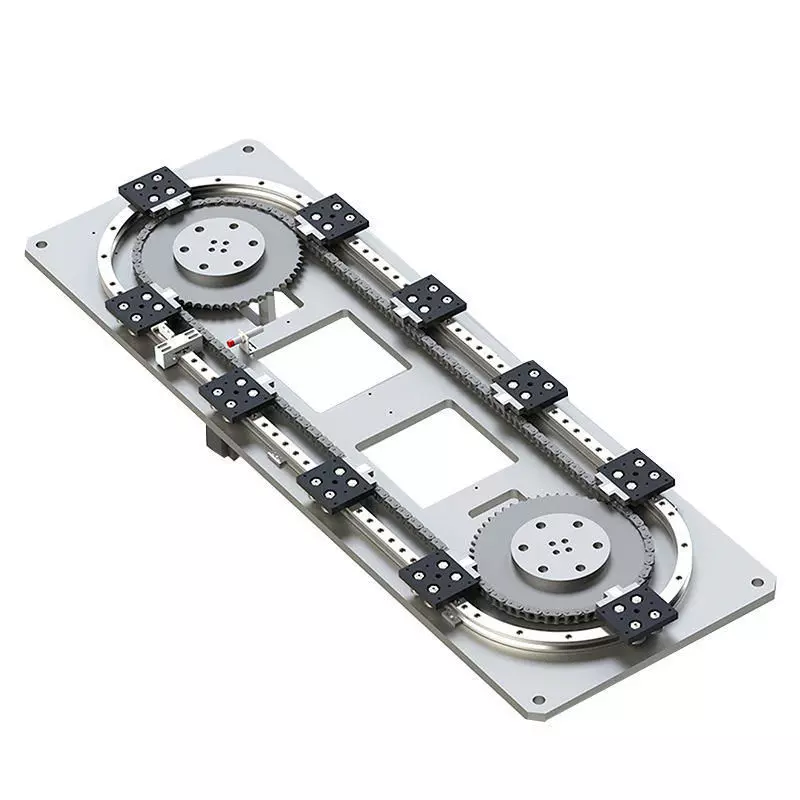

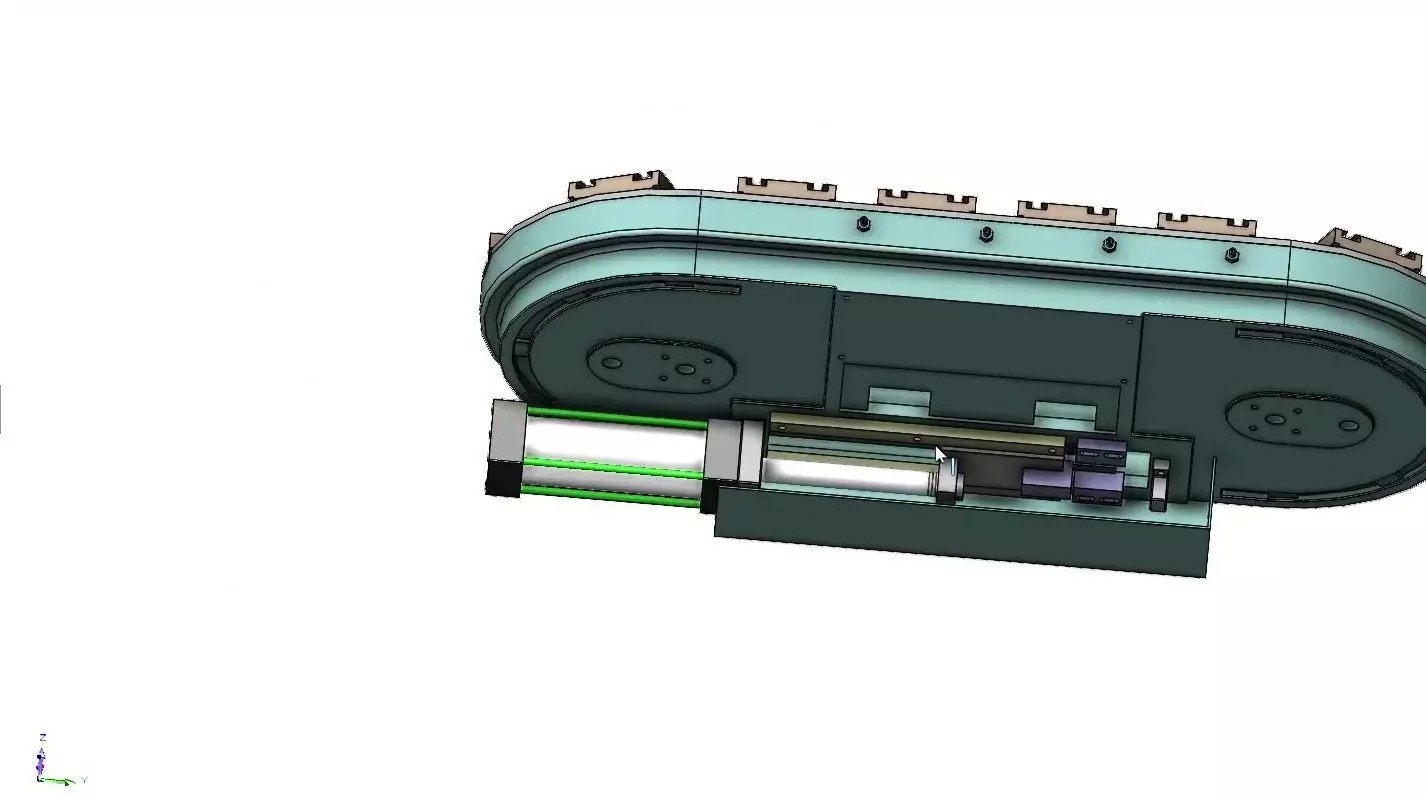

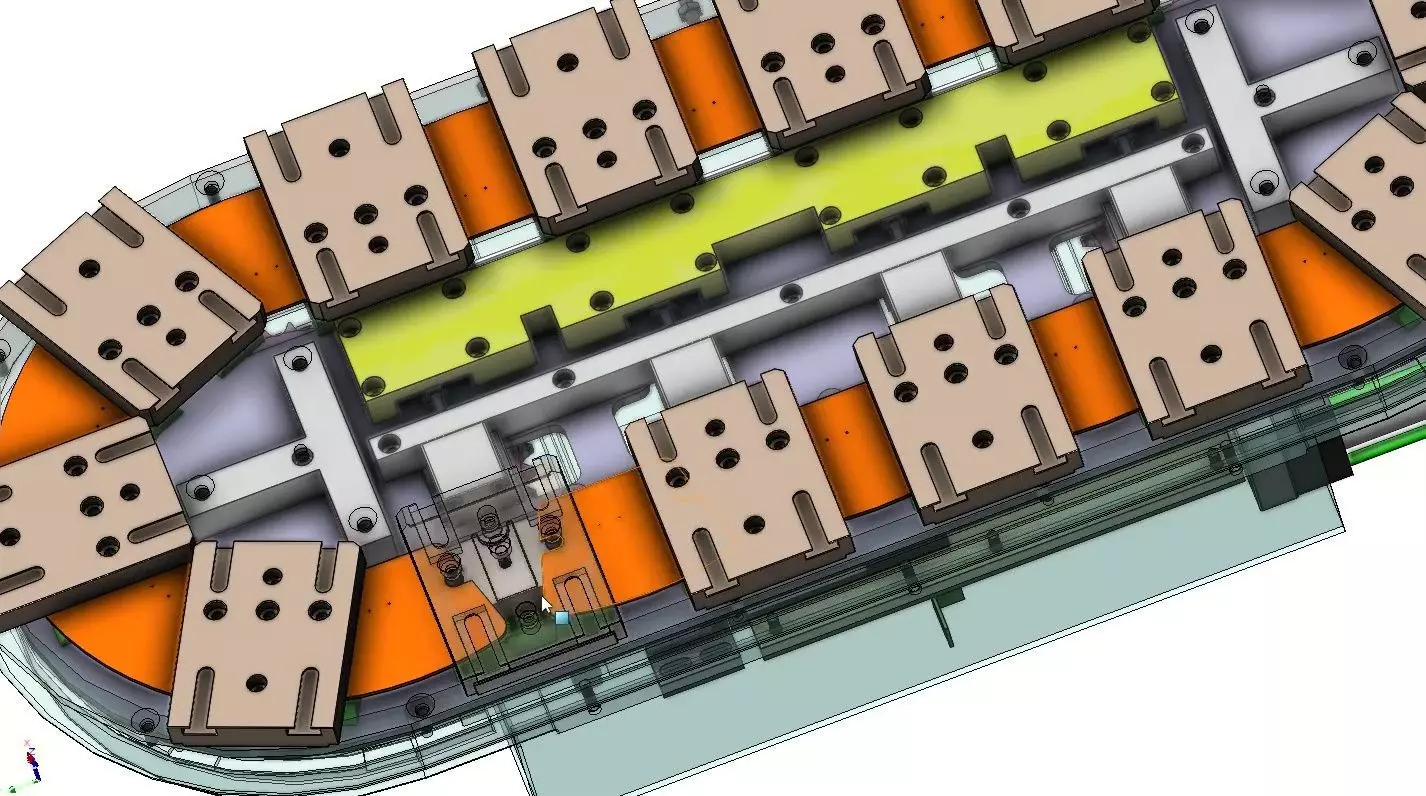

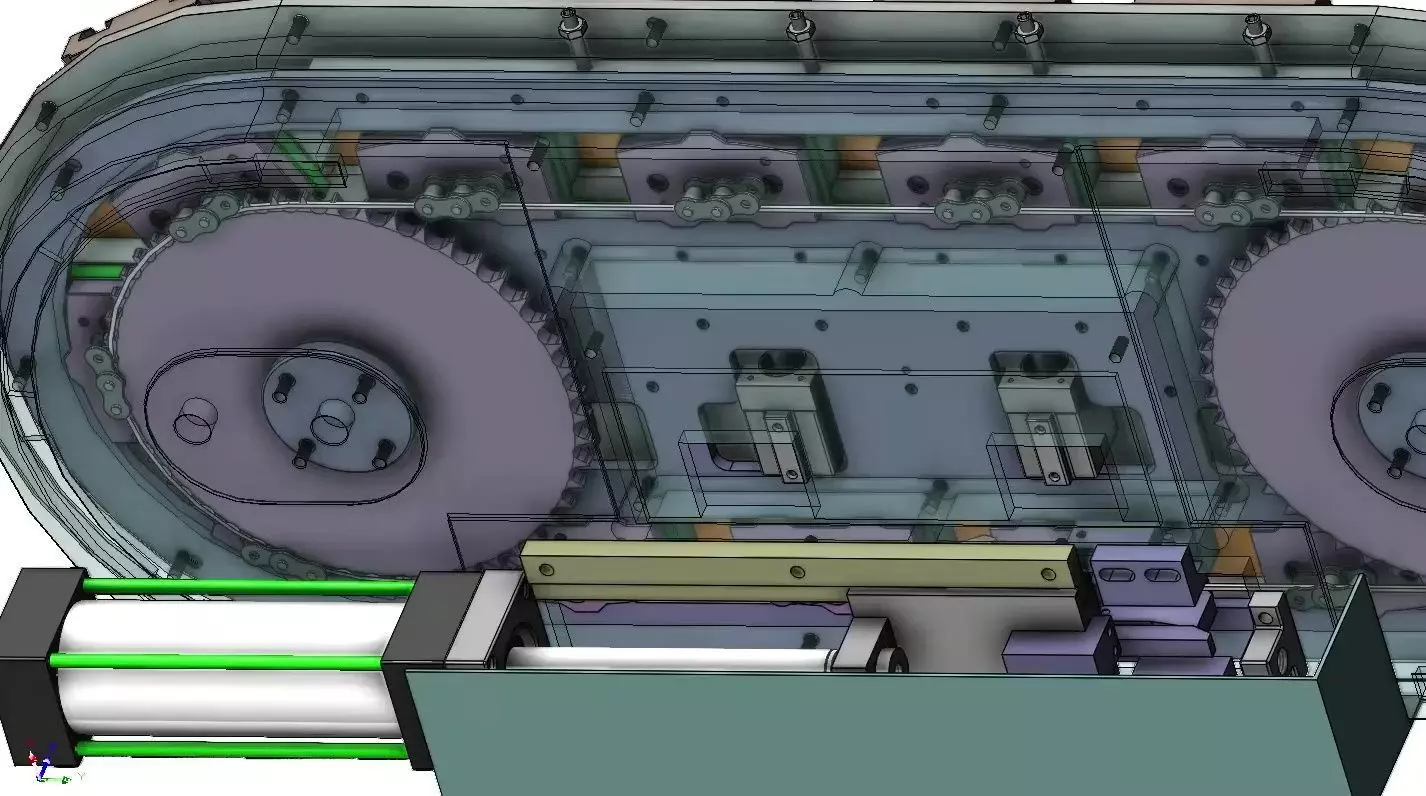

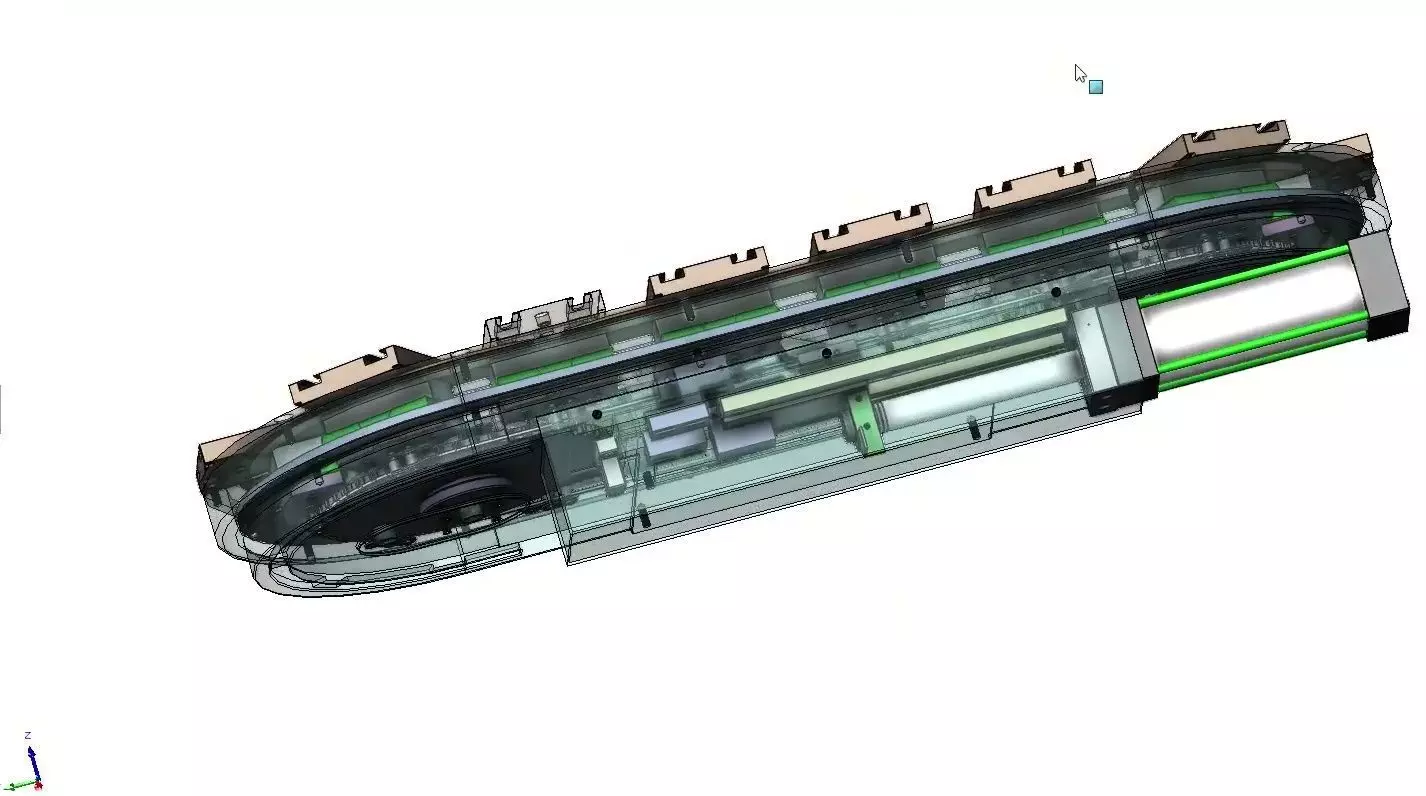

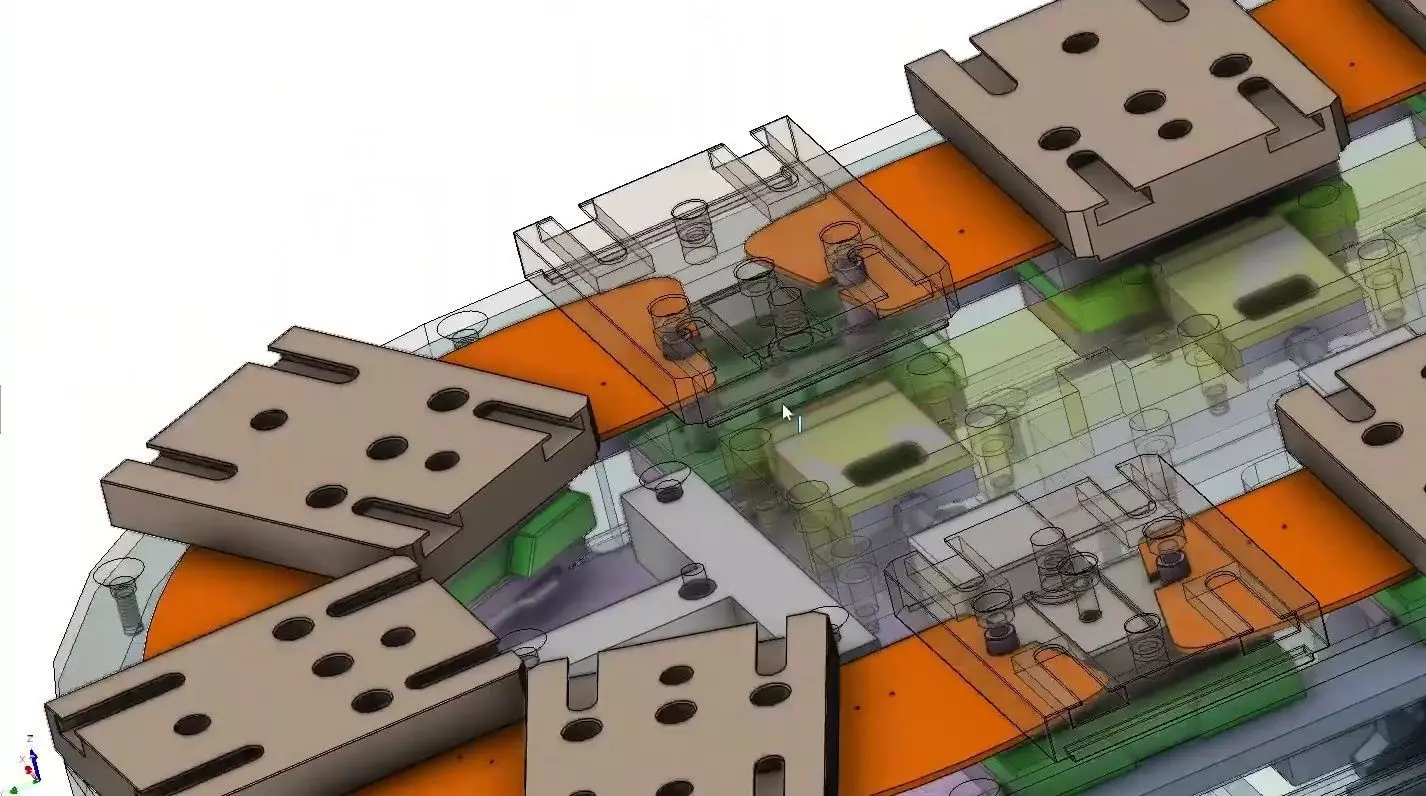

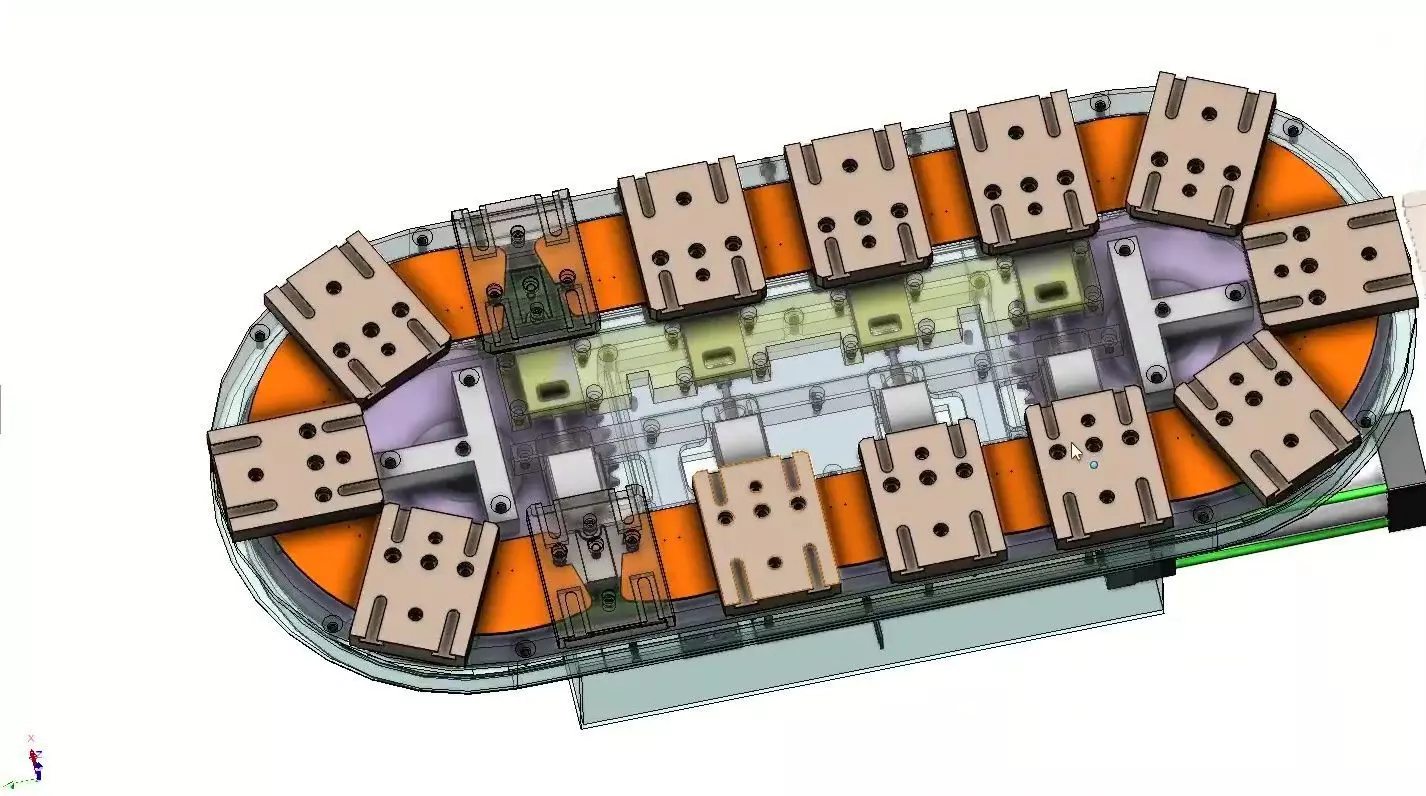

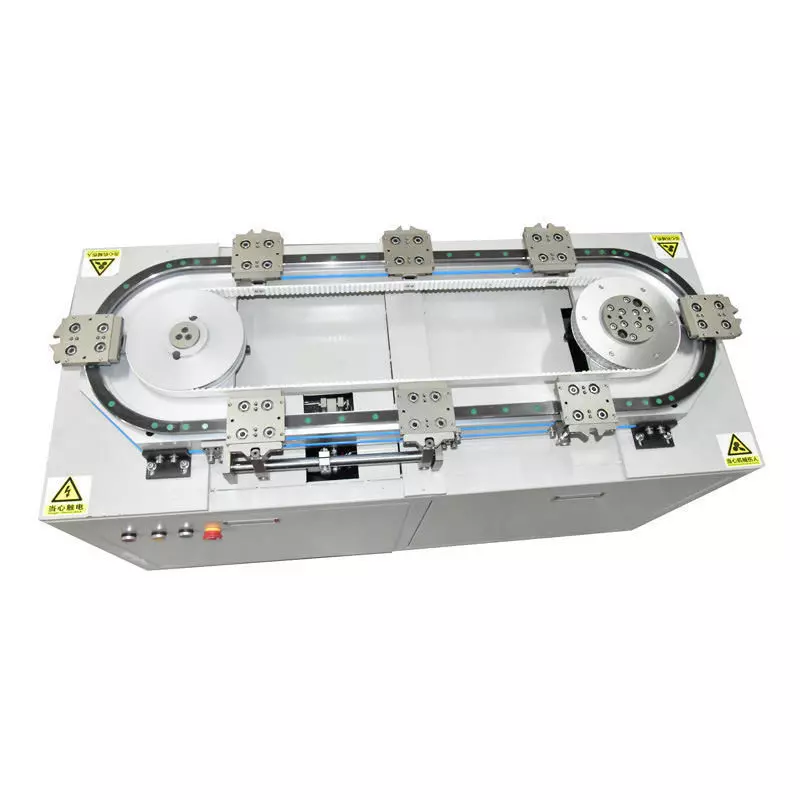

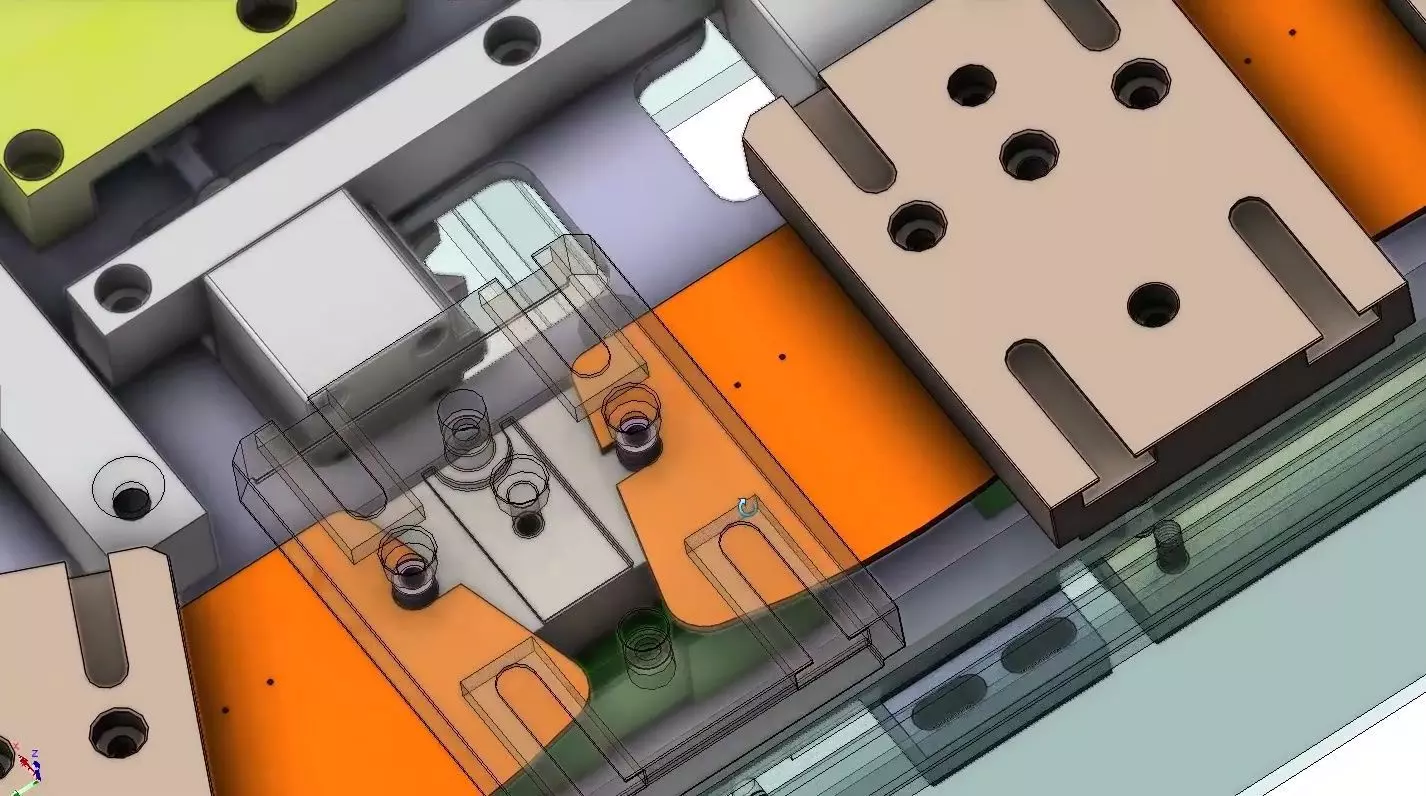

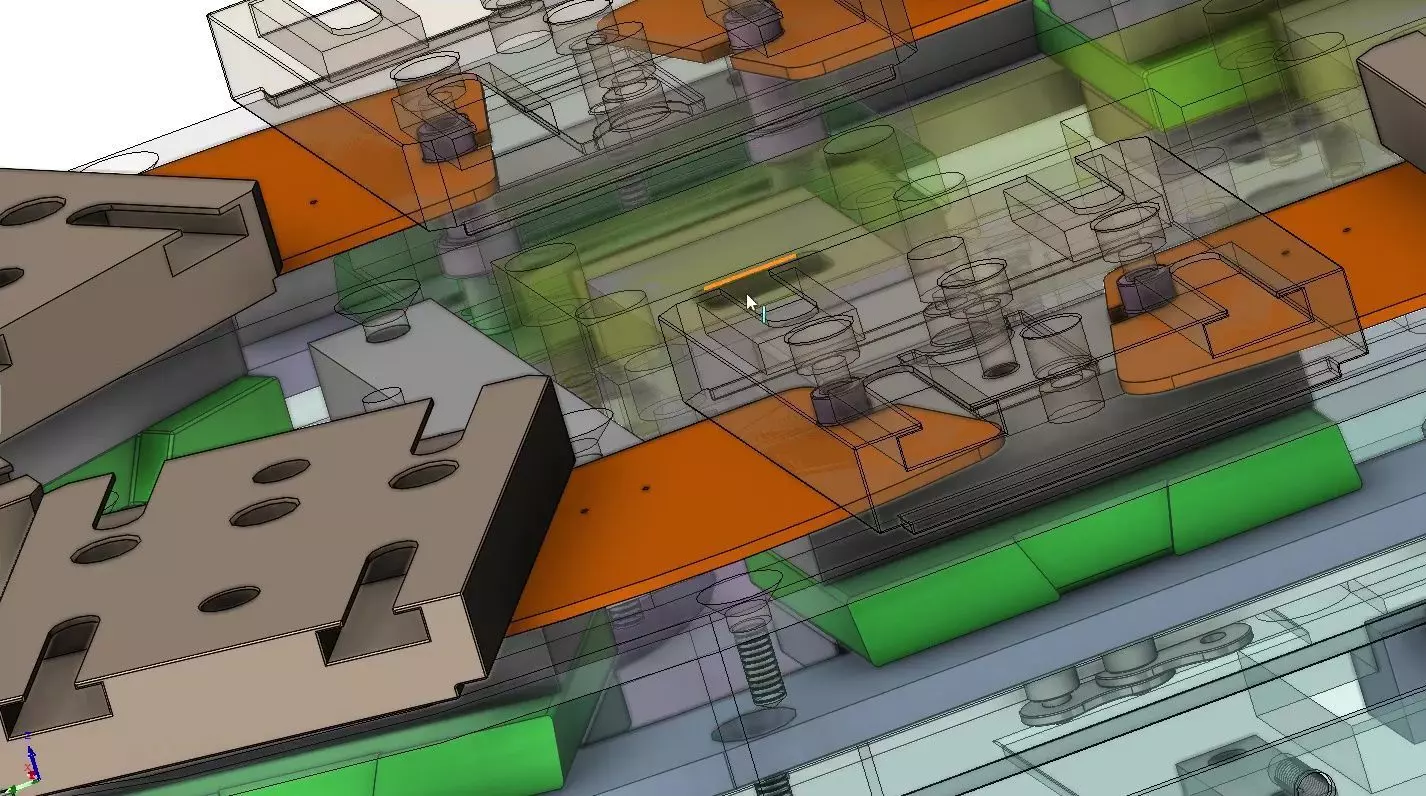

ARC Curved Linear Guide - Circular Conveyor Line Track System 3D model

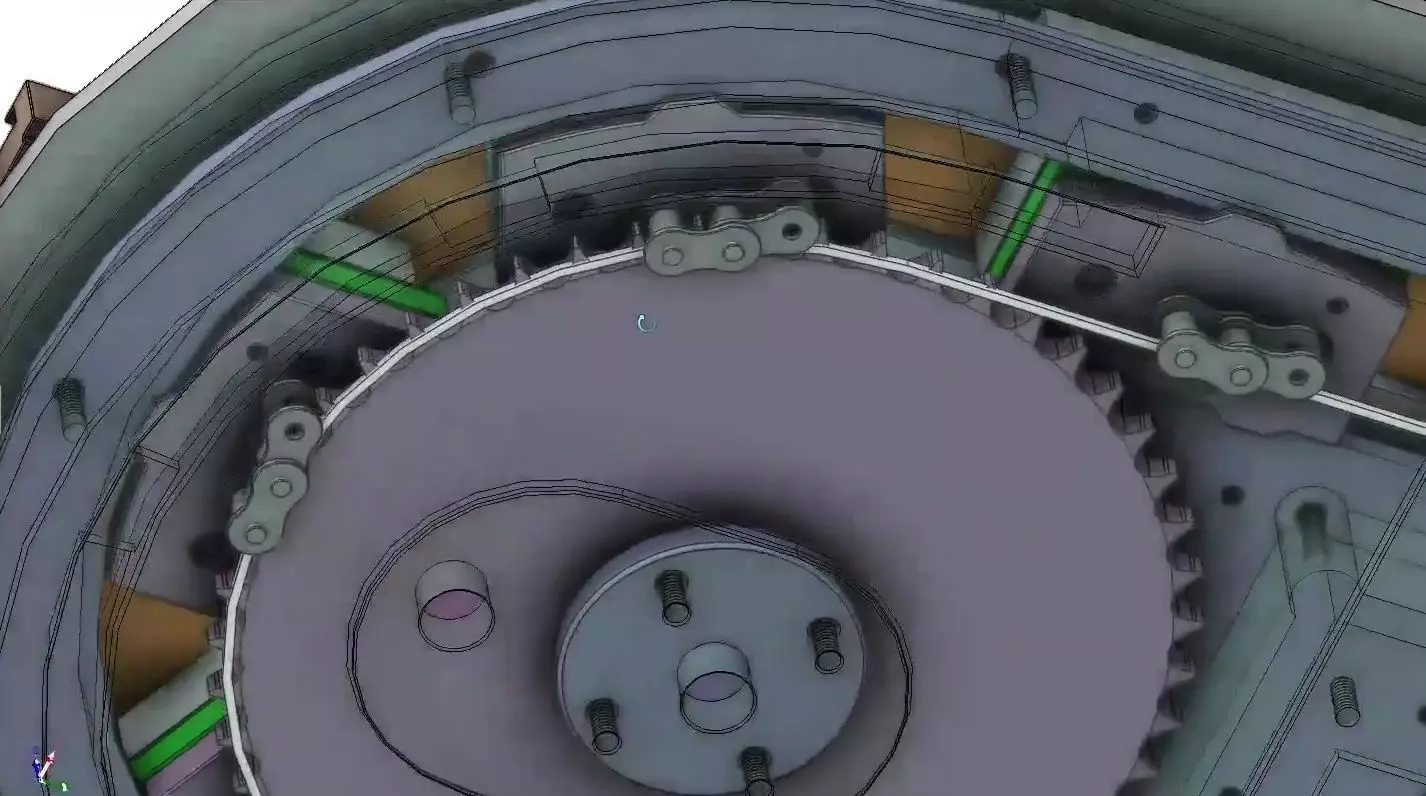

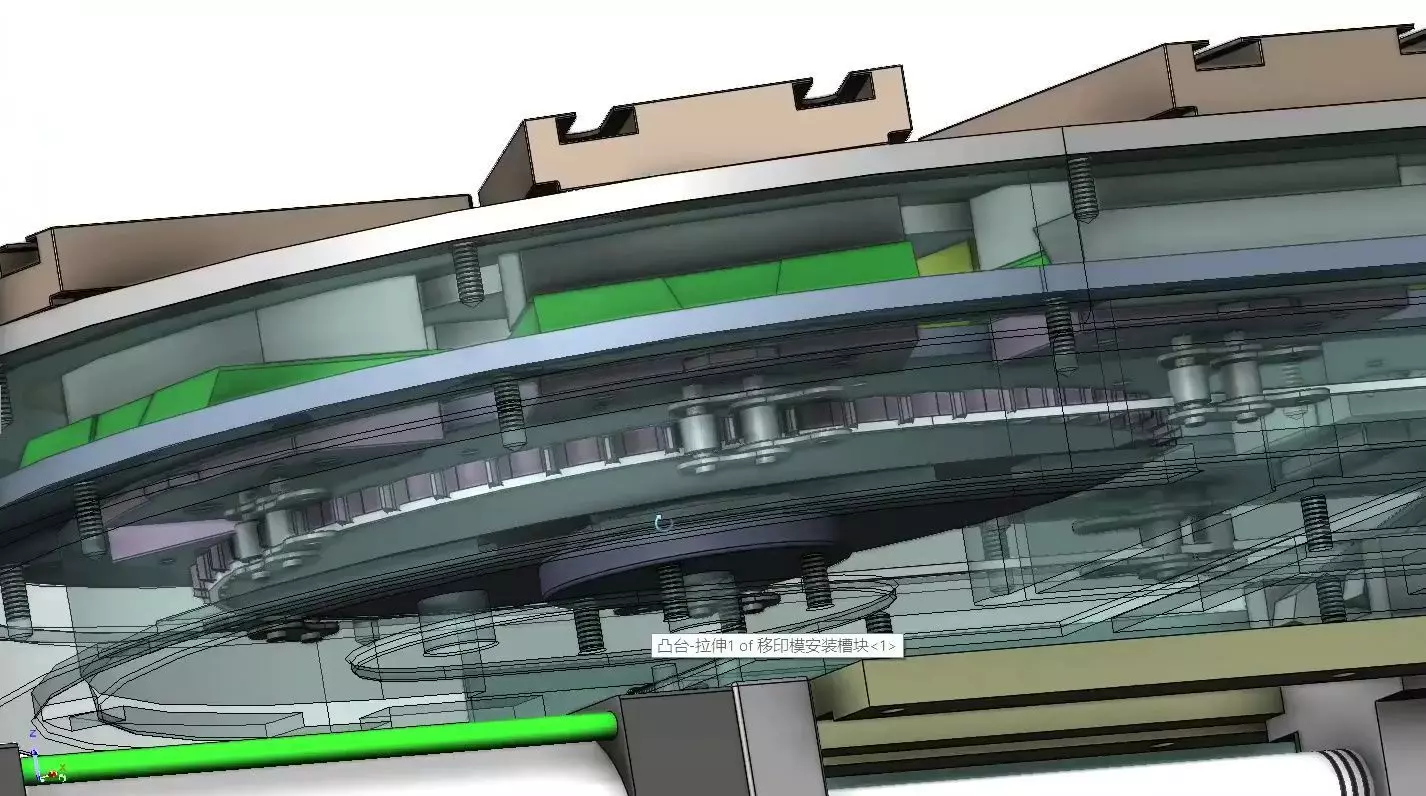

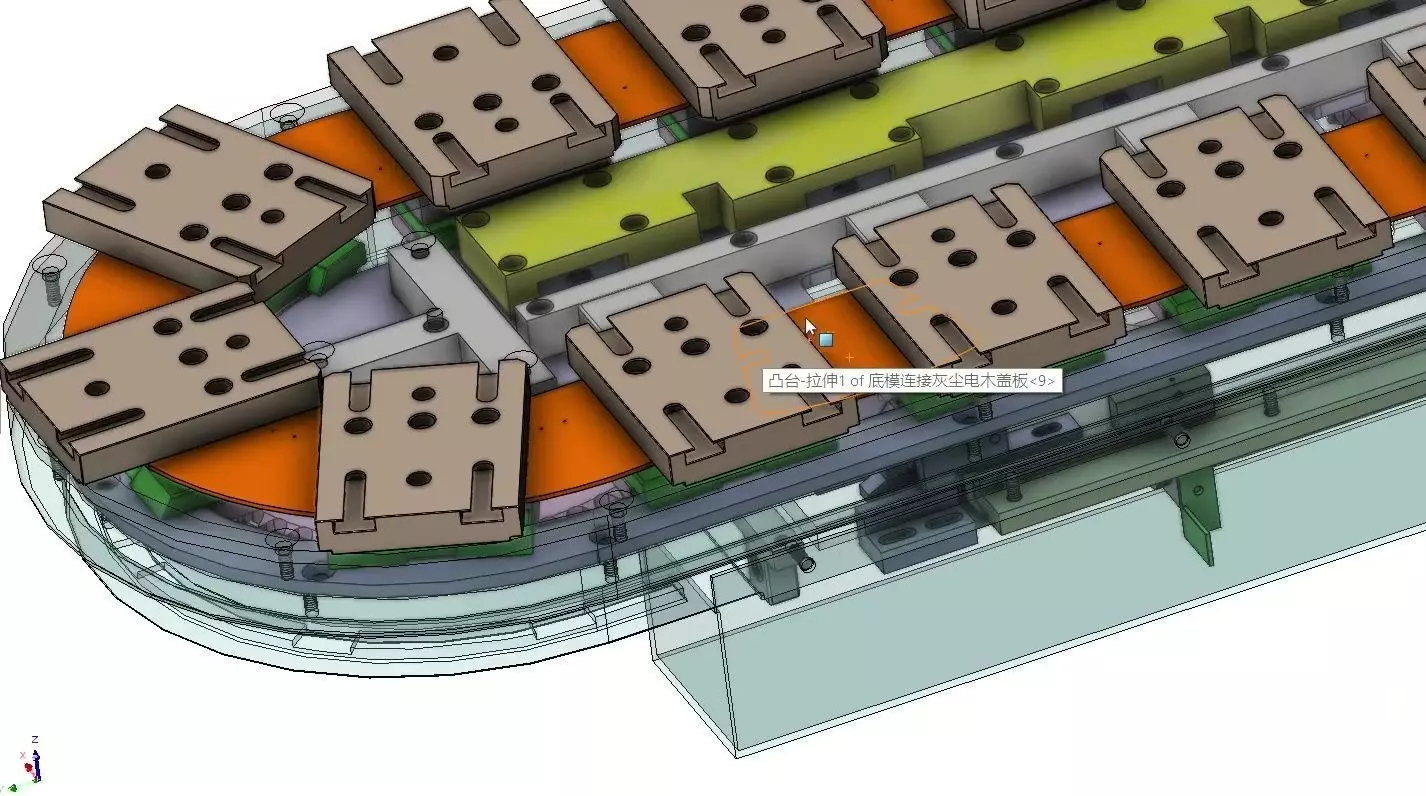

This 3D CAD Model represents a high-precision ARC-shaped linear guide system, ideal for applications requiring curved motion transfer in compact automation environments.Key Applications:Smart assembly linesIndexing conveyor systemsSemiconductor & electronics automationMedical equipment & robotic armsCircular motion automation tracksCore Features: Roller or Ball-Type Guidance: Smooth, low-friction, high-load transferPrecision Machined Rails: Ensures minimal deviation in repeat cyclesMultiple Carriage Blocks: Stable load distribution over curved tracksGear-Pulley Integration: Supports synchronized drive and indexingPerfect for OEMs, system integrators, and automation designers building compact high-speed motion systems with space-saving curved configurations.
