Binary puzzle low poly rigged

Binary puzzle low poly rigged Low-poly 3D model

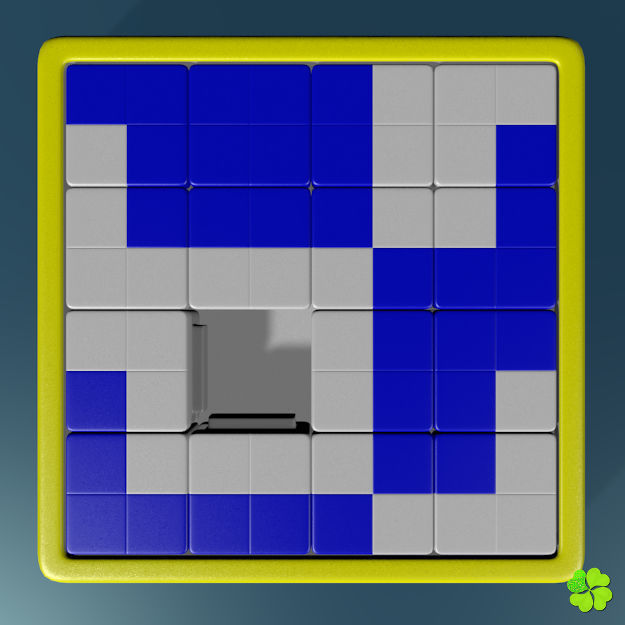

  • Model of binary puzzle low poly rigged.
  • Entertaining and fun, with multiple solutions.

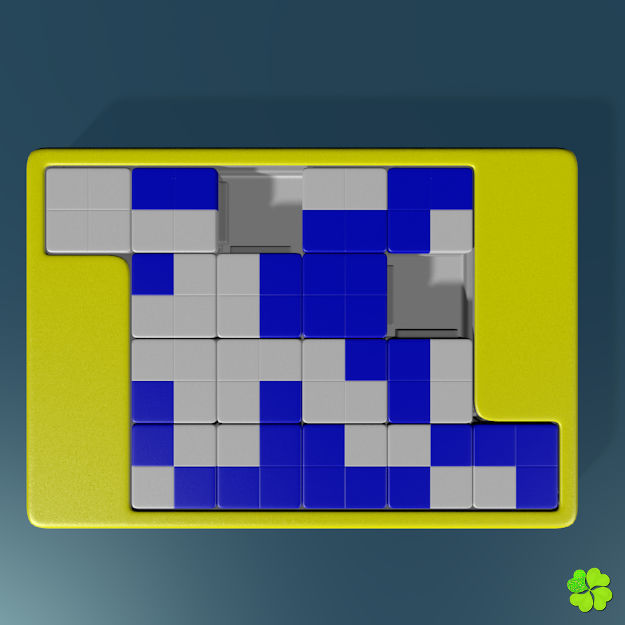

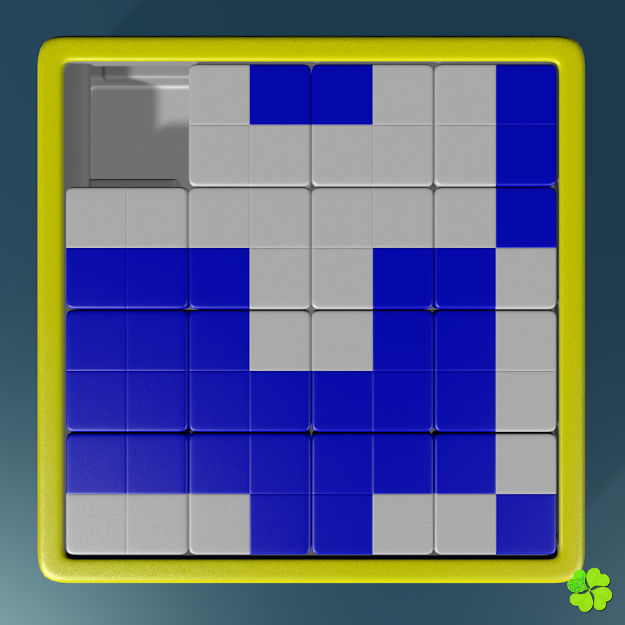

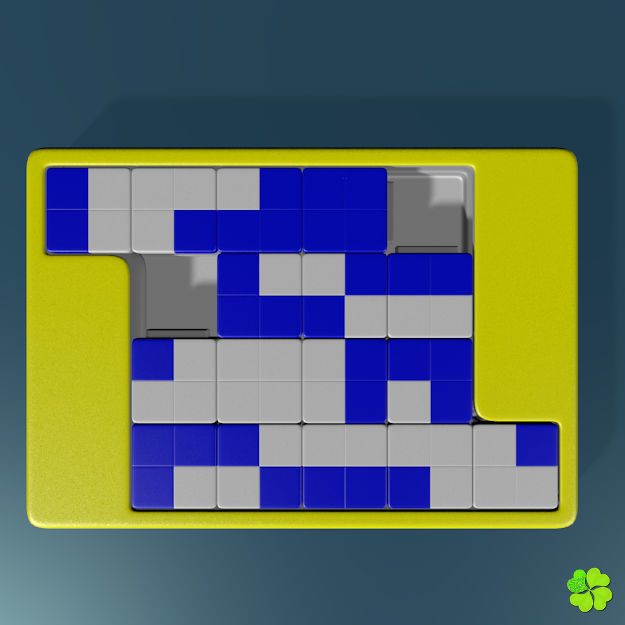

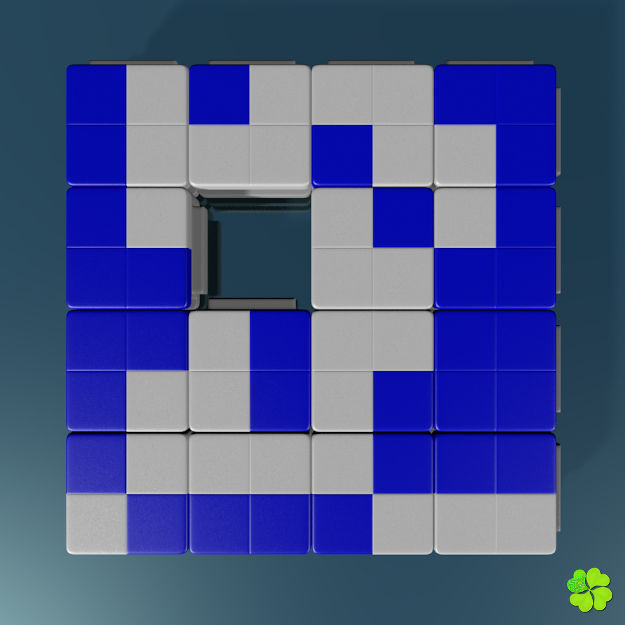

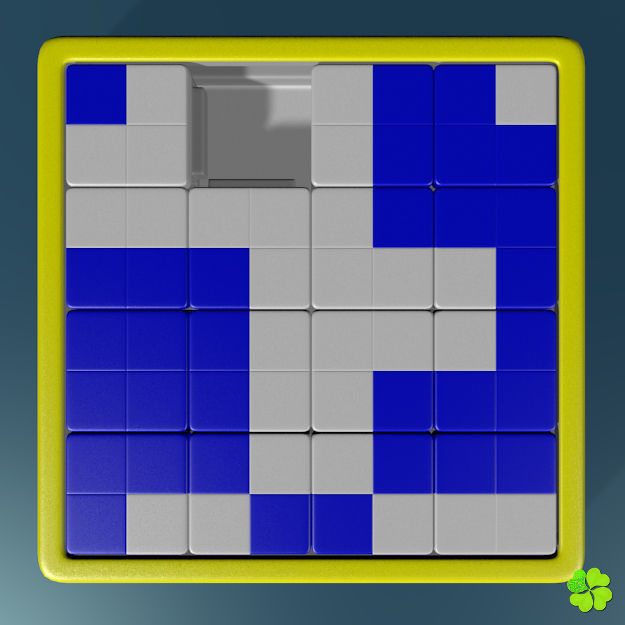

  • With 2 boards versions and animation for 10 different solutions.
  • Instructions included.
  • Suitable for printing.

  • Units of file: centimeters.

  • Size in centimeters: 8.2 (X axis), 8.2 (Y axis), 1.5 (Z axis).

  • Real world scale. (1,1,1).

  • Focused on the origin.

TOPOLOGY

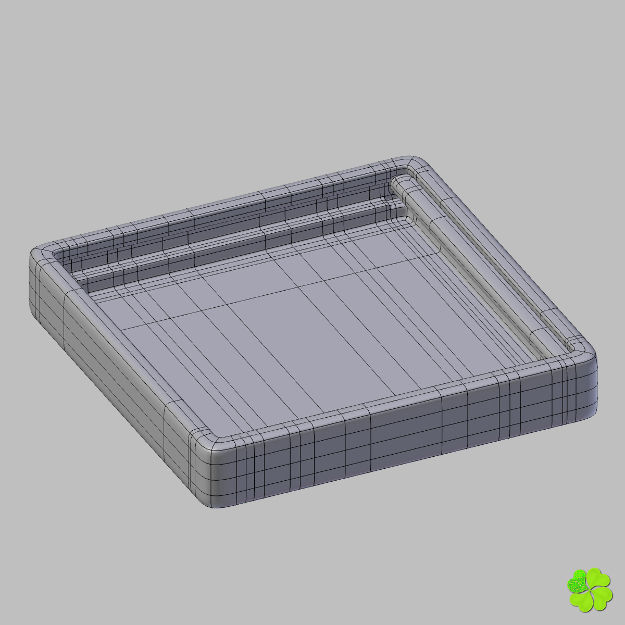

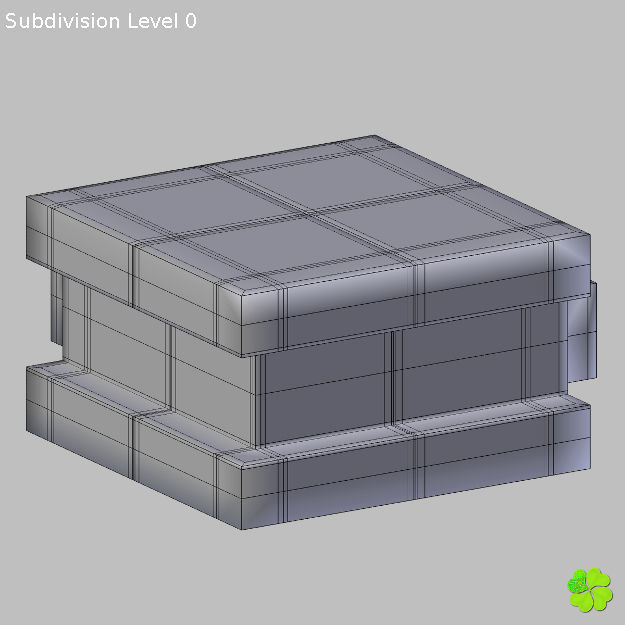

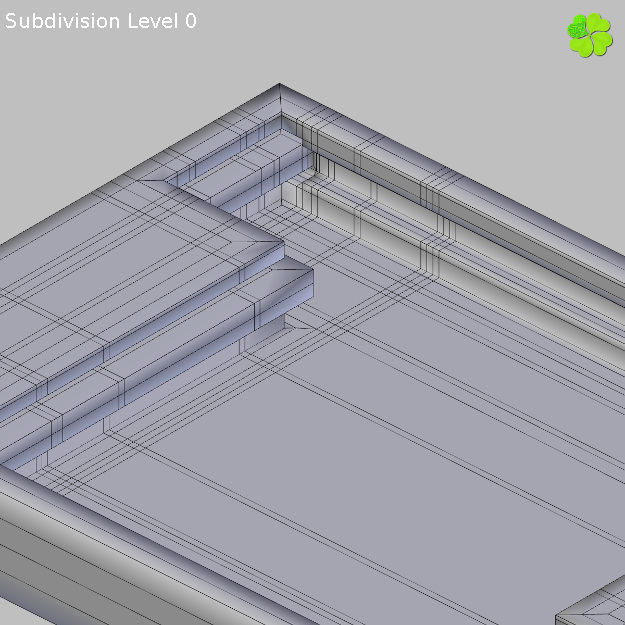

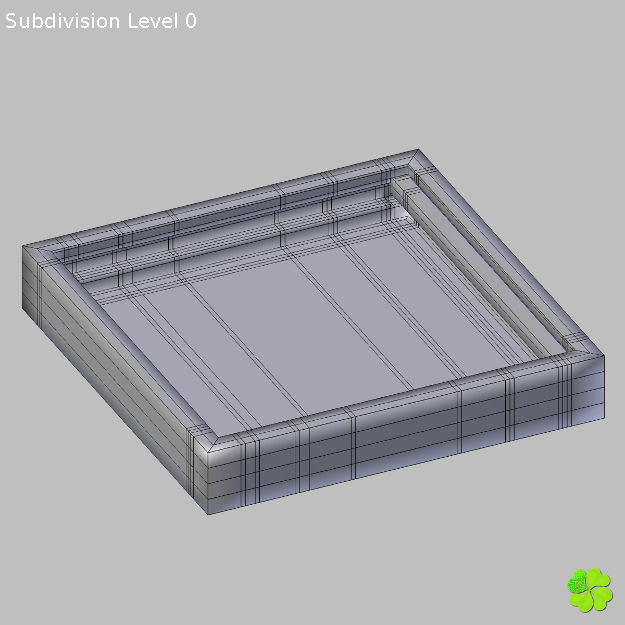

  • Three objects: pieces, board_16 and boar_18, with 18 manifold mesh total.
  • 100% quads: 17,184 pieces, 1,686 board_16 and 2,648 board_18 (21,518 quads total).

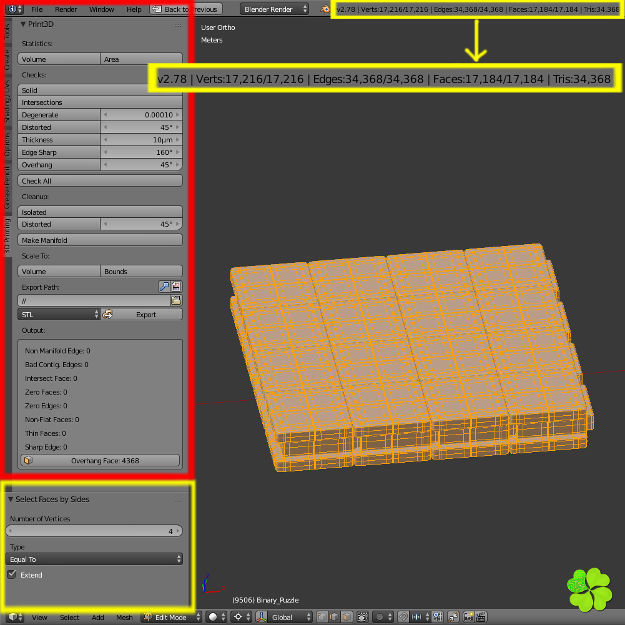

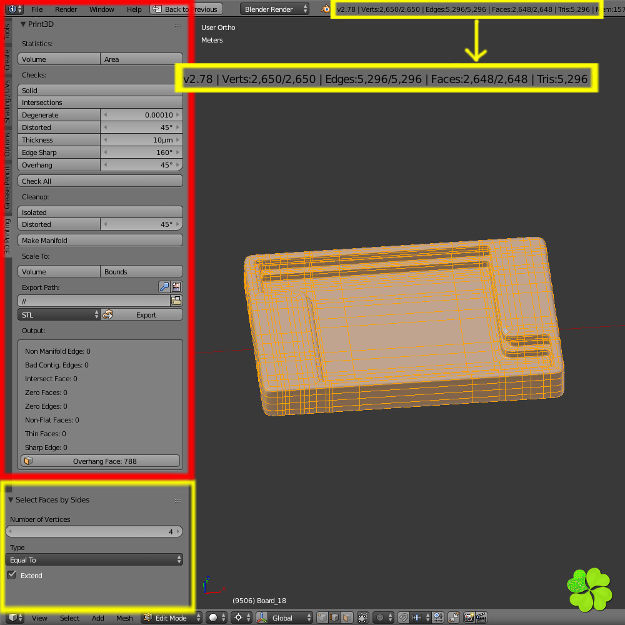

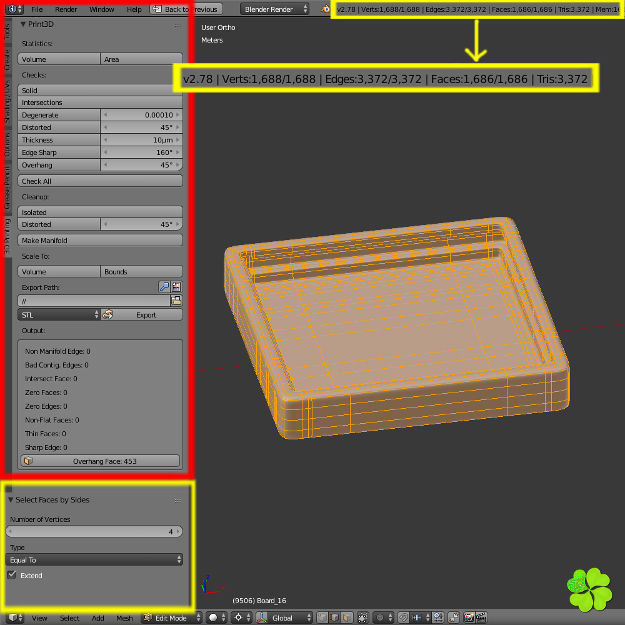

  • 21,554 vertices: 17,216 pieces, 1,688 board_16 and 2,650 board_18.
  • And 43,032 edges: 34,364 pieces, 3,372 boar_16 and 5,296 board_18.

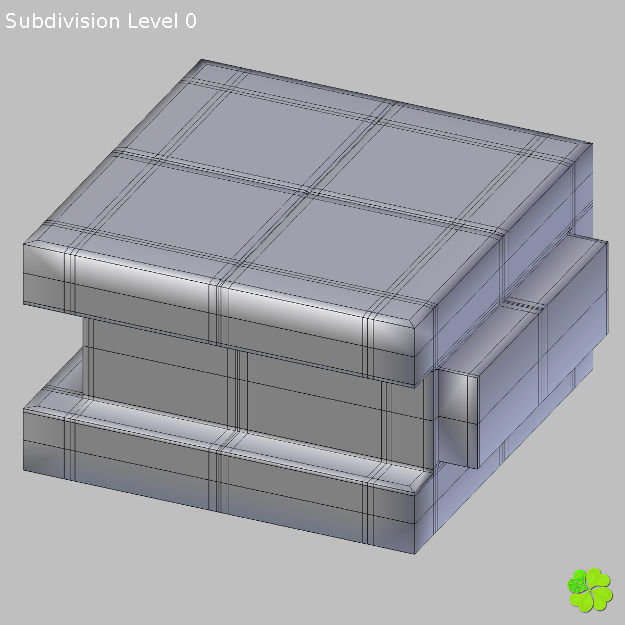

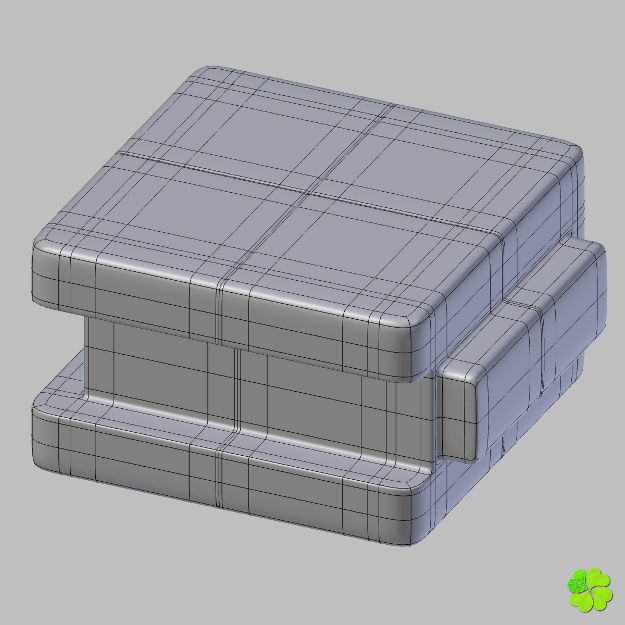

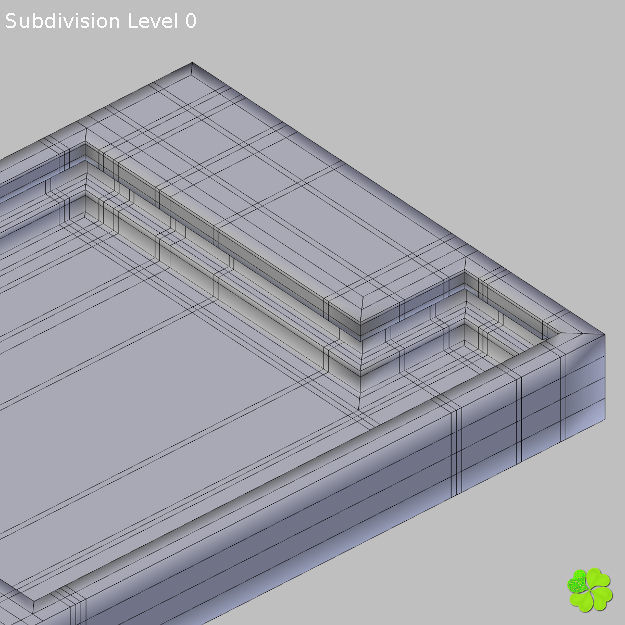

  • Subdividable topology.
  • Clean edge flow.
  • No isolated vertices.
  • No coincident vertices.
  • No coincident/coplanar faces.
  • No faces intersected.
  • No faces distorted more than 45 degrees.
  • No loss geometry.
  • No poles with more than 5 edges.

RIG

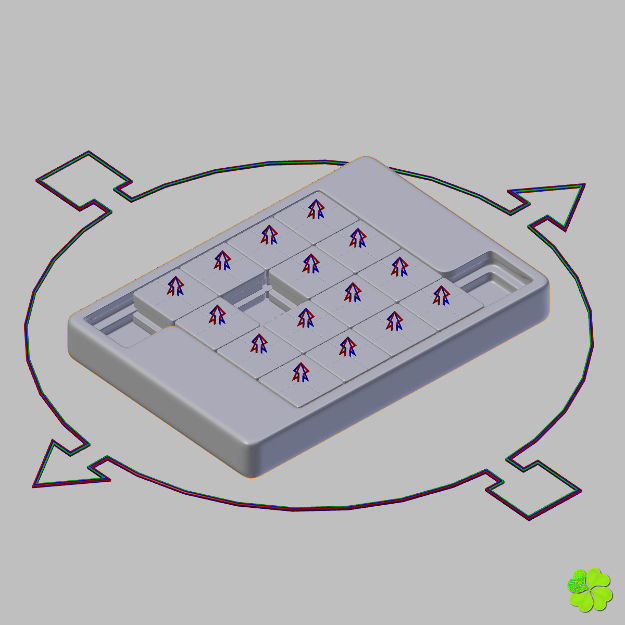

  • Armature with 19 animatable bones.

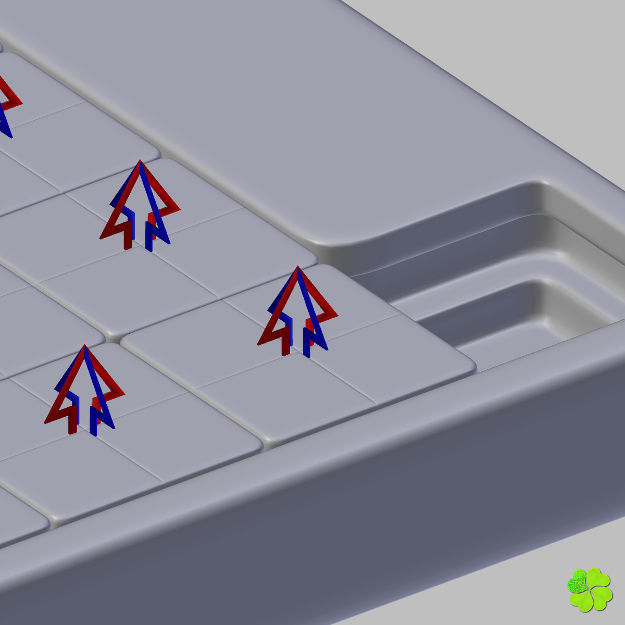

  • The bones are replaced by shapes, with forms and color guidance.
  • Auxiliary objects are hidden and another layer.
  • With rig instructions included.

UVMAP AND TEXTURES

  • Normal outward.

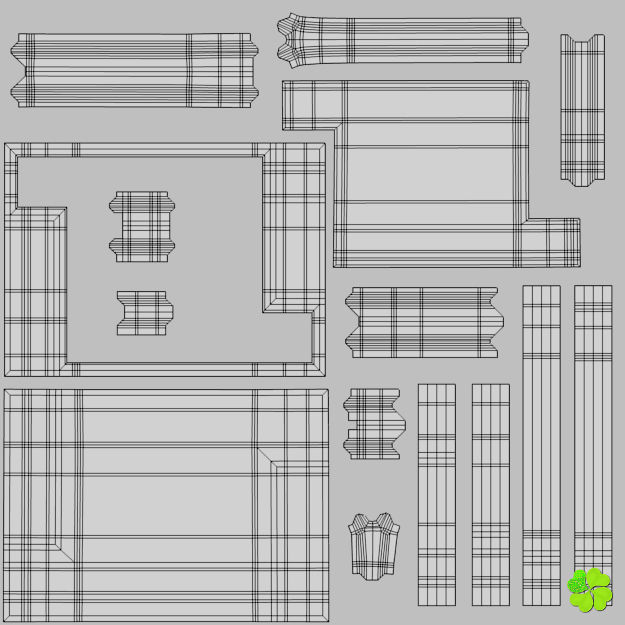

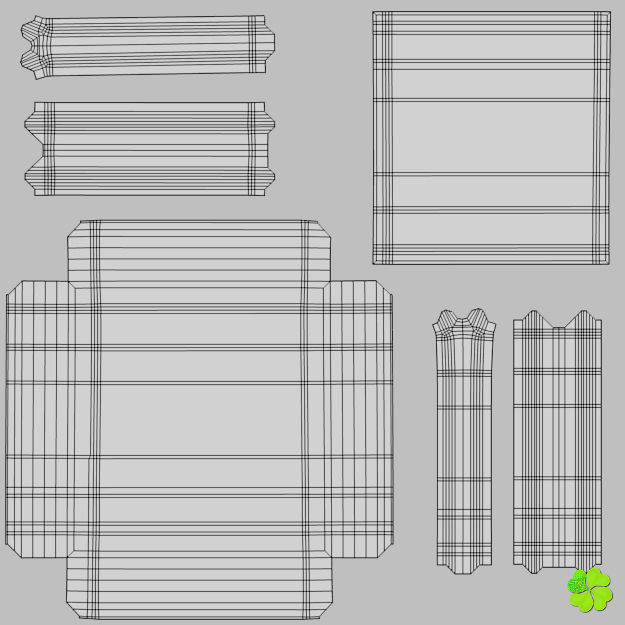

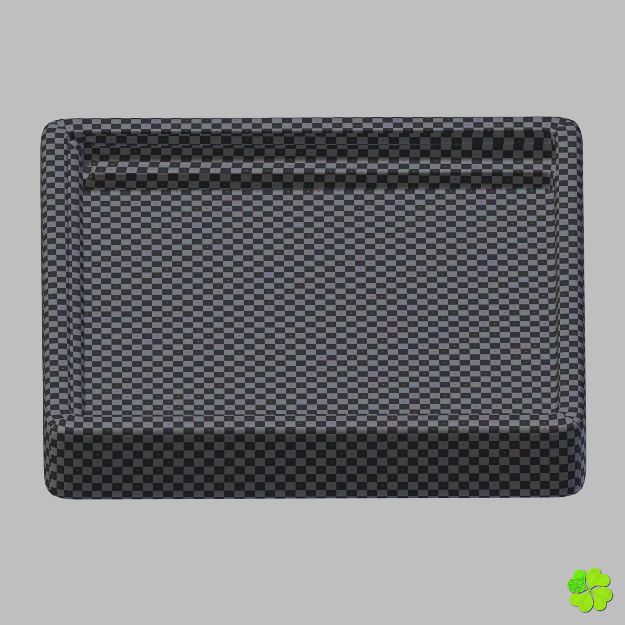

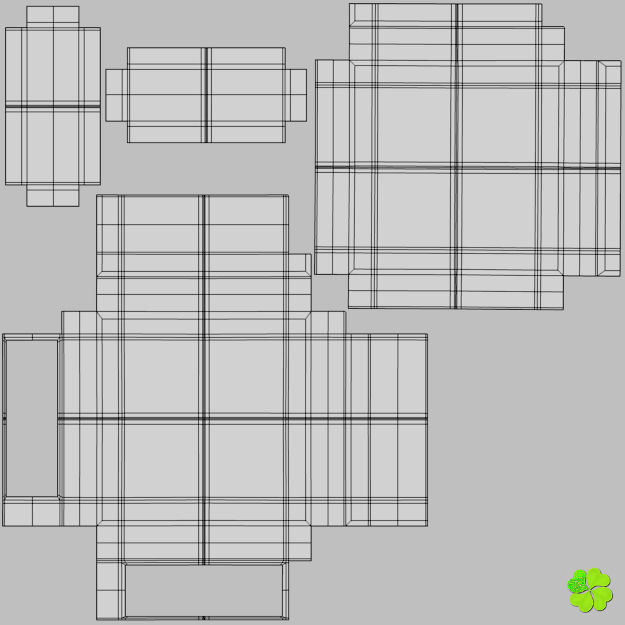

  • UV without overlapping.
  • Procedural textures only Blender version.

PREVIEWS

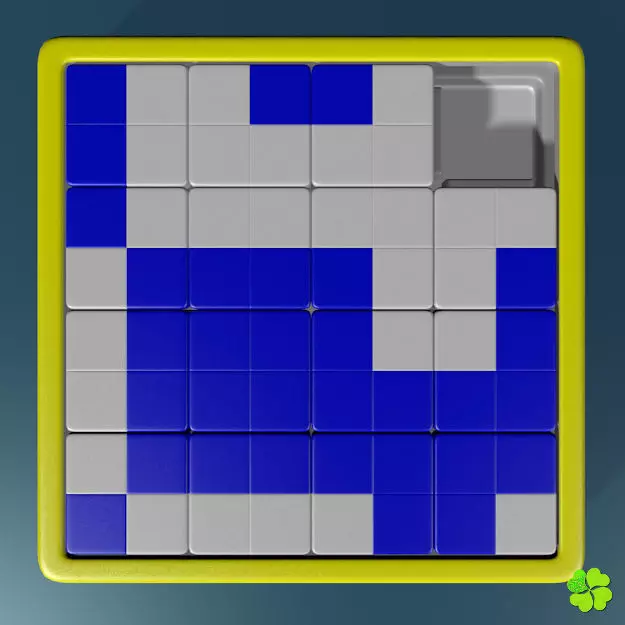

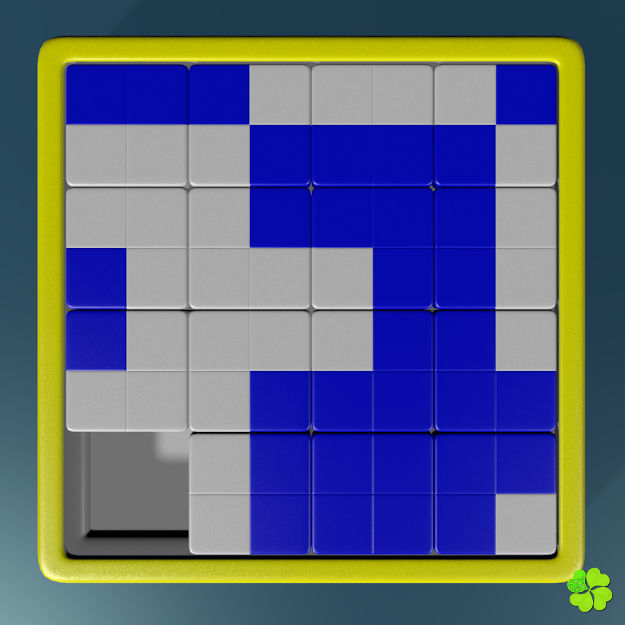

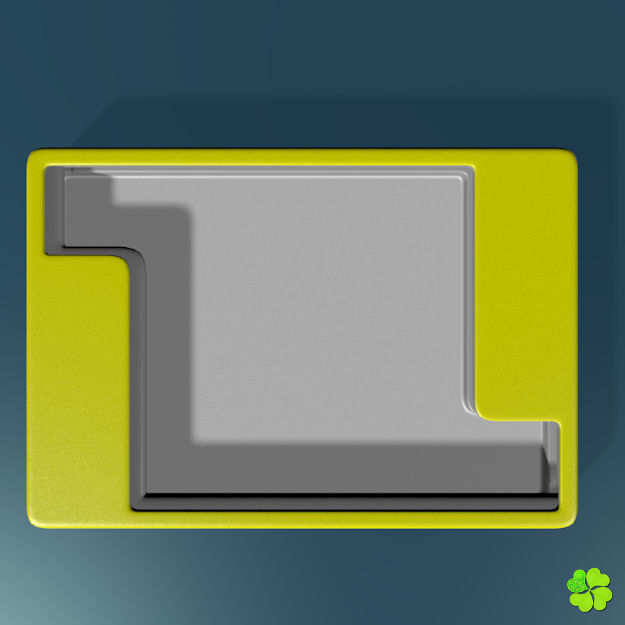

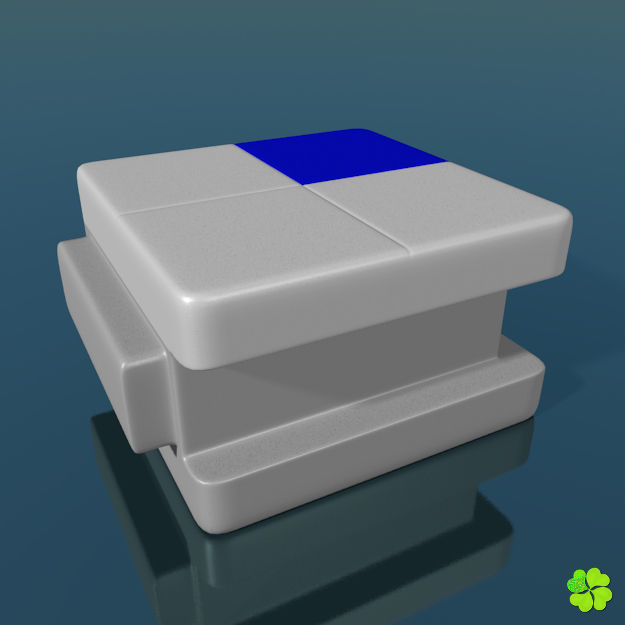

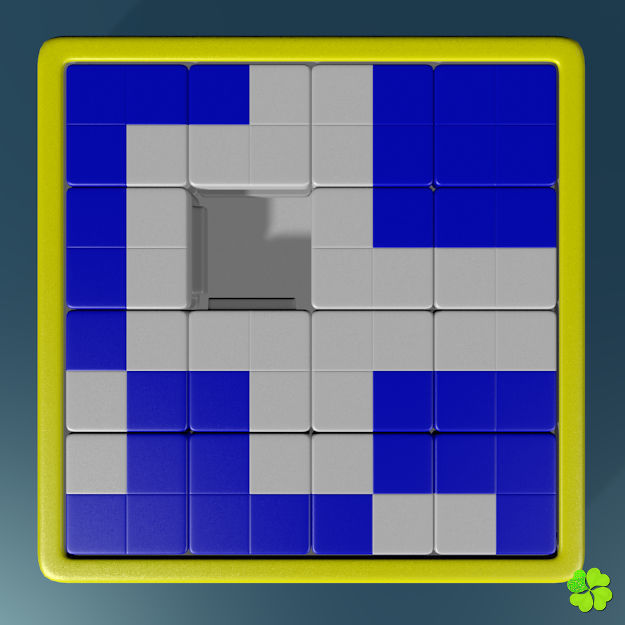

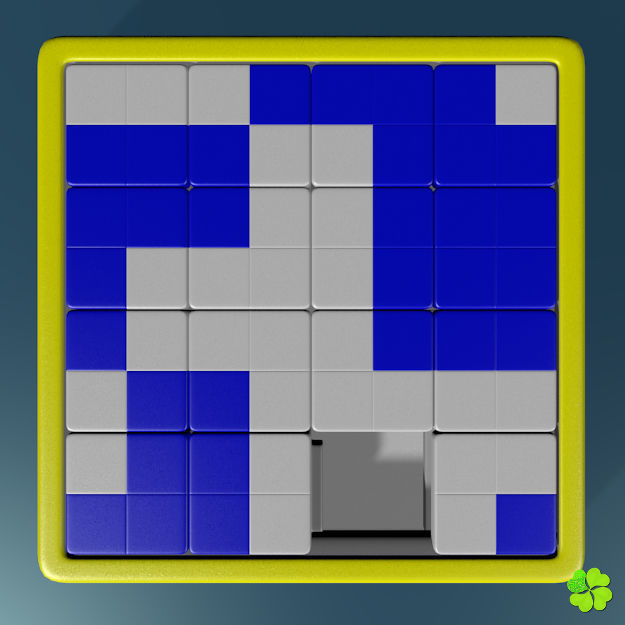

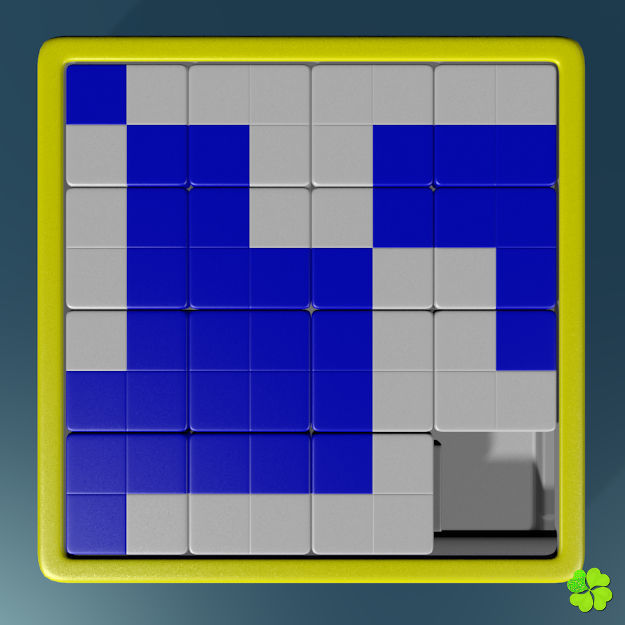

  • Render with the Blender internal engine without post producion.

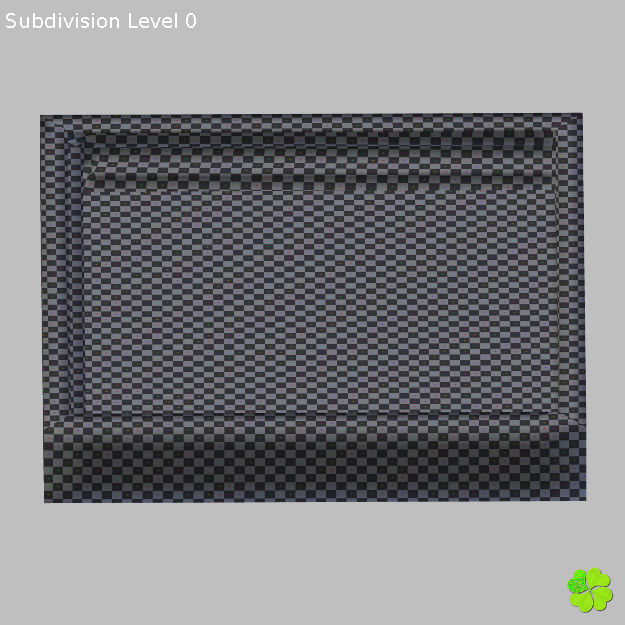

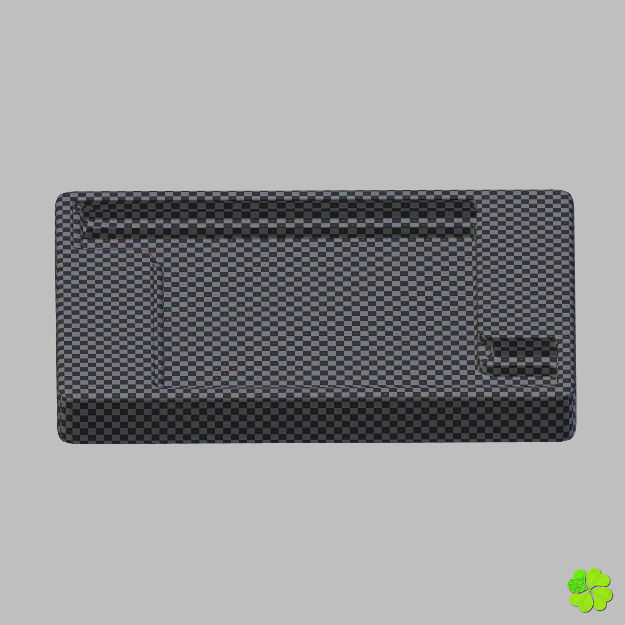

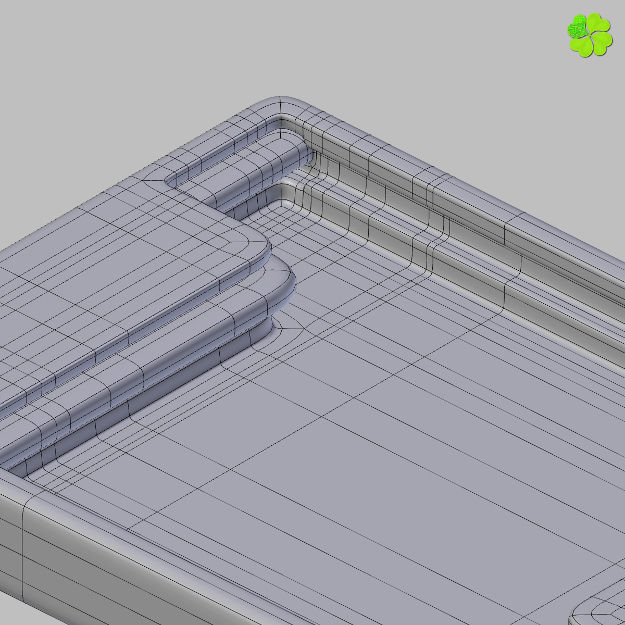

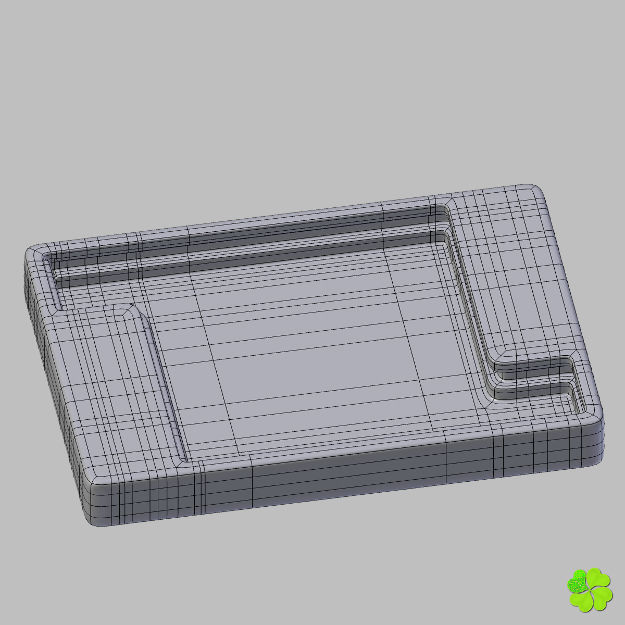

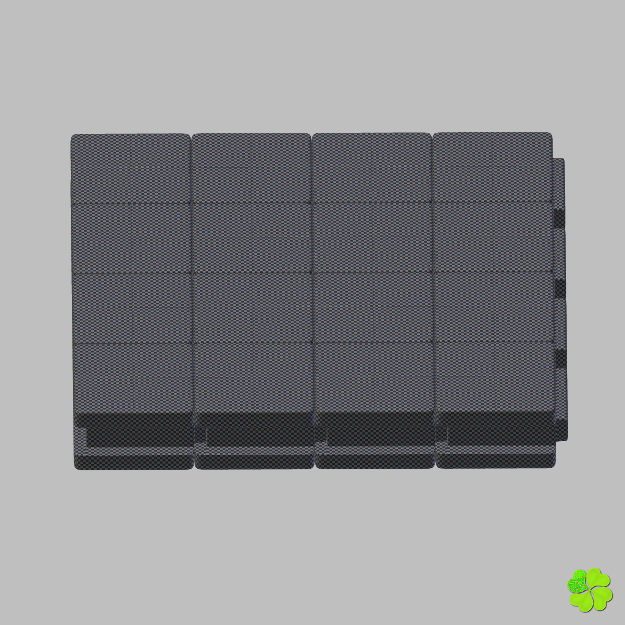

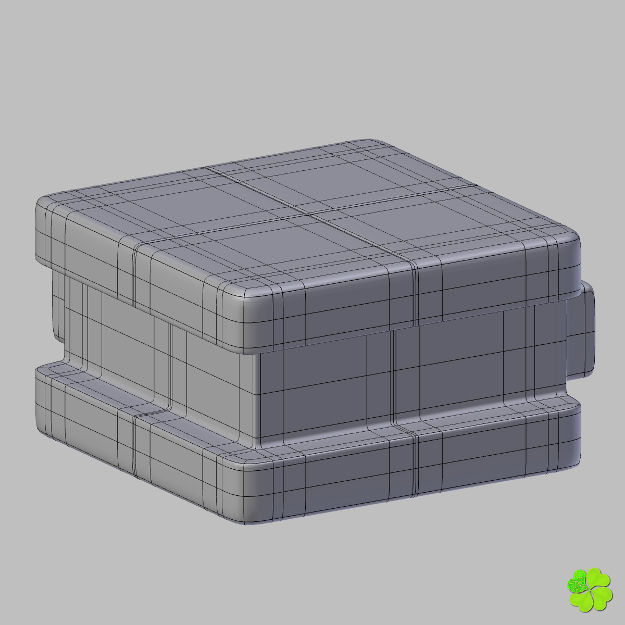

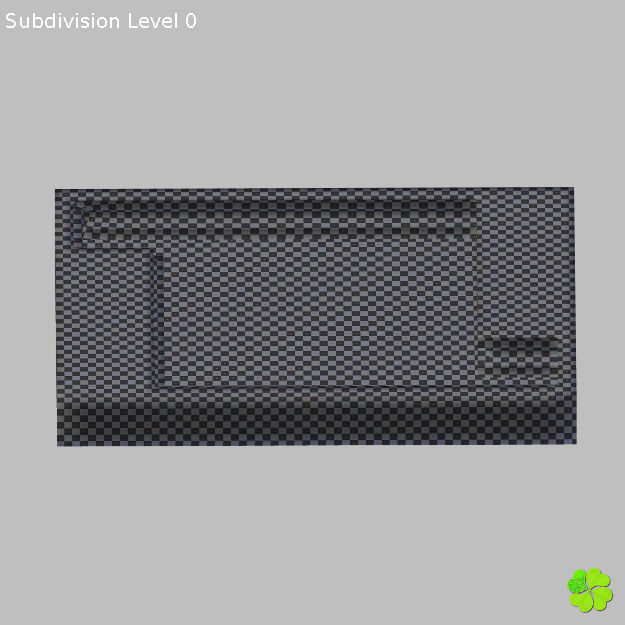

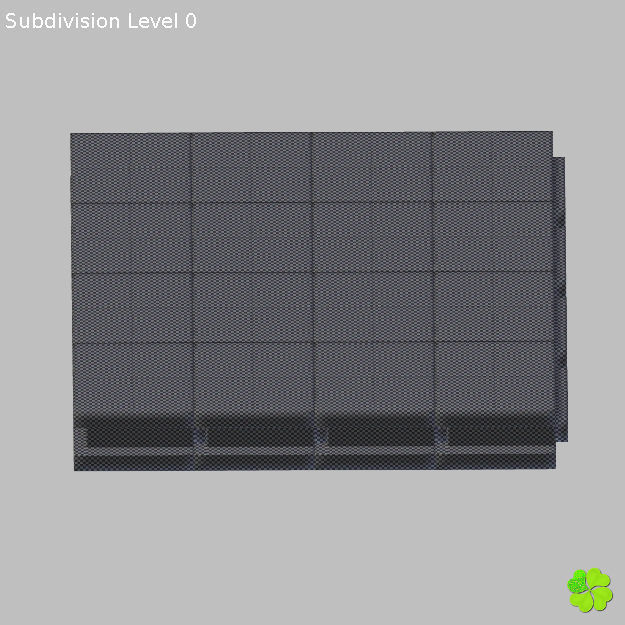

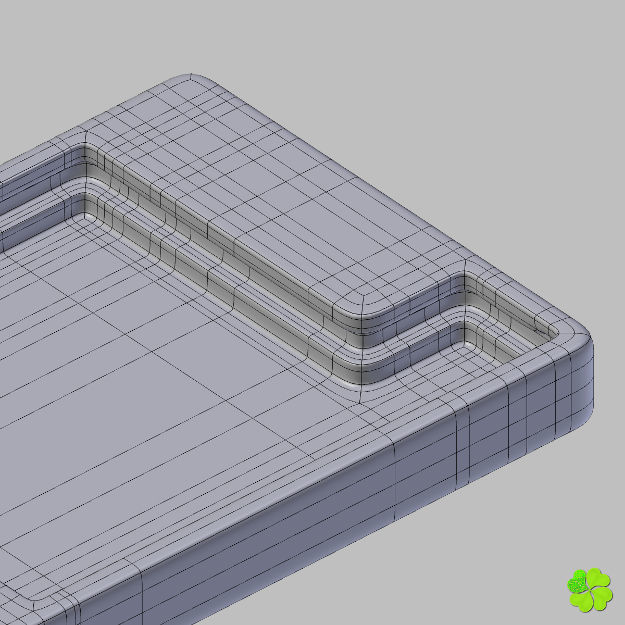

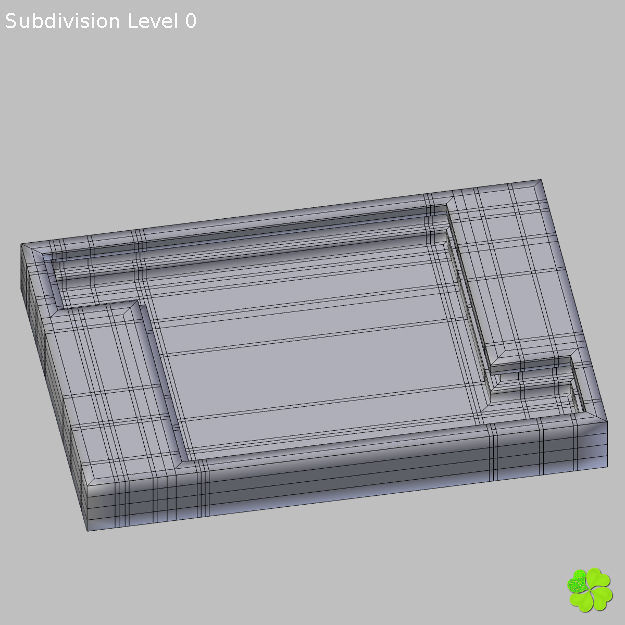

  • The images of the mesh in orthographic view.

The FBX file has been exported from Blender 2.78 (-Z Forward, Y Up) and may need some adjustment.

Item rating
0 0
Binary puzzle low poly rigged
$25.00

Royalty Free License
Binary puzzle low poly rigged
$25.00

Royalty Free License
Response 100% in 0.3h
3D Modeling
Low-poly Modeling
Rigging
UV mapping
Texturing
Particles
Hire me

3D Model formats

Format limitations
  • Blender 2.78 (.blend)1.27 MBVersion: 2.78Renderer: Default Blender Internal
  • PDF (.pdf) (2 files)2.31 MB
  • Autodesk FBX (.fbx)1.04 MB

3D Model details

  • Publish date2018-02-01
  • Model ID#841463
  • Animated approved
  • Rigged approved
  • VR / AR / Low-poly approved
  • PBR
  • Geometry Subdivision ready
  • Polygons 21,518
  • Vertices 21,554
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Non-overlapping
  • Plugins used
