German DM51 hand grenade assembly printable moulage 3D model

Presenting a model – printable moulage of the German DM51 Universal anti-personnel
hand grenade from the series “Ammunition of the Russian-Ukrainian War”.
The DM51 (Handgranate Spreng/Splitter DM 51) is a hand-held defensive and offensive
anti-personnel grenade developed by the German company Diehl Defense.
It was adopted by the Bundeswehr in 1978. DM51 grenades are universal and can be used
both offensively and defensively. To change the purpose of the grenade, it is enough
to either detach or attach an additional shield with fragments.With the additional shield,
the fragmentation zone can reach 100 meters, and with the shield detached, it can reach 25 meters.

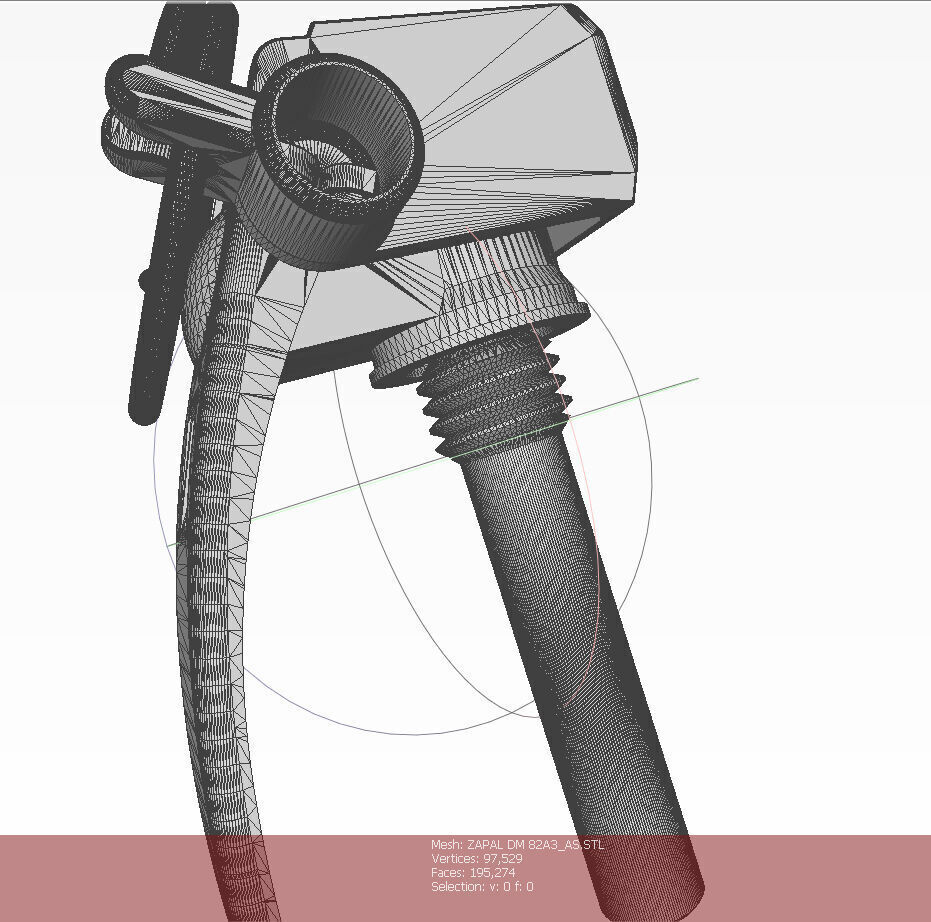

The Fuze Type used is DM82A3. It is grenade modification DM51A2in service with the
Armed Forces of Ukraine in the Russian-Ukrainian war.

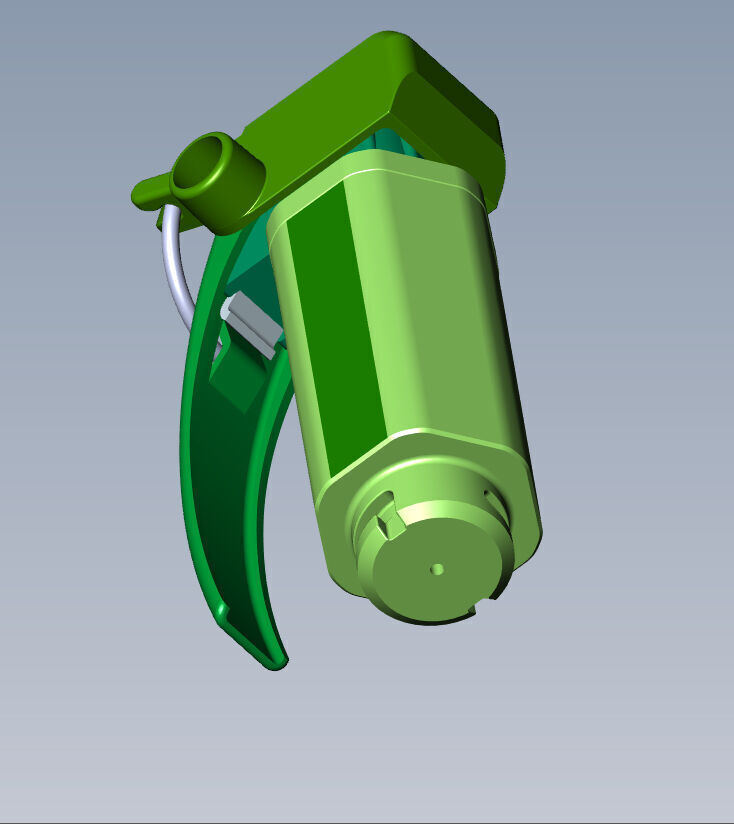

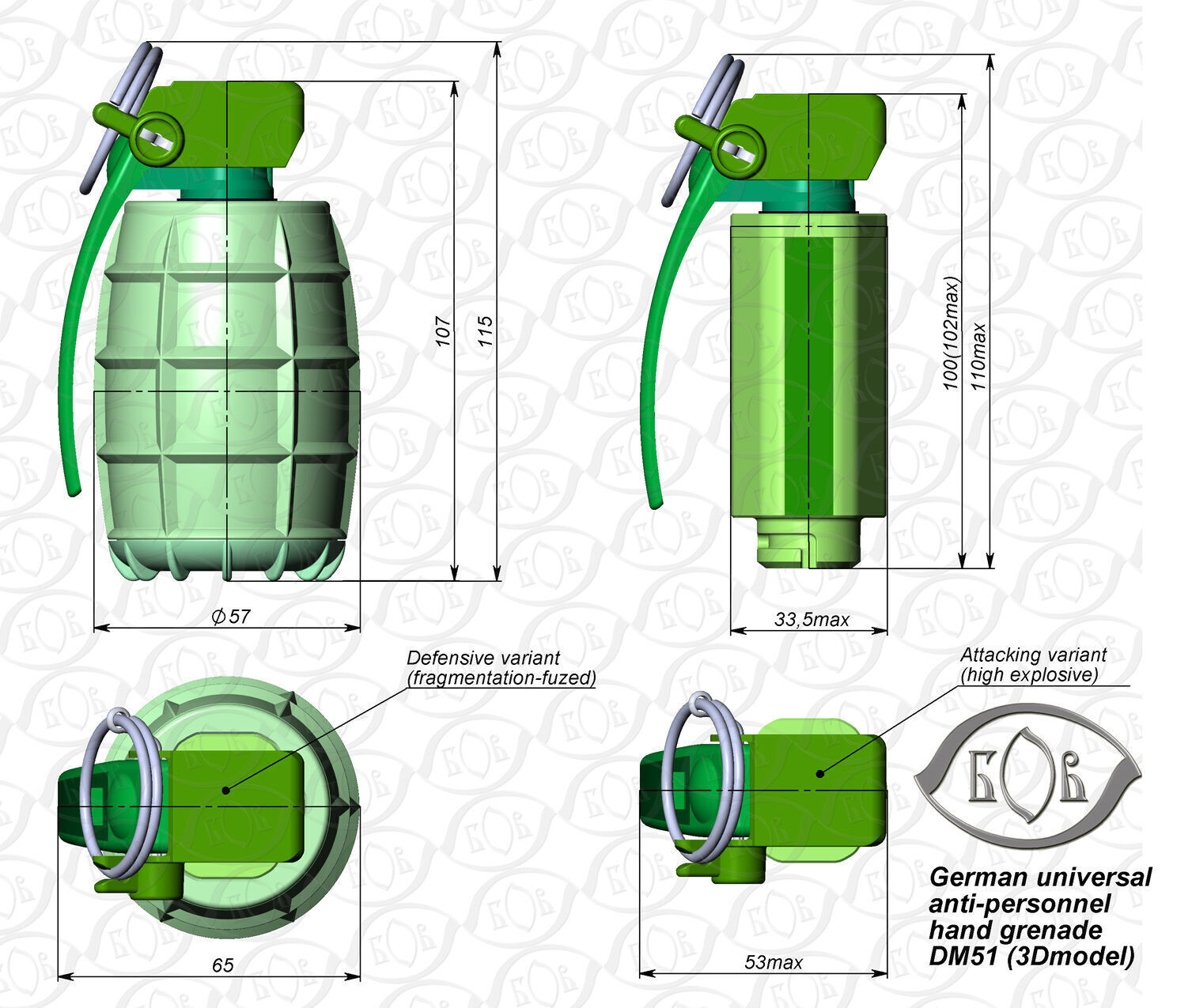

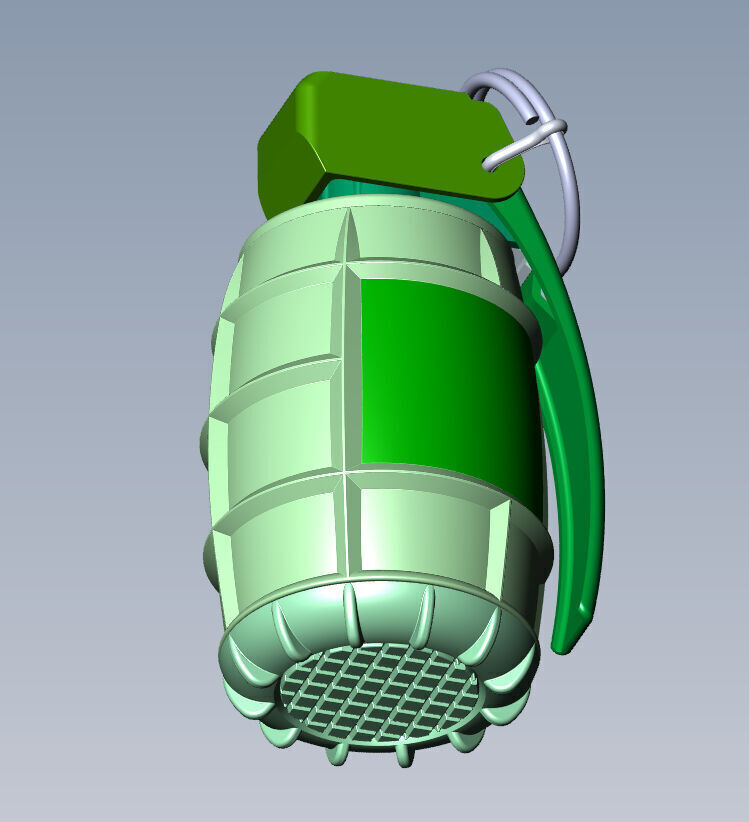

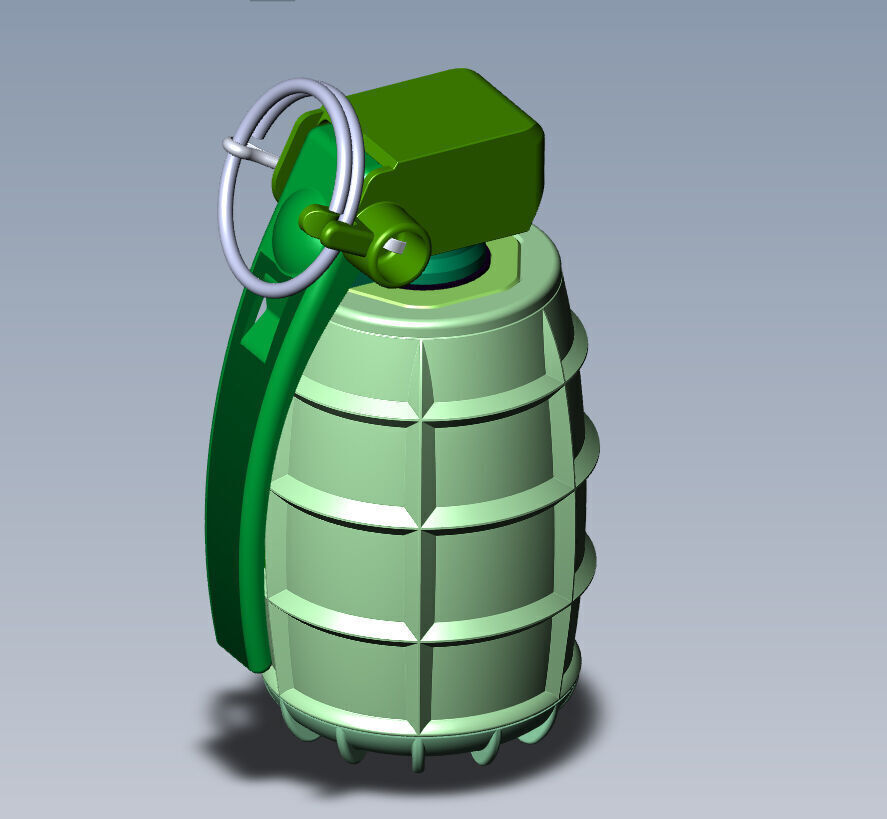

The set includes FOUR models - DM51, in offensive and defensive assembly variants and (additionally)

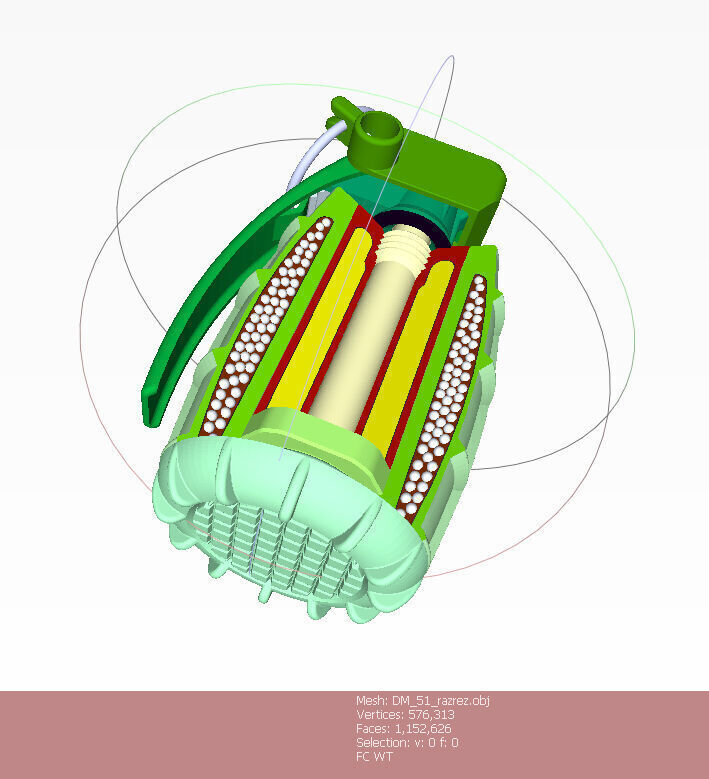

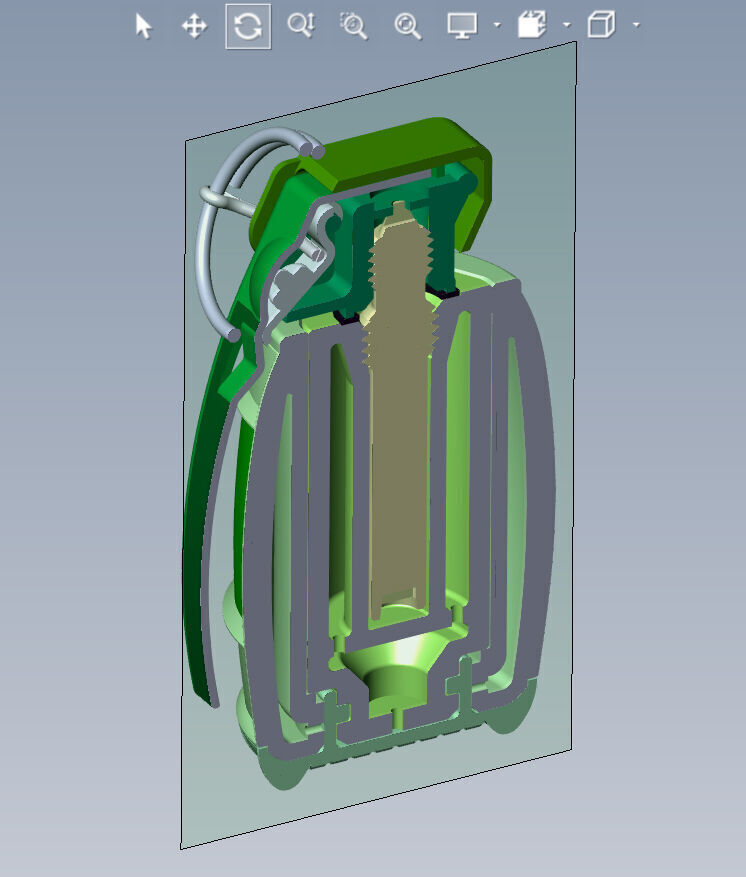

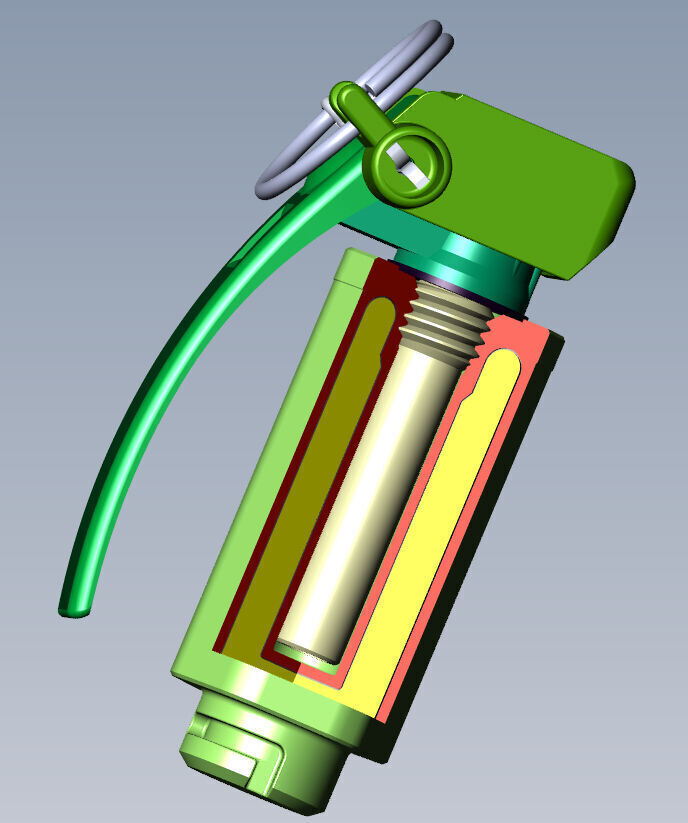

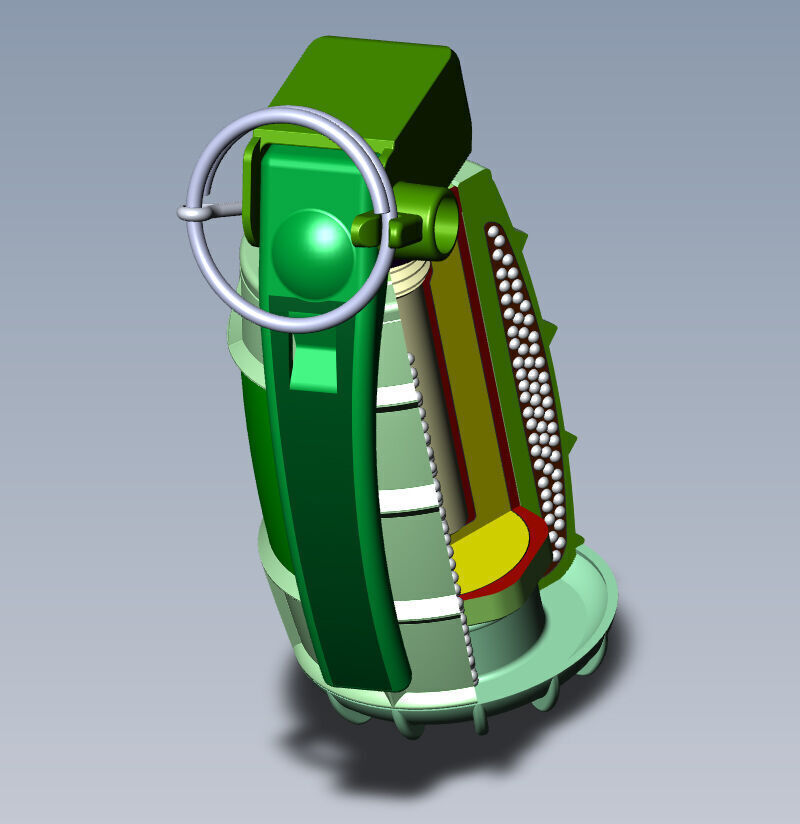

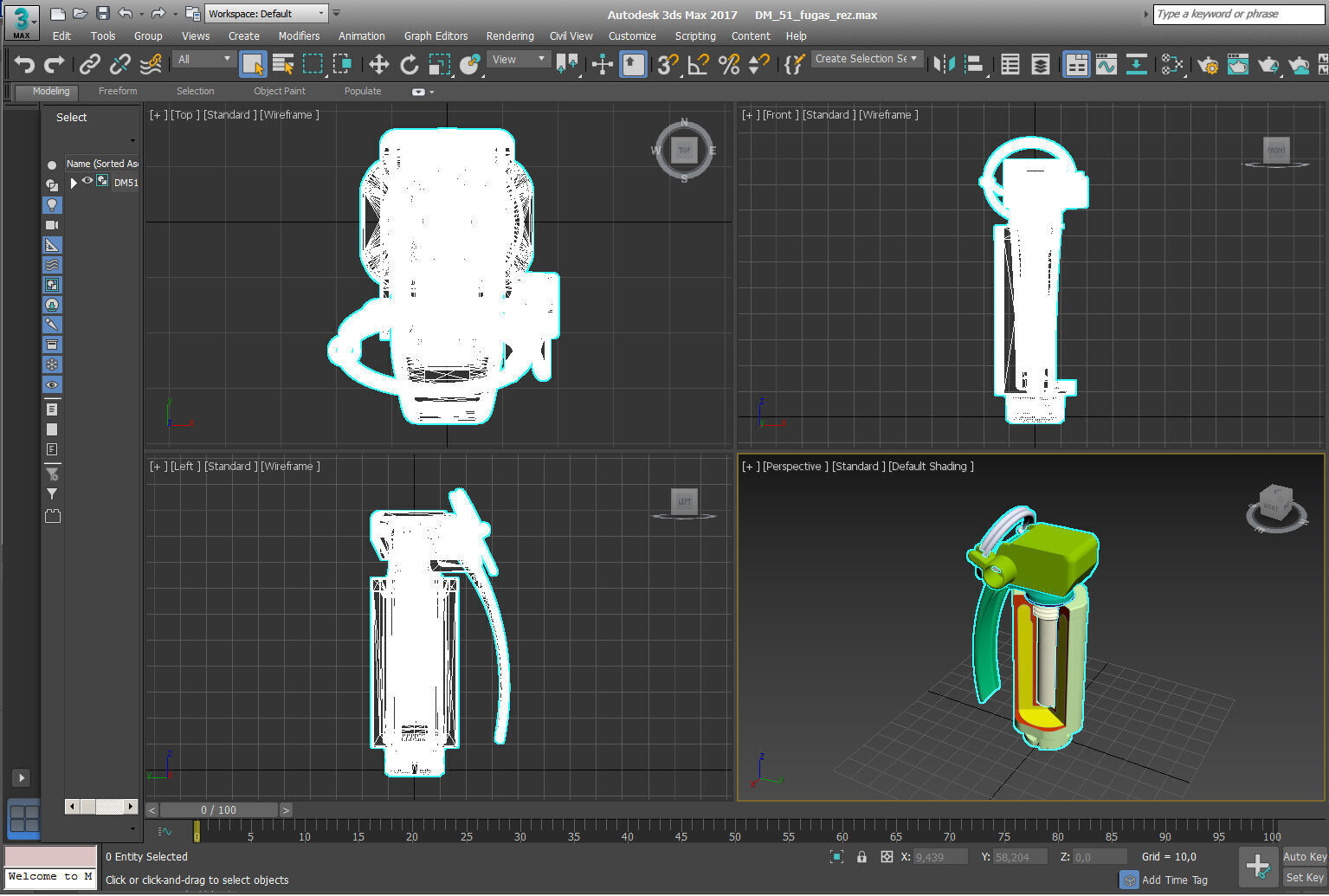

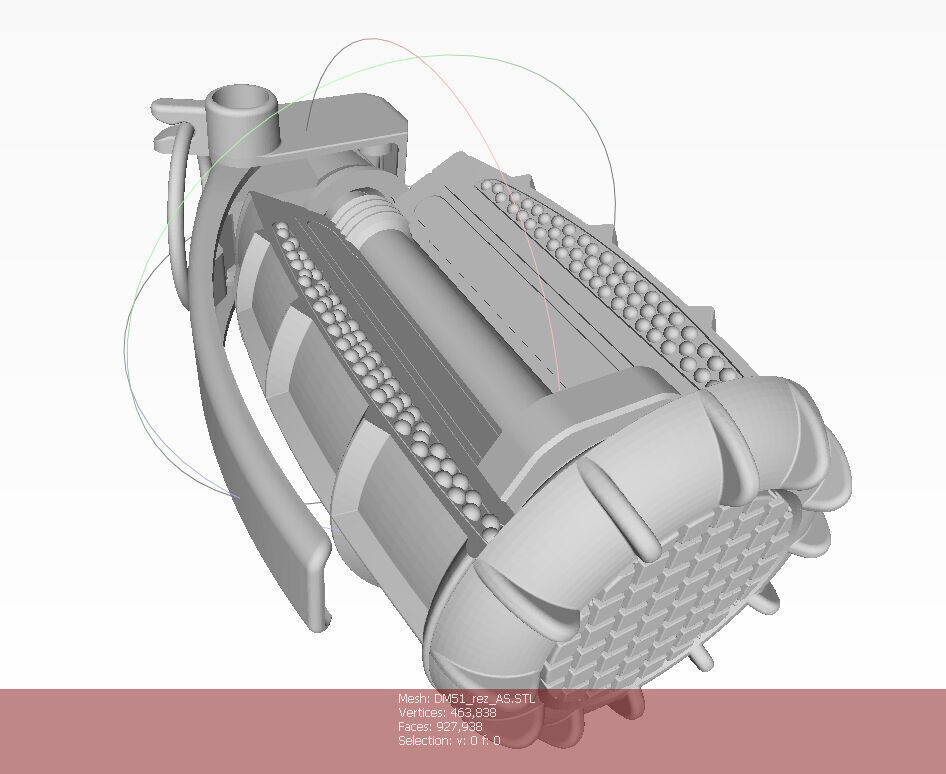

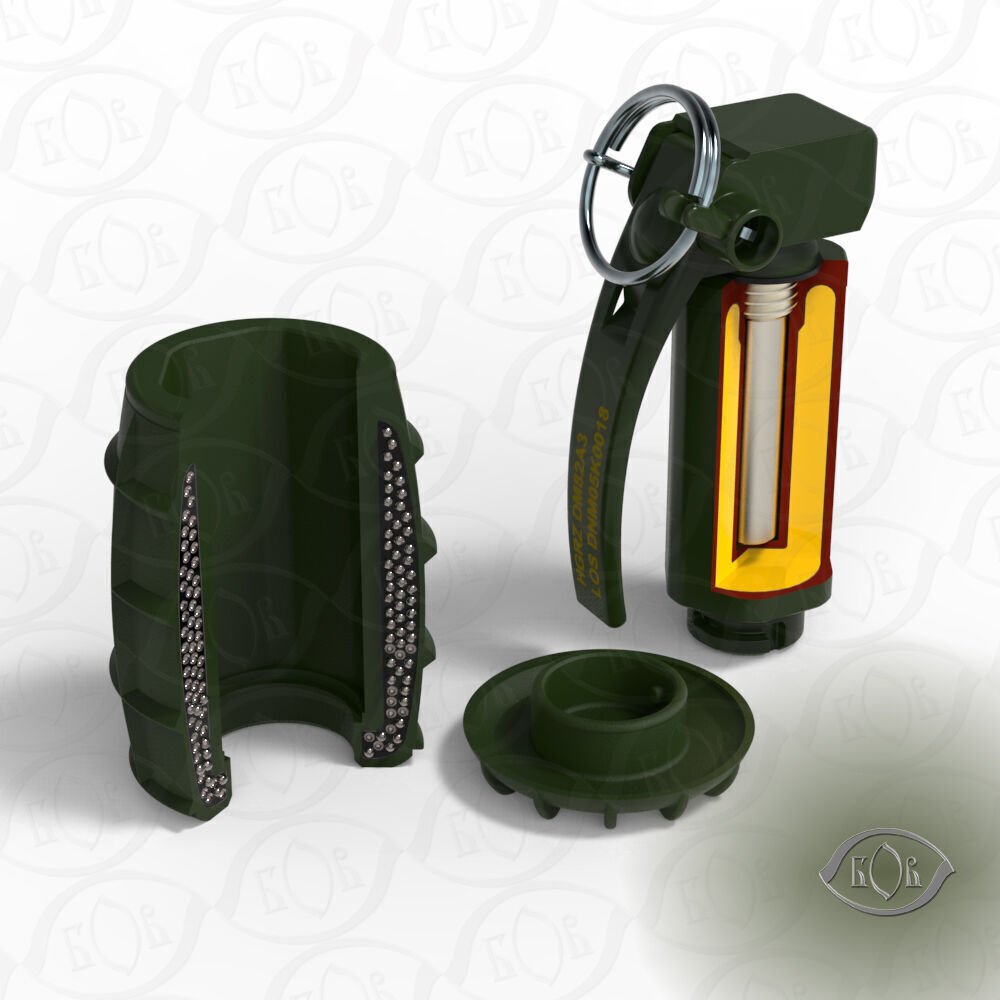

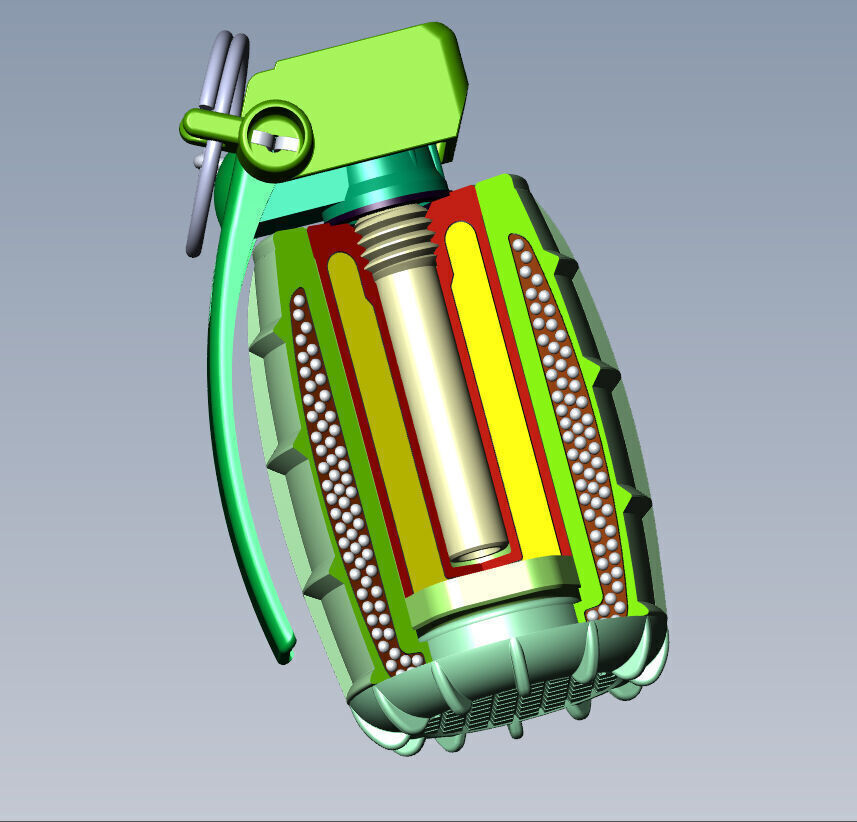

DM51 is presented in the form of a mock-up - a moulage with a conditionally open inner cavity -
a cognitive model, to create an educational idea of the internal structure and principles
of operation in a visual form, as in offensive and defensive assembly variants .

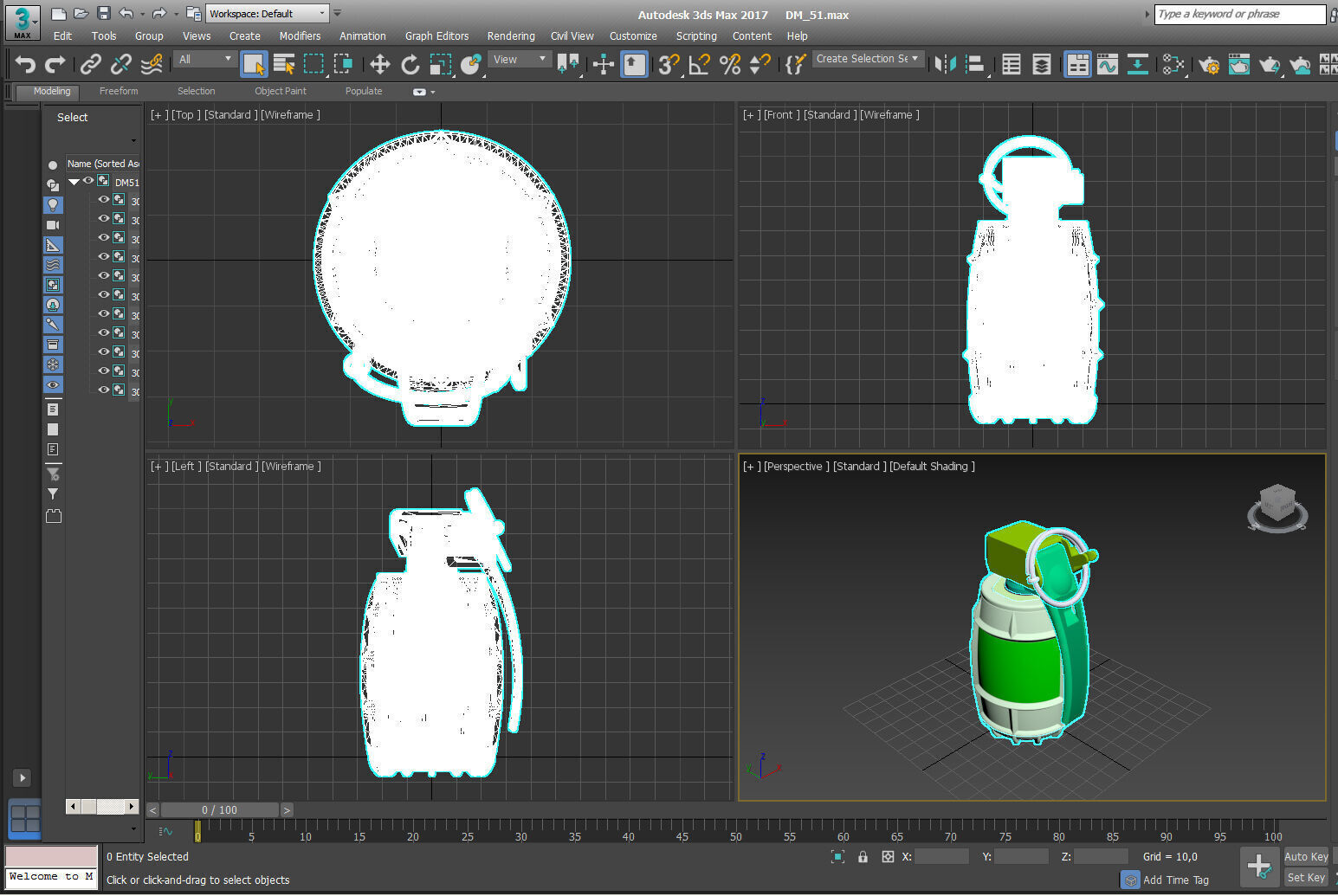

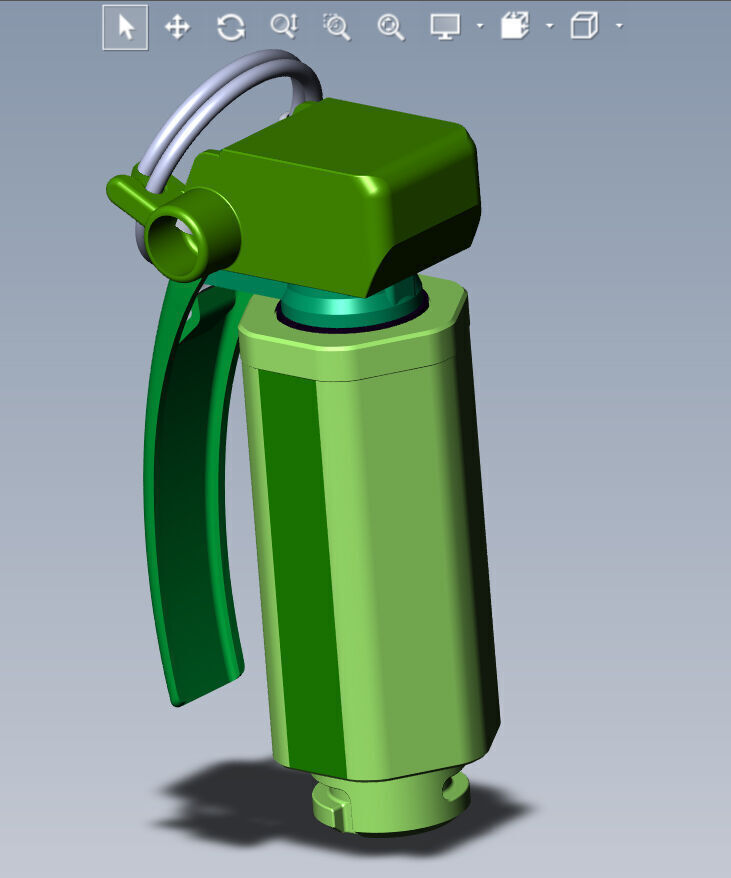

All prefabricated 3D models are made in original size. The models are made in SolidWorks program.
They are intended primarily for 3D printing or CNC manufacturing of bench models - training models, for use as a visual aid.

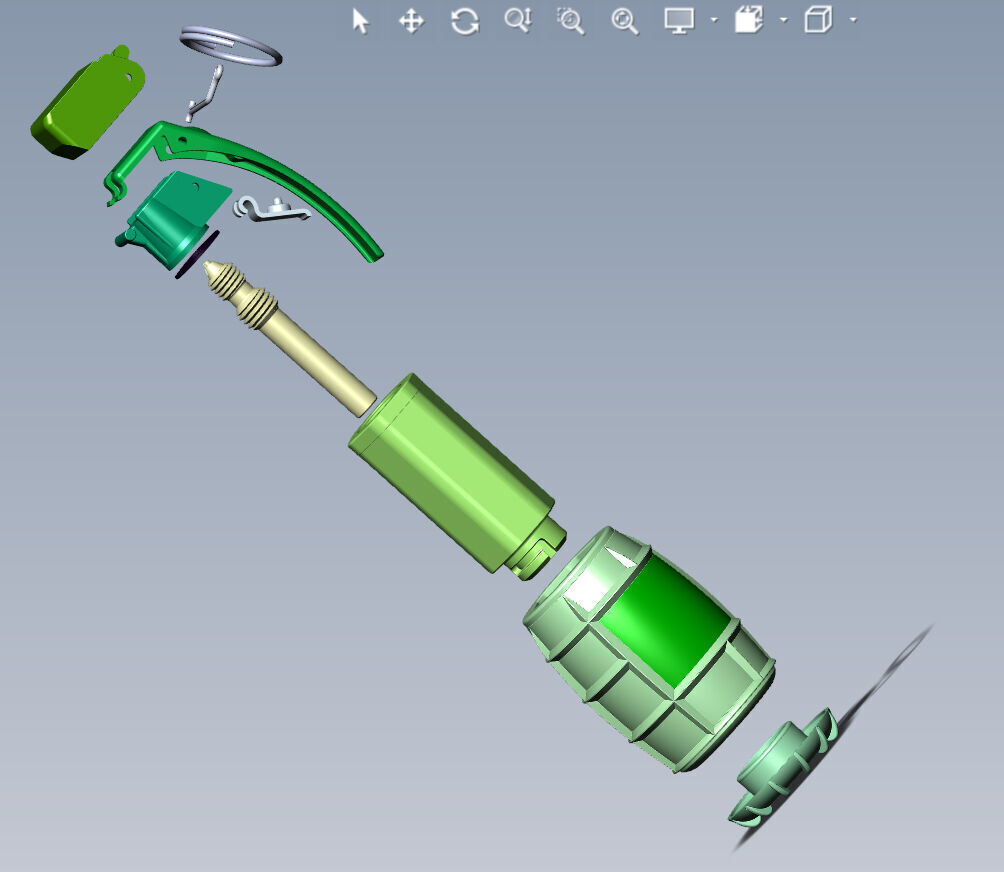

The models are adapted for the possibility of manufacturing and subsequent assembly of the product layout.

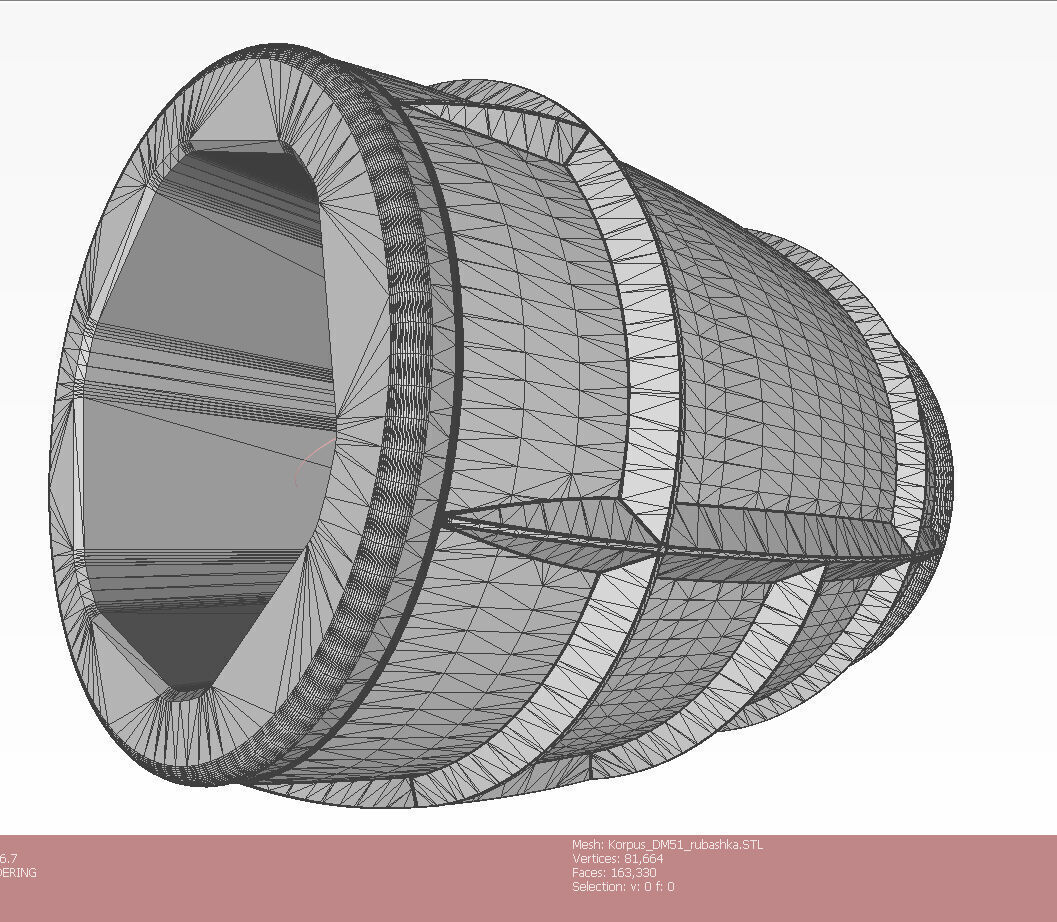

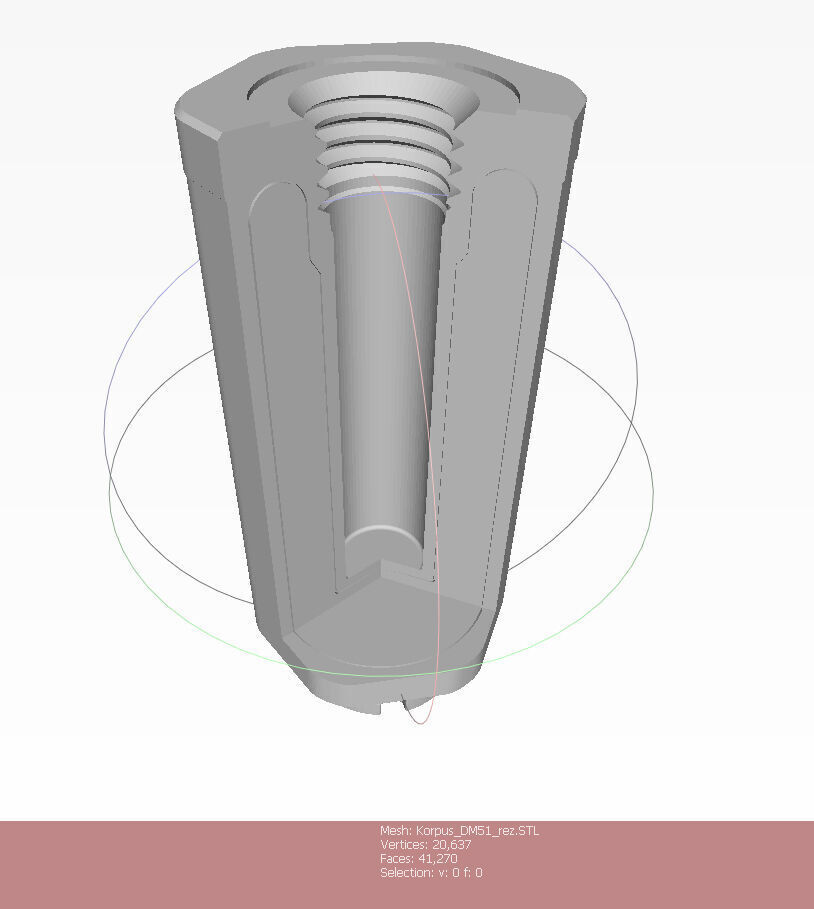

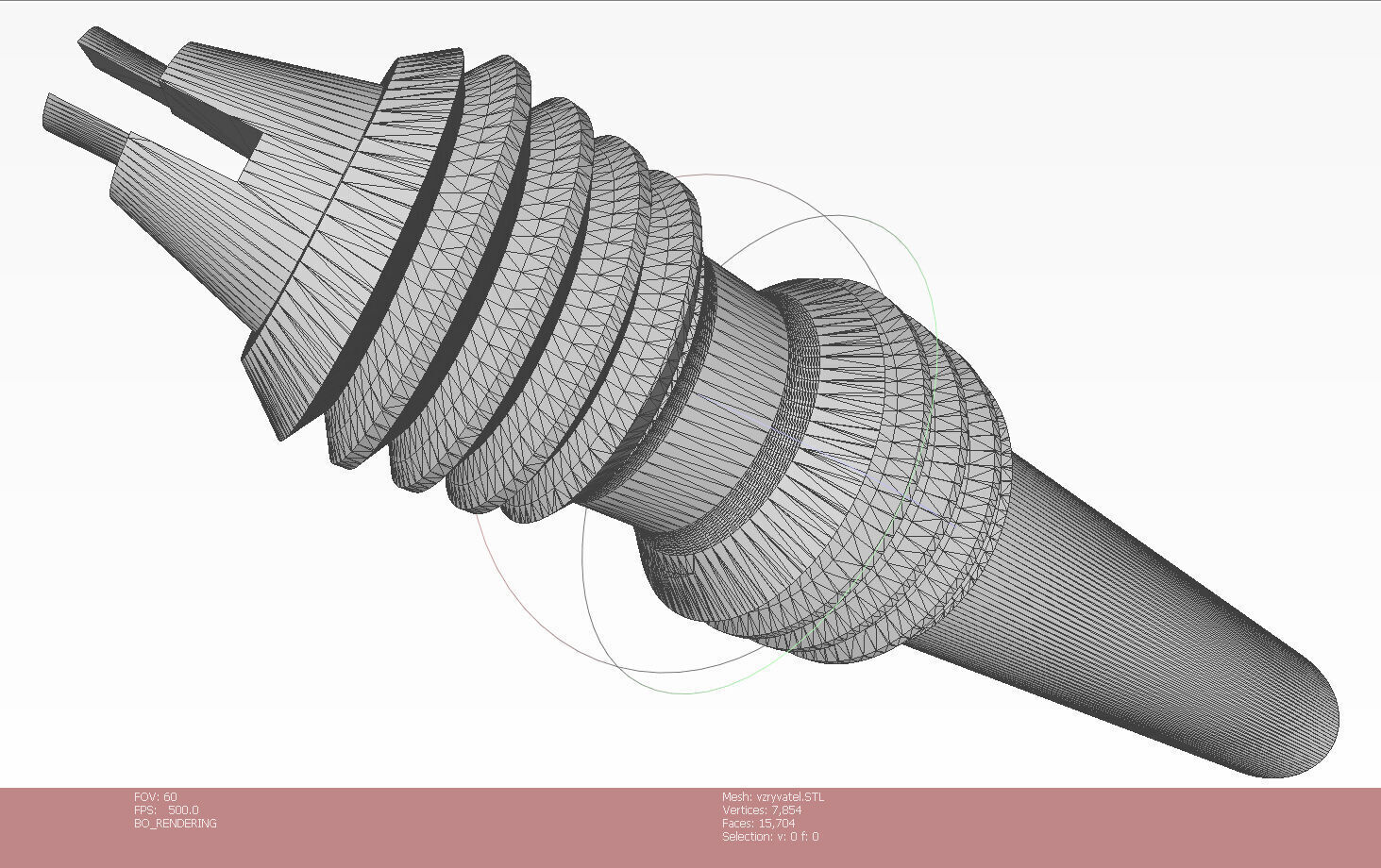

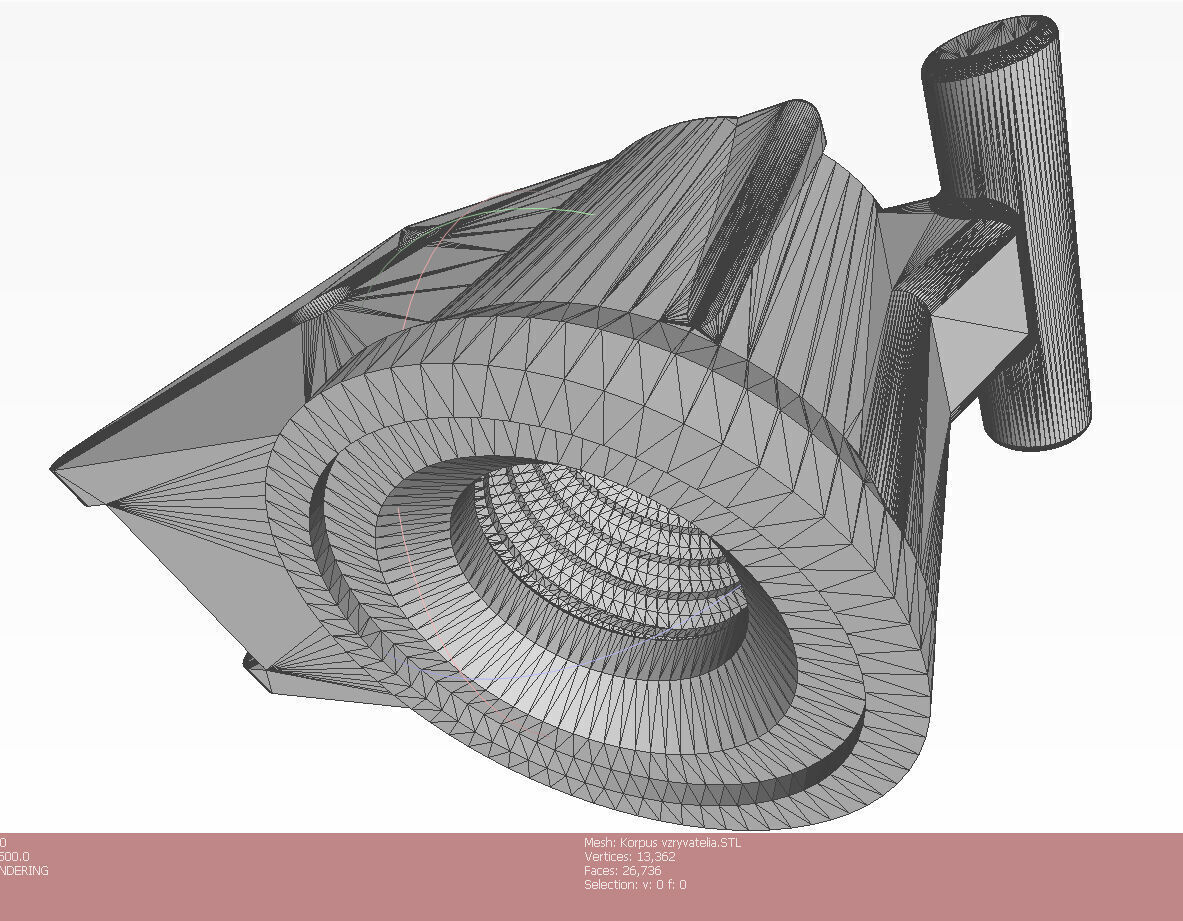

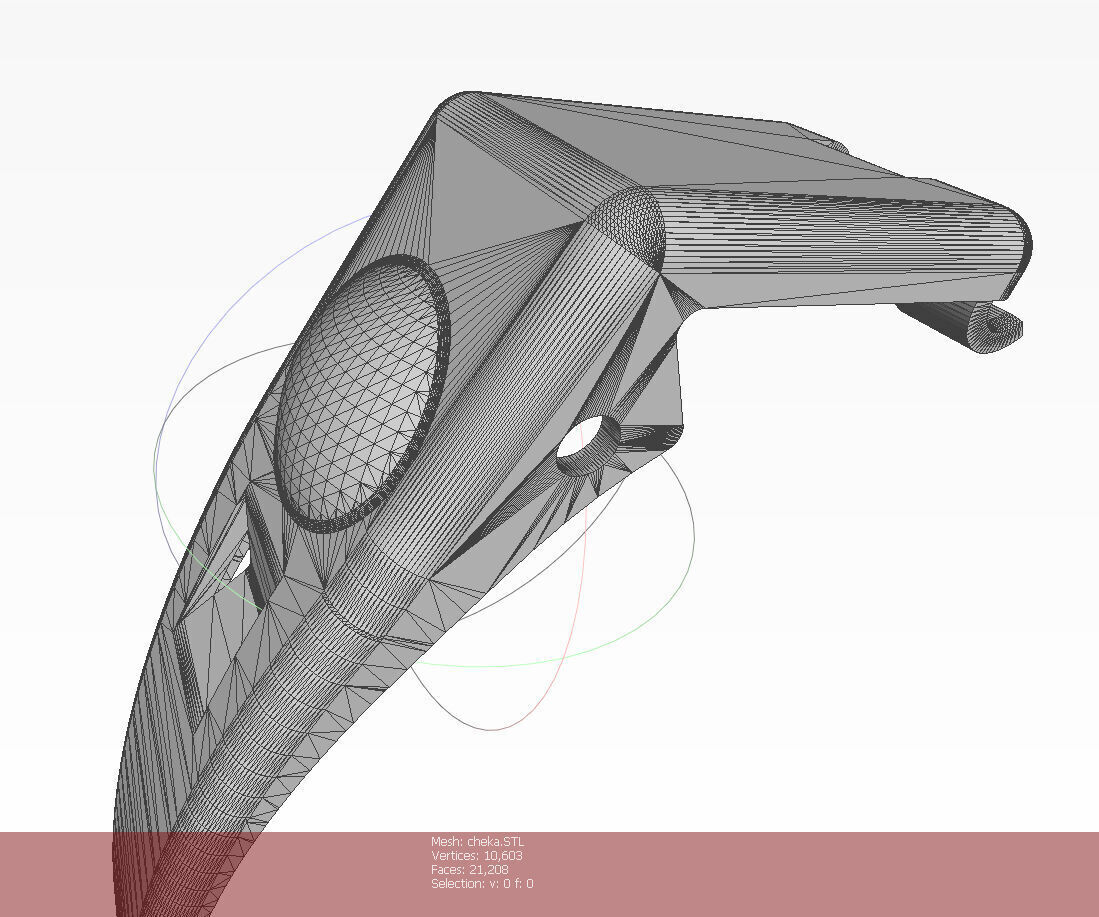

The models are assembly models, contain files of all conditional parts (STL) in high-polygonal version

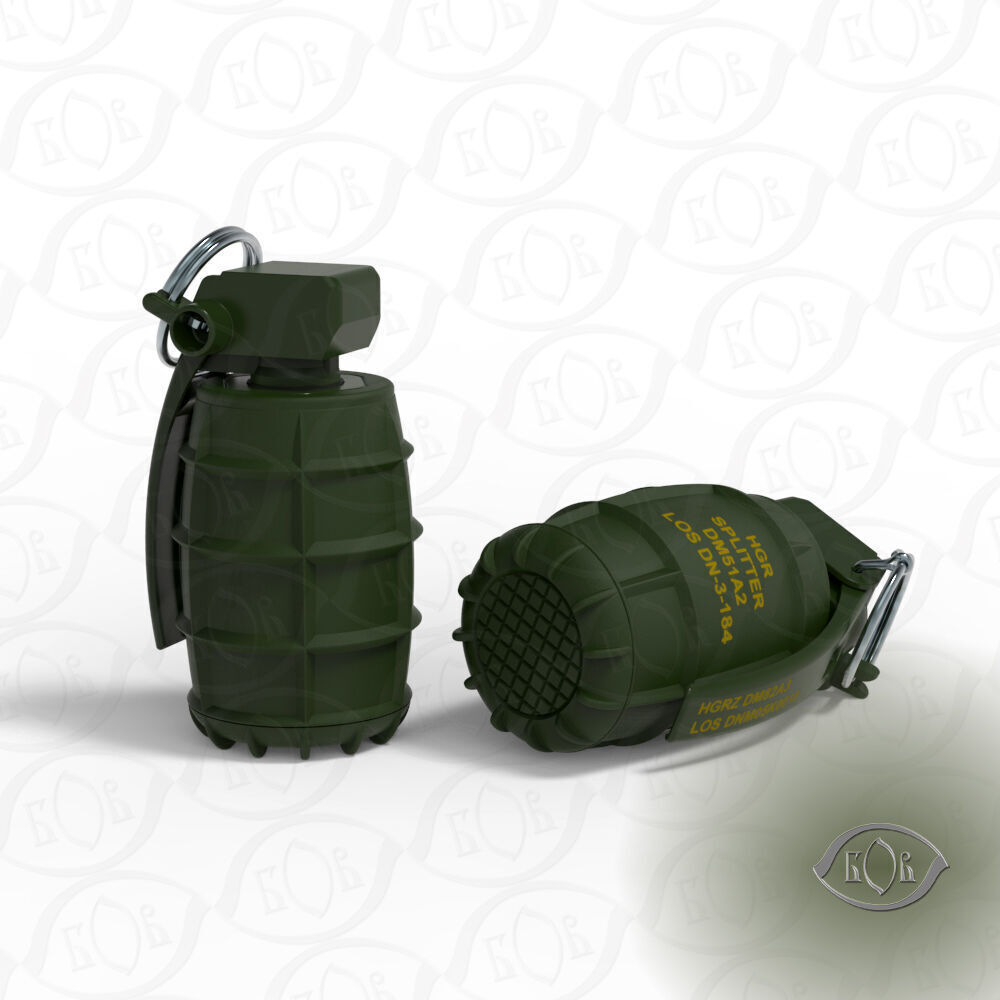

to obtain qualitatively smooth forms. Additionally, the set contains all files for obtaining high-quality
realistic close-up rendering (smooth lines, selected, prepared surfaces - for applying materials or textures -

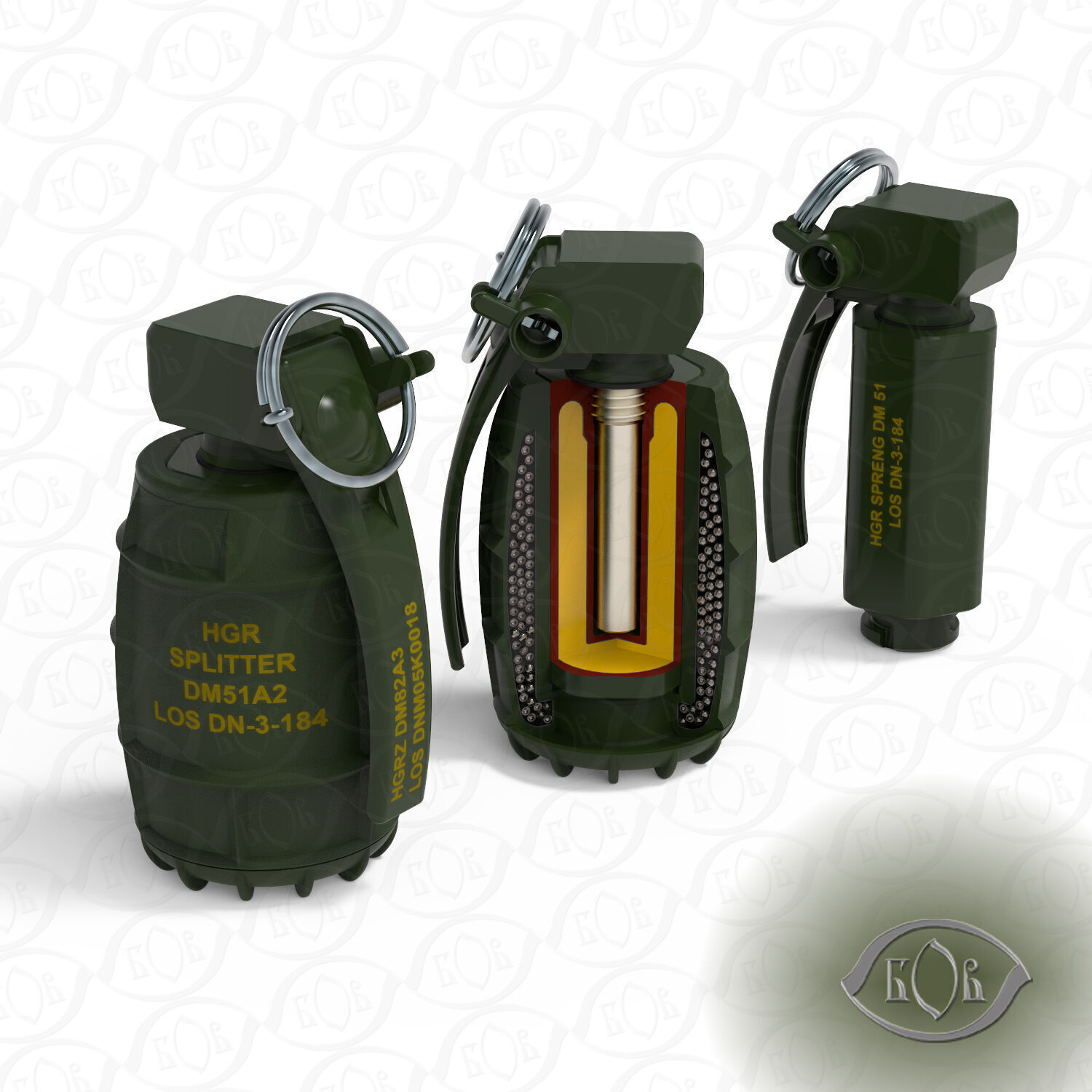

Assigned materials surfaces with conditional color markings), see the image of models and examples
of 3D rendering results in specialized professional applications (for examples- KeyShot).
The kit contains a batch file of visualization in KeyShot (.ksp) Additionally, the set contains marking textures -
inscriptions to be applied to surfaces (see rendering examples). In addition to solid model file formats,

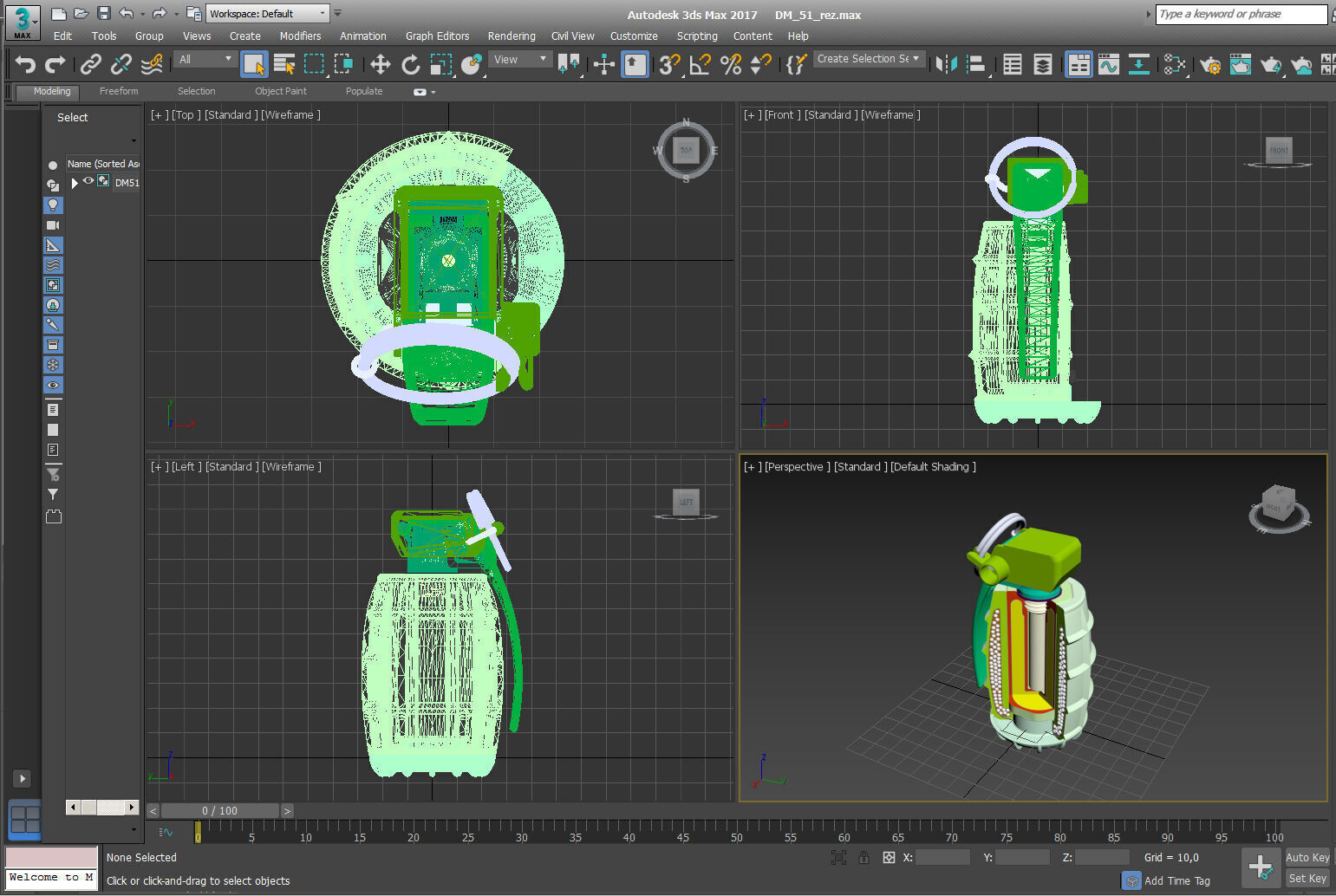

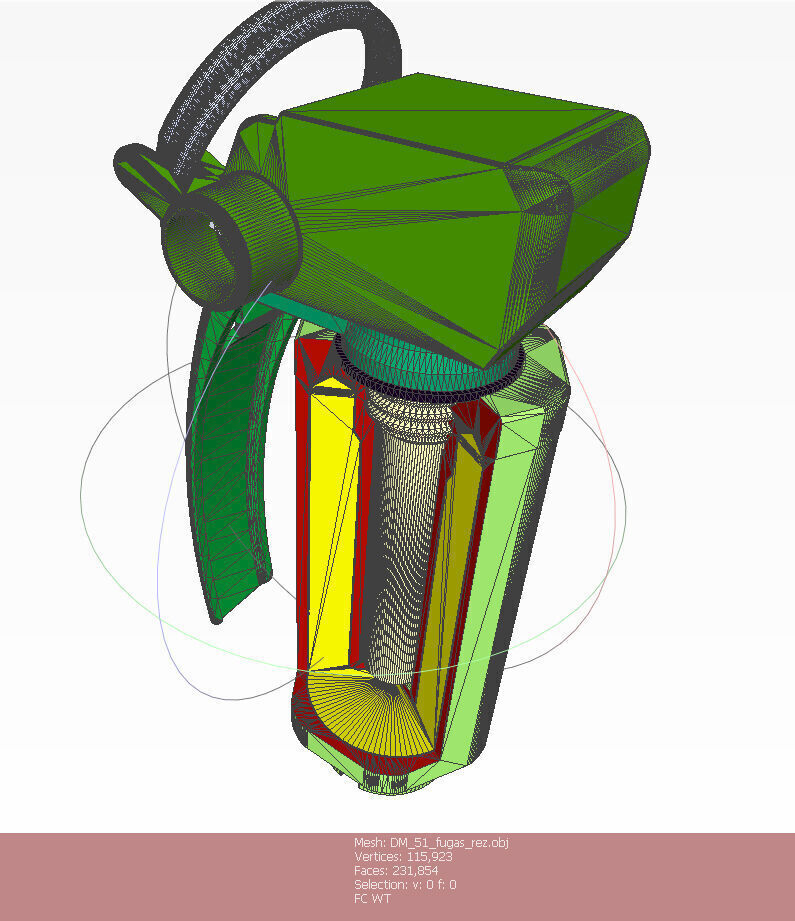

converted highly detailed polygonal file formats are additionally provided.

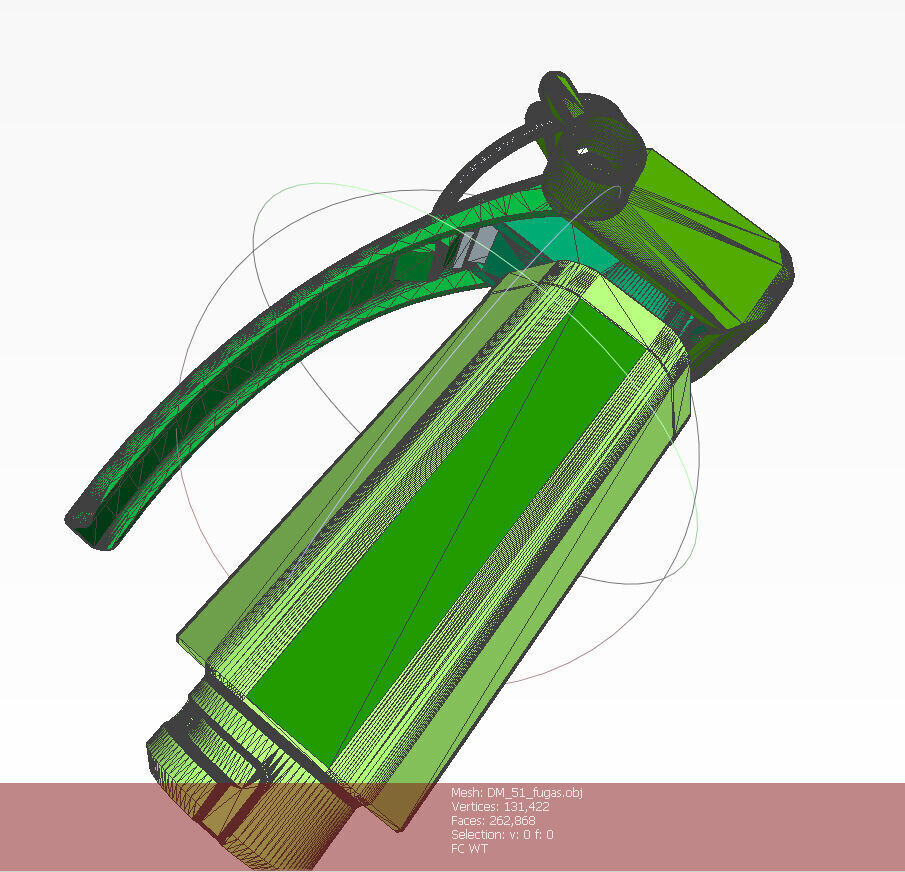

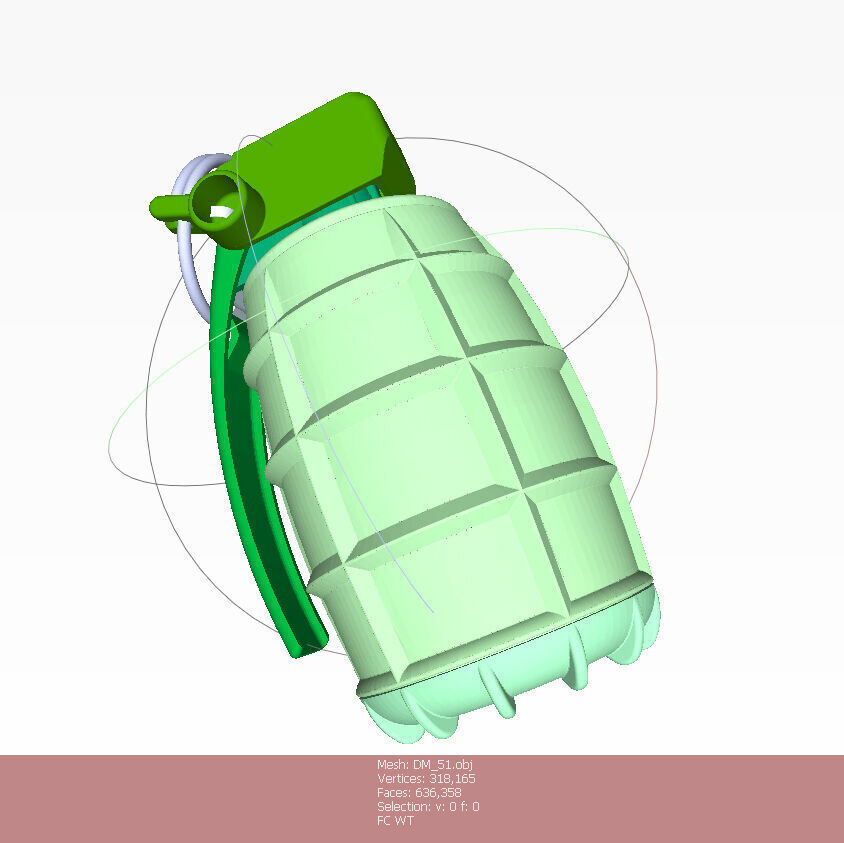

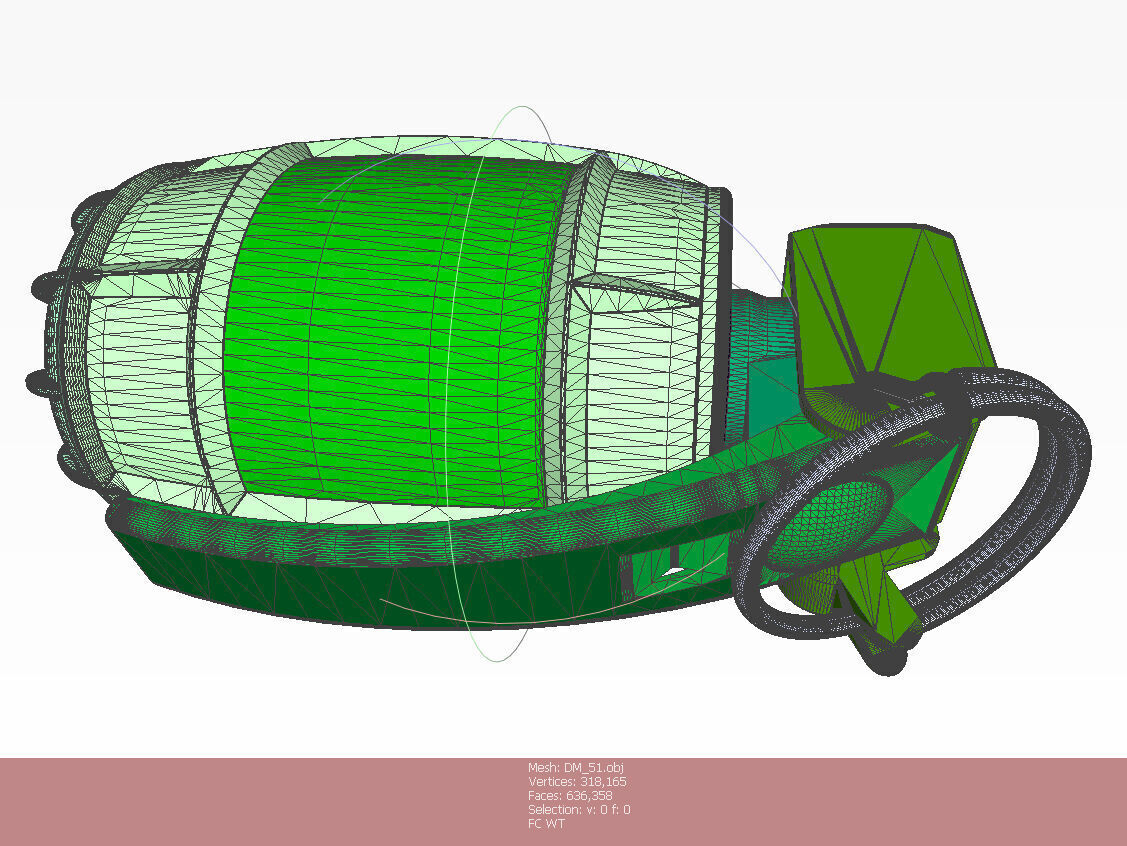

Mesh:
Vertices 318165
Faces 636358
(DM_51.obj)
Please rate and write a review about this model.
If you have any questions, please contact me.
Thank you.
Always willing to consider YOUR suggestions on price!
