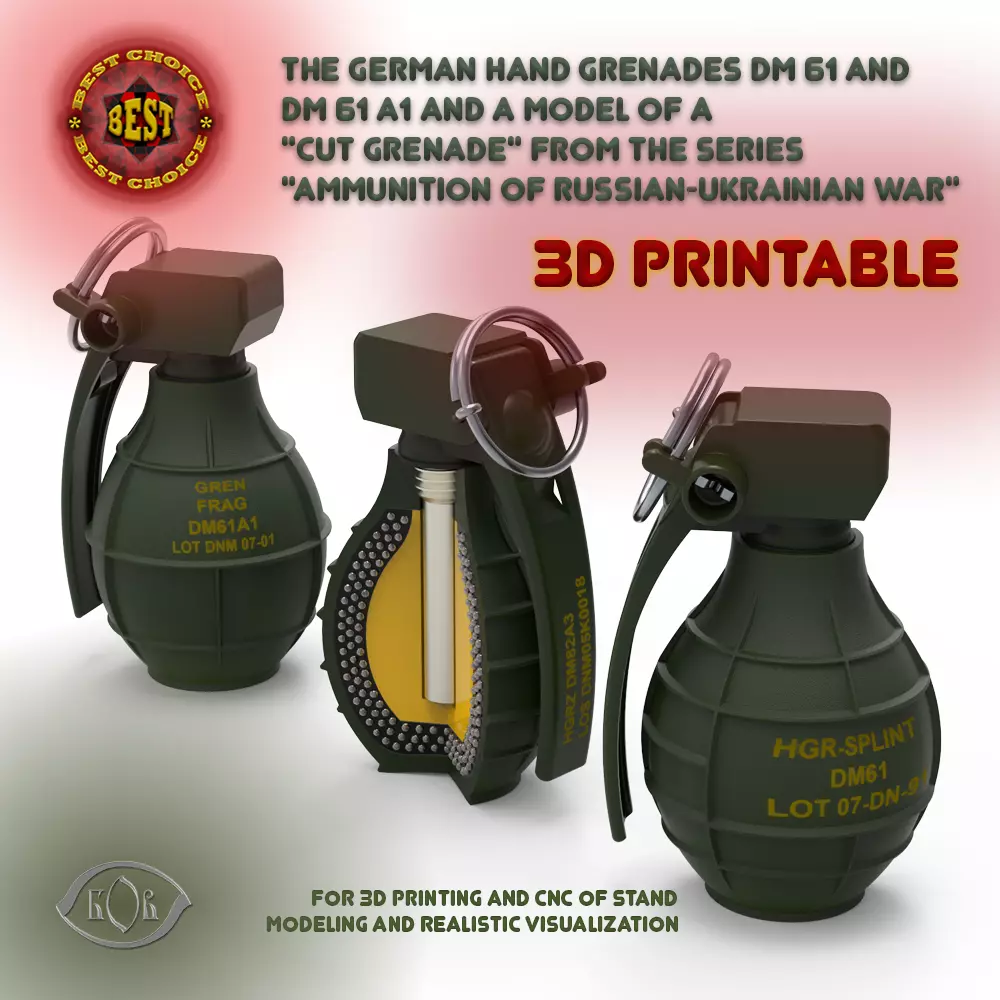

Presenting a model - mock-up of the German DM61 hand grenade and its DM61A1.
modification from the series “Ammunition of the Russian-Ukrainian War”.
The DM61 (DM61A1) is a modern German hand-held fragmentation grenade of the defensive type.
Weight: 340 g.
Explosive weight: 65 g.
Delay time: 3-5 s.

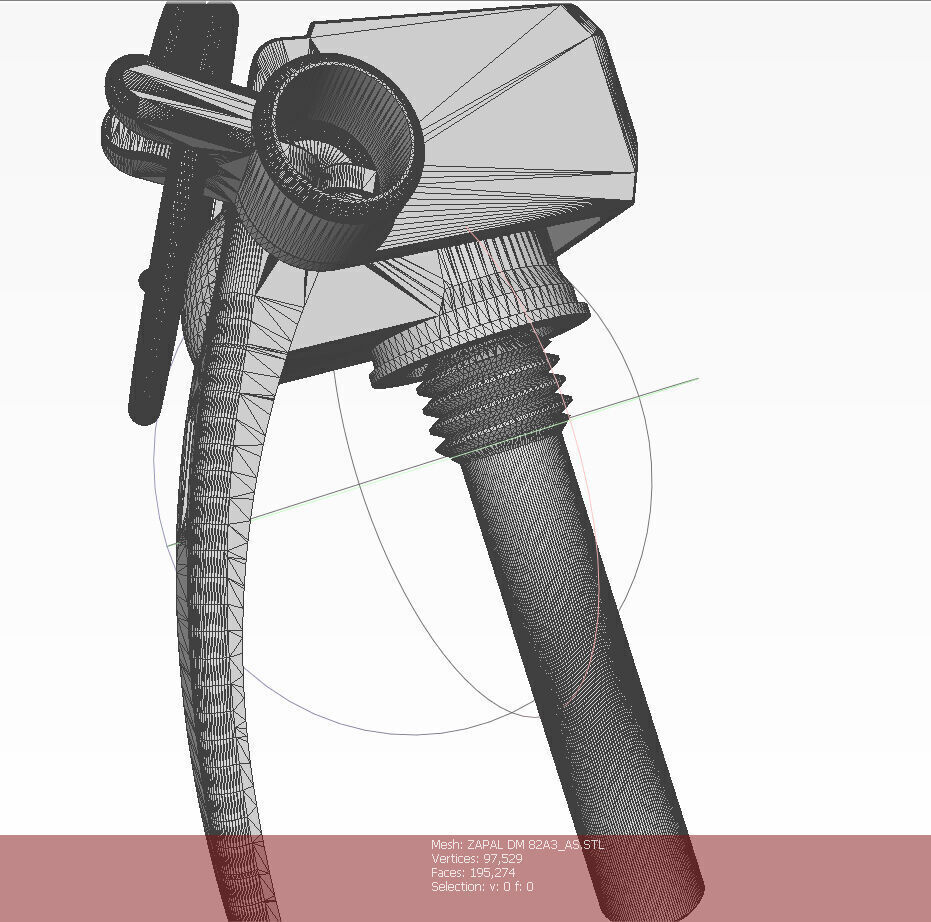

The Fuze Type used is DM82A3.
It is designed to defeat enemy manpower with high-explosive fragmentation elements (balls 2 - 2.5 mm in diameter).
in defensive combat. It is in service with the Armed Forces of Ukraine in the Russian-Ukrainian war.

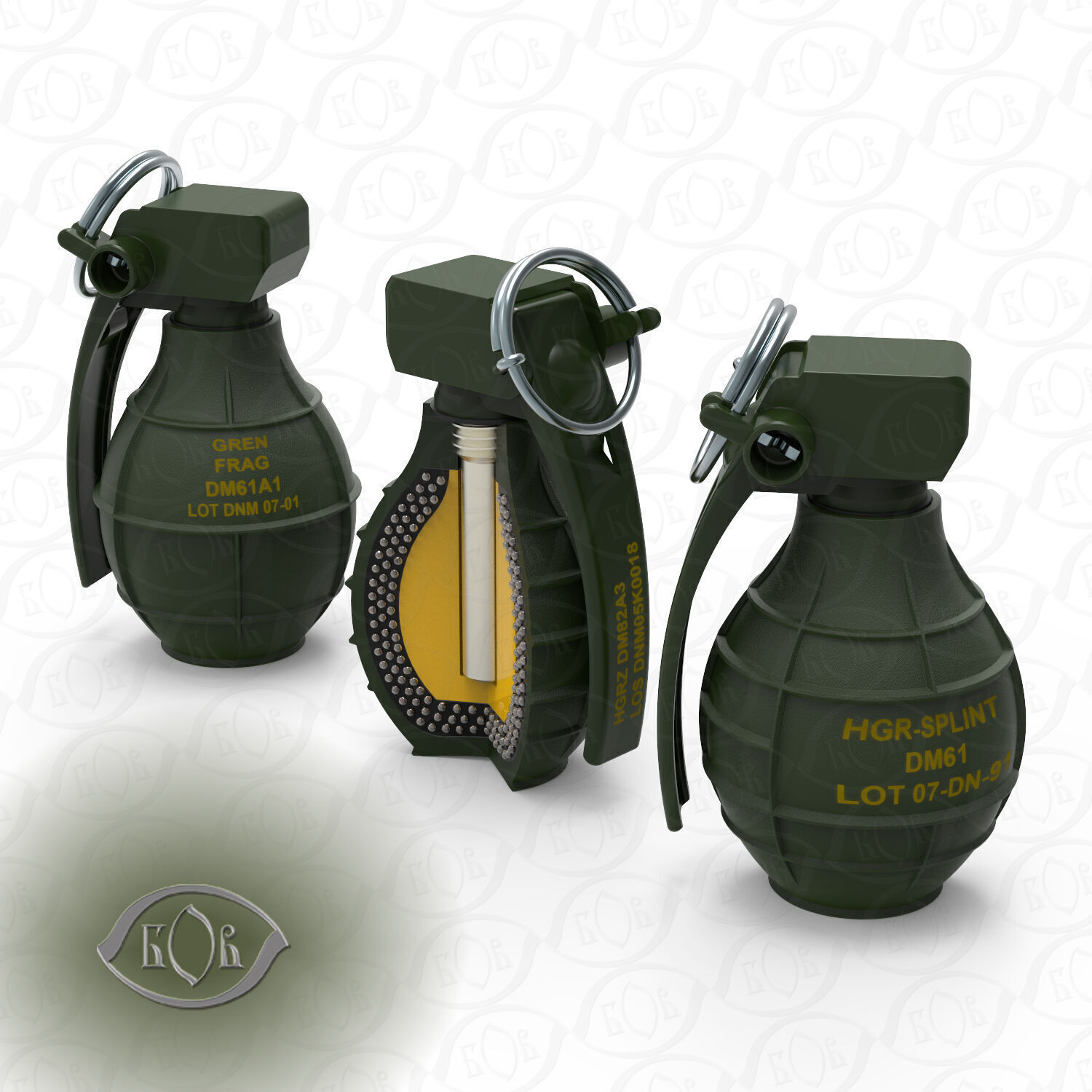

The set includes THREE models - DM61, DM61A1 and (additionally) DM61 is presented.

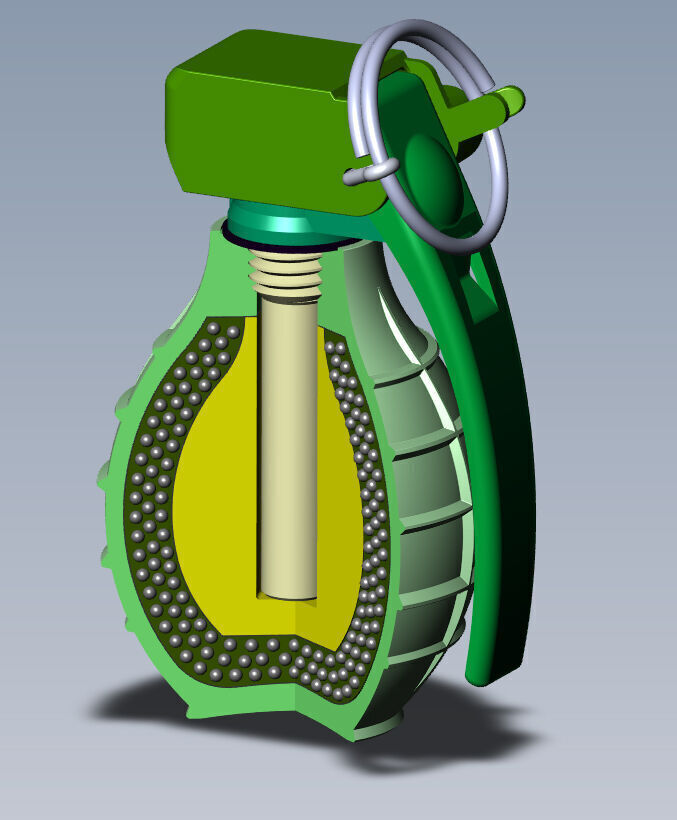

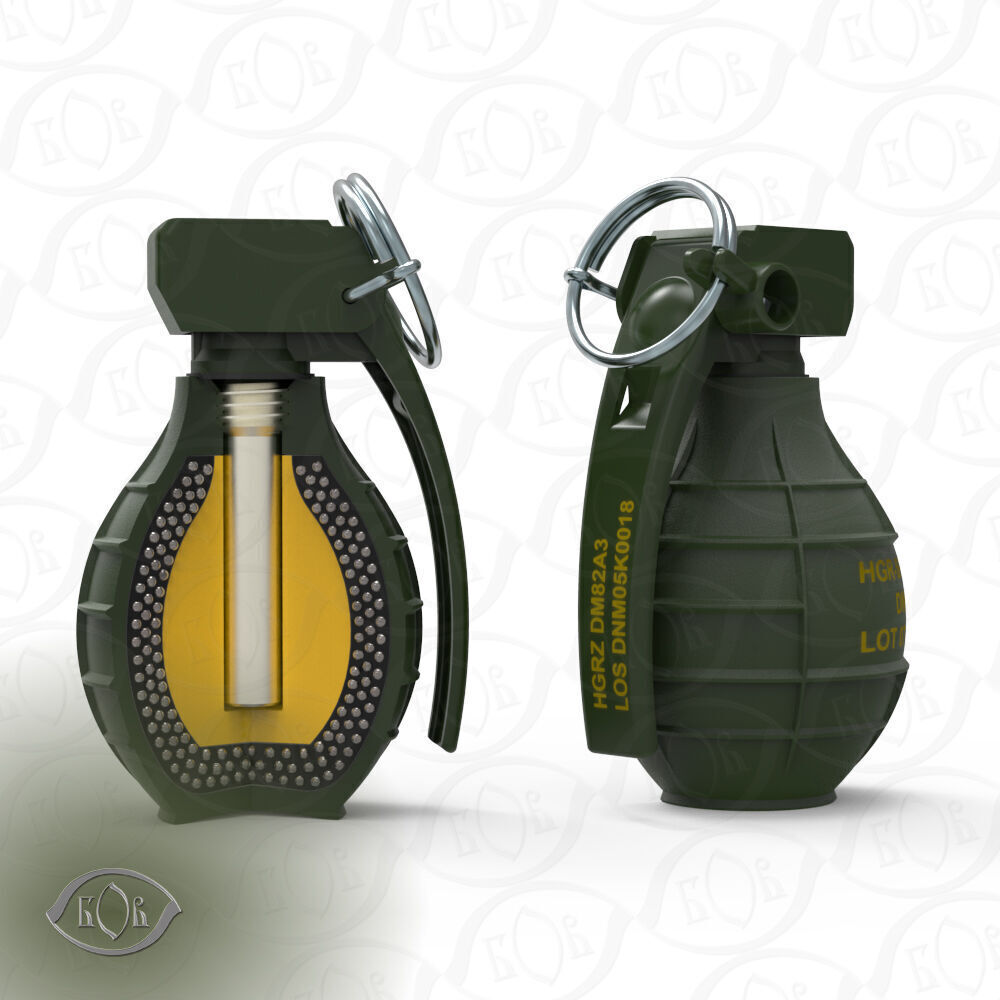

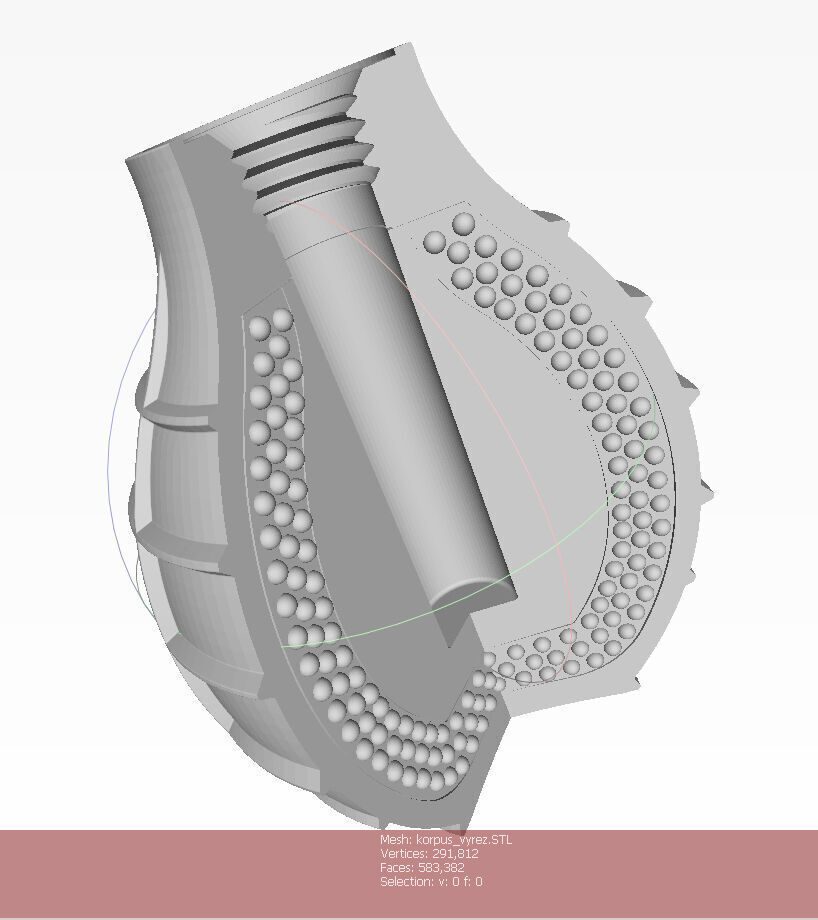

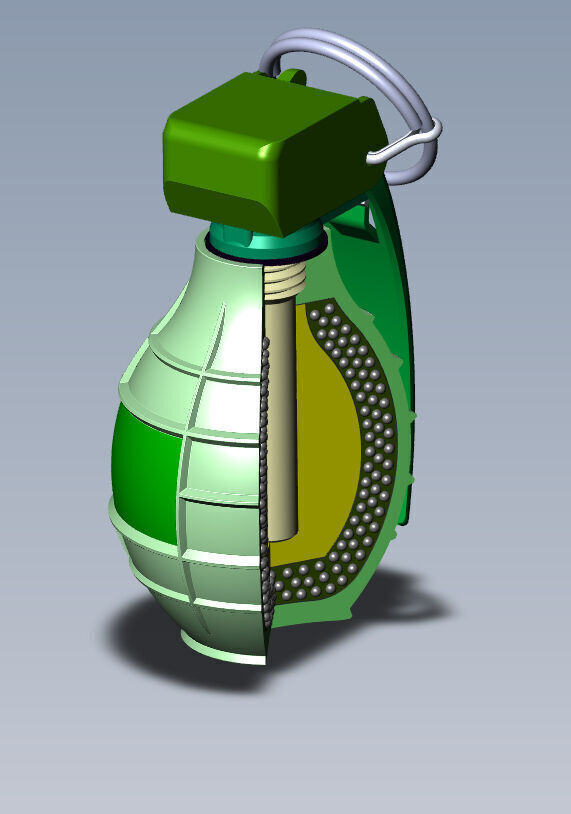

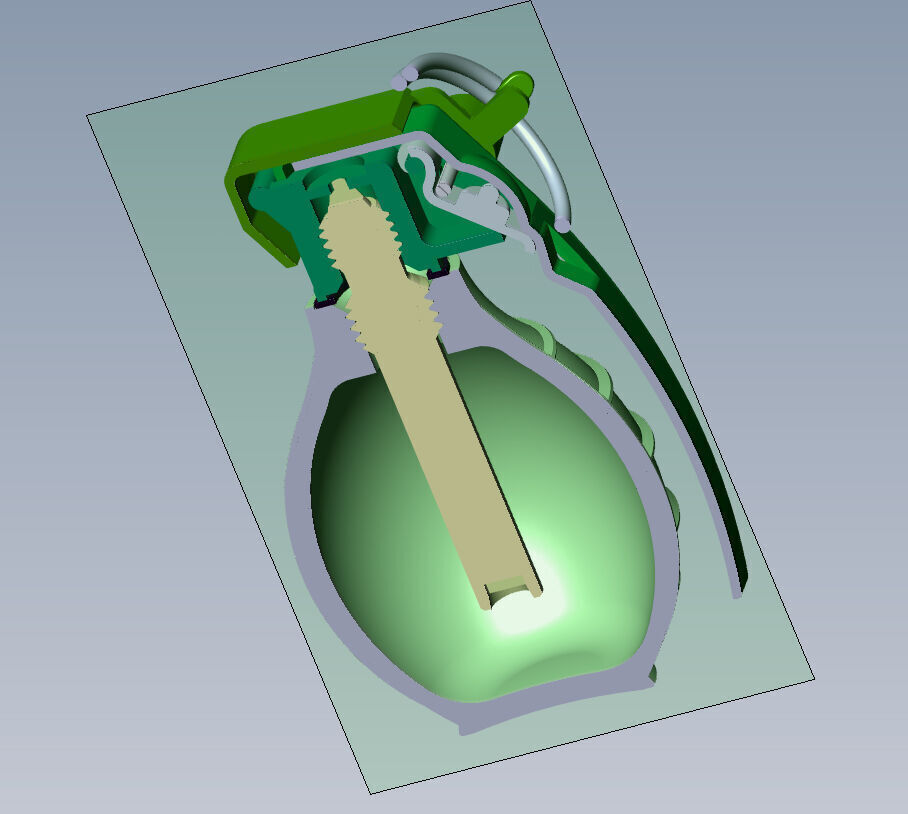

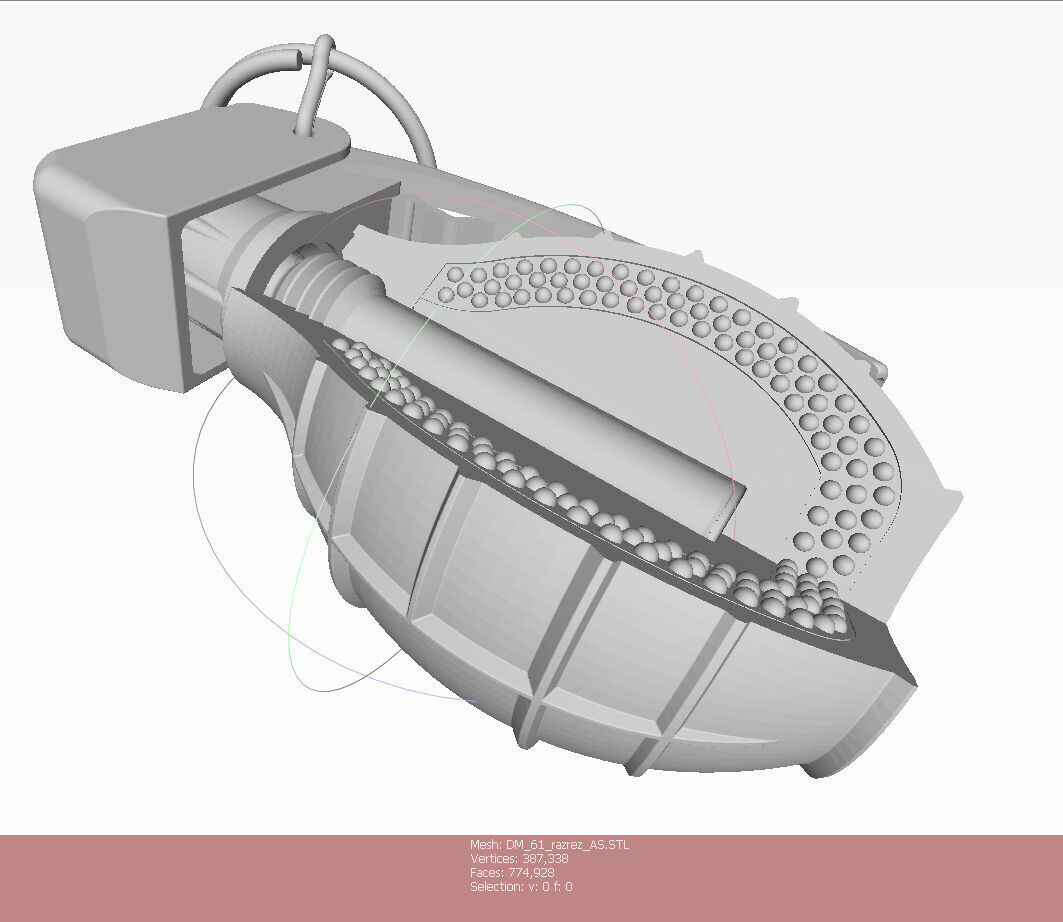

in the form of a mock-up - a moulage with a conditionally open inner cavity - a cognitive model,
to create an educational idea of the internal structure and principles of operation in a visual form.

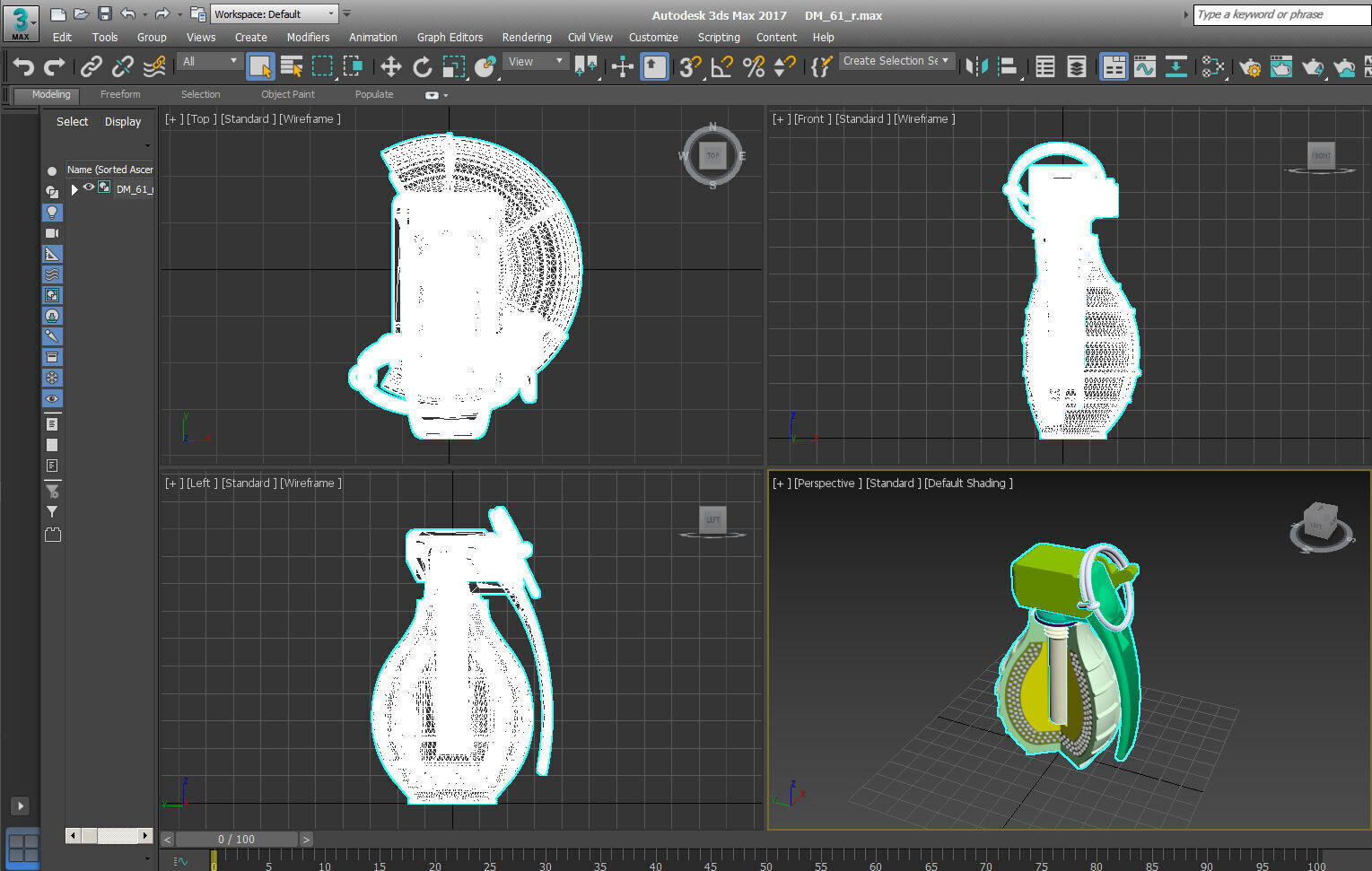

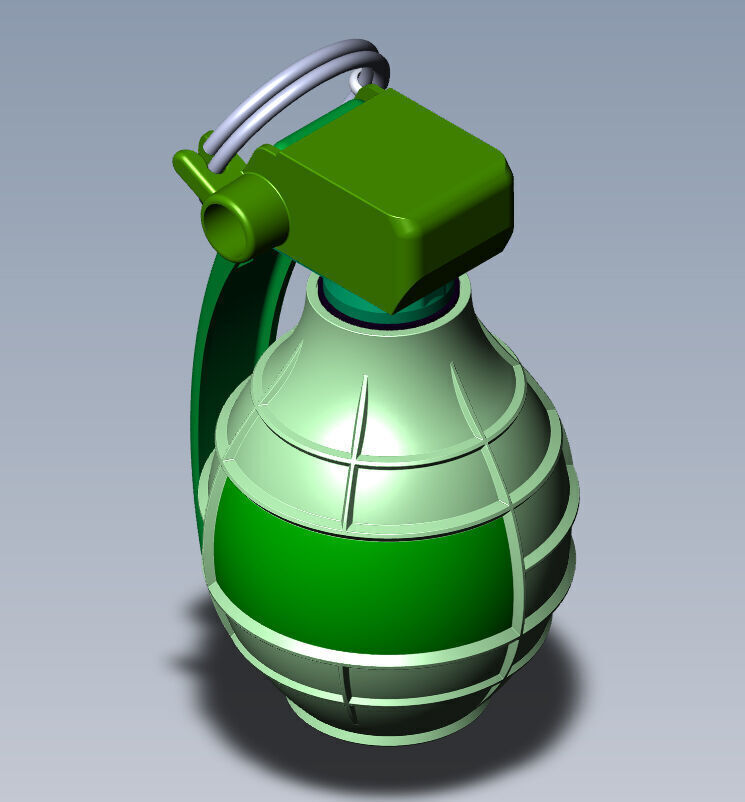

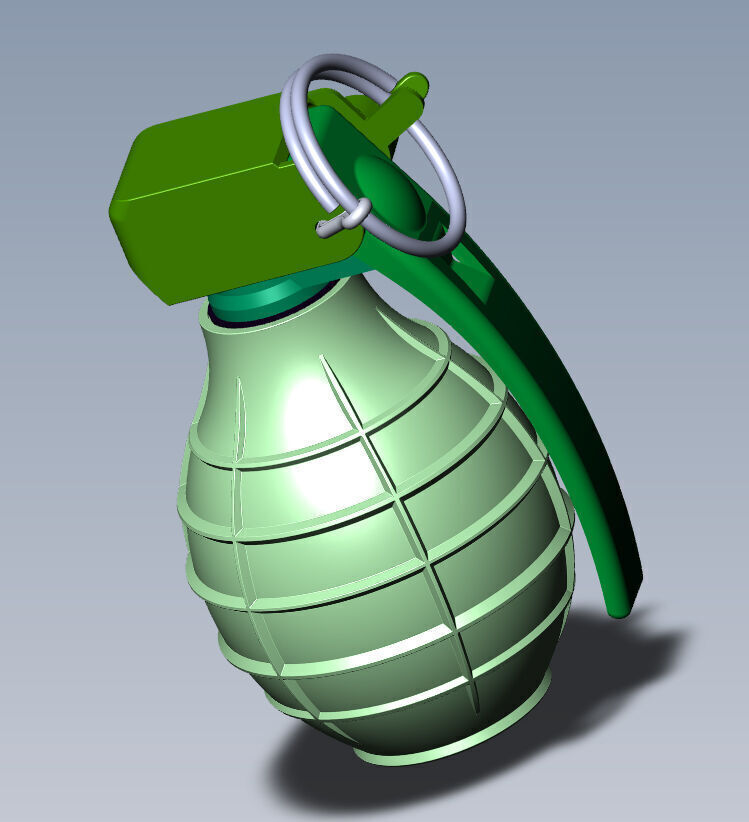

All prefabricated 3D models are made in original size (65x108x57mm.)The models are made in SolidWorks program.

They are intended primarily for 3D printing or CNC manufacturing of bench models - training models,
for use as a visual aid. The models are adapted for the possibility of manufacturing and

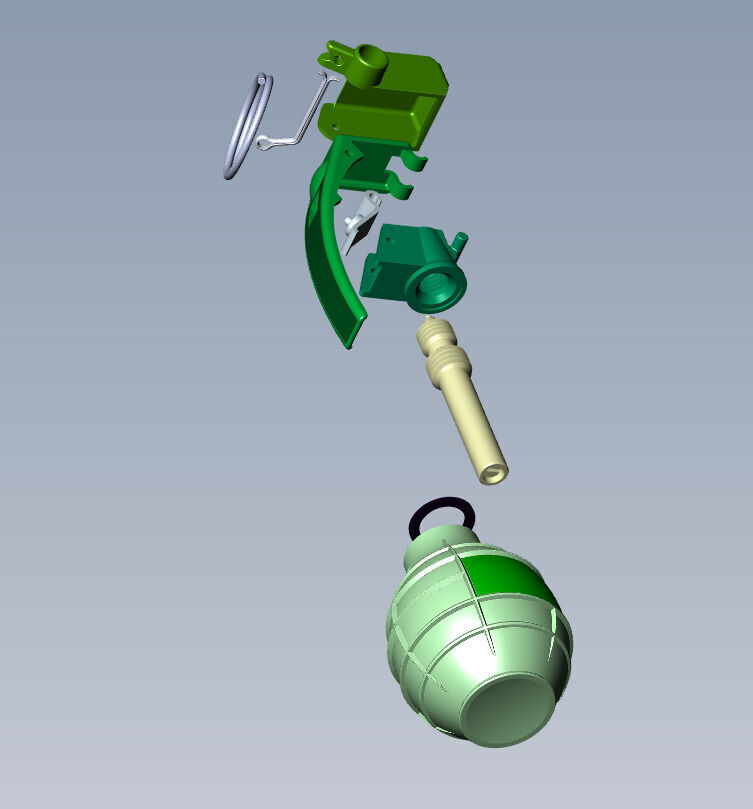

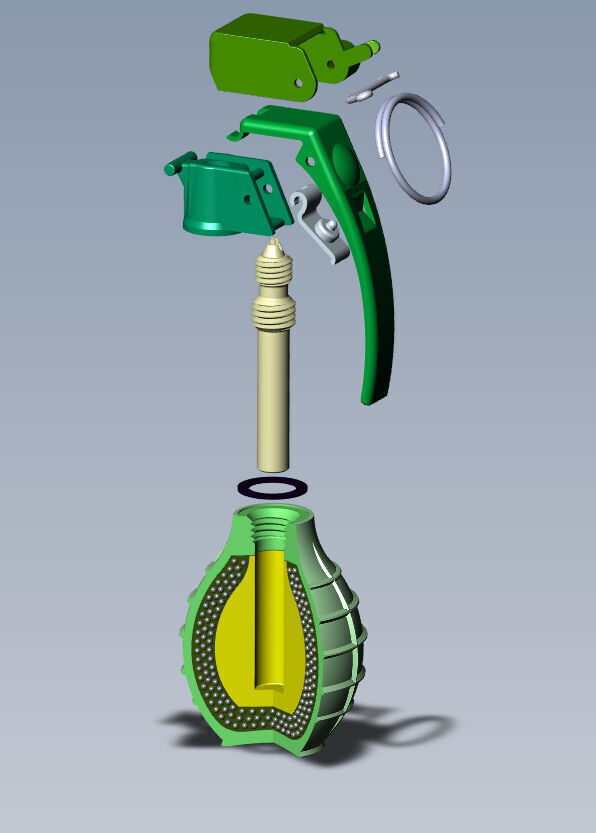

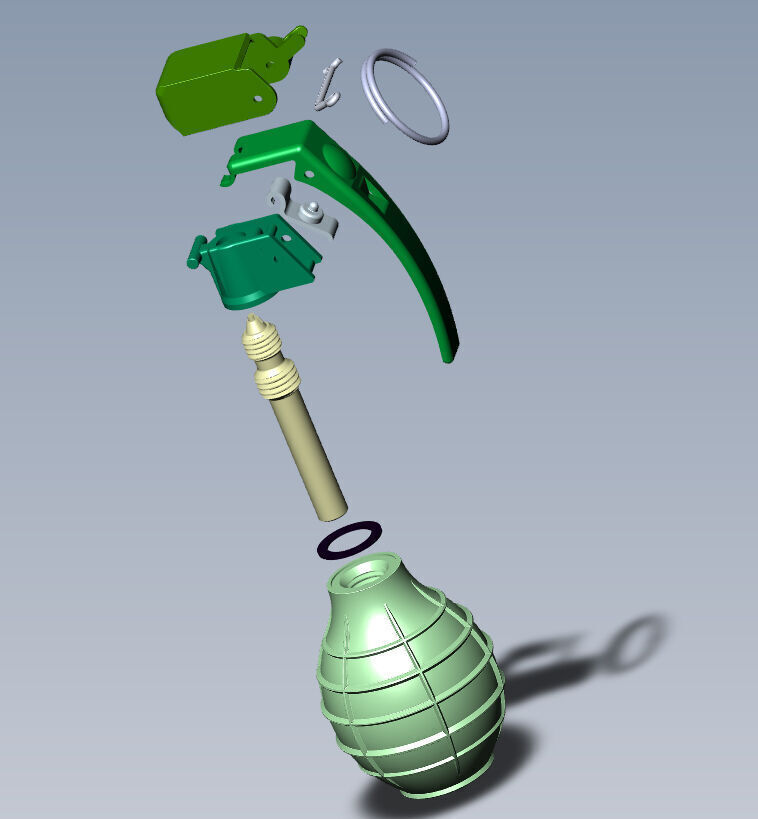

subsequent assembly of the product layout. The models are assembly models, contain files

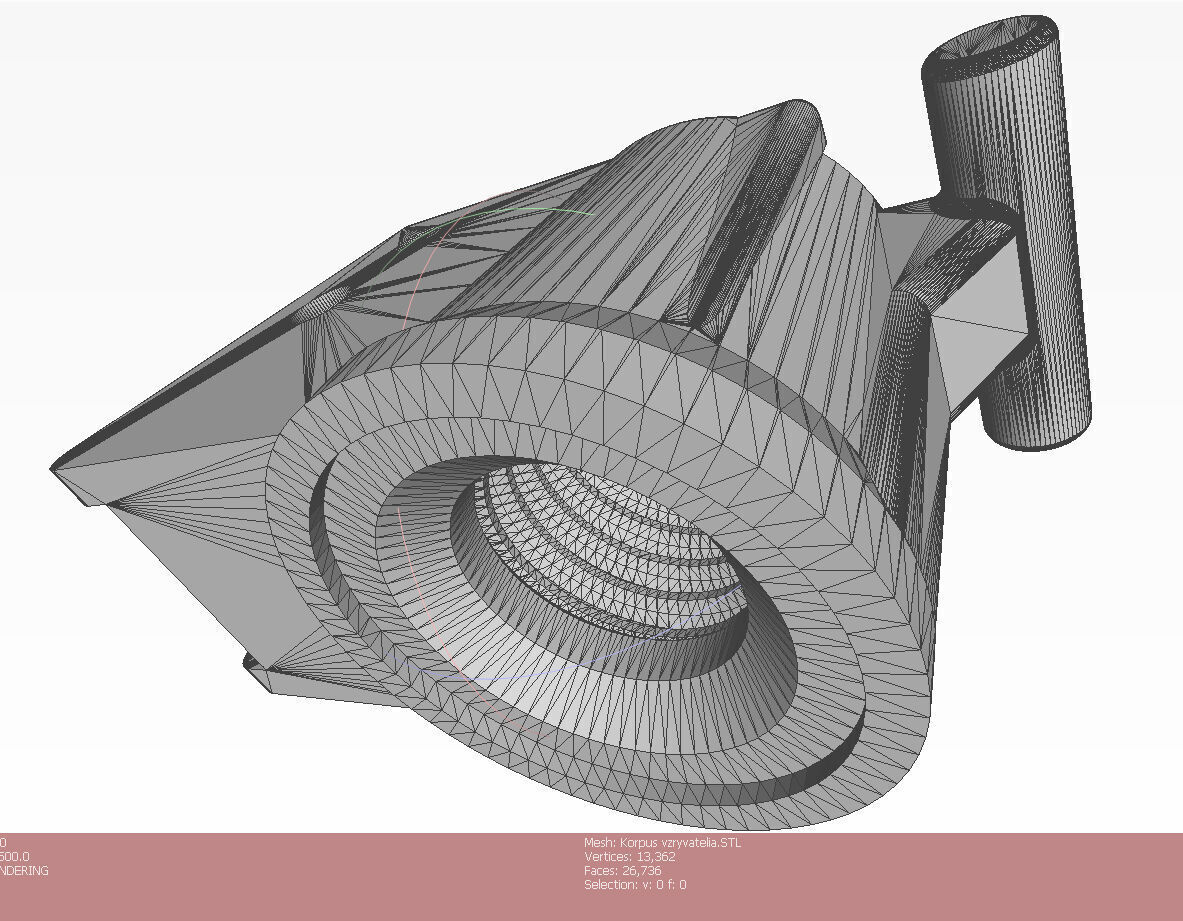

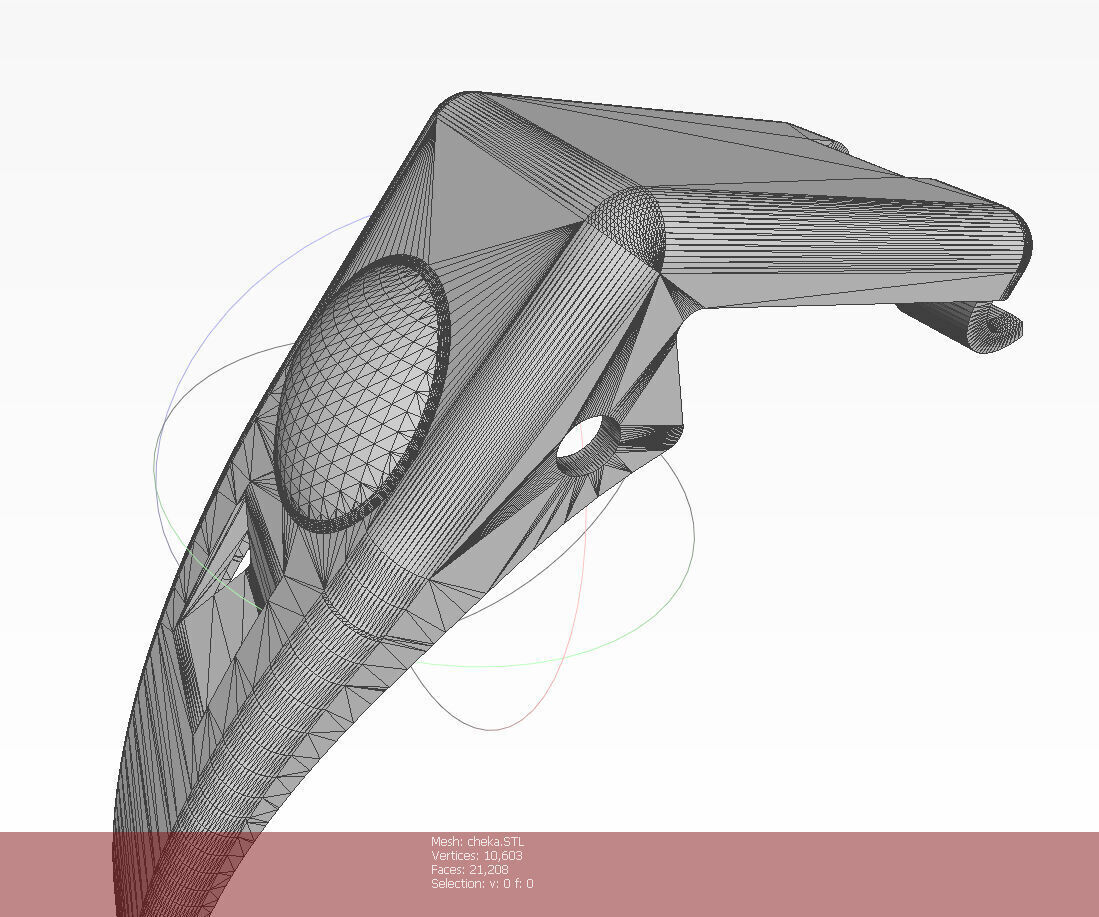

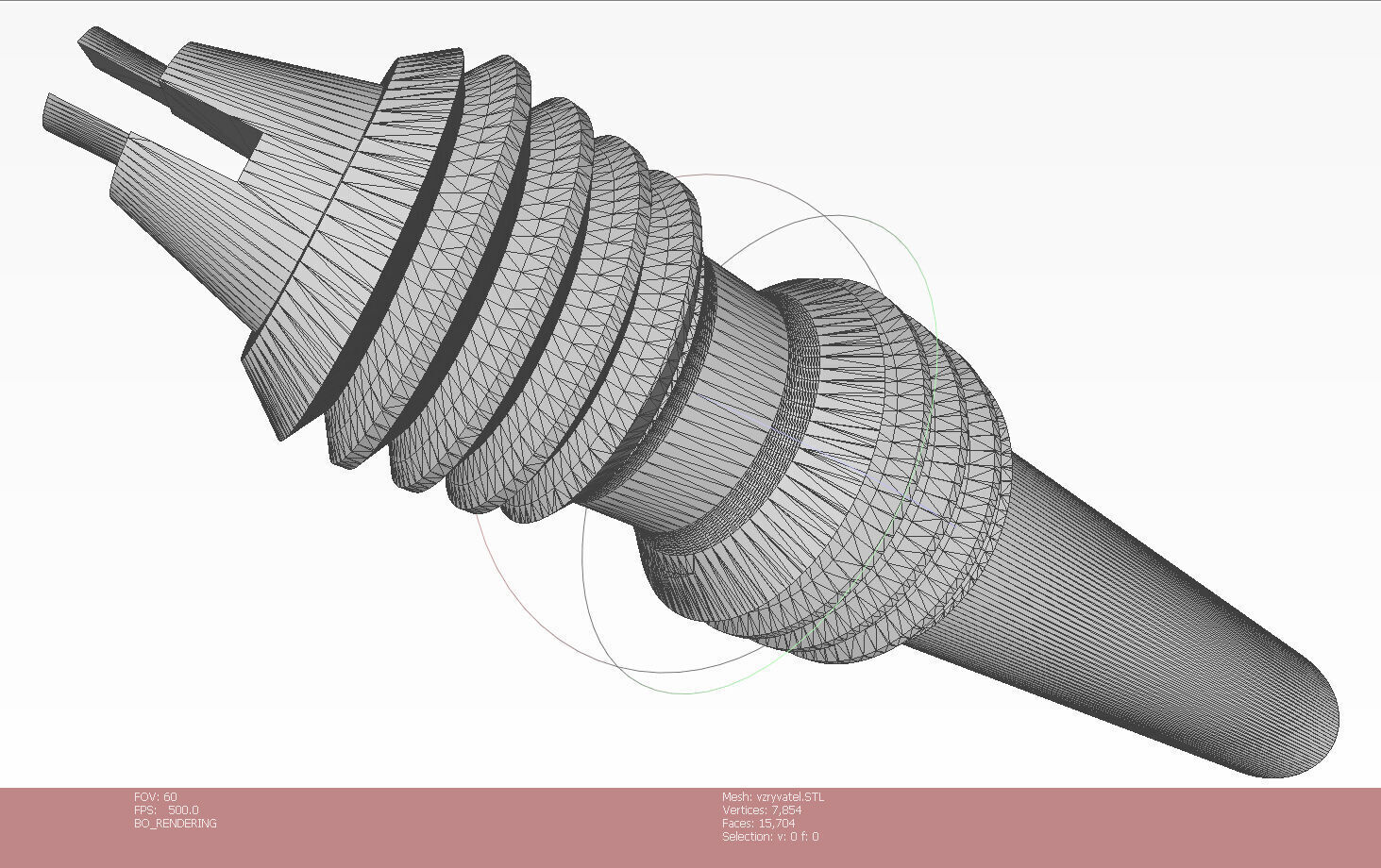

of all conditional parts (STL) in high-polygonal version to obtain qualitatively smooth forms.

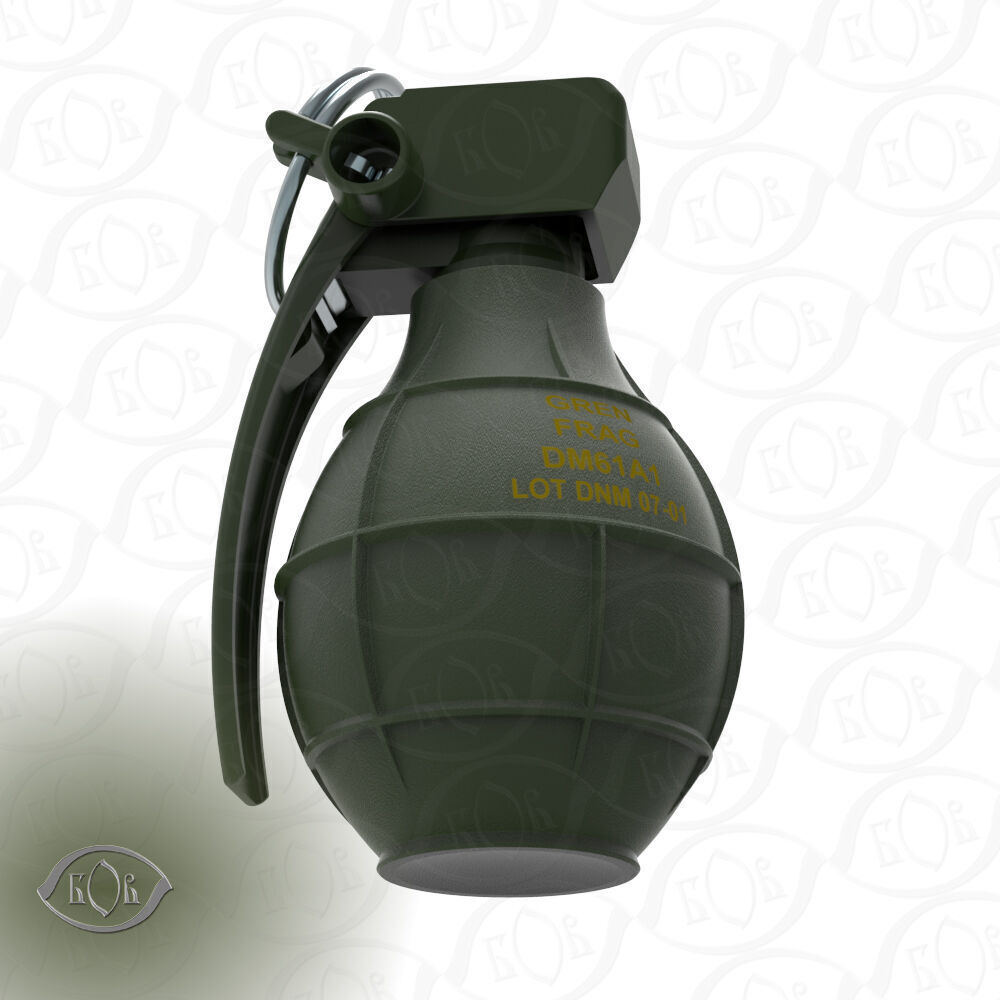

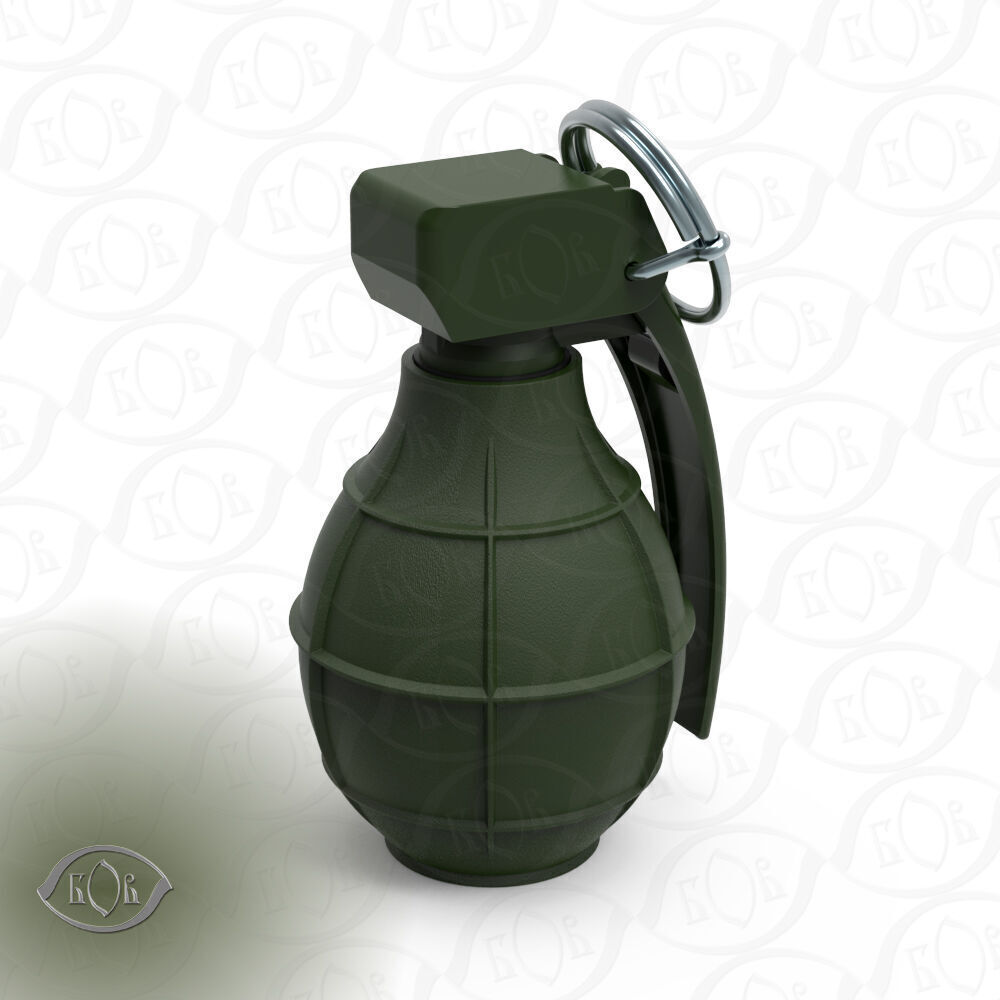

Additionally, the set contains all files for obtaining high-quality realistic close-up rendering
(smooth lines, selected, prepared surfaces - for applying materials or textures - Assigned materials

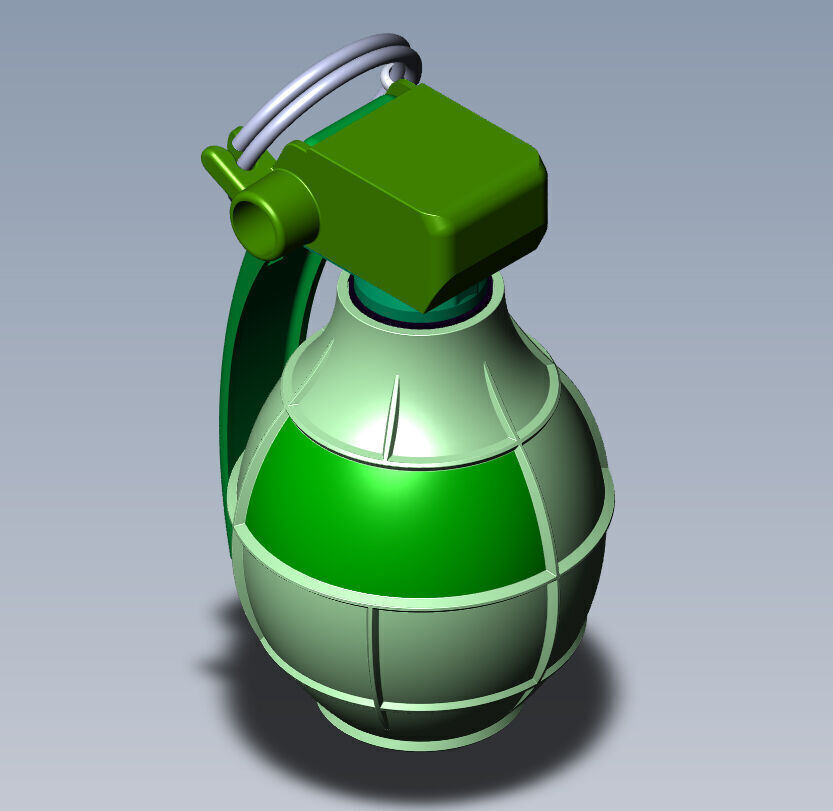

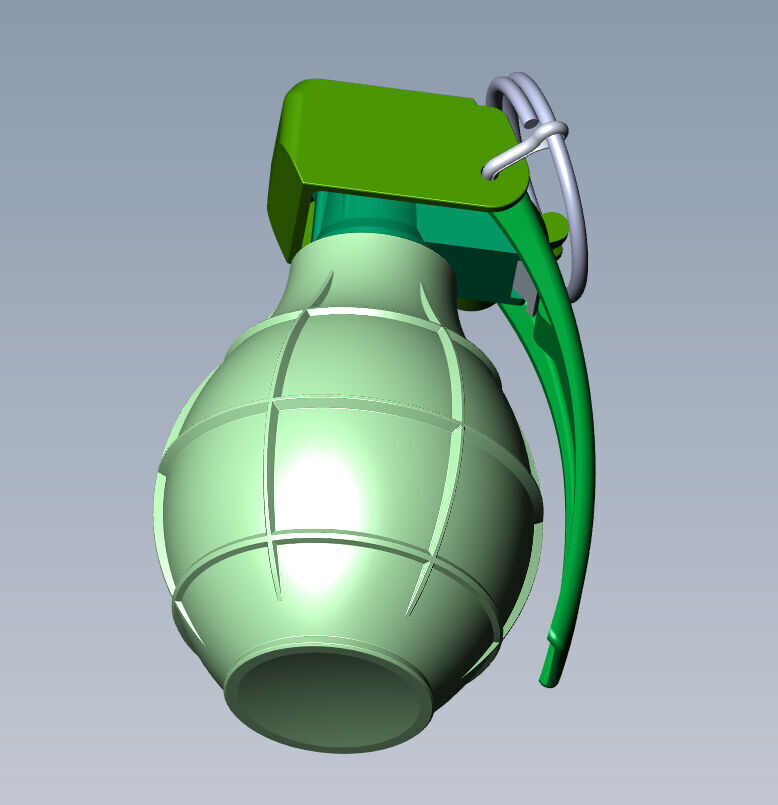

surfaces with conditional color markings), see the image of models and examples

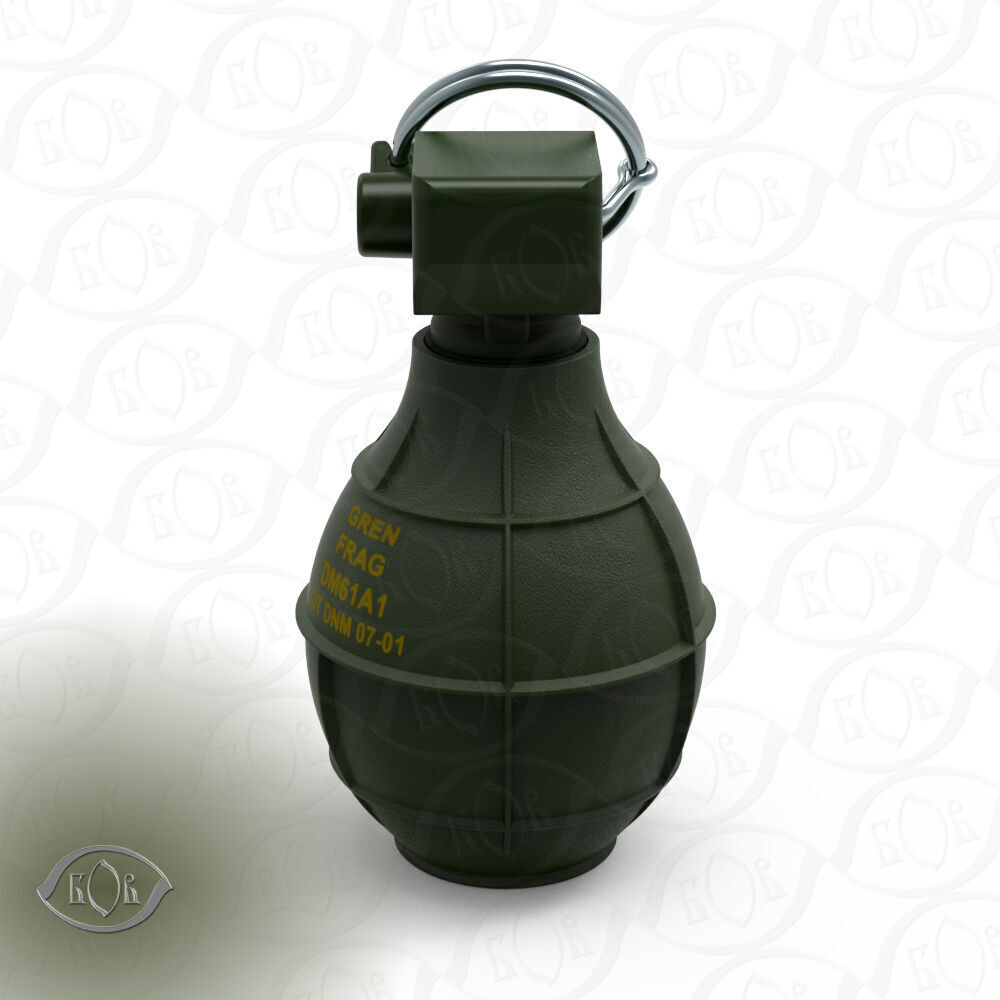

of 3D rendering results in specialized professional applications (for examples- KeyShot).
The kit contains a batch file of visualization in KeyShot (.ksp) Additionally,
the set contains marking textures - inscriptions to be applied to surfaces
(see rendering examples). In addition to solid model file formats, converted highly detailed
polygonal file formats are additionally provided.

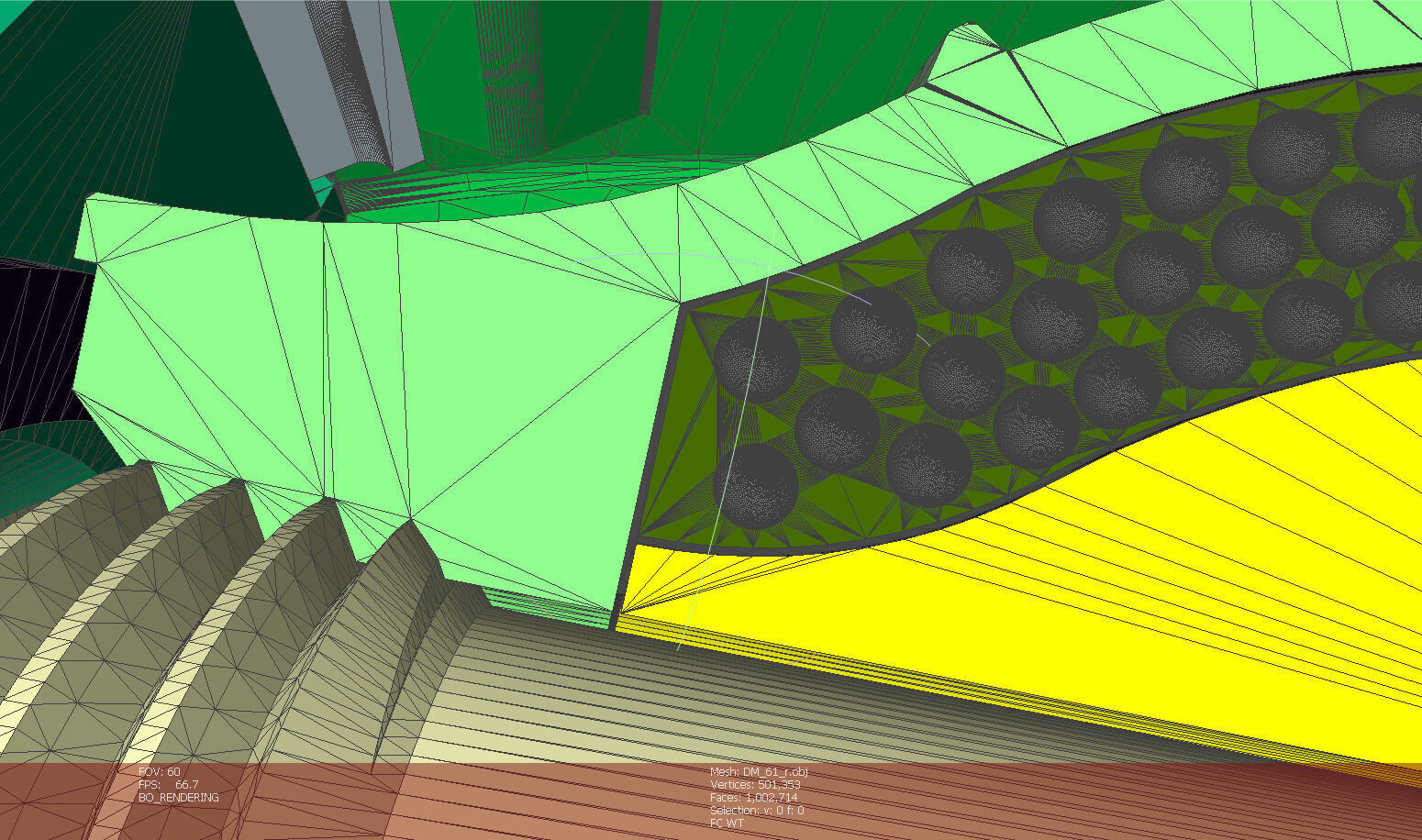

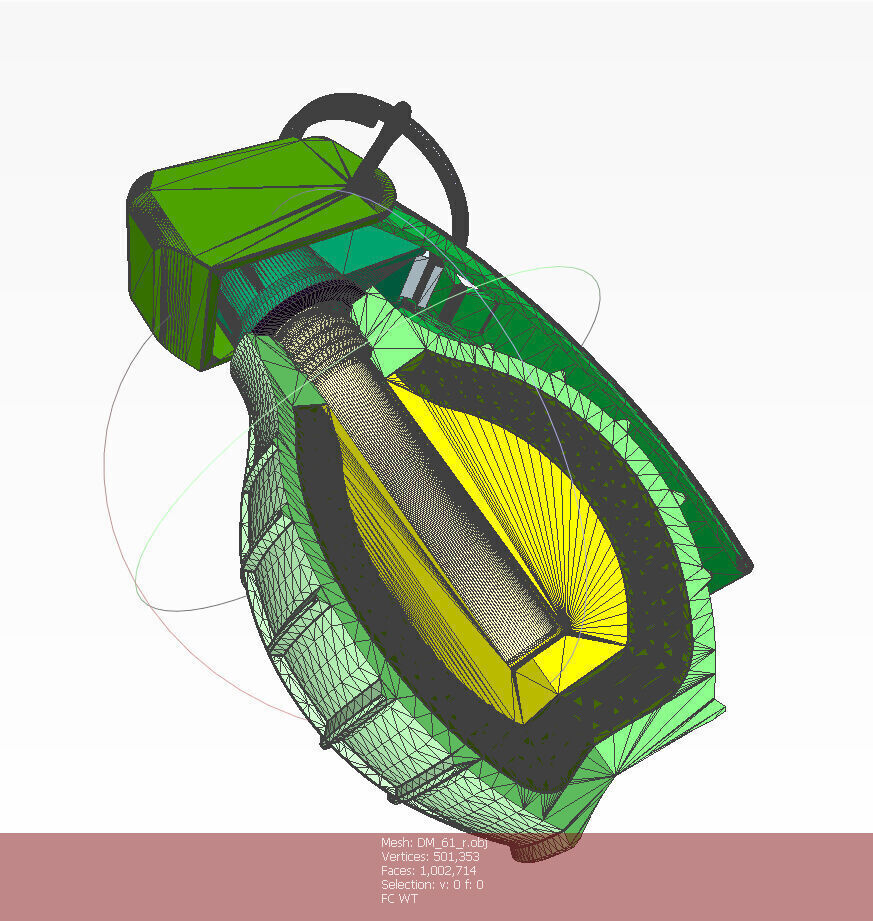

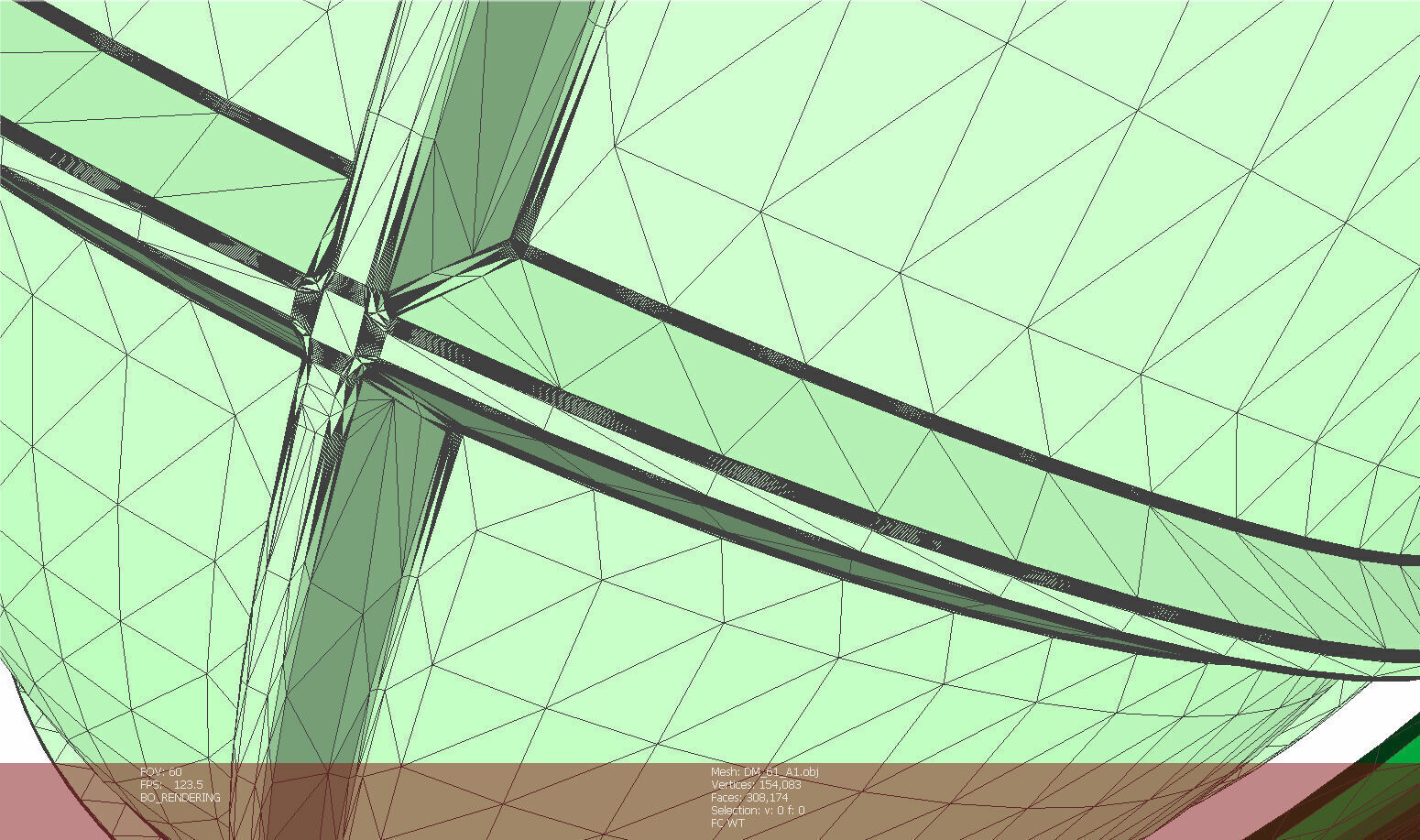

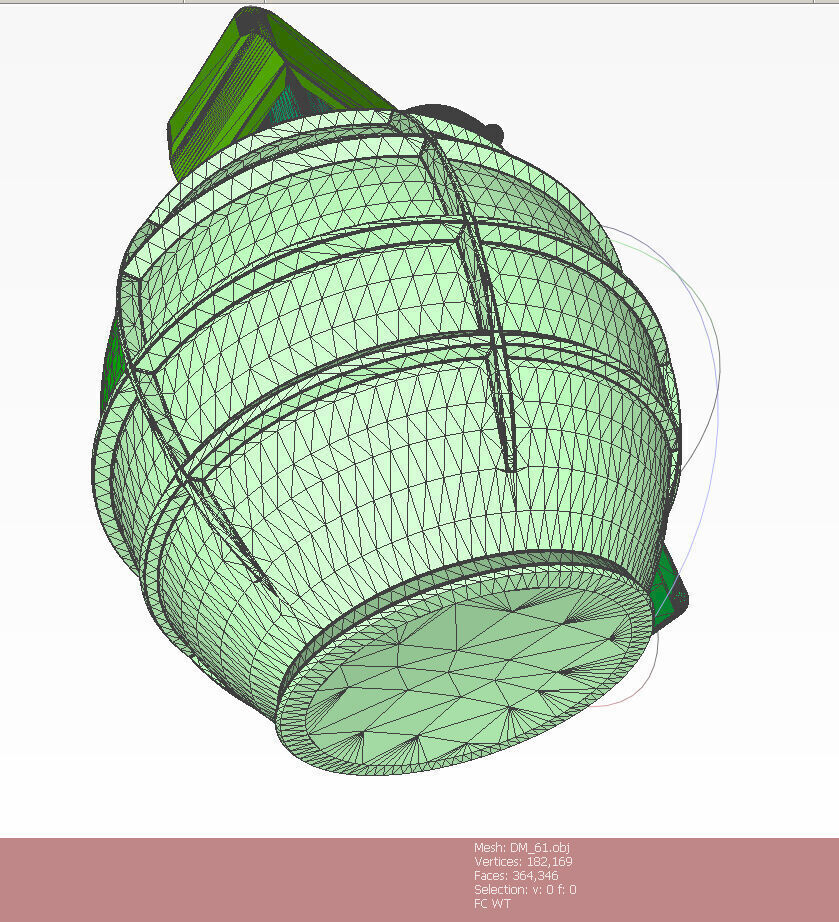

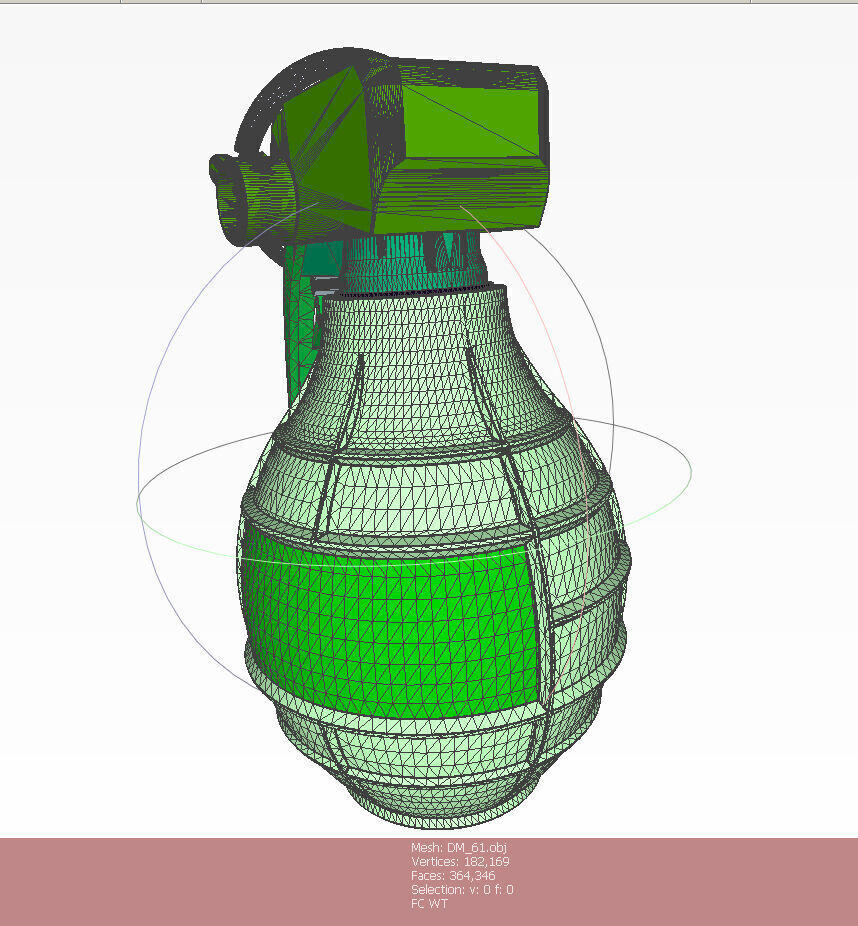

Mesh:
Vertices 182169
Faces 364346
(DM_61.obj)
Please rate and write a review about this model.
If you have any questions, please contact me.
Thank you.
Always willing to consider YOUR suggestions on price!
