High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

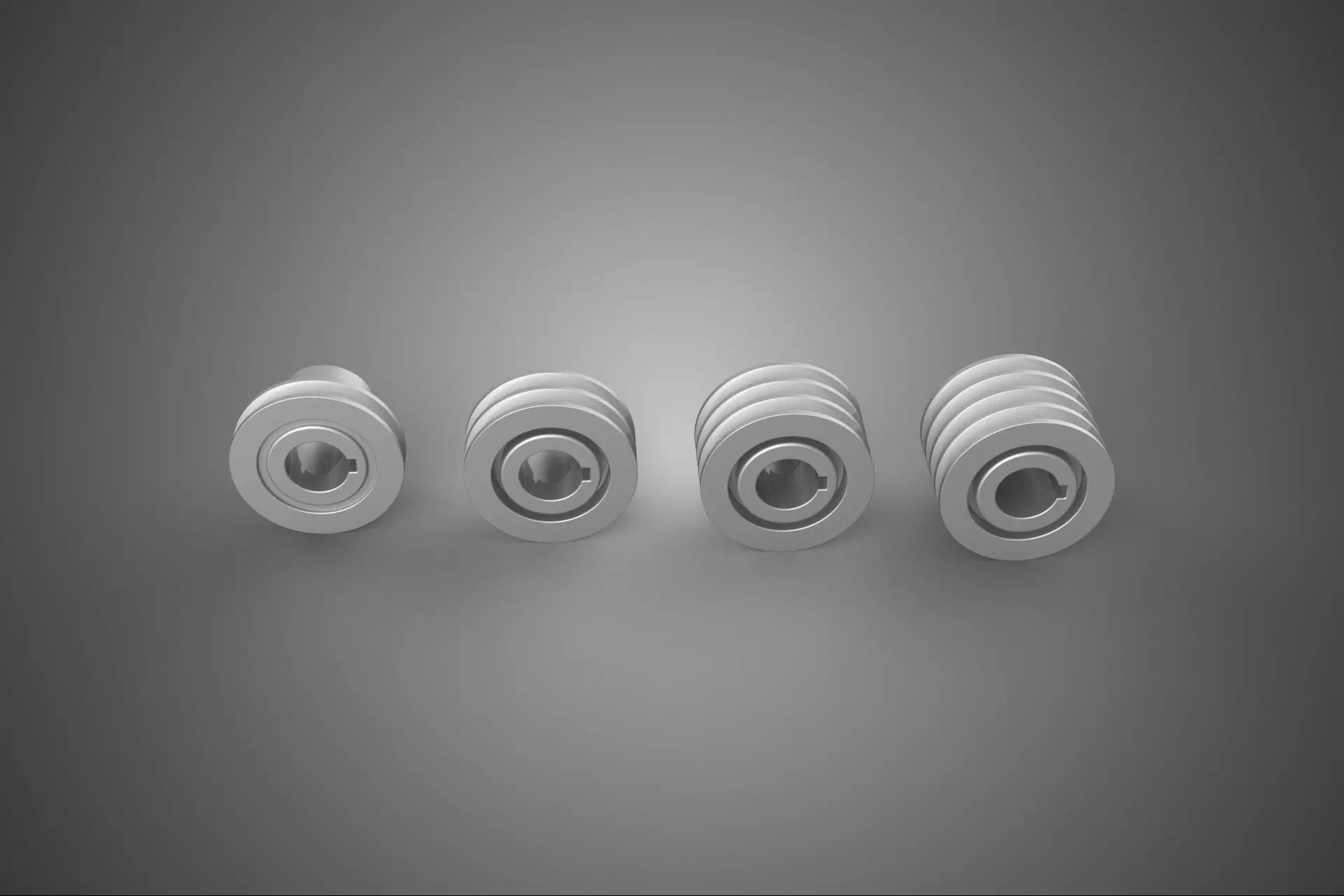

The component described by the synthesis MULTIPLE SIZE GROOVED PULLEY SHEAVE TRACK WHEEL DRIVE GEAR VBELT constitutes a complex, adaptable rotary element central to mechanical power transmission and guidance systems. This terminology often refers to a highly specialized sheave or a stepped pulley configuration designed for positive traction using a V-belt, frequently integrated into systems requiring variable speed ratios or high axial load bearing.
Nomenclature and Definition
Pulley/Sheave: While often used interchangeably, a sheave typically denotes a grooved wheel used to change the direction of a rope or cable (as in lifting systems), whereas a pulley usually defines a component used for power transfer via a belt. In the context of V-belts, the grooved rotary component is commonly termed a sheave or V-belt pulley.
Track Wheel: The inclusion of track wheel suggests that the component possesses robust lateral stability and may be utilized not only for torque transfer but also for guiding or supporting linear movement (e.g., in heavy machinery or conveyor systems). The groove geometry, therefore, must accommodate both belt engagement and potential track support requirements.
Grooved V-Belt Drive: The defining characteristic is the groove profile, which is specifically designed to accept a trapezoidal V-belt. The friction-based engagement occurs primarily on the sidewalls of the groove, enhancing torque transmission efficiency and minimizing slippage compared to flat belt systems. These grooves adhere to standardized profiles (e.g., ISO, RMA, DIN) such as A, B, C, D, 3V, 5V, or 8V, dictated by the required load capacity and pitch diameter.
Design and Engineering Specifications
The designation MULTIPLE SIZE implies dimensional variability, typically manifesting in one of two configurations:
- Stepped Pulleys (Cone Pulleys): A single rotary unit featuring two or more different groove diameters machined concentrically. This design is fundamental to achieving speed regulation or torque variation. By shifting the V-belt from one groove step to another, a discrete change in the speed ratio ($N_{out}/N_{in}$) is achieved without modifying the prime mover speed.
- Interchangeable Hub Systems: The use of standardized sheaves with various pitch diameters, often mounted using quick-change bushing systems (e.g., taper-lock or QD bushings). This allows mechanical systems to be rapidly reconfigured to meet changing operational requirements.
The pitch diameter of the pulley is critical, determining the belt speed and the mechanical advantage derived from the drive ratio. The drive system, whether serving as a compound drive or a simple reduction, must manage high tensile stress on the belt and appropriate axial and radial bearing loads on the shaft.
### Functional Applications
A multiple size grooved pulley system provides a robust solution for environments requiring flexibility in mechanical output. Primary functions include:
- Speed and Torque Modulation: Essential in machine tools (e.g., lathes, drill presses) and variable-speed machinery where the operator needs to manually select specific speeds for different tasks or materials.
- Power Transmission: Transferring rotary power efficiently from a motor (drive gear) to a driven component, often involving high angular velocities or significant torque multiplication.
- Guidance and Support: When acting as a track wheel, the component guides linear motion systems, such as automated guided vehicles (AGVs) or heavy-duty sliding gates, simultaneously utilizing the grooved surface for V-belt propulsion.
### Materials and Manufacturing
Due to the demands of friction engagement and dynamic loading, these components are typically manufactured from durable materials:
- Cast Iron (ASTM A48 Class 30/35): Common for large-diameter, heavy-duty applications, prized for its rigidity and damping properties.
- Steel (Machined and often Hardened): Used when extreme load or precise geometry is necessary.
- Aluminum (Cast or Die-Formed): Employed in lightweight, high-speed applications where inertia reduction is critical.
Manufacturing involves precise machining of the groove walls to ensure proper belt seating (the included angle is standardized, typically 34° to 38°), dimensional accuracy of the pitch diameter, and dynamic balancing to minimize vibration at operating speeds.
KEYWORDS: V-Belt Drive, Sheave, Pulley, Track Wheel, Grooved Wheel, Stepped Pulley, Power Transmission, Speed Ratio, Torque Transfer, Compound Drive, Variable Speed, Mechanical Advantage, Pitch Diameter, V-Belt Groove, Taper Bushing, Quick Detach, Bearing Load, Axial Load, Radial Load, Power Train, Friction Drive, Trapezoidal Belt, Drive Gear, Transmission System, Machinery Component, Dynamic Balancing, Machine Tool, V-Section, Rotary Component, Drive Mechanism.
