Build your own professional belt grinder machine for metalworking and knife making. Complete metric CAD package including DXF, STEP, PDF technical drawings, assembly drawings and manufacturing details.

In this version, you can access the Belt Grinder and all its attachments that we sell.

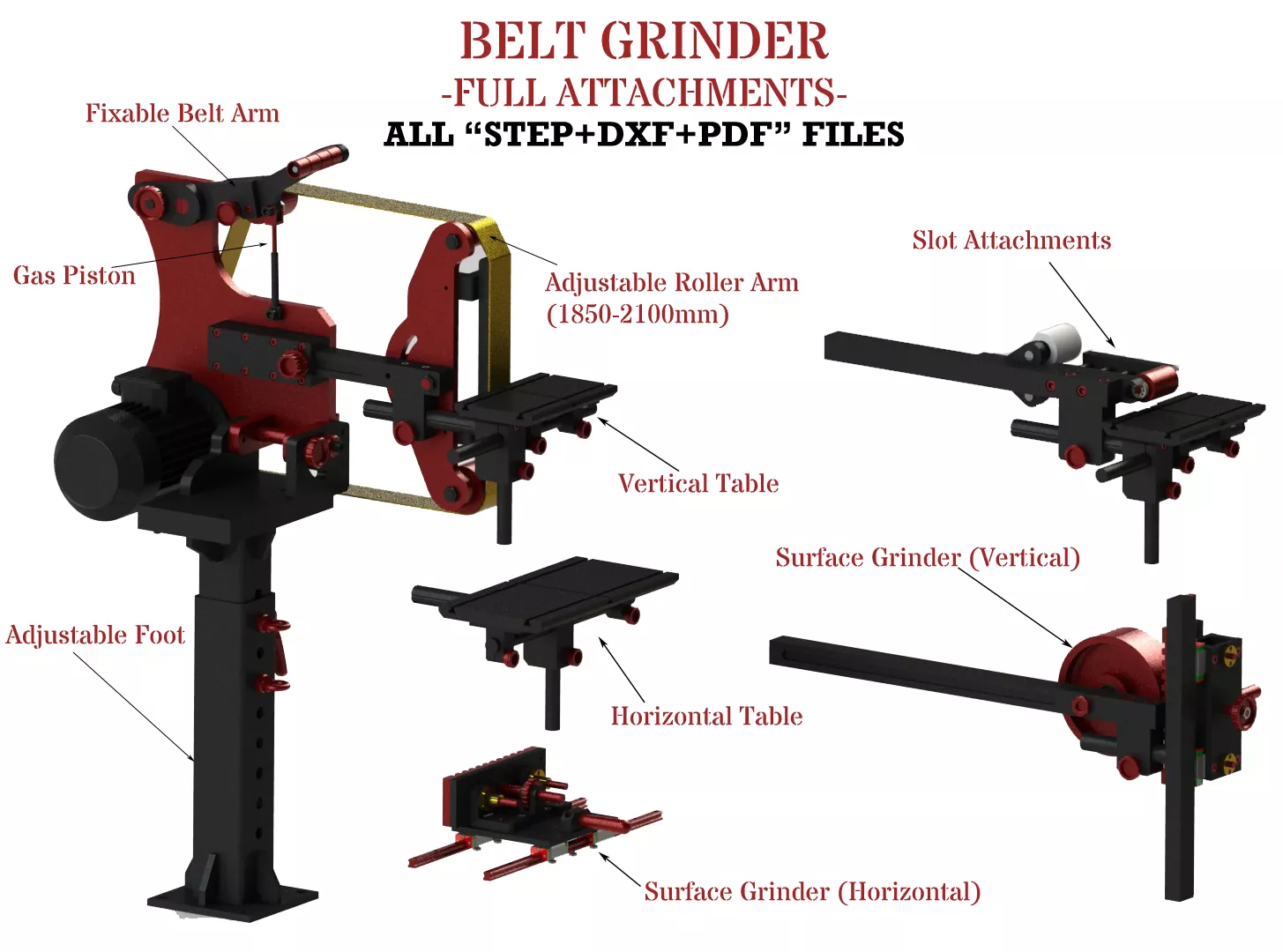

There are many Belt Grinder models available digitally.The Belt Grinder machine we modeled is a more useful, professional tool designed to meet more needs in different working environments.

7 different versions of the product sold were modeled and developed. At our latest point, improvements and developments have been made to facilitate installation. Optional suggestions and notes have been added to some part detail drawings.

Belt Grinder, whose digital files are available for sale, is a professional tool. It is a tool that you can manufacture with the help of machining machines such as lathes and milling machines.

Belt sander width is 60mm and length varies between 1850-2100mm. If desired, the Adjustable Roller Arm can be manufactured longer and revised to a band length above +2100mm.

Thanks to its adjustable legs, it allows you to work sitting or standing.

It has two different tables that you can use in horizontal and vertical positions.

It allows grinding at different angles thanks to the adjustable Belt Tension Arm.

Thanks to the Gas Piston lock system, it does not throw back when changing the belt. It allows faster and safer belt replacement.

Thanks to the Slot Attachment, grinding of different diameters can be done.

There are two different surface grinding attachments that we designed as horizontal and vertical.

Detailed 2D technical drawings of all parts are provided. (as PDF file)2D assembly drawings are provided in detail and in different views. (as PDF file)DXF files of all parts that can be laser cut are available. (1/1 scale)List of all parts and their quantities as an Excel file. The dimensions of the parts to be manufactured and the type of machining are given.

It consists of 376 parts in total by combining 154 different parts.(Number of different parts to be machined: 105 pcs - [Total: 169 pcs] )(Number of different parts ready to purchase: 49 pcs - [Total: 207pcs] )

The product sold includes technical drawings only. (STEP, PDF & DXF files - Physical item not included)
