More Information About 3D Model :

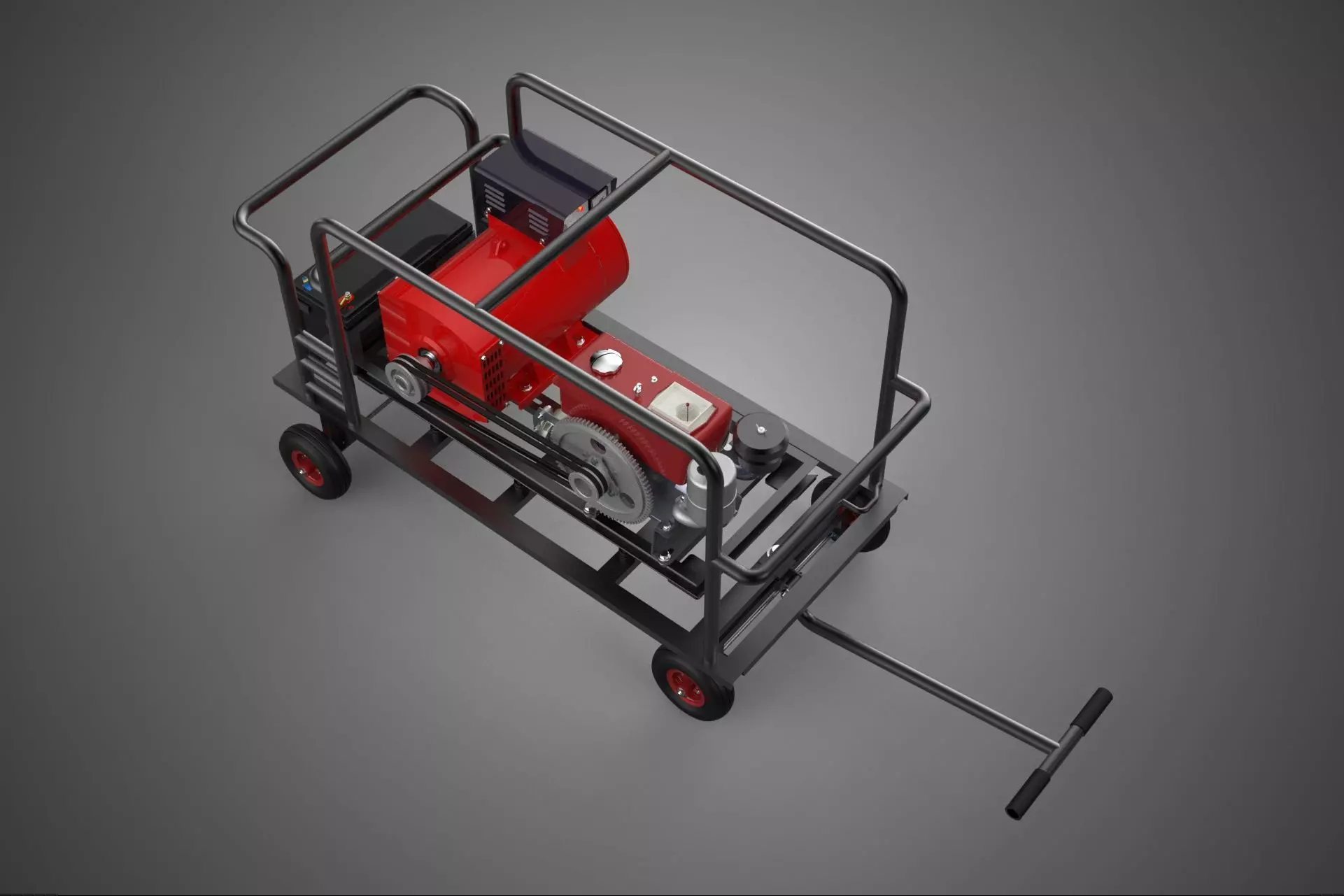

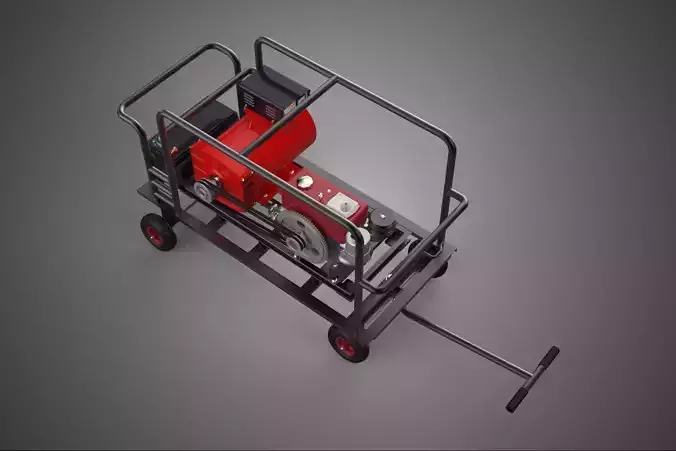

Engine-Driven Diesel Welding Generator Set (ARC WELD WELDER WELDING MACHINE POWER DIESEL GENERATOR GENSET KW)
An engine-driven diesel welding generator set, often categorized under the formal terminology of a Mobile Welding Power Source or Welding Genset, is a specialized piece of industrial equipment that integrates a diesel engine (the prime mover) with an electrical generator engineered to produce the necessary characteristics for arc welding processes. This apparatus functions independently of grid power, making it essential for construction, infrastructure development, pipeline welding, and emergency field repairs in remote or undeveloped locations.
Technical Configuration and Principle of Operation
The system operates by converting the chemical energy stored in diesel fuel into mechanical rotational energy via the internal combustion engine. This mechanical energy drives an integrated electrical generator, which produces the required electrical output. Unlike standard power generators (designed for resistive or inductive loads requiring stable voltage and frequency), welding gensets are optimized to provide high current at relatively low voltages, exhibiting specialized dynamic characteristics essential for maintaining a stable arc.
Prime Mover (Diesel Engine)
Diesel engines are overwhelmingly preferred for high-amperage welding applications due to their superior fuel economy, high torque output at low revolutions per minute (RPM), and robust reliability, which translates into lower operating costs and extended operational endurance required for demanding industrial duty cycles. The engine's speed control is critical, often regulated by a sophisticated governor system that maintains consistent RPM under the sudden, massive load fluctuations inherent in striking and maintaining an electric arc.
Generator Section
The generator component is specifically designed for the dynamic load requirements of welding. Welding power sources typically provide one or both of the fundamental output types:
- Constant Current (CC) Output: Used primarily for Manual Metal Arc Welding (SMAW), Gas Tungsten Arc Welding (GTAW), and certain types of cutting. The CC characteristic ensures that the output amperage remains relatively stable despite minor fluctuations in arc length and voltage, which is crucial for controlling penetration and bead profile.
- Constant Voltage (CV) Output: Used predominantly for high-production processes like Gas Metal Arc Welding (GMAW) and Flux-Cored Arc Welding (FCAW). The CV output ensures that the voltage remains stable while the current adjusts based on the wire feed speed.
Modern welding gensets often utilize high-frequency inverter technology integrated with the generator output to improve arc stability, reduce physical size, and increase overall energy efficiency compared to traditional magnetic amplifier or rotating machinery designs.
### Operational Parameters and Power Rating (KW/Amperage)
The rating of a welding genset is typically defined by two primary measurements: welding output (Amperage) and auxiliary power output (Kilowatts, KW).
#### Welding Output
Welding capacity is specified in maximum amperage (A) and the corresponding duty cycle. Duty Cycle is a crucial metric, defined as the percentage of a ten-minute period during which the machine can operate safely at its maximum rated output current. For instance, a machine rated at 300 A at a 60% duty cycle can deliver 300 amperes continuously for six minutes out of every ten-minute interval without overheating. Industrial-grade diesel units typically feature duty cycles exceeding 60% at their maximum rated output.
#### Auxiliary Power (KW/kVA)
Many welding gensets are equipped to deliver simultaneous auxiliary power (often 120 V or 240 V AC) for powering tools, lighting, and peripheral equipment on the job site. This output is rated in Kilowatts (KW) for real power or Kilovolt-Amperes (kVA) for apparent power. The KW rating is limited by the total generating capacity of the engine and the generator’s design; the auxiliary load capacity decreases proportionally when the welding function is concurrently active.
### Applications
Diesel welding gensets are indispensable in sectors where reliability and mobility are paramount. Key areas of deployment include:
- Pipeline Construction: Requiring high deposition rates and consistent CC output across vast stretches of terrain.
- Heavy Construction and Mining: Providing power for structural welding and equipment repair in remote locations.
- Railroad Maintenance: Mobile repair and fabrication of rail infrastructure.
- Emergency Response and Disaster Relief: Acting as a self-contained power source for critical repairs when utility infrastructure is compromised.
The combination of robust power generation and precise arc characteristics ensures that these machines meet stringent regulatory standards for quality welding in demanding environments.
