DESCRIPTION

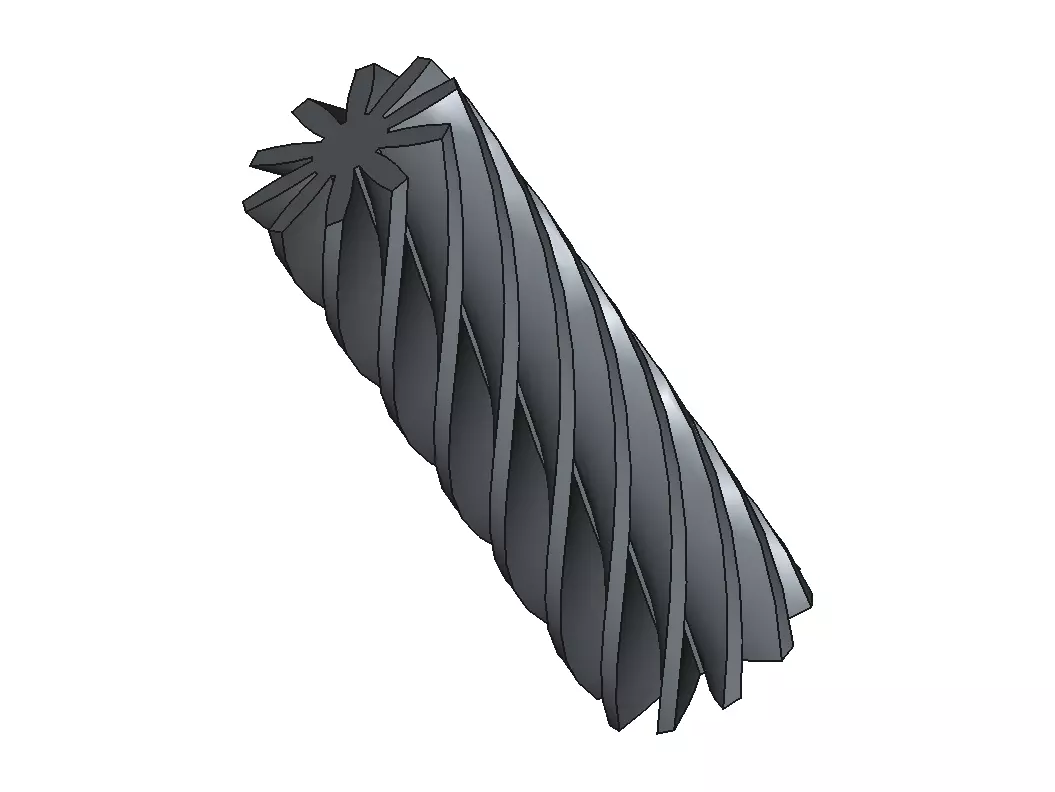

High-quality worm gear 3D model designed for smooth and efficient power transmission in mechanical systems. This model is built using precise geometric parameters, ensuring realistic performance and accurate representation for engineering simulations, CAD assemblies, rendering, and 3D printing.

The gear features a high lead angle (63.43°) for faster motion transfer and a 20° pressure angle, making it suitable for standard mechanical applications. Clean topology and optimized geometry ensure excellent usability across multiple platforms.

Technical Details

SpecificationsType: Worm GearDiameter (d): 5 mmLength (L): 20 mmNumber of Threads (Z): 10Lead Angle (β): 63.43°Pressure Angle: 20°

3D Model InfoScale: Real-world (millimeters)Units: mmGeometry: Polygonal meshTopology: Clean and optimizedAccuracy: Based on standard gear geometry

Related Tagswormdrivehelicalmechanicalpowertransmissiongearboxmechanismcadstlstepengineeringindustrialmachineelementdesignrealisticprecision
