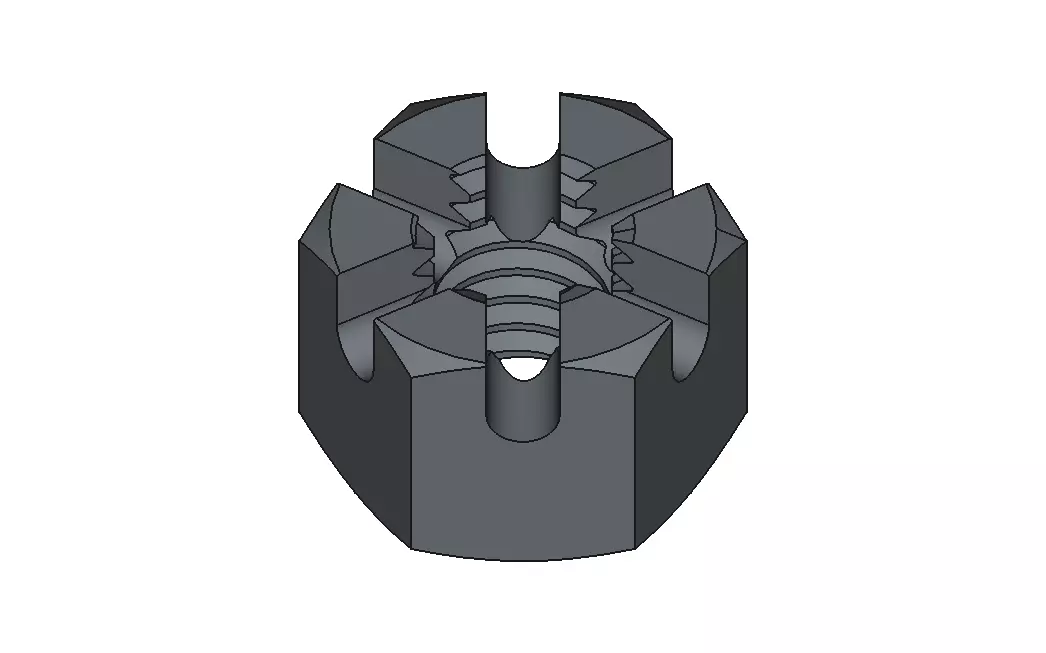

M4 castle nut 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

Precision-engineered M4 Castle Nut (DIN 935) designed for secure fastening in mechanical and industrial applications. This model features a castellated (slotted) design, allowing the use of a cotter pin to prevent loosening under vibration—ideal for automotive, machinery, and engineering assemblies.

The 3D model is built with accurate real-world dimensions, clean geometry, and optimized topology, making it perfect for CAD projects, product visualization, rendering, and 3D printing. Lightweight yet detailed, it ensures smooth performance without compromising quality.

Technical Details

SpecificationsThread Size: M4 × 0.7 (Metric Coarse)Standard: DIN 935Wrench Size (Across Flats): 7 mmHeight:Full (DIN 935): ~5.0 mm

3D Model InfoScale: Real-world (millimeters)Units: mmGeometry: Polygonal meshTopology: Clean and optimizedAccuracy: Based on standard engineering dimensions

Related Tagsnutcastlehexfastenermechanicalengineeringindustrialcadstlsteppinlockingprinting
