Sanitary Diaphragm Valve Complete Set Hand 1-2 in to 2-1-2 in 3D model

This package includes a complete 3D CAD library of sanitary diaphragm valves TC with manual handwheel, covering 6 standard sizes from 1-2 inch (Ø12.7 mm) up to 2-1-2 inch (Ø63.5 mm).

Each model was created from scratch with engineering precision, including the manual handwheel and tri-clamp connections on both ends.These valves are ready for integration into industrial piping projects in the food, beverage, pharmaceutical, and chemical industries, where hygienic design is essential.

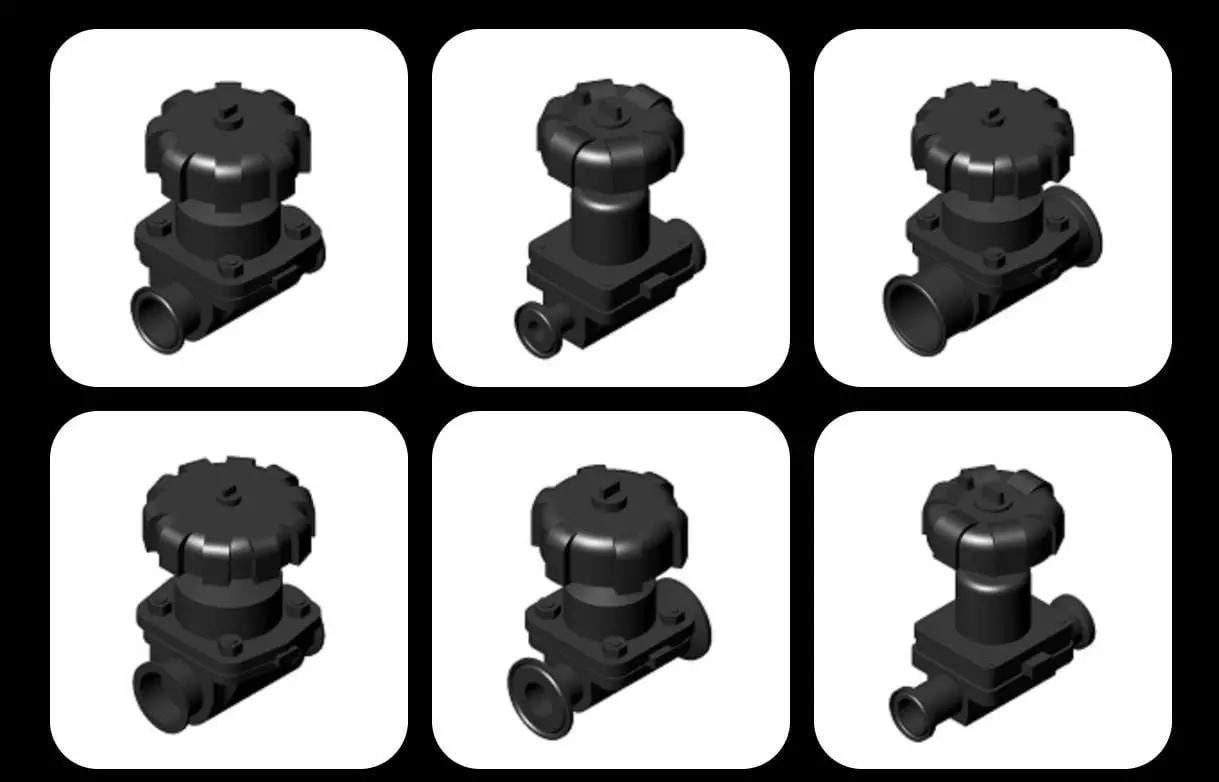

Content included (6 sizes):

Sanitary Diaphragm Valve TC 1-2 inch (Ø12.7 mm)

Sanitary Diaphragm Valve TC 3-4 inch (Ø19.05 mm)

Sanitary Diaphragm Valve TC 1 inch (Ø25.4 mm)

Sanitary Diaphragm Valve TC 1-1-2 inch (Ø38.1 mm)

Sanitary Diaphragm Valve TC 2 inch (Ø50.8 mm)

Sanitary Diaphragm Valve TC 2-1-2 inch (Ø63.5 mm)

File formats delivered:

.DWG (AutoCAD / Plant 3D)

.STEP (neutral CAD format for Inventor, SolidWorks, Fusion 360, FreeCAD, etc.)

Main benefits:

Save dozens of engineering hours with a ready-to-use CAD library.

Clean geometry optimized for sanitary piping projects.

Includes manual handwheel + tri-clamp details.

Organized by size and delivered in two widely compatible formats.

Compatible with major CAD platforms.
