This package includes a complete 3D CAD library of sanitary ball valves TC with manual handle, covering 8 standard sizes from 1-2 inch (Ø12.7 mm) up to 4 inch (Ø101.6 mm).

Each model was created from scratch with engineering precision, including the manual operating handle and tri-clamp connections on both ends.These valves are ready for integration into industrial piping projects in the food, beverage, pharmaceutical, and chemical industries.

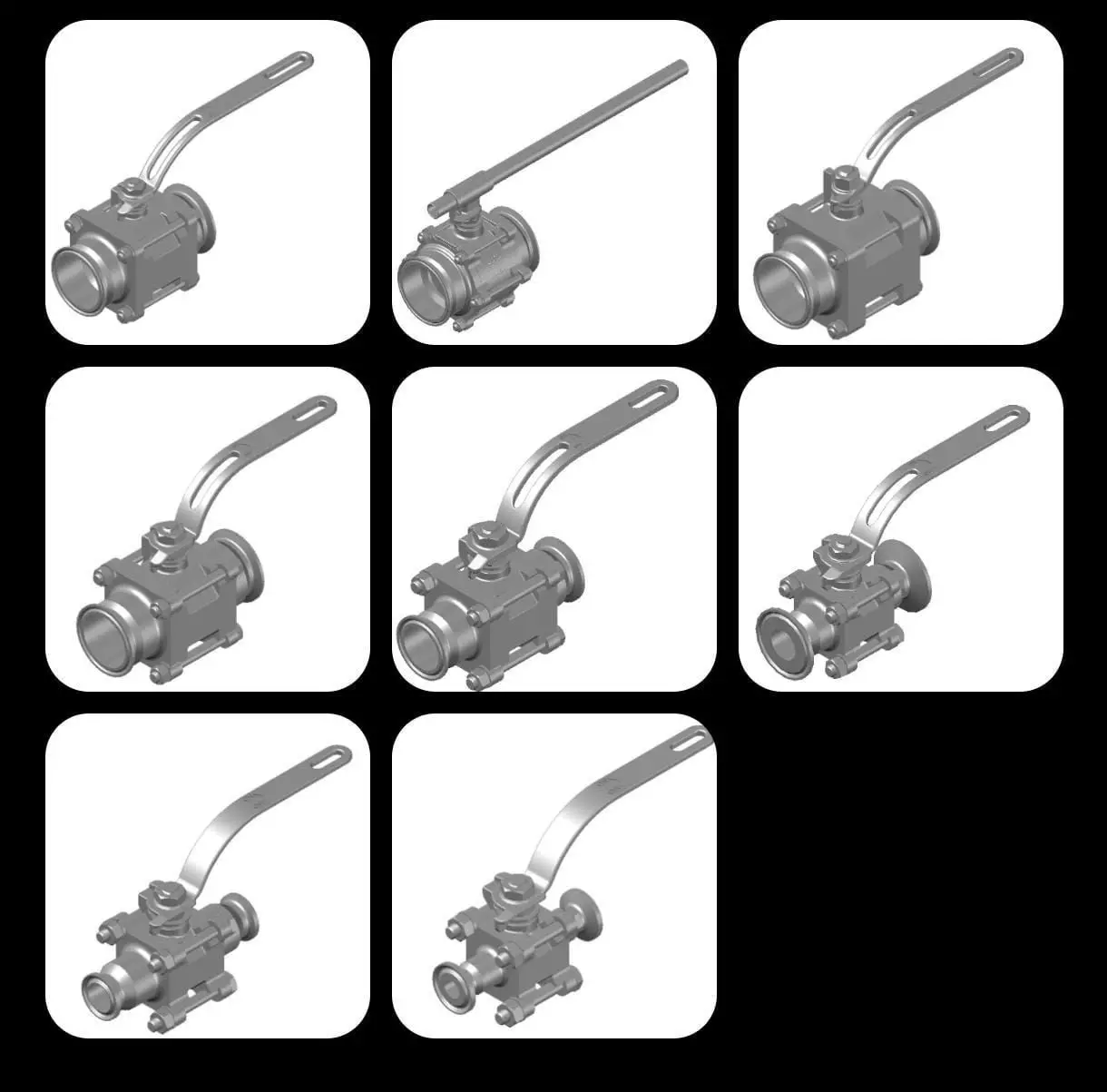

Content included (8 sizes):

Sanitary Ball Valve TC 1-2 inch (Ø12.7 mm)

Sanitary Ball Valve TC 3-4 inch (Ø19.05 mm)

Sanitary Ball Valve TC 1 inch (Ø25.4 mm)

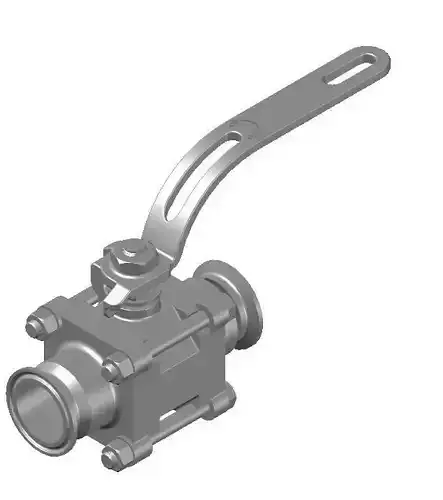

Sanitary Ball Valve TC 1-1-2 inch (Ø38.1 mm)

Sanitary Ball Valve TC 2 inch (Ø50.8 mm)

Sanitary Ball Valve TC 2-1-2 inch (Ø63.5 mm)

Sanitary Ball Valve TC 3 inch (Ø76.2 mm)

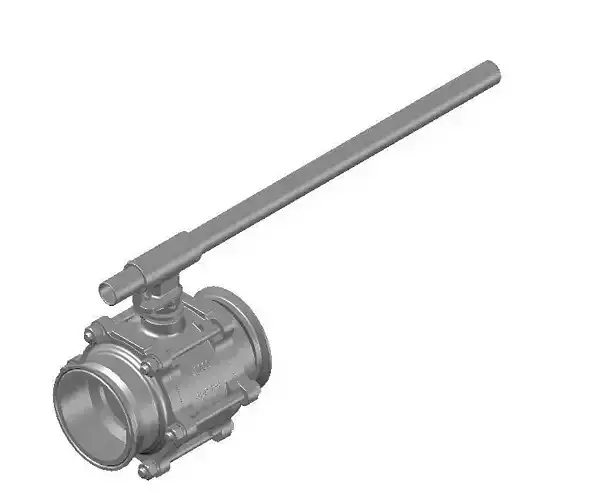

Sanitary Ball Valve TC 4 inch (Ø101.6 mm)

File formats delivered:

.DWG (AutoCAD / Plant 3D)

.STEP (neutral CAD format for Inventor, SolidWorks, Fusion 360, FreeCAD, etc.)

Main benefits:

Save dozens of engineering hours with a ready-to-use CAD library.

All valves include manual handle + tri-clamp details.

Clean geometry optimized for sanitary piping projects.

Organized by size and delivered in two widely compatible formats.

Compatible with major CAD platforms.
