Sanitary Ball Valve OD Complete Set 1-2 in to 4 in 3D model

This package includes a complete 3D CAD library of sanitary ball valves OD, covering 8 standard sizes from 1-2 inch (Ø12.7 mm) up to 4 inch (Ø101.6 mm).

All models were created from scratch with engineering precision and are ready for integration into industrial piping projects in the food, beverage, pharmaceutical, and chemical industries.

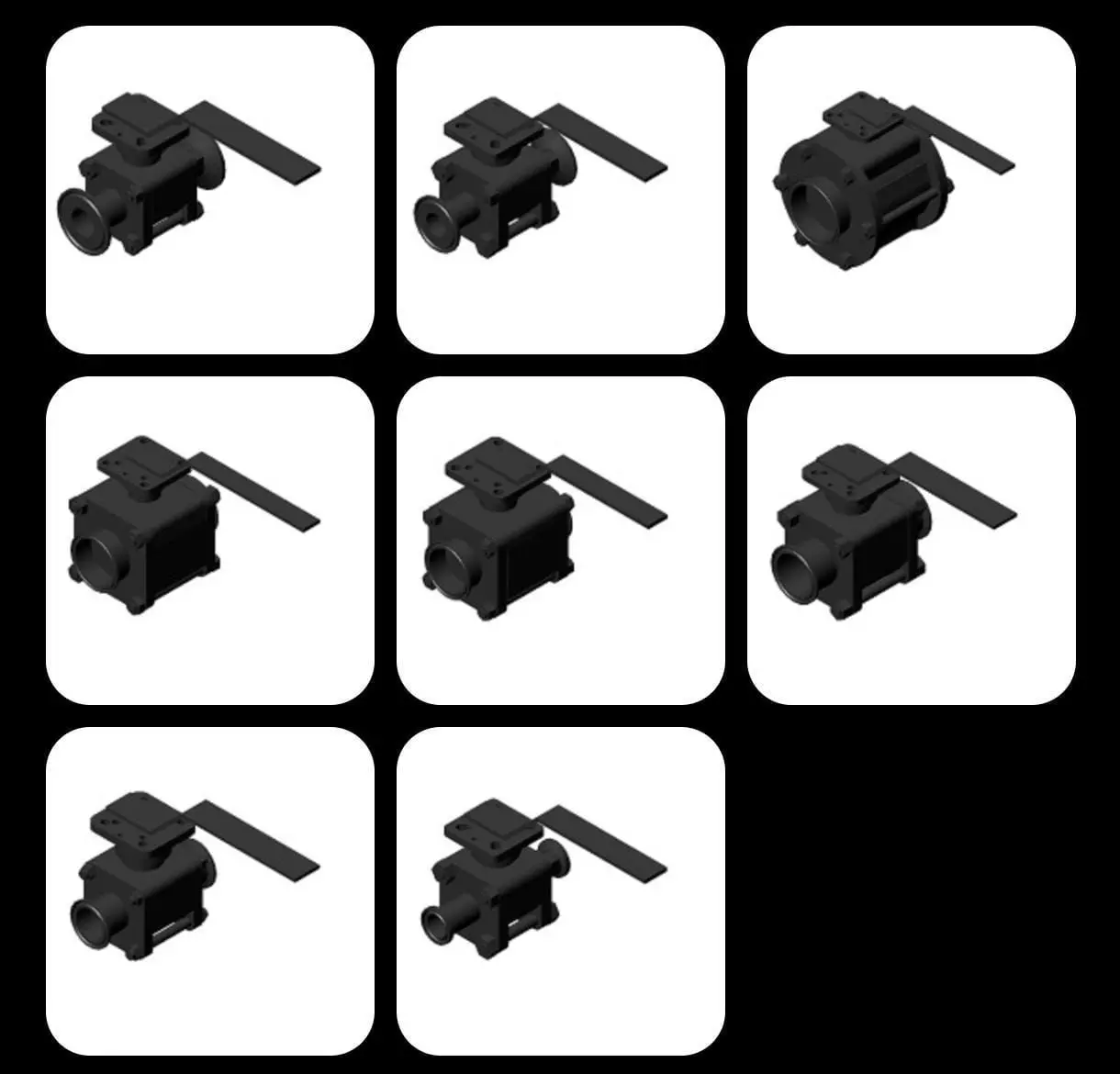

Content included (8 sizes):

Sanitary Ball Valve OD 1-2 inch (Ø12.7 mm)

Sanitary Ball Valve OD 3-4 inch (Ø19.05 mm)

Sanitary Ball Valve OD 1 inch (Ø25.4 mm)

Sanitary Ball Valve OD 1-1-2 inch (Ø38.1 mm)

Sanitary Ball Valve OD 2 inch (Ø50.8 mm)

Sanitary Ball Valve OD 2-1-2 inch (Ø63.5 mm)

Sanitary Ball Valve OD 3 inch (Ø76.2 mm)

Sanitary Ball Valve OD 4 inch (Ø101.6 mm)

File formats delivered:

.DWG (AutoCAD / Plant 3D)

.STEP (neutral CAD format for Inventor, SolidWorks, Fusion 360, FreeCAD, etc.)

Main benefits:

Save dozens of engineering hours with a ready-to-use CAD library.

Clean geometry optimized for industrial piping projects.

Organized by size and delivered in two widely compatible formats.

Compatible with major CAD platforms.
