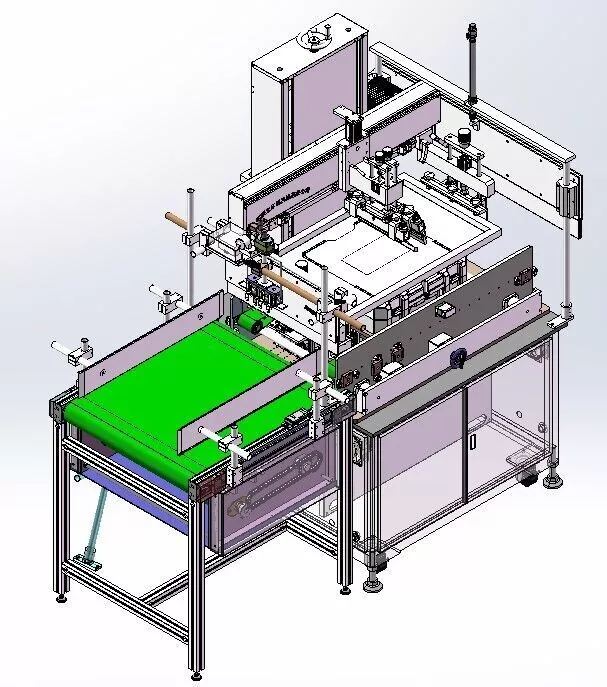

Professional Automatic Screen Printing Machine with Conveyor 3D CAD Model designed for high-speed flat product printing with automatic feeding, positioning, screen printing, and conveyor discharge. The machine is suitable for logos, graphics, labels, and text printing on plastic sheets, electronic components, packaging materials, glass panels, acrylic plates, and industrial products.The system integrates servo-driven printing, precision alignment, pneumatic screen lifting, squeegee movement, product positioning fixtures, and automatic conveyor transfer to achieve stable and repeatable printing quality with minimal operator intervention.This industrial CAD model contains the complete machine assembly, screen frame mechanism, printing head, conveyor system, pneumatic components, electrical layout, and structural details for manufacturing, automation projects, and engineering reference.

Key Features• Automatic screen printing operation • Conveyor feeding and unloading system • Precision product positioning • Servo-driven printing mechanism • Pneumatic screen lifting • Adjustable printing parameters • High repeatability and accuracy • PLC and HMI control • Compact and stable design • Suitable for continuous production
