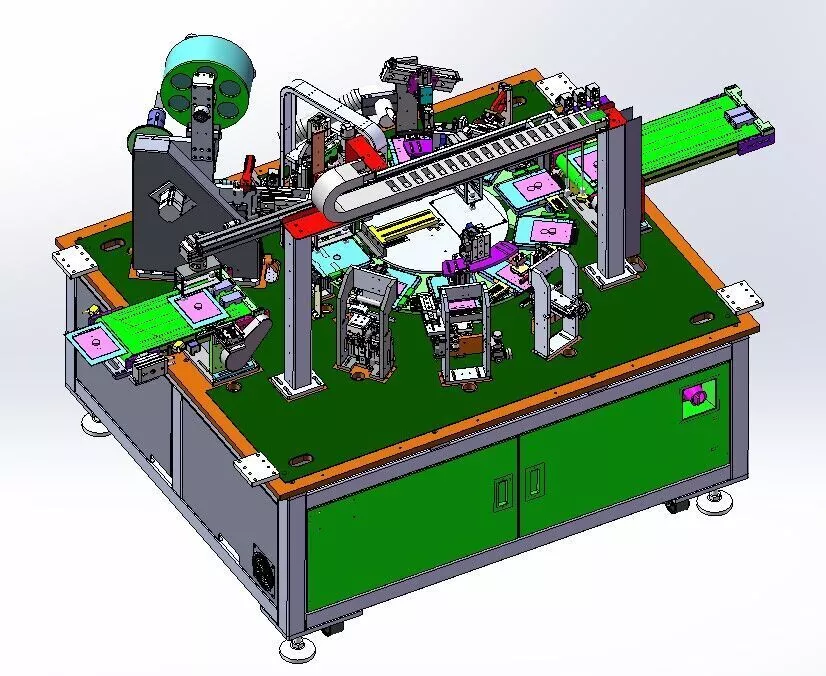

Professional Automatic PCM Board Adhesive Paper Wrapping Machine 3D CAD Model designed for mobile phone battery production lines. This high-speed automated system performs PCM board loading, high-temperature adhesive tape application, release paper peeling, glue forming, module bending, flexible wrapping, and automatic unloading with a production capacity of 1000 PCS/hour.The machine is specially developed for lithium battery manufacturing and battery pack assembly processes, providing accurate adhesive placement and stable wrapping quality. With overall dimensions of 1300 × 1500 × 1900 mm, the design incorporates a rotary indexing mechanism, automatic feeders, adhesive tape forming stations, servo-driven transfer systems, and precision pneumatic assemblies.The complete industrial CAD model contains detailed structures suitable for engineering reference, equipment development, manufacturing simulation, and custom automation projects.

Key Features• Automatic loading and unloading system • High-temperature adhesive paper application • PCM board tape laminating process • Release paper peeling mechanism • Adhesive shaping station • Flexible wrapping module • Module bending mechanism • Rotary indexing table design • Servo and pneumatic operation • PLC and HMI control system • Stable and reliable operation • Production capacity up to 1000 PCS/hour
