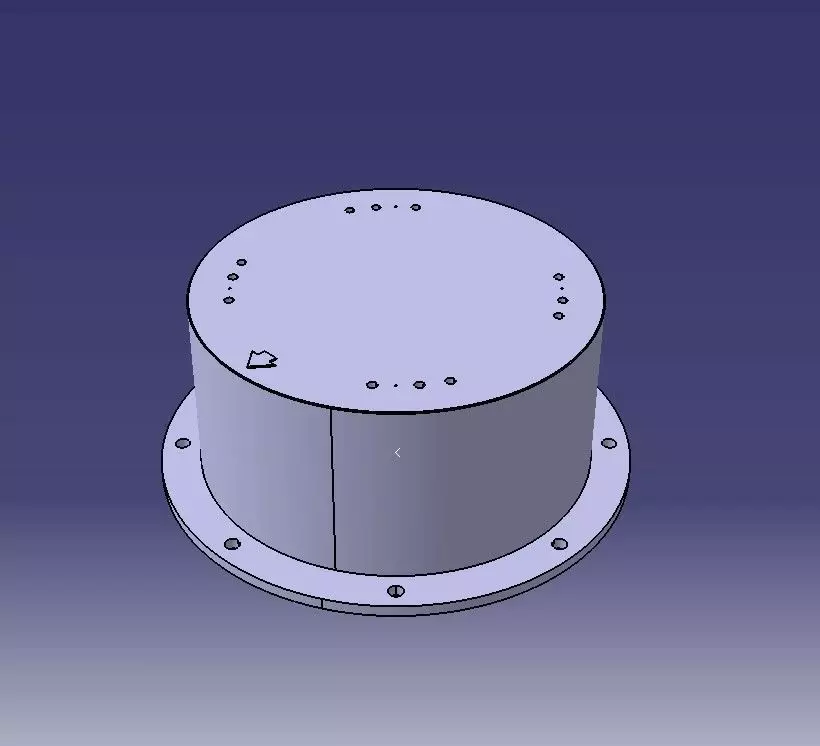

Professional industrial pedestal/riser designed specifically for the ABB IRB 6700 family. Created in CATIA V5 with focus on dimensional accuracy for layout design and reach studies in RobotStudio, Process Simulate, or Delmia.

Technical Specifications:

• Height: 500 mm.
• Orientation: Includes engraved arrow marking for Robot Front (Axis 1 calibration alignment).
• Floor Interface: 1200 mm diameter base with 8 holes (Ø37 mm) at 45° intervals.
• Robot Interface: 1000 mm diameter top plate.
• Standard Compliance: Mounting pattern according to ABB Manual 3HAC044266-001 (Rev. AG).

Key Features:

• Ideal for assembly line simulation, reachability analysis, and cell layout design.
• Note: This is a geometric representative model. NOT intended for structural stress analysis (FEM) or direct manufacturing without prior engineering validation.
