90 Degree Flanged Pipe Elbow 3D model
DESCRIPTION

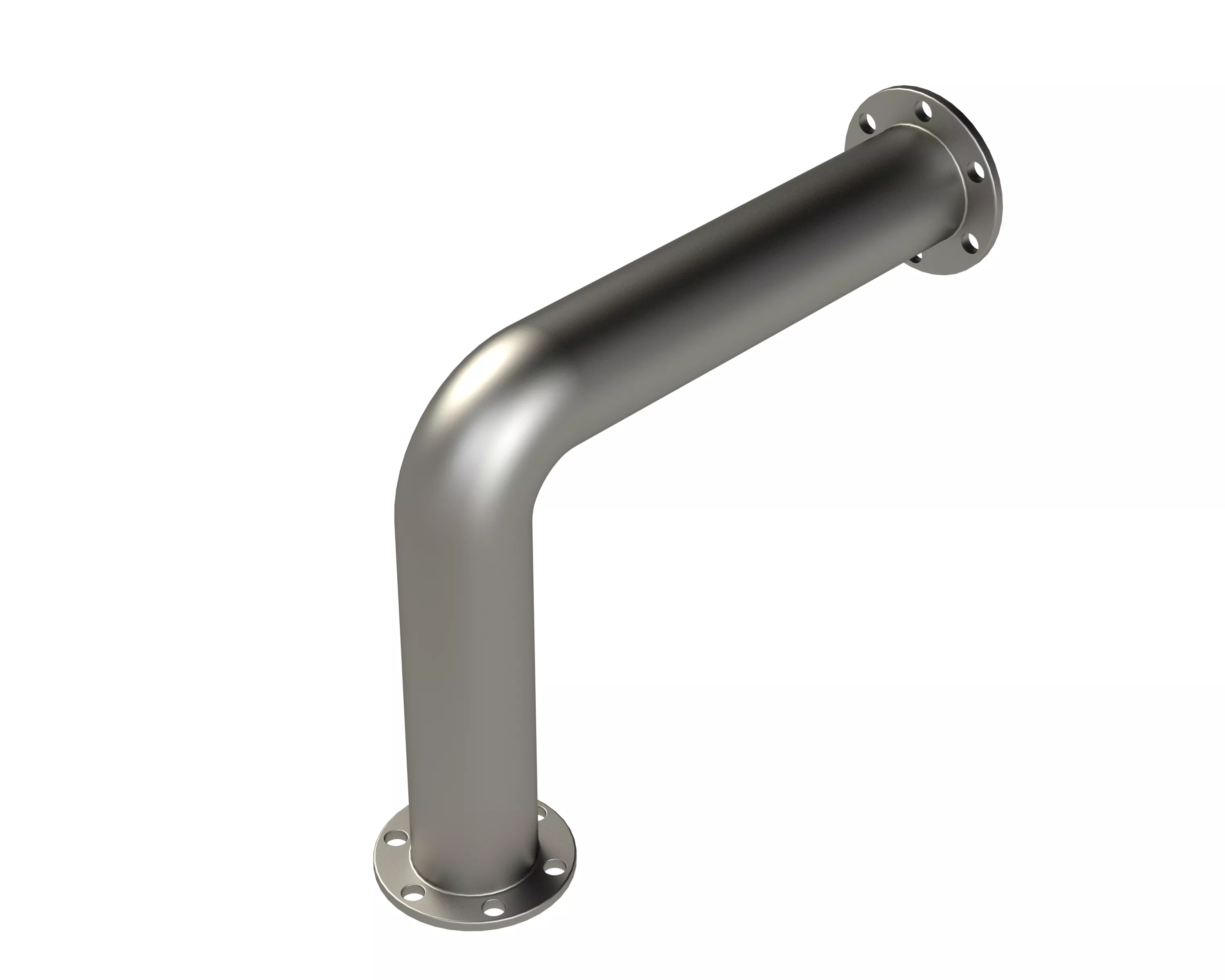

This is a detailed 90-degree flanged pipe elbow designed as a mechanical engineering and industrial piping component. The model features a smooth bent tubular body with circular mounting flanges and evenly spaced bolt holes at both ends. It is suitable for engineering visualization, CAD assemblies, industrial design, piping layouts, product development, and 3D printing applications.

The original model was created in SOLIDWORKS 2021. The package can include the native SOLIDWORKS file along with standard exchange and 3D-printing formats. Dimensions and units should be checked according to the included CAD file.

Units - mmThickness 10 mm ; Hole - 18 mm

Related Tagspipeelbowflangepipingfittingconnectorbendindustrialmechanicalengineeringcadsolidworkspipelinetubularplumbingassemblymachinery
