30 Teeth Spur Gear M5 OD160mm T20mm 3D model
play iconthumbnail
DESCRIPTION

30 Teeth Spur Gear Module M5 OD160mm T20mm

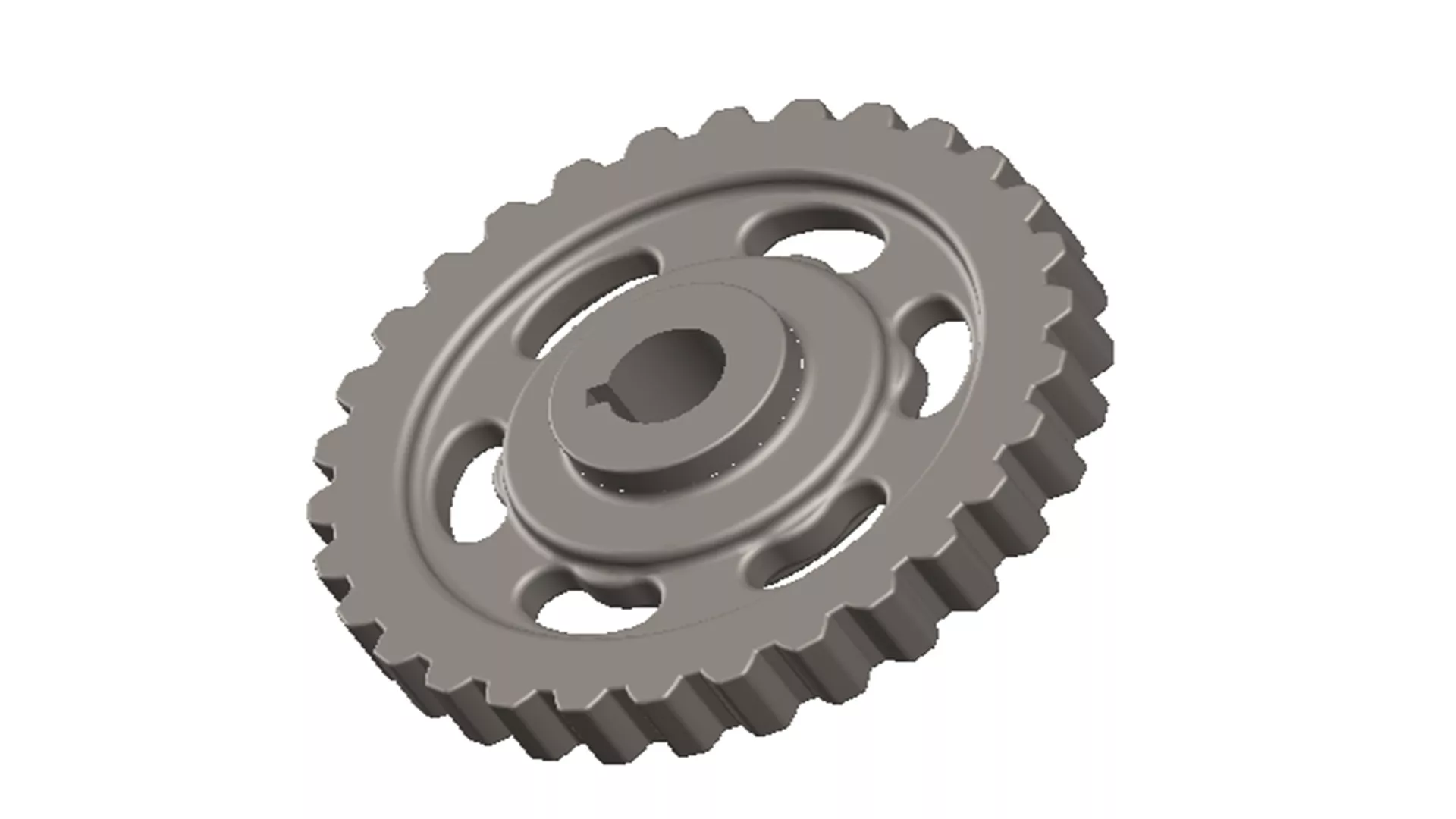

This is a detailed 3D CAD model of a 30-tooth spur gear designed for mechanical engineering, machinery, industrial equipment, machine assemblies, product development, and CAD visualization. The gear is modeled with Module M5, 30 teeth, an outside diameter of 160 mm, a pitch diameter of 150 mm, and a thickness of 20 mm.

The original model was created in SOLIDWORKS 2021 with clean and accurate mechanical geometry. Multiple CAD and 3D formats are included to support different engineering, manufacturing, visualization, and 3D-printing workflows.

*Specifications:*Teeth: 30Module: M5Outside Diameter: 160 mmPitch Diameter: 150 mmThickness: 20 mmSoftware: SOLIDWORKS 2021

Please verify dimensions, tolerances, bore size, pressure angle, and other engineering parameters before manufacturing or using the model in a real mechanical application.

**Formats: **SLDPRT, SLDDRW, STEP, IGS, X_T, STL, 3MF

Related Tagsgearsspurteethmodulemechanicalmachinemachineryindustrialengineeringcadsolidworkscomponentspartdrivetraincogwheelwheeldesign
