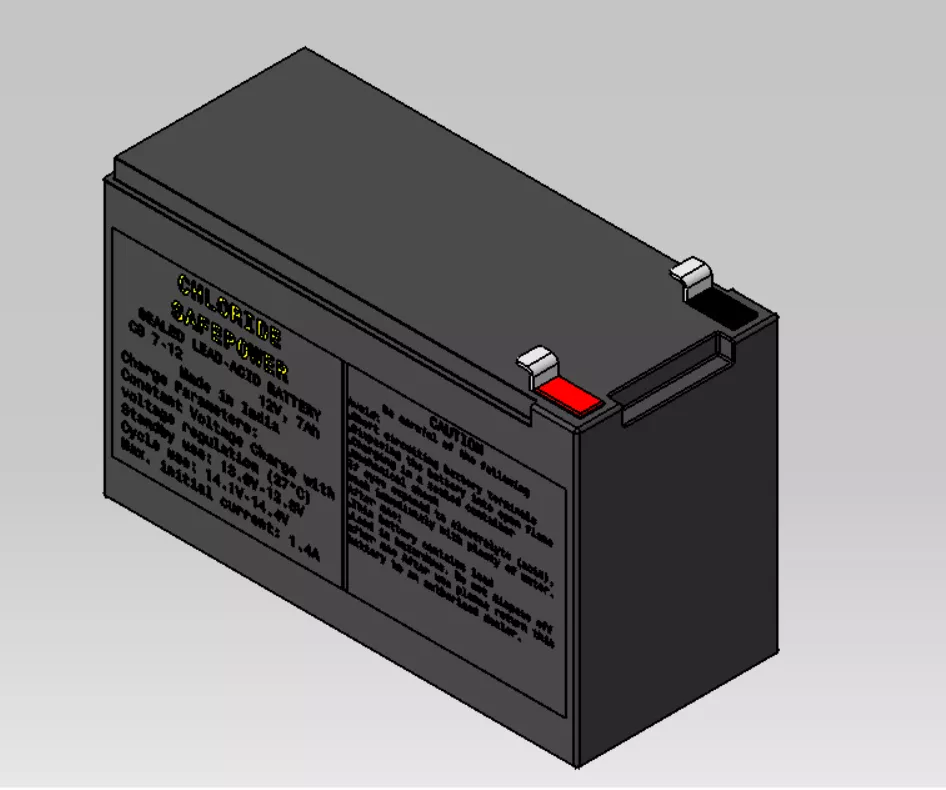

This product is a 3D CAD model **of a 12V 7Ah **Sealed Lead-Acid (SLA) Battery, designed for engineering reference, product visualization, and industrial design applications.

The model represents the external housing of a 7Ah battery, with the outer shell modeled as a CAD part. It can be used as a reference for designing battery racks, battery cabinets, UPS systems, and other equipment requiring battery space planning and dimensional integration.

Technical Specifications

• Battery Type: Sealed Lead-Acid (SLA)

• Nominal Voltage: 12V

• Rated Capacity: 7Ah (7 Ampere-hours)

• Model Scope: External battery housing only

• Application: Industrial design, CAD assembly, and battery rack development

Files Included in the RAR Package

This package contains the following CAD files and supporting documents:

• STEP (.stp/.step): 3D CAD model for compatibility with various CAD software.

• IGES (.igs/.iges): Neutral 3D CAD exchange format.

• STL (.stl): 3D mesh model for visualization and 3D printing workflows.

• DXF (.dxf): 2D drawing exchange format.

• PDF (.pdf): Dimensioned engineering drawing for reference.

• Native CAD files: CAD part and product files, where included.

• Separate engineering drawing: Provided for convenient dimensional reference.

• 3D rendered images: For visual inspection and product presentation.

• Wireframe images: To illustrate the model geometry and structure.

• Industrial Applications

This model can be useful for:

Designing battery racks for different battery quantities.

Developing UPS battery cabinets and enclosures.

Planning battery layouts in industrial equipment.

Creating preliminary CAD assemblies and space-claim models.

Preparing product presentations and engineering concepts.
