Industrial Ladling Robot for Die Casting Machine 3D model
DESCRIPTION
Description

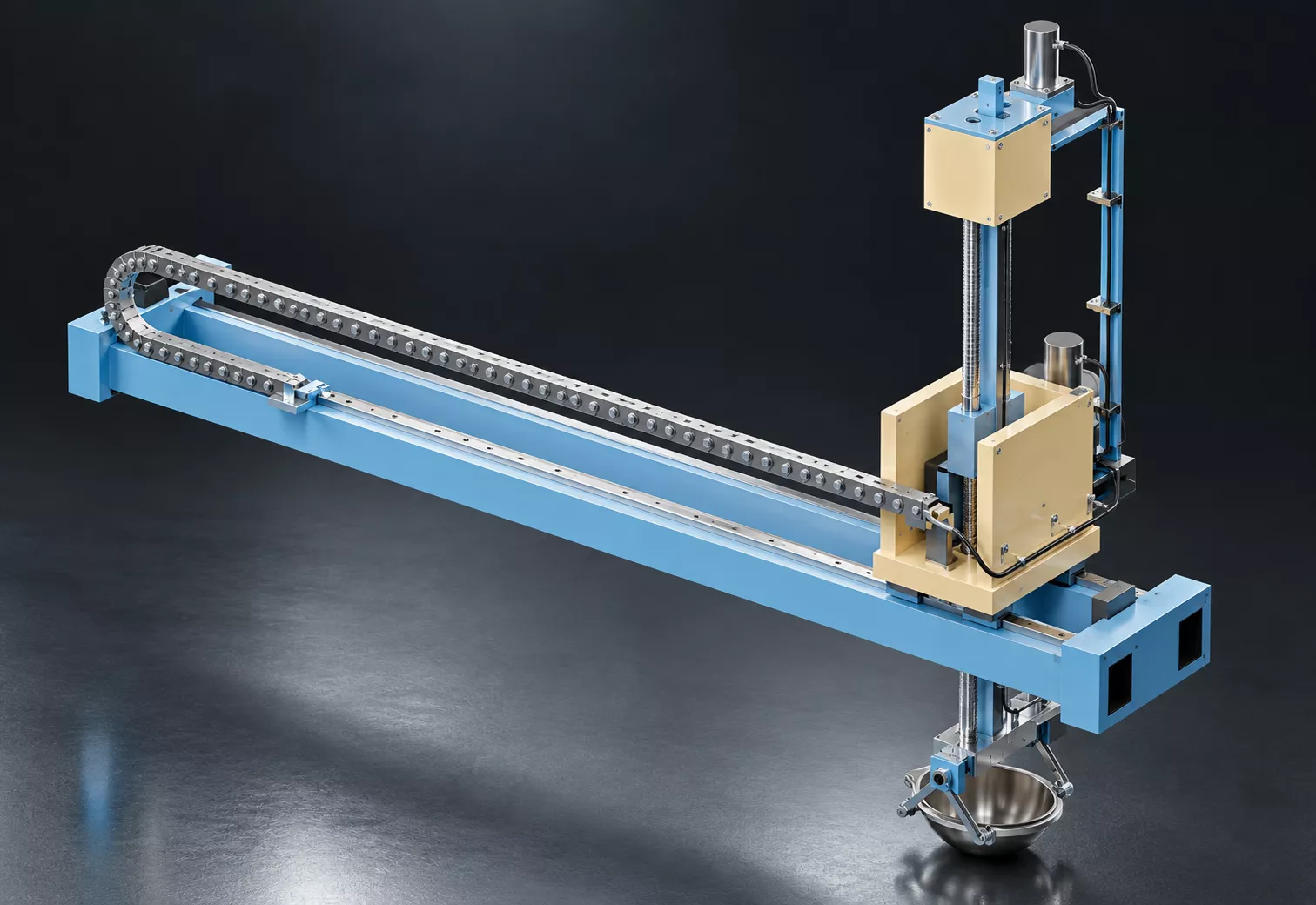

Industrial automatic ladling robot designed for transporting and pouring molten metal into a die casting machine. The model includes a horizontal travel system, vertical lifting mechanism, tilting ladle assembly, geared drives, cable carriers, mounting frame, linear guides, and detailed mechanical connections.

The model is suitable for industrial visualization, foundry layouts, factory planning, engineering presentations, animation, and architectural scenes.

Model Features

Detailed industrial ladling manipulator

Separate and logically named components

Horizontal travel mechanism

Vertical lifting system

Motorized ladle tilting assembly

Detailed ladle, pouring spout, brackets, guides, drives, and wiring

Real-world scale and centered origin

Clean UV mapping

PBR materials and 1024 × 1024 textures

94 mesh objects

26,976 vertices

51,064 triangles

Overall dimensions: 3.200 × 0.816 × 2.241 m

Included Formats

BLEND

FBX

OBJ

GLB

USD

PLY

STL

STEP

IFC

GSM for Archicad 25

The STEP file contains faceted B-Rep geometry and is intended for visualization and coordination rather than parametric mechanical editing. The STL version is provided for geometry exchange and is not prepared as a production-ready 3D-printing model.

This is a conceptual visualization model and should not be used for manufacturing, safety calculations, or operational engineering without verification.

Related Tagsindustrialrobotmachineautomaticpouringmoltencastingfoundryequipmentmachineryfactorymanufacturingautomationmanipulatorroboticshandlingmechanicalbimarchicad
