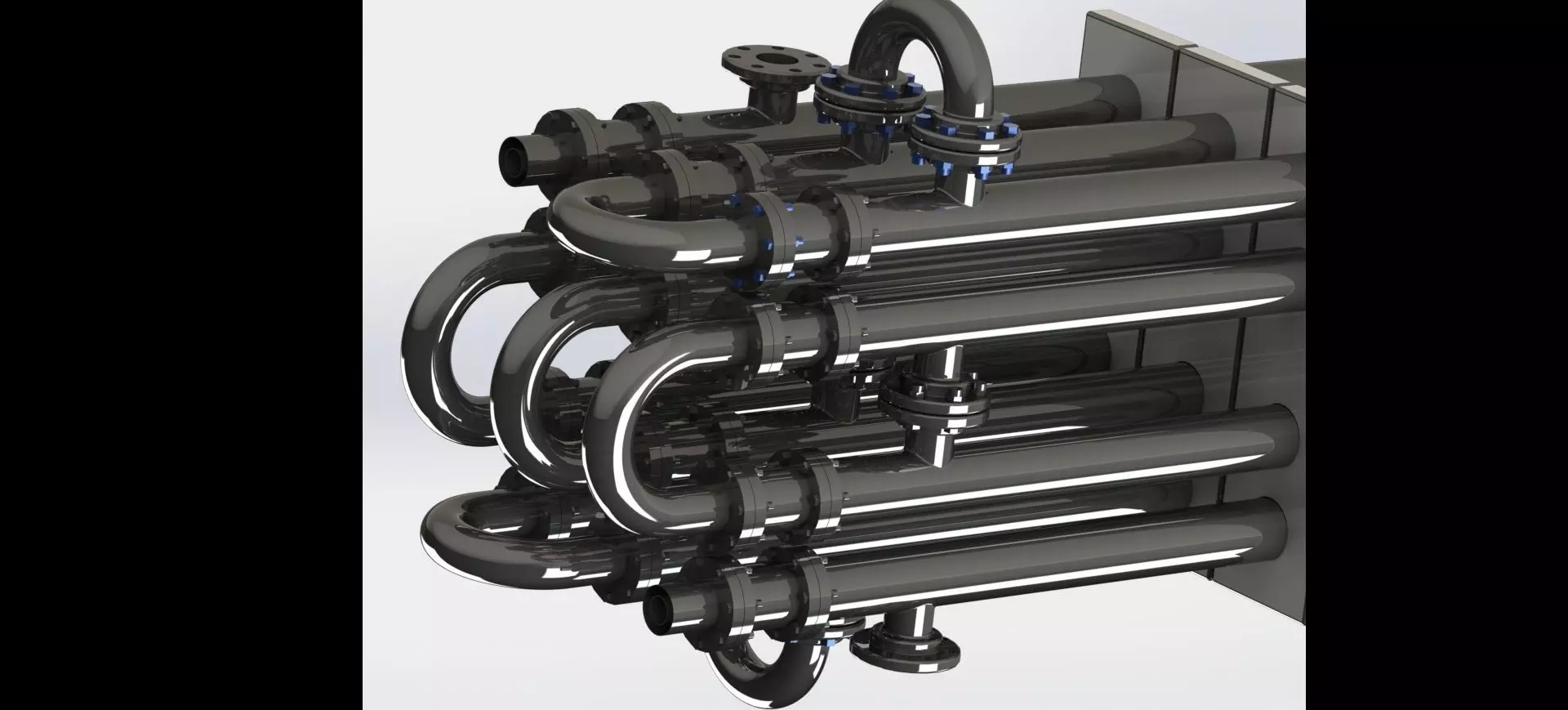

Double Pipe Heat Exchanger HAIRPIN 3D model

Modeled in real-world scale - Milimeters No special plug-ins necessary to use this product

Dimensions : Fins: Do=100mm Nf=36 Di=89mm Hf=12,7mm do=48,3mm e=0,889mm di=40,94mm L=3m I would really appreciate if you could give positive rating, ratings are very important on CGTrader and it affect my reputation. If you have any problems with model/files please do not hesitate to contact me! . Thanks for your time .
