Centrifugal pump 3D model

A centrifugal pump is a mechanical device designed to move fluid by means of the transfer of rotational energy from one or more driven rotors, called impellers. Fluid enters the rapidly rotating impeller along its axis and is cast out by centrifugal force along its circumference through the impeller’s vane tips. The action of the impeller increases the fluid’s velocity and pressure and also directs it towards the pump outlet. The pump casing is specially designed to constrict the fluid from the pump inlet, direct it into the impeller and then slow and control the fluid before discharge.

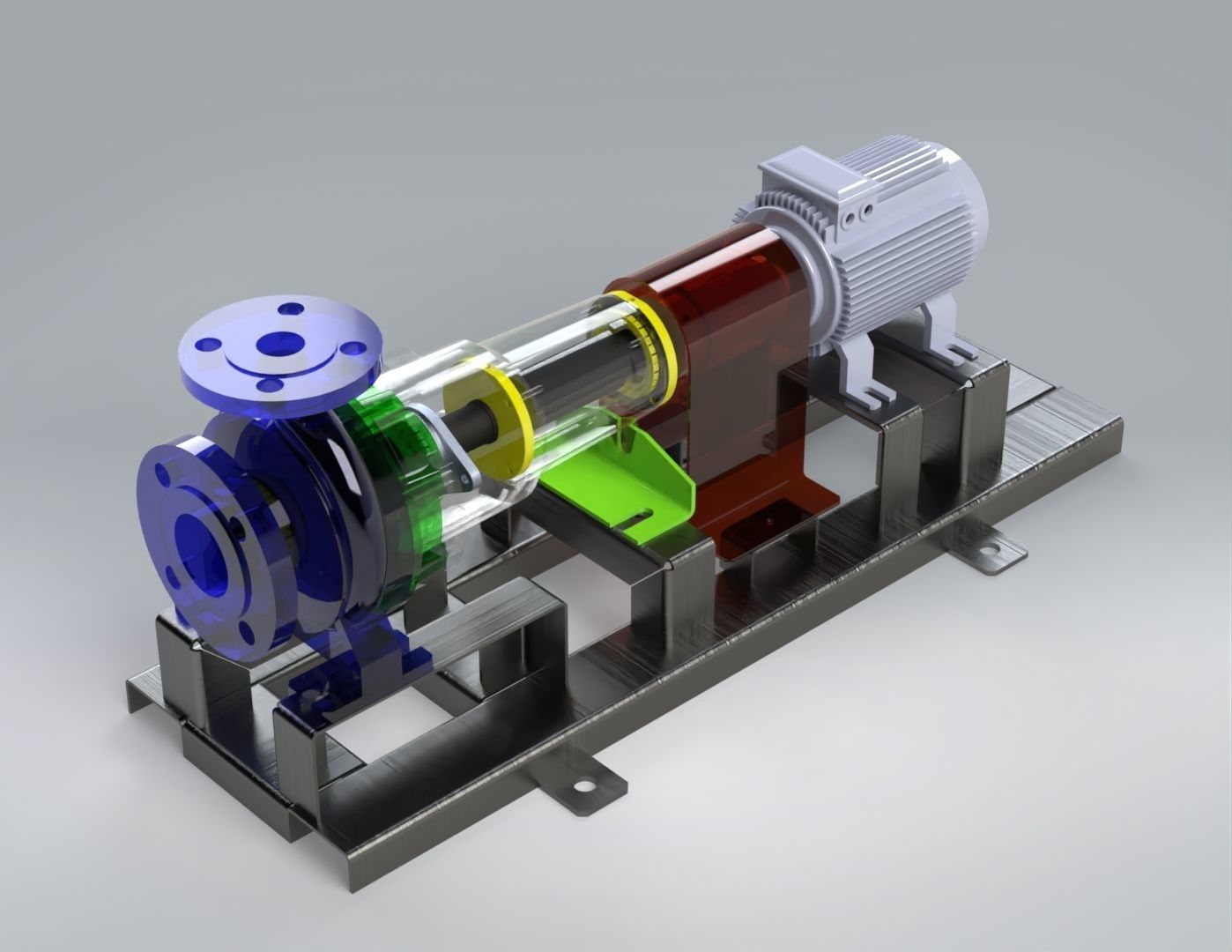

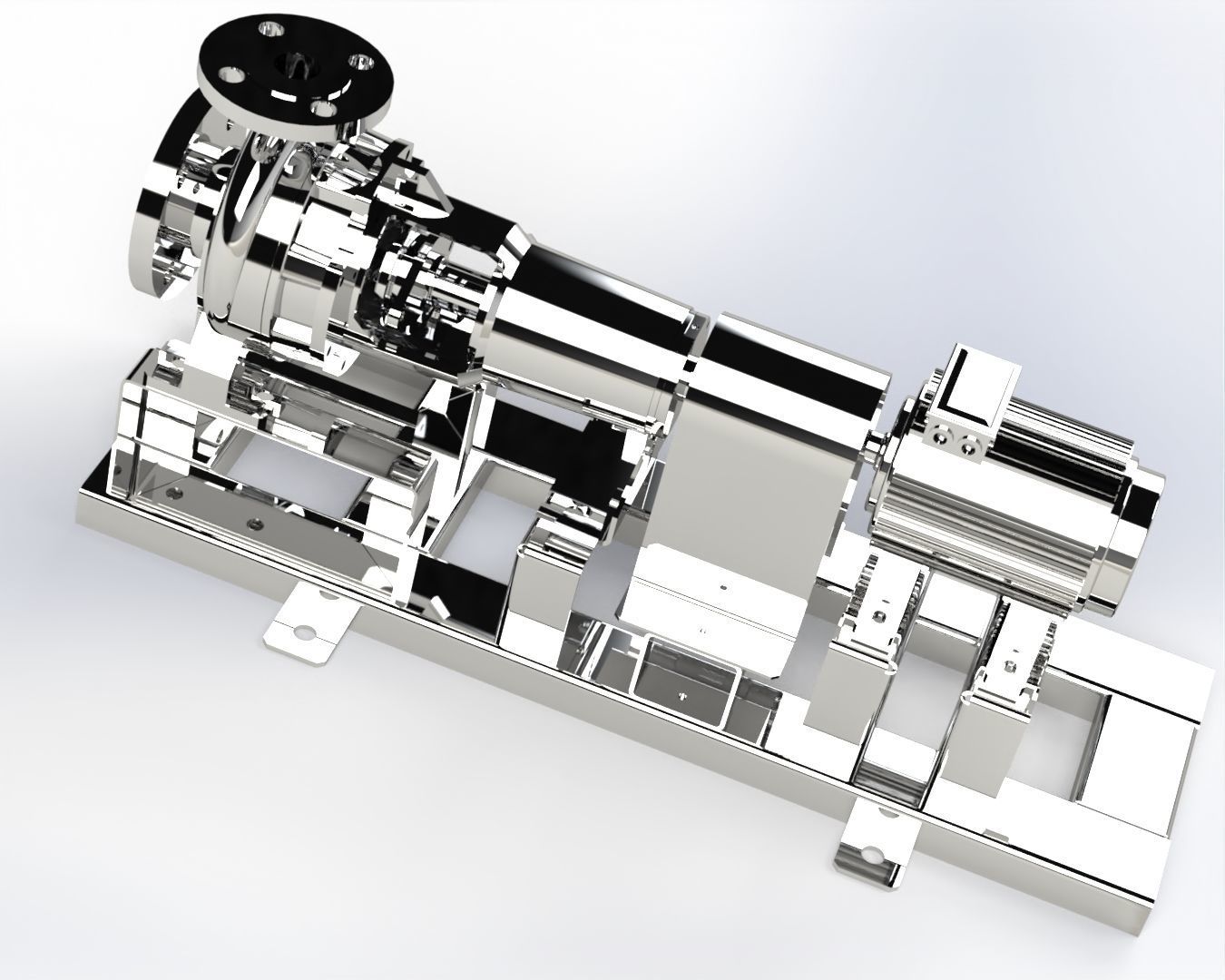

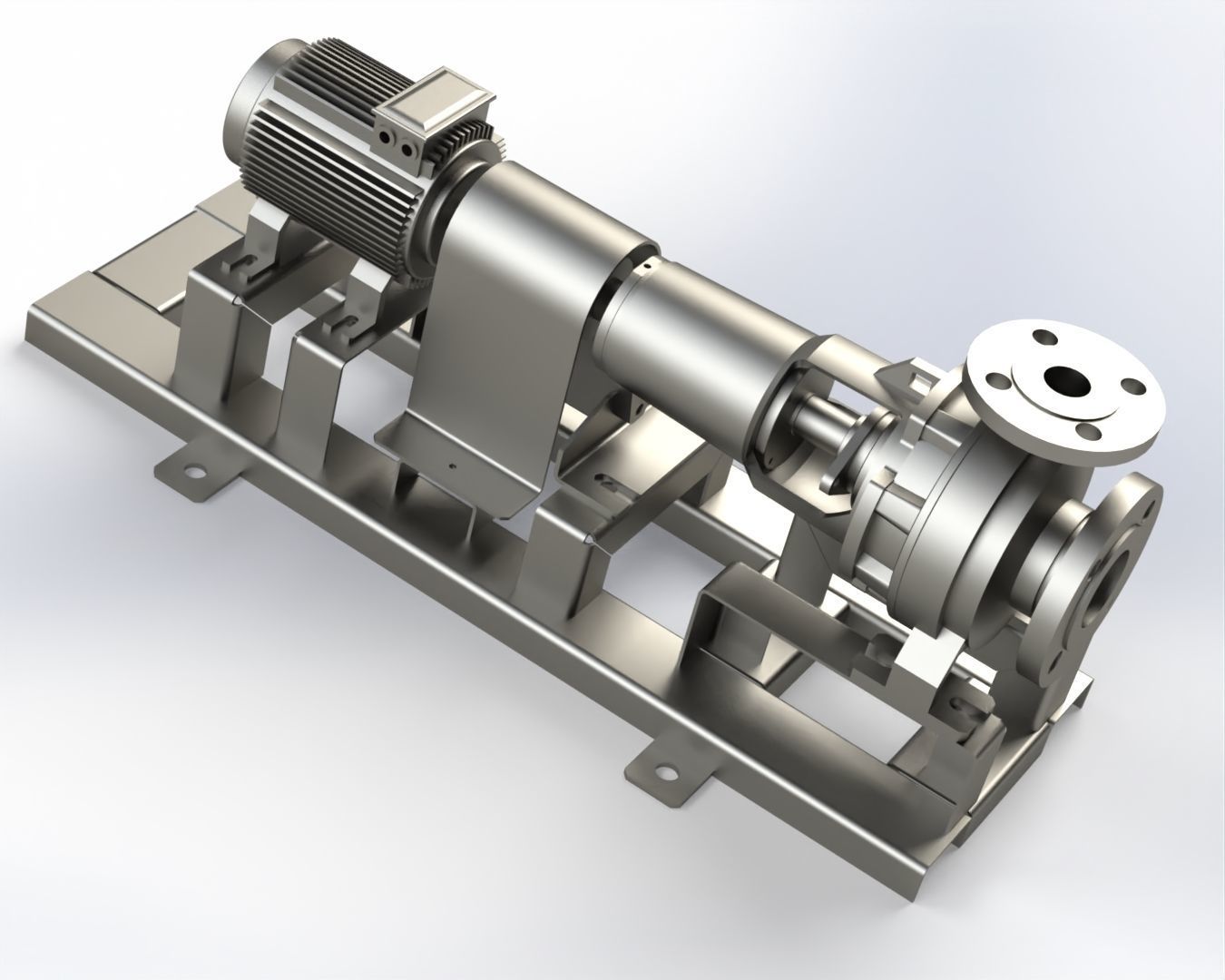

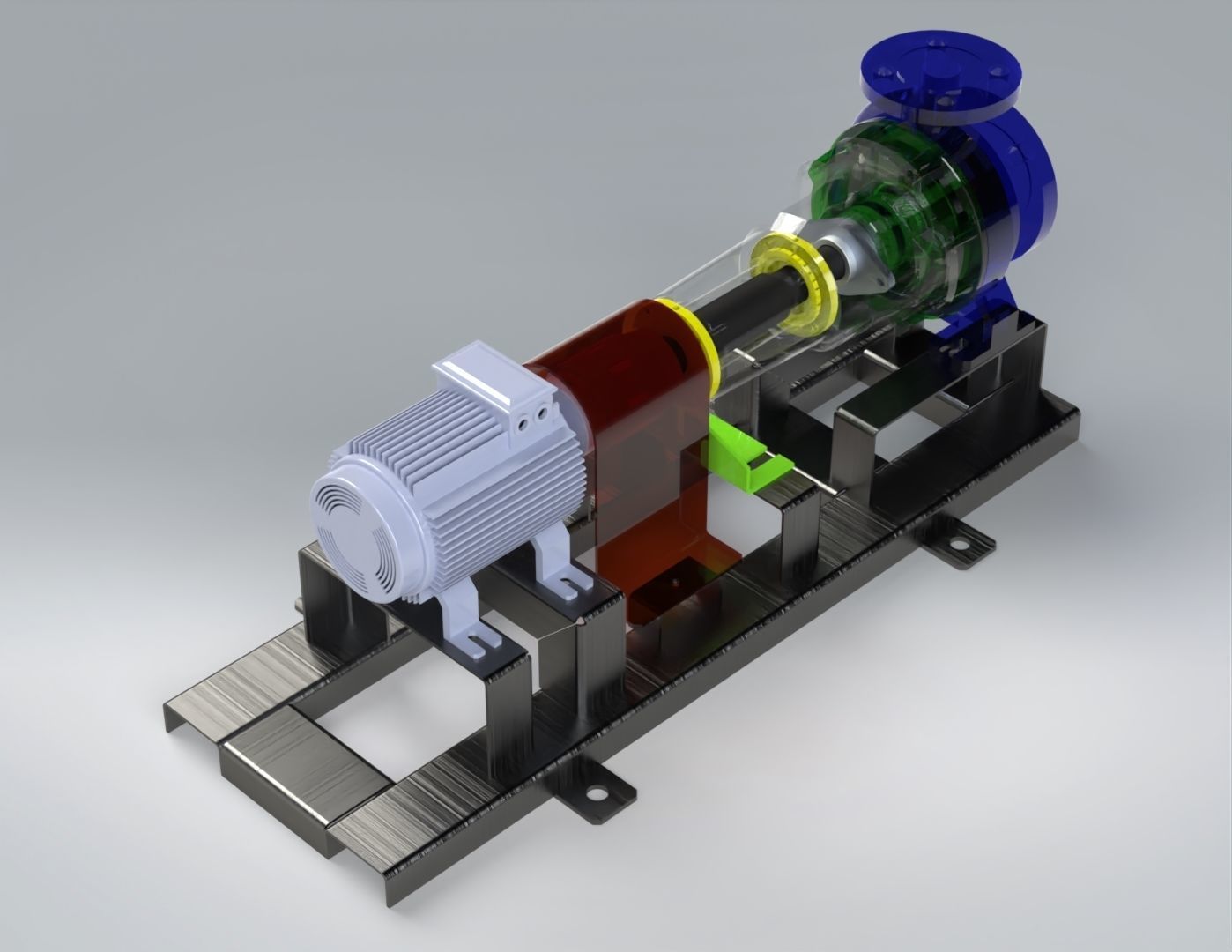

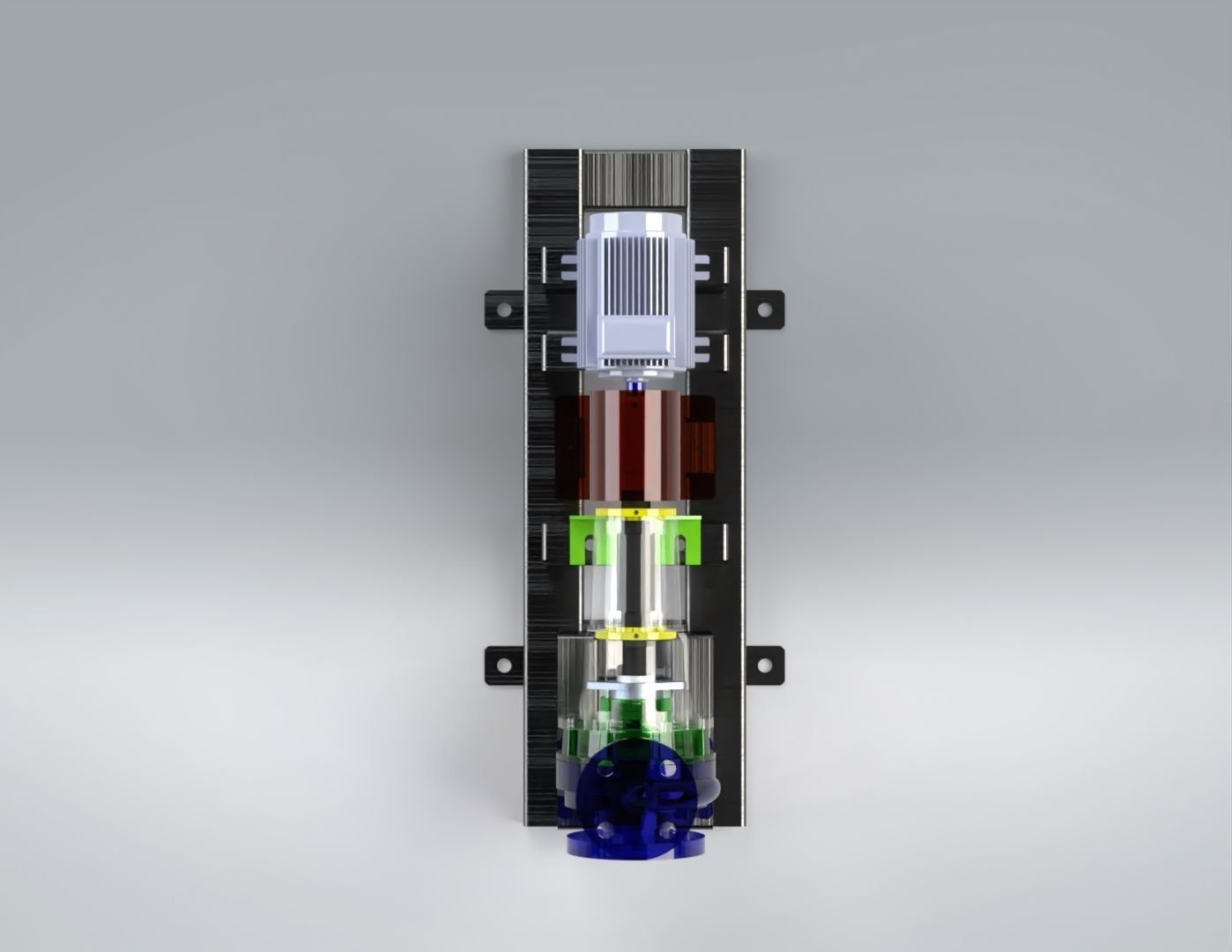

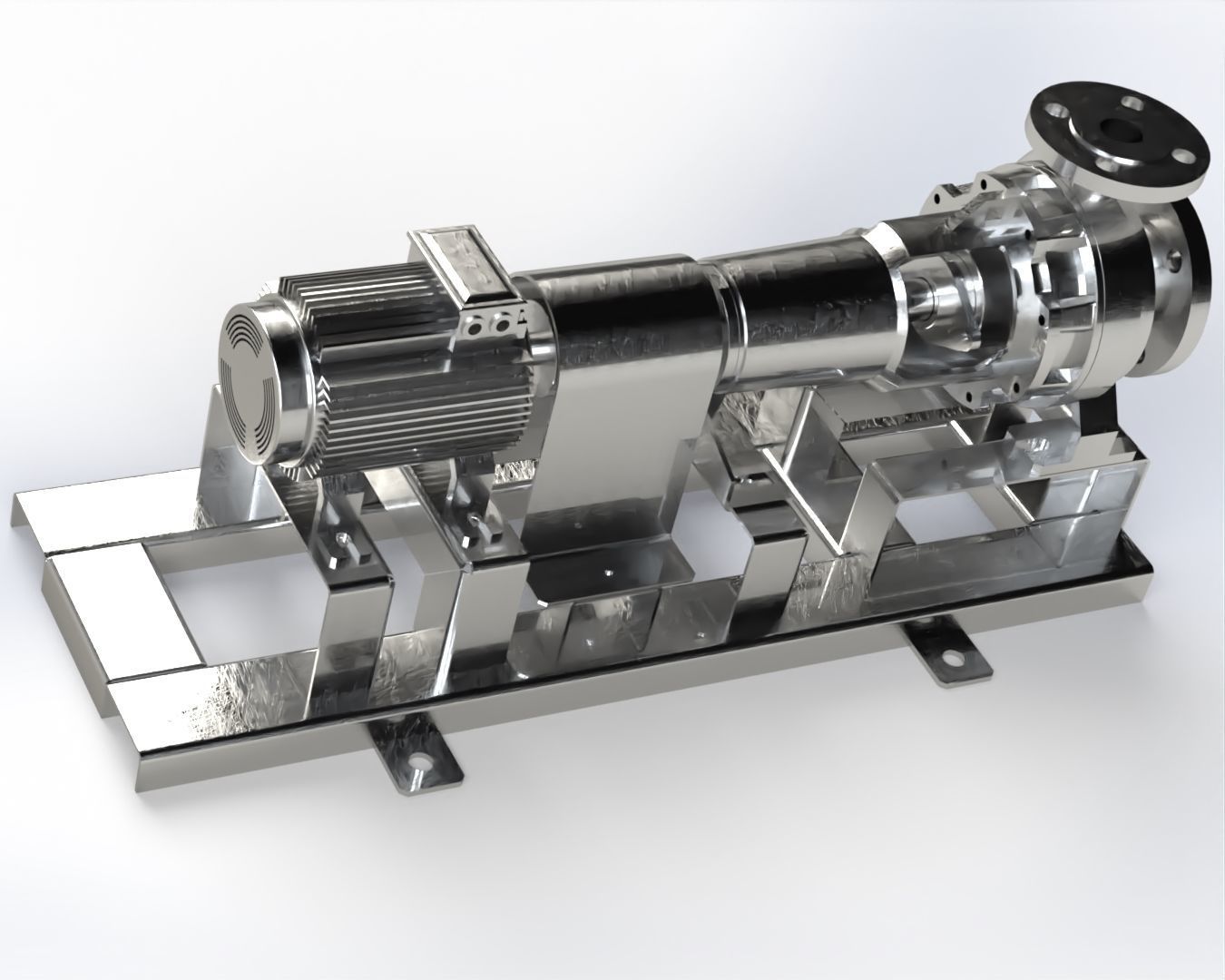

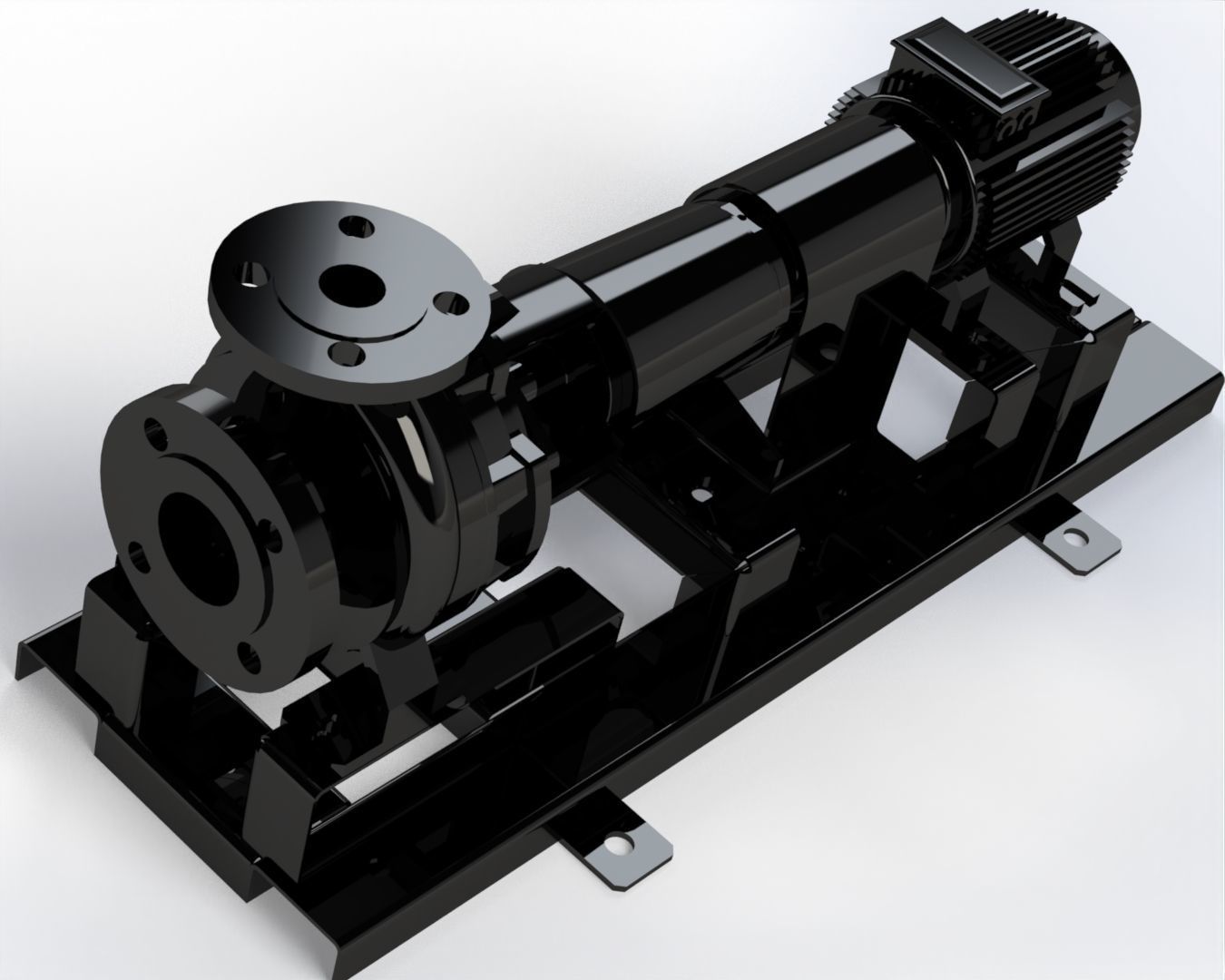

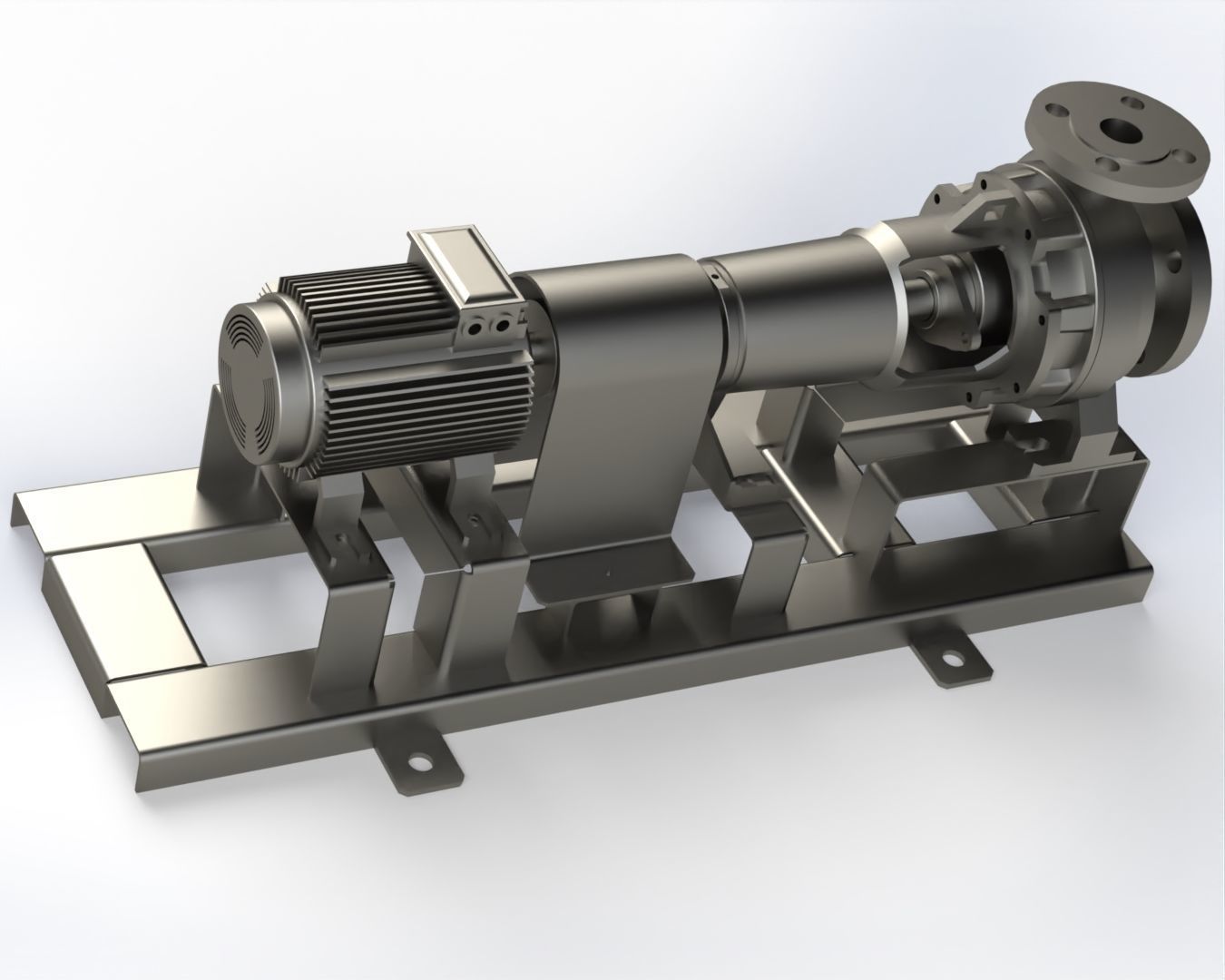

This centrifugal pump is designed by Solidworks 2022 and contains 15 rendering pictures and all Solidworks parts and assembly files.
