High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

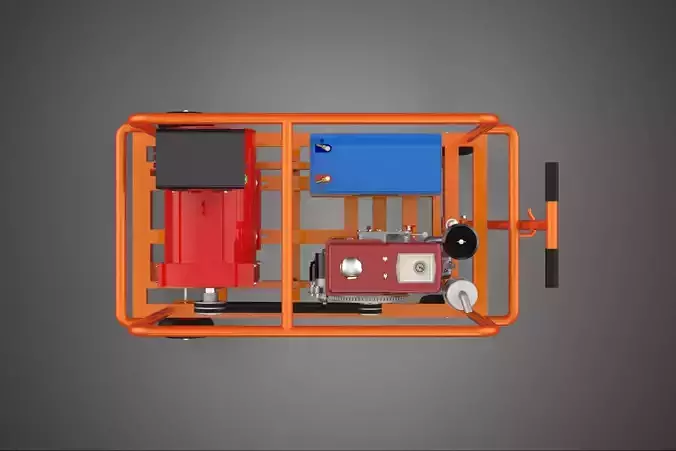

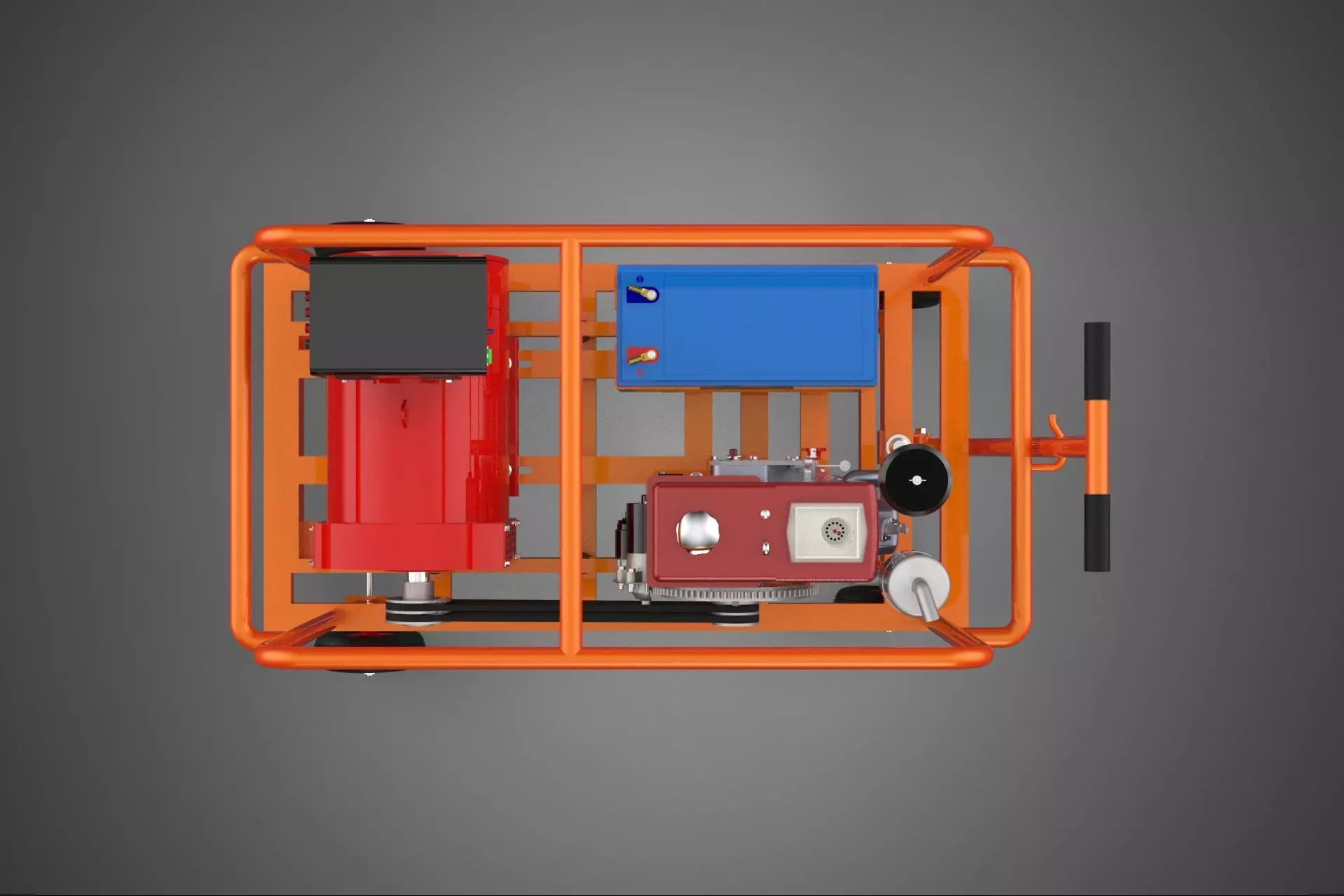

A Caged Diesel Generator Set (Genset) is an integrated, self-contained system designed for the production of electrical energy, functioning by converting the chemical potential energy stored in diesel fuel into mechanical rotational energy, and subsequently into electrical power. This apparatus serves as a critical source for primary, peak-shaving, standby, or emergency power requirements across industrial, commercial, and utility sectors.
Structural and Functional Overview
The generator set is defined by the coupling of a mechanical prime mover and an electrical generating unit, mounted upon a robust base frame, and encased within a protective enclosure, often referred to as a cage or canopy.
The Prime Mover: Diesel Engine
The engine component utilizes compression-ignition technology, deriving power from the controlled combustion of diesel fuel. Diesel engines are favored in genset applications due to their high torque delivery, superior fuel efficiency under heavy loads, reliability, and long service lifespan. The engine’s crankshaft rotation provides the mechanical input necessary to drive the generator head. Supporting systems integral to the prime mover include the fuel injection system, lubrication circuit, cooling system (typically liquid-cooled via radiator), and the exhaust system.
The Electrical Generating Unit: Alternator and Dynamo
The primary function of the generator head is accomplished by a synchronous alternator, which converts the mechanical input into alternating current (AC) electrical output. While the historical term dynamo refers specifically to a direct current (DC) generator, the modern designation for high-power gensets is the AC synchronous alternator. This component operates on the principle of electromagnetic induction: rotation of a magnetic field relative to stationary armature windings induces voltage and current. The output is regulated by an Automatic Voltage Regulator (AVR) to maintain stable voltage under varying load conditions.
The Protective Enclosure (The Cage)
The protective housing, or cage, is a fabricated metal structure designed to enclose the operational components. Its function is multifaceted:
- Safety: Preventing unauthorized access to moving parts and high-voltage terminals.
- Environmental Protection: Shielding the engine and alternator from adverse weather conditions (rain, dust, temperature extremes), essential for units deployed outdoors.
- Acoustic Attenuation: In modern high-density environments, the enclosure frequently incorporates sound-dampening materials (acoustic liners, specialized baffling) to minimize noise emissions, ensuring compliance with local noise pollution regulations. These are often referred to as soundproof or silent gensets.
- Security: Providing a measure of physical security against vandalism or theft.
### Operational Characteristics
Gensets are specified by their electrical output capacity, commonly expressed in kilovolt-amperes (kVA) or kilowatts (kW). Key operational parameters include the system’s voltage configuration (e.g., low, medium, or high voltage), operating frequency (50 Hz or 60 Hz), and phase configuration (single or three-phase).
The operational state is managed by a centralized Control Panel, which includes meters for monitoring engine parameters (oil pressure, coolant temperature, RPM) and electrical output (voltage, current, frequency). Advanced control systems incorporate automatic transfer switches (ATS) to seamlessly switch power supply from the primary source (utility grid) to the genset upon grid failure, and protective relays to manage fault conditions.
The integration of the diesel engine, synchronous alternator, and sophisticated control architecture within a durable, protective enclosure results in a highly reliable, autonomous electrical power generation platform.
KEYWORDS: Generator Set, Diesel Engine, Alternator, Genset, Prime Mover, Synchronous, Electrical Power, Canopy, Acoustic Enclosure, Compression Ignition, KVA, Kilowatts, Emergency Power, Standby Generator, Voltage Regulator, Control Panel, Automatic Transfer Switch, Power Generation, Frequency, Three-Phase, Industrial Power, Commercial Applications, Noise Attenuation, Base Frame, Fuel Efficiency, Rotating Machinery, Engine Cooling, Power Dynamo, Electrical Grid, Load Management.
