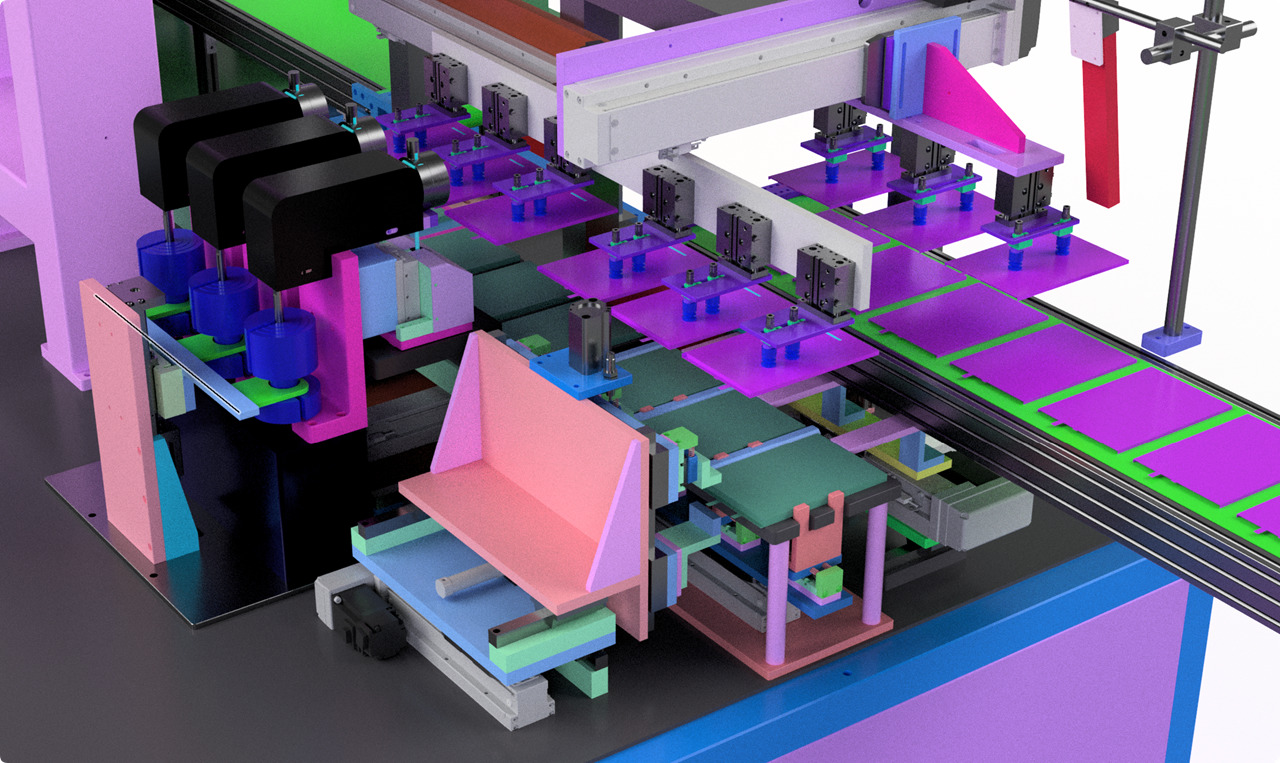

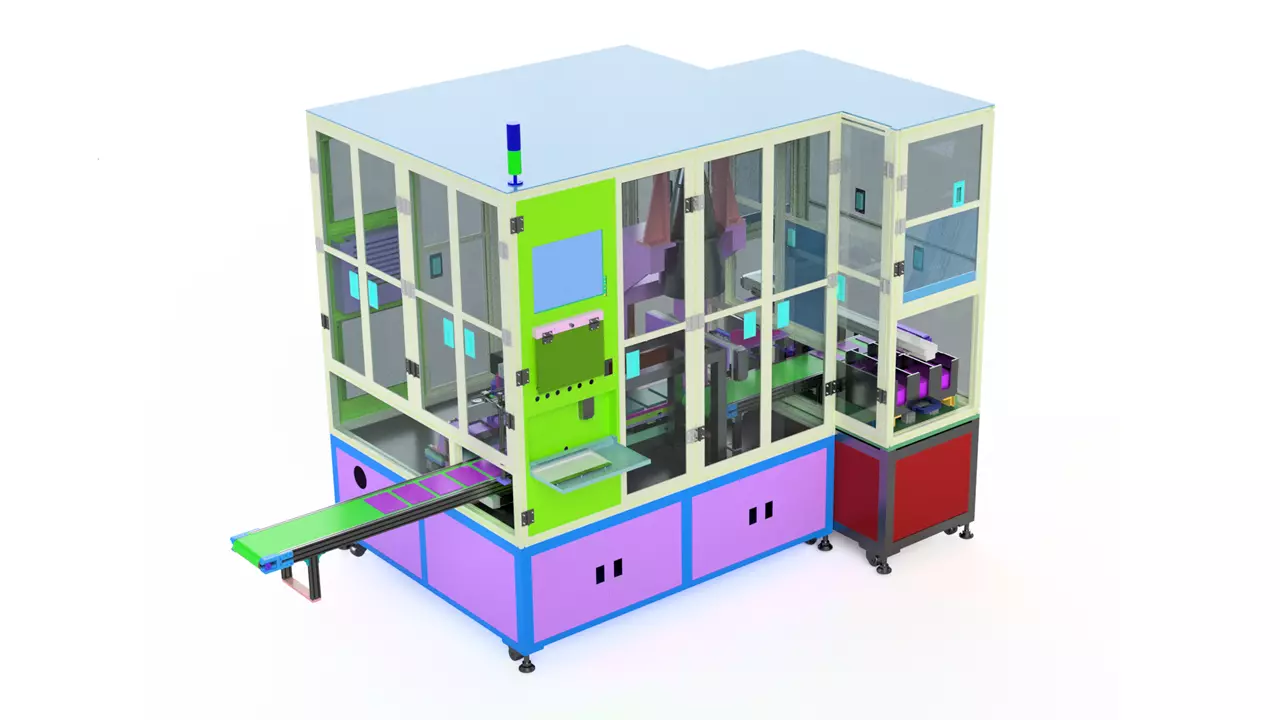

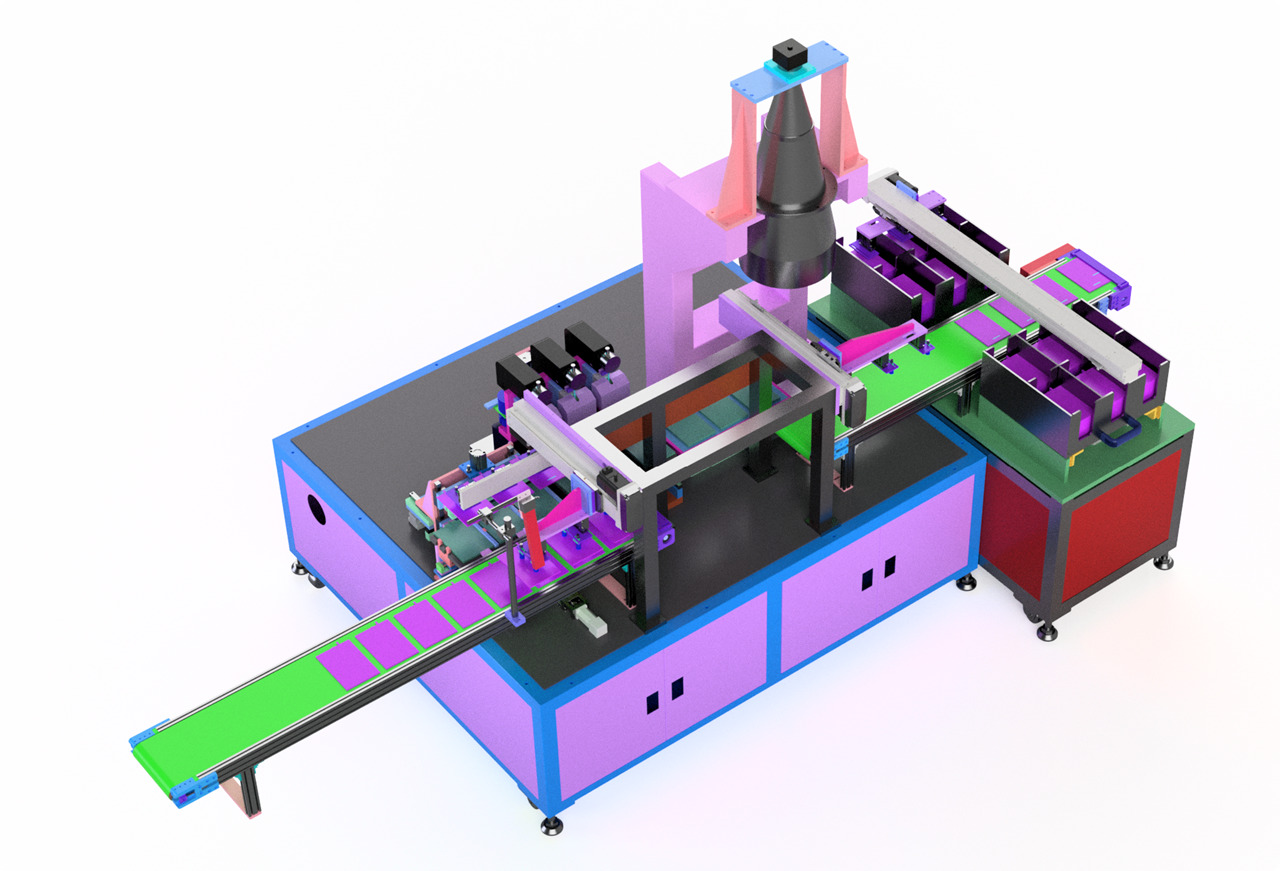

Battery Integrated Dimension Measurer 3D model
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

The Mobile Battery PPG&CCD Integrated Dimension Measurer is a precision system designed for high-speed, non-contact measurement of pouch/laminated batteries in groups of three. Combining PPG (Projected Profiling Geometry) and CCD imaging, it simultaneously captures critical dimensions—length, width, thickness, and edge contours—with ±0.02mm accuracy in just 5 seconds per triplet.

The camera setup ensures 3D modeling of irregular surfaces, while auto-alignment and AI-driven defect detection reject misshapen units in real time. Compatible with ultra-thin (0.3–5mm) lithium-polymer batteries, it features a dust-sealed enclosure, touchscreen HMI, and SPC reporting for ISO 13485 compliance.

This solution boosts production throughput by 200% compared to single-battery gauges, making it ideal for consumer electronics manufacturers prioritizing speed and quality control.

Key highlights:

Focus on pouch/laminated batteries (common in phones/wearables).Emphasizes speed (3s/group) and 3D measurement for flexible formats.Mentions AI defect detection and industry compliance (ISO 13485 for electronics).The 3D model designed by SolidWorks2023 includes a step format file, which can be opened using other 3D software, and the file package size is 189MB.

Related Tagsindustrialmachineindustrial machineequipmentbattery
measurer
lithium

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

Battery Integrated Dimension Measurer 3D model

Royalty Free License (no AI)
Created by
eric2020
eric2020
(2 reviews)
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
SLDPRT
SolidWorks<br />Version: 2023<br />File Size: 190 MB
OTHER
Other<br />File Size: 190 MB
STP
STEP<br />Version: 214<br />File Size: 66.5 MB
Provided by designer
Information and details shared directly by the model's designer.
3D Features
The model includes animations (movement or actions) that can be played in supported software or engines.
The model has a skeleton or bone structure, making it ready for posing or animation.
PBR
Uses Physically Based Rendering materials, which give the model realistic lighting and surface properties.
Textures
The model includes image files (textures) that add color, patterns, or detail to its surfaces.
Materials
The model has material settings that define how surfaces look (color, shine, transparency, etc.).
UV Mapping
The model's surfaces are mapped to a 2D image, allowing textures to display correctly.
Plugins Used
Some external plugins were used to create the model. These may be required for full functionality.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
Unwrapped UVs
Unknown
Publish date
2025-07-09
Model ID
#6278670
